D8LC40: Descriptionsuper fast recovery rectifiers (400v 8A); CategoryDiscrete semiconductor diode; File Size364KB，8 Pages; ManufacturerSHINDENGEN; Websitehttps://www.shindengen.com

Download Datasheet Parametric View All

D8LC40 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D8LC40	-	-	View	Buy Now

D8LC40 Overview

super fast recovery rectifiers (400v 8A)

D8LC40 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SHINDENGEN
Parts packaging code	TO-220AB
package instruction	R-PSFM-T3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW NOISE, FREE WHEELING DIODE
application	SUPER FAST RECOVERY
Shell connection	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
JESD-609 code	e0
Humidity sensitivity level	2
Maximum non-repetitive peak forward current	60 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Maximum output current	8 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	240
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
Maximum reverse recovery time	0.05 µs
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

SHINDENGEN

Super Fast Recovery Rectifiers

Dual

D8LC40

400V 8A

FEATURES

●

Low noise

●

trr50ns

●

Fully Isolated

OUTLINE DIMENSIONS

Case : ITO-220

Unit : mm

Molding

APPLICATION

●

Switching power supply

●

Free Wheel

●

Home Appliances, Office Equipment

●

Telecommunication, Factory Automation

RATINGS

●Absolute Maximum Ratings (If not specified Tc=25℃)

Item

Symbol

Conditions

Storage Temperature

Tstg

Operating Junction Temperature

Maximum Reverse Voltage

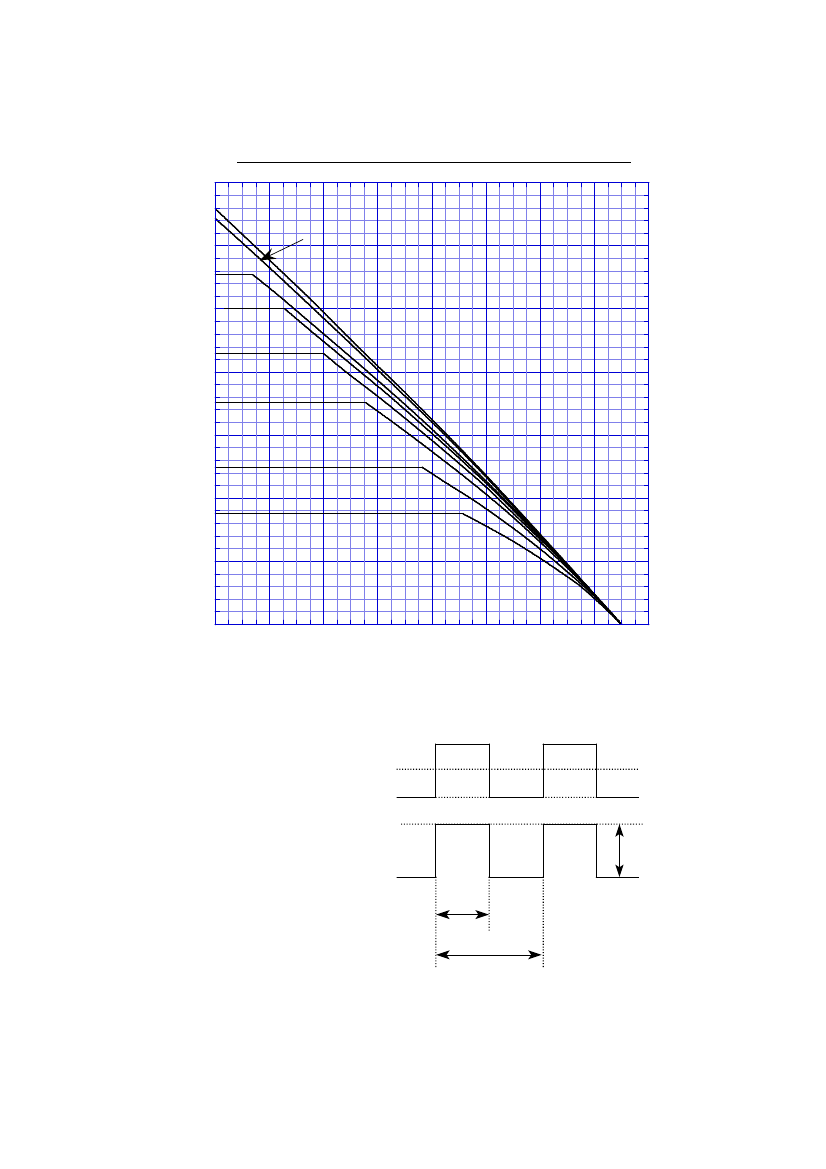

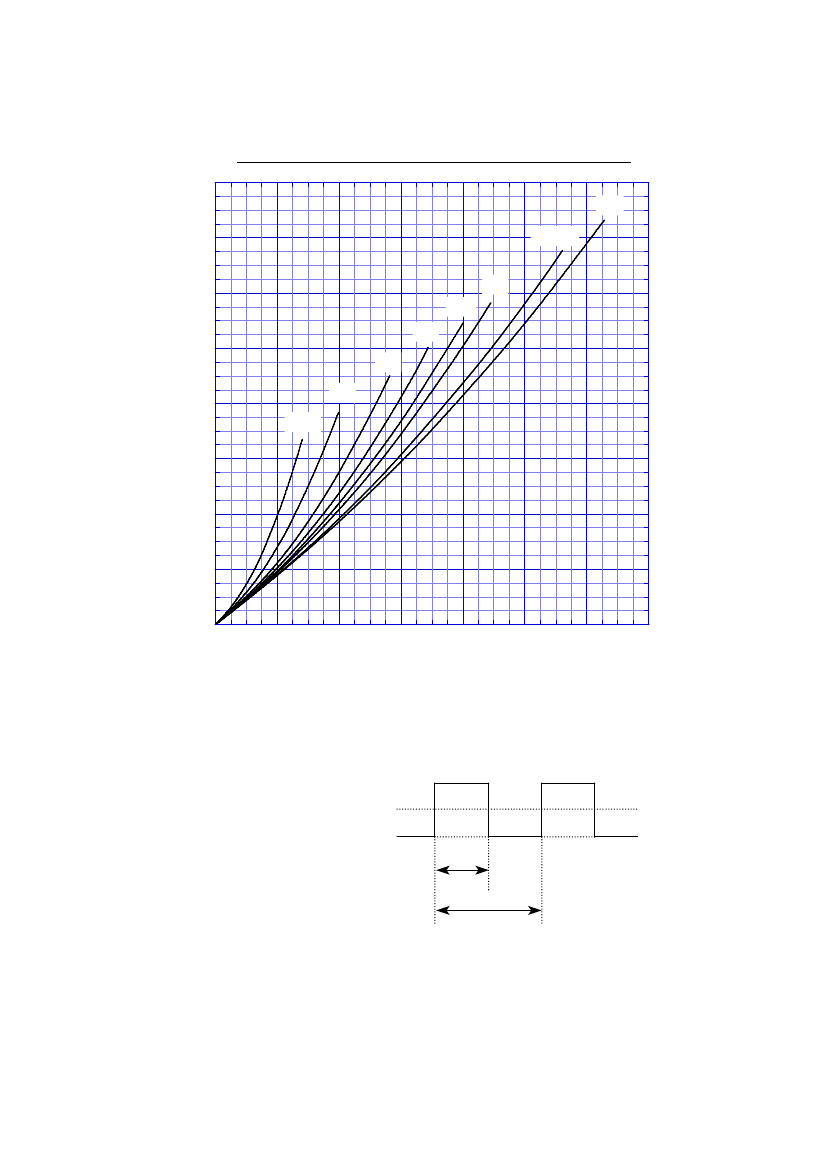

Average Rectified Forward Current

50Hz sine wave, R-load, Rating for each diode Io/2, Tc=114℃

Peak Surge Forward Current

FSM

50Hz sine wave, Non-repetitive 1 cycle peak value, Tj=25℃

Dielectric Strength

Vdis

Terminals to case, AC 1 minute

Mounting Torque

TOR

(Recommended torque：

0.3N½m)

●Electrical Characteristics (If not specified Tc=25℃)

Item

Symbol

Conditions

=4A,

Pulse measurement, Rating of per diode

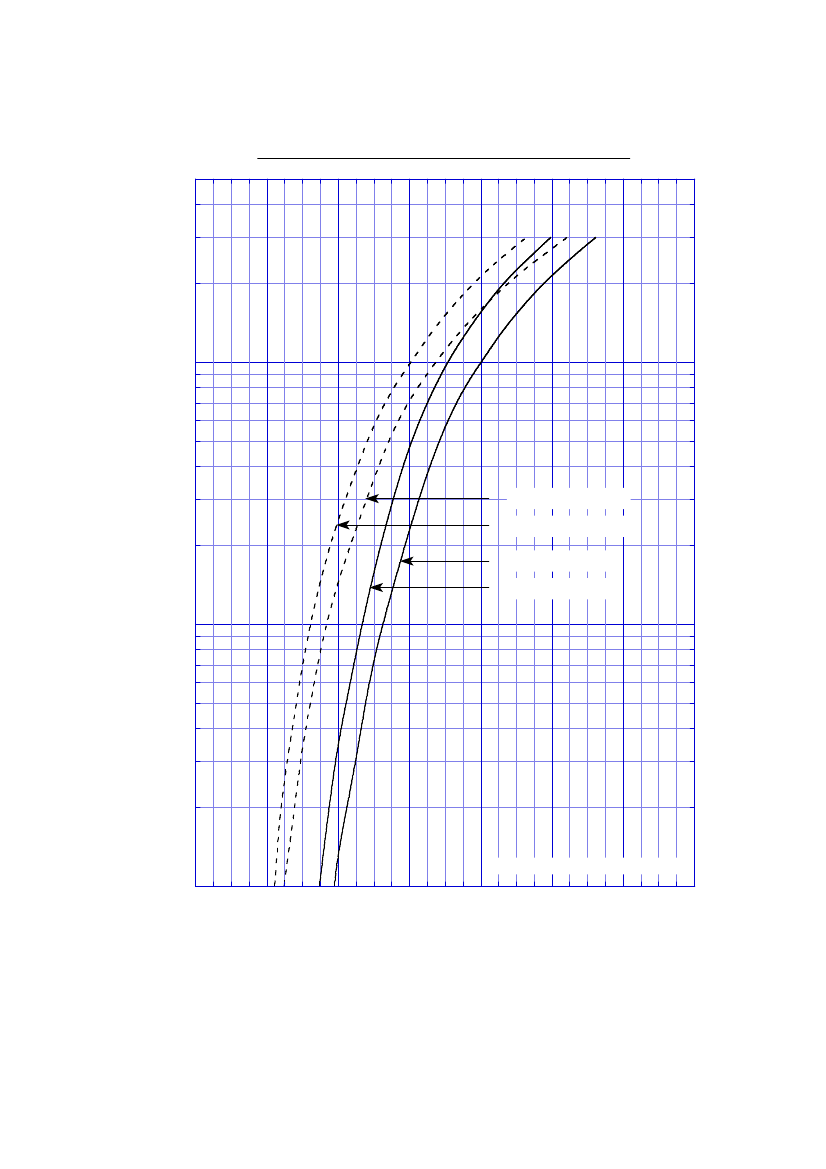

Forward Voltage

Reverse Current

, Pulse measurement, Rating of per diode

Reverse Recovery Time

=0.5A, I

=1A, Rating of per diode

trr

Thermal Resistance

θjc

junction to case

Ratings

-40∼150

150

400

1.5

0.5

Ratings

Max.1.3

Max.10

Max.50

Max.3.3

Unit

℃

N½m

Unit

μA

℃/W
