SERIES VV
1,000 TO 5,000 VDC OUTPUT
Isolated, Single Output Modules
1,000 to 5,000 Volts DC Output
Positive or Negative VDC Output
Proportional to Input VDC
Up to 10 Watts
High Efficiency
Go To VV Series 6,000 to 10,000 VDC Output
Output Voltages can be Positive or Negative
Low Profile 0.500" Height
For Special Voltages or Military Upgrades Consult Factory 800-431-1064
This series of "High Voltage" DC-DC Converters are designed to allow you to vary the input voltage in order to vary the output voltage. The seven standard input voltage ranges will allow you to
operate these units as fully isolated or with common ground as either positive or negative DC outputs from 1,000 to 5,000 VDC from almost any DC source. These single output, isolated units will
operate over the temperature range of -25º C to +70º C with no heat sink or electrical derating required.
FEATURES
Up to 10 watts @ 70º C ambient
Encapsulated semiconductors conservatively rated for maximum reliability
Ultra-miniature size 0.500" height
7 input voltages standard
35 models standard
High Efficiency: Up to 85%
OPTIONS AVAILABLE
Per Mil. Std. 883
Expanded operating temp. (-40º C to +85º C)
Stabilization Bake (125º C ambient)
Temperature Cycle (-55º C to +125º C)
Hi Temp, burn in
TYPICAL CHARACTERISTICS:
Test Conditions:
25º C
Operating Temperature Range:
-25º C to +70º C
Storage Temperature:
-55º C to +125º C
Operating Frequency:
15-25 KHz
Output Temperature Coefficient:
0.02%/ºC
SERIES VV
PICO
Part
Number
5VV1
5VV2
5VV3
5VV4
5VV5
9VV1
9VV2
9VV3
9VV4
9VV5
12VV1
12VV2
12VV3
12VV4
12VV5
15VV1
15VV2
15VV3
15VV4
15VV5
24VV1
24VV2
24VV3
24VV4
24VV5
28VV1
28VV2
28VV3
28VV4
28VV5
48VV1
48VV2
48VV3
48VV4
48VV5
Input Voltage
Range
(VDC)
Min
2.0
2.0
2.0
2.0
2.0
3.5
3.5
3.5
3.5
3.5
4.0
4.0
4.0
4.0
4.0
5.0
5.0
5.0
5.0
5.0
7.0
7.0
7.0
7.0
7.0
8.0
8.0
8.0
8.0
8.0
15.0
15.0
15.0
15.0
15.0
Max
5
5
5
5
5
9
9
9
9
9
12
12
12
12
12
15
15
15
15
15
24
24
24
24
24
28
28
28
28
28
48
48
48
48
48
*
Maximum
Load Current
(mA)
Minimum Load
Current 5%
6.000
3.000
2.000
1.375
1.100
7.000
3.500
2.333
1.750
1.200
8.000
4.000
2.667
1.750
1.200
8.500
4.250
2.667
1.750
1.200
9.000
4.500
3.000
2.000
1.200
10.00
5.000
3.333
2.000
1.200
8.000
4.000
2.667
2.000
1.200
Output Voltage
Range
(VDC)
Min
VIN
100
250
300
550
850
75
200
400
625
1075
100
175
350
525
1050
75
200
400
600
1050
75
175
200
400
1075
75
175
250
375
1100
75
200
450
400
1075
Max
VIN
1000
2000
3000
4000
5000
1000
2000
3000
4000
5000
1000
2000
3000
4000
5000
1000
2000
3000
4000
5000
1000
2000
3000
4000
5000
1000
2000
3000
4000
5000
1000
2000
3000
4000
5000
Max.
Output
Power
(Watts)
6
6
6
5.5
5.5
7
7
7
7
6
8
8
8
7
6
8.5
8.5
8
7
6
9
9
9
8
6
10
10
10
8
6
8
8
8
8
6
Typical
Efficiency
@ Full Load
at Max VIN
(%)
76
76
76
78
78
82
82
78
82
82
82
82
82
83
83
83
83
83
81
81
84
84
82
82
82
83
83
83
82
82
80
80
80
80
80
Typical
Output
Voltage
Ripple @
Full Load
(%)
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Price
105.93
116.63
127.33
138.03
148.73
105.93
116.63
127.33
138.03
148.73
105.93
116.63
127.33
138.03
148.73
105.93
116.63
127.33
138.03
148.73
105.93
116.63
127.33
138.03
148.73
105.93
116.63
127.33
138.03
148.73
105.93
116.63
127.33
138.03
148.73
* Maximum load current remains constant throughout input voltage range.
Safety Note:
The high voltage power supplies described in this datasheet generate voltages which can be lethal. They should only be installed and used by personnel who have received the appropriate training and who are fully aware
of the hazards that exist.
SERIES VV
http://www.picoelectronics.com/dcdclow/pe66_67.htm?PartNo=15VV5
3/25/2009
Pico Electronics: SERIES VV Ultra-miniature to 5,000 VDC output
Page 2 of 2

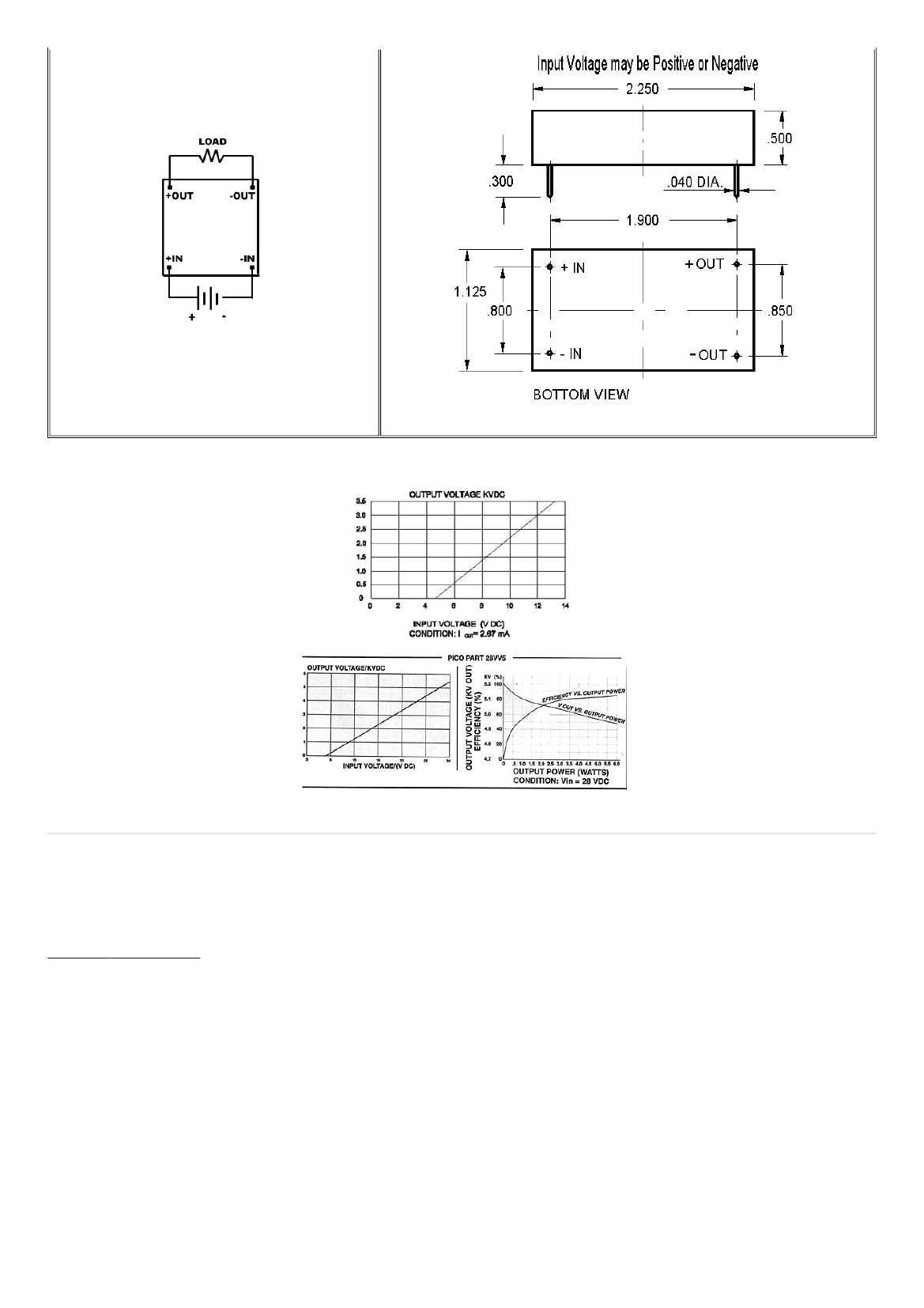

BOTTOM VIEW
Measurements in Inches
Typical Weight: 45 grams
For immediate engineering assistance or to place an order:
Call Toll Free: 800-431-1064
PICO Electronics, Inc.
143 Sparks Ave. Pelham, NY 10803-1837
Tel: 914-738-1400 or Fax: 914-738-8225
Go back to DC-DC Converter menu
http://www.picoelectronics.com/dcdclow/pe66_67.htm?PartNo=15VV5
3/25/2009
