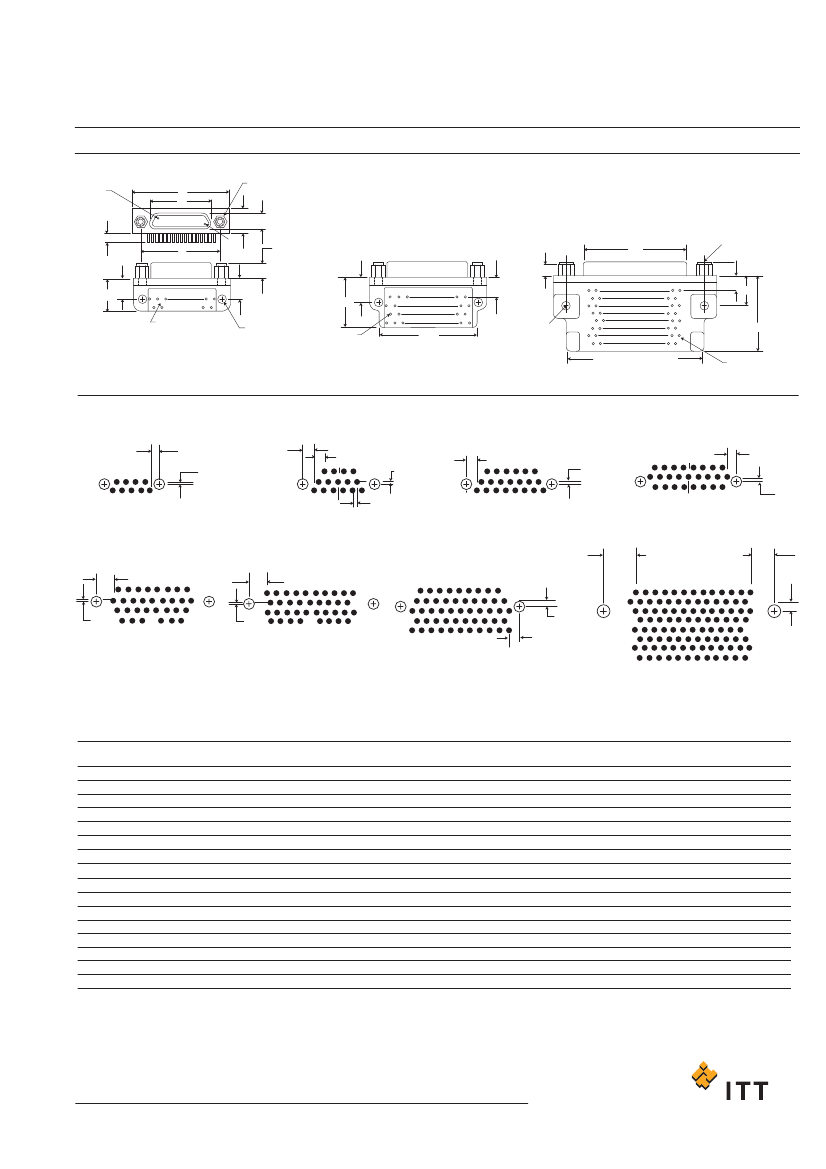

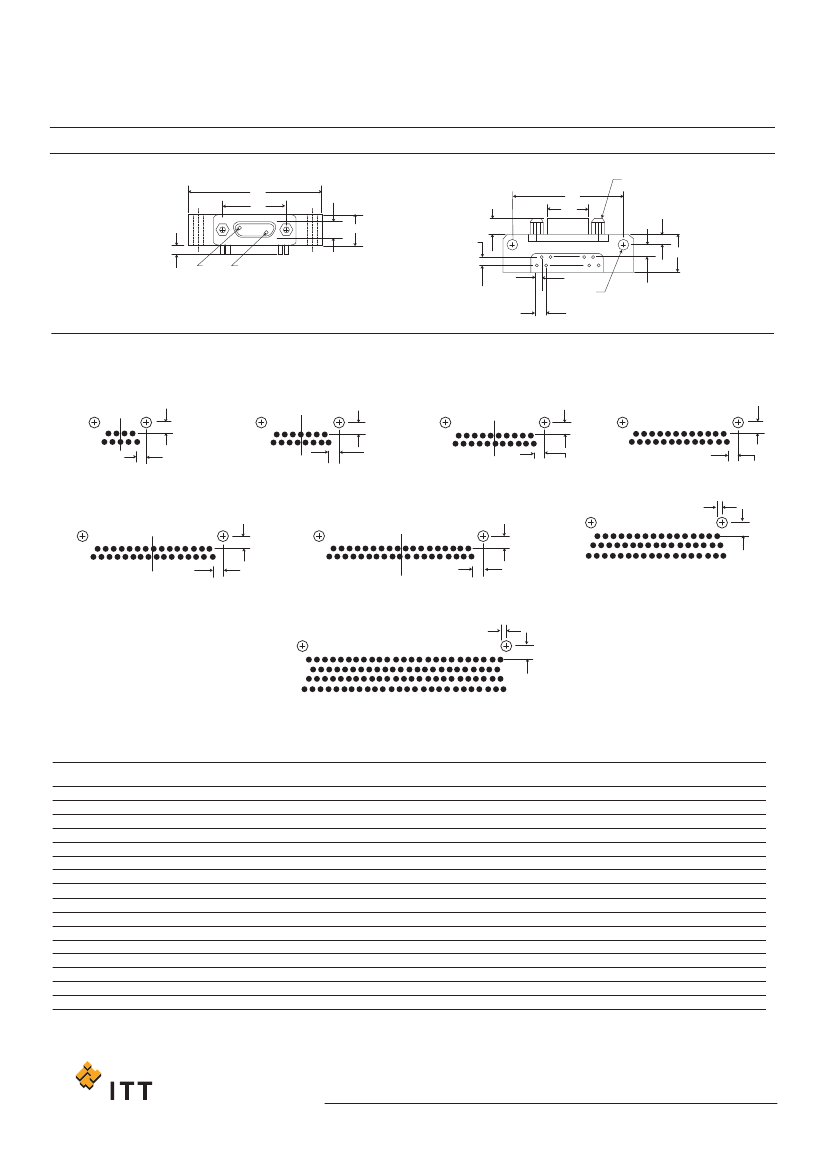

Micro-D PCB - .050" Contact Spacing
MDM-PCB
MDM-PCB connectors are designed for use
with flex circuitry, flat cable and printed circuit
boards or multi-layer boards. They use the
standard MDM metal shell and provide high
density and high reliability in board-to-board,
board-to-cable and cable-to-cable applications.
MDM-PCB connectors are available in 8 shell
sizes with 9 to 100 contacts. Terminations
may be straight (BS) or at 90˚ right angle (BR,
CBR) board thickness. Jackpost mounting for
use with locking hardware is also available.

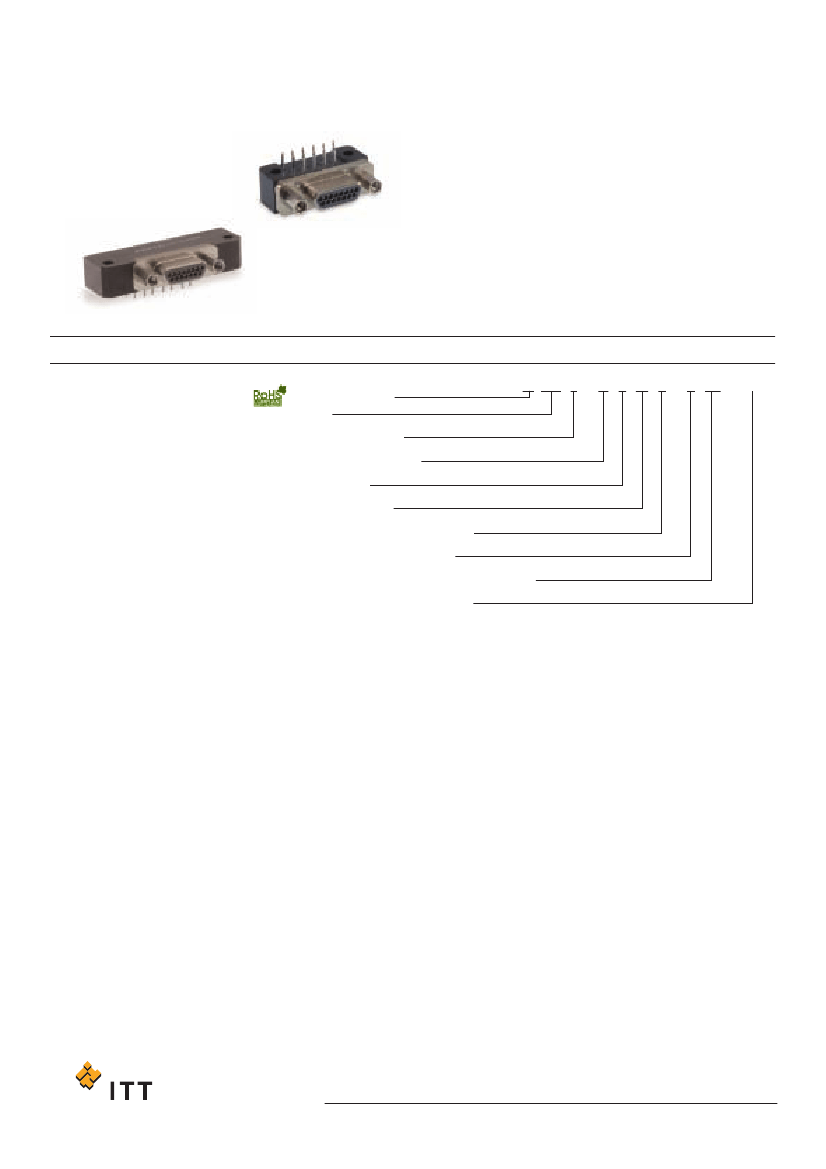

How to Order - MDM-PCB Series
R
RoHS COMPLIANCE
SERIES
INSULATOR MATERIAL
CONTACT ARRANGEMENT
CONTACT TYPE
TERMINATION TYPE
MOUNTING HARDWARE (Shell Flange)
MOUNTING HARDWARE FOR PCB
TERMINATION TAIL LENGTH MODIFICATION CODE
SHELL FINISH MODIFICATION CODES
SERIES
MDM - Micro "D" Metal Shell
INSULATOR MATERIAL
Liquid Crystal Polymer (LCP)
CONTACT ARRANGEMENT
9, 15, 21, 25, 31, 37, 51, and 100
TERMINATION TYPE
BS - Straight PCB Termination
BR - Right Angle PCB Termination
CBR - Right Angle Narrow Profile PCB Terminations
MOUNTING HARDWARE (Shell Flange)
P
- Jackposts
M7 - Jackposts
M83513/5-07 (Sizes 9-51)
M17 - Jackposts
M83513/5-17 (Size 100)
No letter - none
MOUNTING HARDWARE FOR PCB
T - Threaded Insert
#2-56 Thd for Shell Sizes 9 thru 51
#4-40 Thd for Shell Size 100
No letter - none
TERMINATION TAIL LENGTH MODIFICATION CODE
None - .109 (2.77) ±.015 (0.38) Standard
L61 - .125 (3.18)
L56 - .150 (3.81)
L57 - .190 (4.83)
L39 - .250 (6.35)
L58 - .375 (9.52)
SHELL FINISH MODIFICATION CODES
None - Yellow Chromate/Cadmium over Nickel
A174 - Electroless Nickel
A172 - Gold over Nickel
A141 - Irridite/Alodine
A30 - Black Anodize
(For special modification codes, consult
customer service.)
MDM *
- 25 P
BS
P - T
L39
A174
CONTACT TYPE
P - Pin (Plug)
S - Socket (Receptacle)
NOTE: Back molding material –
Epoxy Hysol #MG40FS
Dimensions shown in inch (mm)
Specifications and dimensions subject to change
www.ittcannon.com
18

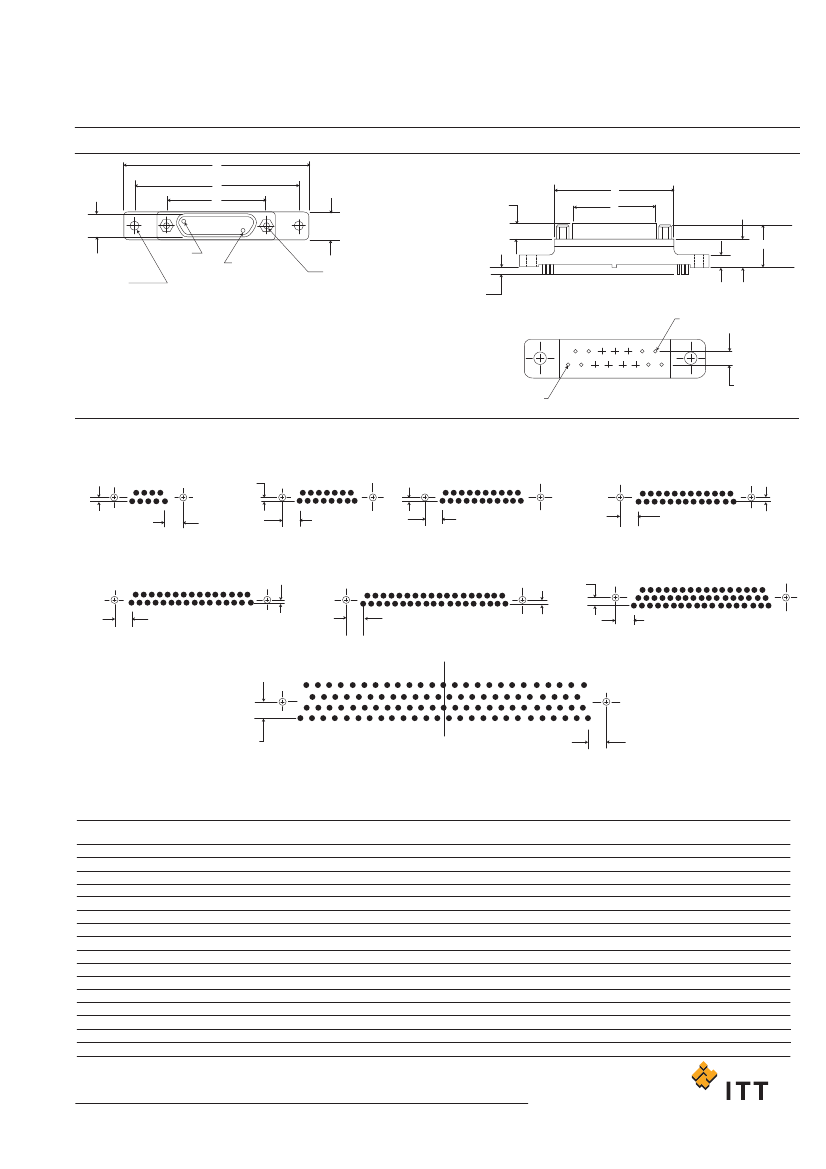

Micro-D PCB - .050" Contact Spacing
BS (Board Straight) Series
A
B
C
.186 (4.72) MAX. PLUG
.198 (5.03) MAX. RECEPTACLE
G
D
E
MDM-PCB
F
.096 ± .005
(2.44 ± 0.13) DIA.
Size 9-51)
.120 ± .005
(3.05 ± 0.13)
Size 100
CAV.
#1
J
LAST
CAV.
H
JACKPOST (9-51)
#2-56 UNC-2B TYP.
JACKPOST (100)
#4-40 UNC-2B TYP.
.109 ± 0.15
(2.77 ± 0.38)
LAST CAV.
K
*
CAV. #1
.100 (2.54)
REF.
PCB Termination Arrangements* (Viewed from PCB solder side)
Identification number shown for plug connector, use reverse order for socket connector.
.050
(1.27)
6
7
8
9
NOTE: Dimensions shown are for reference only-consult factory for final design dimensions.
.050
(1.27)
12 13
14 15 16 17 18 19 20 21
14 15 16 17 18 19 20 21 22 23 24 25
.050
(1.27)
5
1
9 10 11 12 13 14 15
.050
(1.27)
1
2
3
4
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
9 10 11
.375
(9.53)
.225
(5.72)
TYP.
.225
(5.72)
.150
(3.81)
1
2
3
4
5
6
7
8
9 10 11
12 13
9 Contacts
15 Contacts
.050
(1.27)
21 Contacts
.050
(1.27)
.100
(2.54)
TYP.
25 Contacts
36
19
1
2
37 38 39 40 41 42 43 44 45 46 47 48
49 50 51
35
17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
20 21 22 23 24 25 26 27 28 29 30 31
32 33 34 35 36 37
.150
(3.81)
1
2
3
4
5
6
7
8
9 10
11 12 13 14 15 16
.150
(3.81)
1
2
3
4
5
6
7
8
9 10
11 12 13 14 15 16 17 18 19
3
4
5
6
7
8
9 10
11 12 13 14 15 16 17 18
.150
(3.81)
31 Contacts
37 Contacts
51 Contacts
76
52
27
1
2
77
53
28
3
78
54
29
4
79
55
30
5
80
56
81
57
82
58
33
7
8
83
59
34
9
84
60
85
61
36
10
11
86
62
37
12
87
63
38
13
88
64
39
14
89
65
40
15
90
66
41
16
91
67
42
17
92
68
43
18
93
69
44
19
94
70
95
71
46
20
21
96
72
47
22
97
73
48
23
98
74
49
24
99
75
50
25
100
31
6
32
35
45
51
26
.150
(3.81)
.150
(3.81)
100 Contacts
NOTE: Standard lead termination is #24 AWG, solid copper, solder or tin dipped
All Termination Configurations .100 (2.54) x .100 (2.54) Grid Pattern, Offset .050 (1.27)
Part Number
By Shell Size
MDM-9PBS*
MDM-9SBS*
MDM-15PBS*
MDM-15SBS*
MDM-21PBS*
MDM-21SBS*
MDM-25PBS
MDM-25SBS*
MDM-31PBS*
MDM-31SBS*
MDM-37PBS*
MDM-37SBS*
MDM-51PBS*
MDM-51SBS*
MDM-100PBS*
A
Max.
1.390 (35.31)
1.390 (35.31)
1.390 (35.31)
1.390 (35.31)
1.690 (43.93)
1.690 (43.93)
1.740 (44.20)
1.740 (44.20)
2.040 (51.82)
2.040 (51.82)
2.340 (59.44)
2.340 (59.44)
2.270 (67.66)
2.270 (67.66)
3.070 (77.98)
B
±.007 (.18)
1.150 (29.21)
1.150 (29.21)
1.150 (29.21)
1.150 (29.21)
1.450 (36.83)
1.450 (36.83)
1.500 (38.10)
1.500 (38.10)
1.800 (45.72)
1.800 (45.72)
2.100 (53.34)
2.100 (53.34)
2.000 (50.80)
2.000 (50.80)
2.800 (71.12)
C
±.005 (.13)
.565 (14.35)
.565 (14.35)
.715 (18.16)
.715 (18.16)
.865 (21.97)
.865 (21.97)
.965 (24.51)
.965 (24.51)
1.115 (28.32)
1.115 (28.32)
1.265 (32.13)
1.265 (32.13)
1.215 (30.86)
1.215 (30.86)
1.800 (45.72)
D
Max.
.785 (19.94)
.785 (19.94)
.935 (23.75)
.935 (23.75)
1.085 (27.56)
1.085 (27.56)
1.185 (30.10)
1.185 (30.10)
1.335 (33.91)
1.335 (33.91)
1.485 (37.72)
1.485 (37.72)
1.435 (36.45)
1.435 (36.45)
2.175 (55.24)
2.175 (55.24)
E
Max.
.334 (8.48)
.402 (10.21)
.484 (12.29)
.552 (13.97)
.634 (16.10)
.702 (17.83)
.734 (18.64)
.802 (20.37)
.884 (22.45)
.952 (24.18)
1.034 (26.26)
1.102 (27.99)
.984 (24.99)
1.052 (26.72)
1.384 (35.15)
1.508 (38.30)
F
Max.
.185 (4.70)
.253 (6.43)
.185 (4.70)
.253 (6.43)
.185 (4.70)
.253 (6.43)
.185 (4.70)
.253 (6.43)
.185 (4.70)
.253 (6.43)
.185 (4.70)
.253 (6.43)
.228 (5.79)
.296 (7.52)
.271 (6.88)
.394 (10.01)
G
Max.
.308 (7.82)
.308 (7.82)
.308 (7.82)
.308 (7.82)
.308 (7.82)
.308 (7.82)
.308 (7.82)
.308 (7.82)
.308 (7.82)
.308 (7.82)
.308 (7.82)
.308 (7.82)
.351 (8.92)
.351 (8.92)
.460 (11.68)
.460 (11.68)
H
Max.
.165 (4.19)
.165 (4.19)
.165 (4.19)
.165 (4.19)
.165 (4.19)
.165 (4.19)
.165 (4.19)
.165 (4.19)
.165 (4.19)
.165 (4.19)
.165 (4.19)
.165 (4.19)
.165 (4.19)
.165 (4.19)
J
Max.
.355 (9.02)
.355 (9.02)
.355 (9.02)
.355 (9.02)
.355 (9.02)
.355 (9.02)
.355 (9.02)
.355 (9.02)
.355 (9.02)
.355 (9.02)
.355 (9.02)
.355 (9.02)
.355 (9.02)
.355 (9.02)
K
Max.
.555 (14.10)
.555 (14.10)
.555 (14.10)
.555 (14.10)
.555 (14.10)
.555 (14.10)
.555 (14.10)
.555 (14.10)
.555 (14.10)
.555 (14.10)
.555 (14.10)
.555 (14.10)
.555 (14.10)
.555 (14.10)
.686 (17.42)
.686 (17.75)
.303 (7.70) .550 (12.70)
.303 (7.70) .550 (12.70)
3.070 (77.98)
2.800 (71.12)
1.800 (45.72)
MDM-100SBS*
*For jackpost, add letter "P" or "M7" for sizes 9-51, "M17" for size 100.
Dimensions shown in inch (mm)
Specifications and dimensions subject to change
www.ittcannon.com
19
Micro-D PCB - .050" Contact Spacing
