MLX90614ESF-DBC datasheet, PDF

Datasheet> All Categories > MLX90614ESF-DBC

Preview

MLX90614ESF-DBC: Descriptionsingle and dual zone infra red thermometer in TO-39; File Size643KB，40 Pages; ManufacturerMelexis; Websitehttps://www.melexis.com/zh

Download Datasheet View All

MLX90614ESF-DBC Overview

single and dual zone infra red thermometer in TO-39

Preview

Download Datasheet

View All

MLX90614 family

Single and Dual Zone

Infra Red Thermometer in TO-39

Features and Benefits

Small size, low cost

Easy to integrate

Factory calibrated in wide temperature range:

-40 to 125 ˚C for sensor temperature and

-70 to 380 ˚C for object temperature.

High accuracy of 0.5°C over wide temperature

range (0..+50°C for both Ta and To)

High (medical) accuracy calibration

Measurement resolution of 0.02°C

Single and dual zone versions

SMBus compatible digital interface

Customizable PWM output for continuous

reading

Available in 3V and 5V versions

Simple adaptation for 8 to 16V applications

Power saving mode

Different package options for applications and

measurements versatility

Automotive grade

Applications Examples

High precision non-contact temperature

measurements;

Thermal Comfort sensor for Mobile Air

Conditioning control system;

Temperature sensing element for residential,

commercial and industrial building air

conditioning;

Windshield defogging;

Automotive blind angle detection;

Industrial temperature control of moving parts;

Temperature control in printers and copiers;

Home appliances with temperature control;

Healthcare;

Livestock monitoring;

Movement detection;

Multiple zone temperature control – up to 100

sensors can be read via common 2 wires

Thermal relay/alert

Body temperature measurement

Ordering Information

Part No.

MLX90614

Temperature Code

E (-40°C to 85°C)

K (-40°C to 125°C)

Package Code

SF (TO-39)

- Option Code

-X X X

(1) (2) (3)

(3) Package options:

A – Standard package

B – Reserved

C – 35° FOV

(1) Supply Voltage/

Acccuracy

A - 5V

B - 3V

C - Reserved

D - 3V medical accuracy

Example:

MLX90614ESF-BAA

(2) Number of thermopiles:

A – single zone

B – dual zone

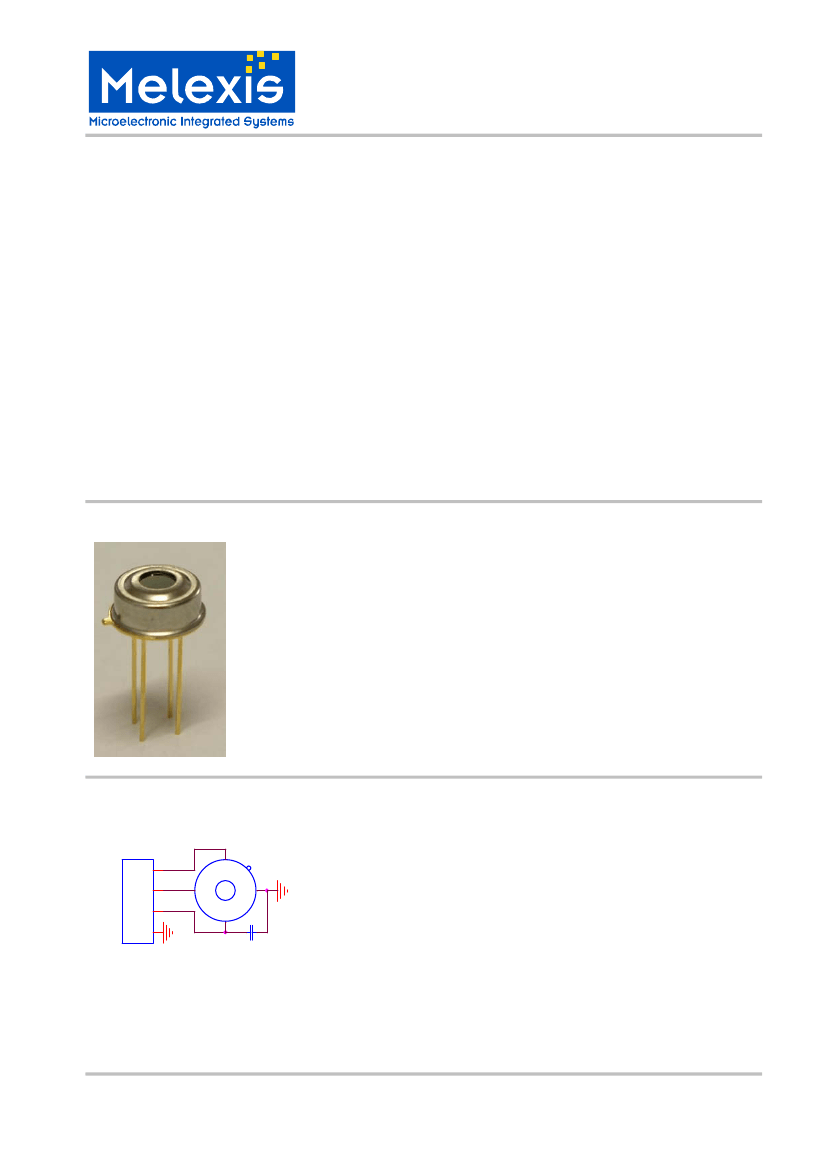

1 Functional diagram

MLX90614Axx: Vdd=4.5...5.5V

MLX90614

SCL

PWM

Vss 4

SDA

2 SDA

2 General Description

The MLX90614 is an Infra Red thermometer for non

contact temperature measurements. Both the IR sensitive

thermopile detector chip and the signal conditioning ASSP

are integrated in the same TO-39 can.

Thanks to its low noise amplifier, 17-bit ADC and powerful

DSP unit, a high accuracy and resolution of the

thermometer is achieved.

The thermometer comes factory calibrated with a digital

PWM and SMBus (System Management Bus) output.

As a standard, the 10-bit PWM is configured to

continuously transmit the measured temperature in range

of -20 to 120 ˚C, with an output resolution of 0.14 ˚C and

the POR default is SMBus.

Vdd

GND

0.1uF

CON1

C1 value and type may differ

in different applications

for optimum EMC

Vdd

MLX90614 connection to SMBus

Figure 1 Typical application schematics

3901090614

Rev 003

Page 1 of 40

Data Sheet

03/Oct/2007

MLX90614 family

Single and Dual Zone

Infra Red Thermometer in TO-39

General description (continued)

The MLX90614 is built from 2 chips developed and manufactured by Melexis:

•

The Infra Red thermopile detector MLX81101

•

The signal conditioning ASSP MLX90302, specially designed to process the output of IR sensor.

The device is available in an industry standard TO-39 package.

Thanks to the low noise amplifier, high resolution 17-bit ADC and powerful DSP unit of MLX90302 high

accuracy and resolution of the thermometer is achieved. The calculated object and ambient temperatures are

available in RAM of MLX90302 with resolution of 0.01 ˚C. They are accessible by 2 wire serial SMBus

compatible protocol (0.02°C resolution) or via 10-bit PWM (Pulse Width Modulated) output of the device.

The MLX90614 is factory calibrated in wide temperature ranges: -40 to 125 ˚C for the ambient temperature

and -70 to 382.2 ˚C for the object temperature. The 10-bit PWM is as a standard configured to transmit

continuously the measured object temperature for an object temperature range of -20 to 120 ˚C with an

output resolution of 0.14 ˚C. The PWM can be easily customized for virtually any range desired by the

customer by changing the content of 2 EEPROM cells. This has no effect on the factory calibration of the

device.

The PWM pin can also be configured to act as a thermal relay (input is To), thus allowing for an easy and

cost effective implementation in thermostats or temperature (freezing/boiling) alert applications. The

temperature threshold is user programmable. In an SMBus system this feature can act as a processor

interrupt that can trigger reading all slaves on the bus and to determine the precise condition.

As a standard, the MLX90614 is calibrated for an object emissivity of 1. It can be easily customized by the

customer for any other emissivity in the range 0.1-1.0 without the need of recalibration with a black body.

The thermometer is available in 2 supply voltage options: 5V compatible or 3V (battery) compatible. The 5V

can be easily adopted to operate from a higher supply voltage (8-16V, for example) by use of few external

components (refer to “Applications information” section for details).

An optical filter (long-wave pass) that cuts off the visible and near infra-red radiant flux is integrated in the

package to provide sunlight immunity.

3901090614

Rev 003

Page 2 of 40

Data Sheet

03/Oct/2007

MLX90614 family

Single and Dual Zone

Infra Red Thermometer in TO-39

3 Table of Contents

1 Functional diagram......................................................................................................................................................................................1

2 General Description ....................................................................................................................................................................................1

General description (continued) .....................................................................................................................................................................2

3 Table of Contents........................................................................................................................................................................................3

4 Glossary of Terms.......................................................................................................................................................................................4

5 Maximum ratings.........................................................................................................................................................................................4

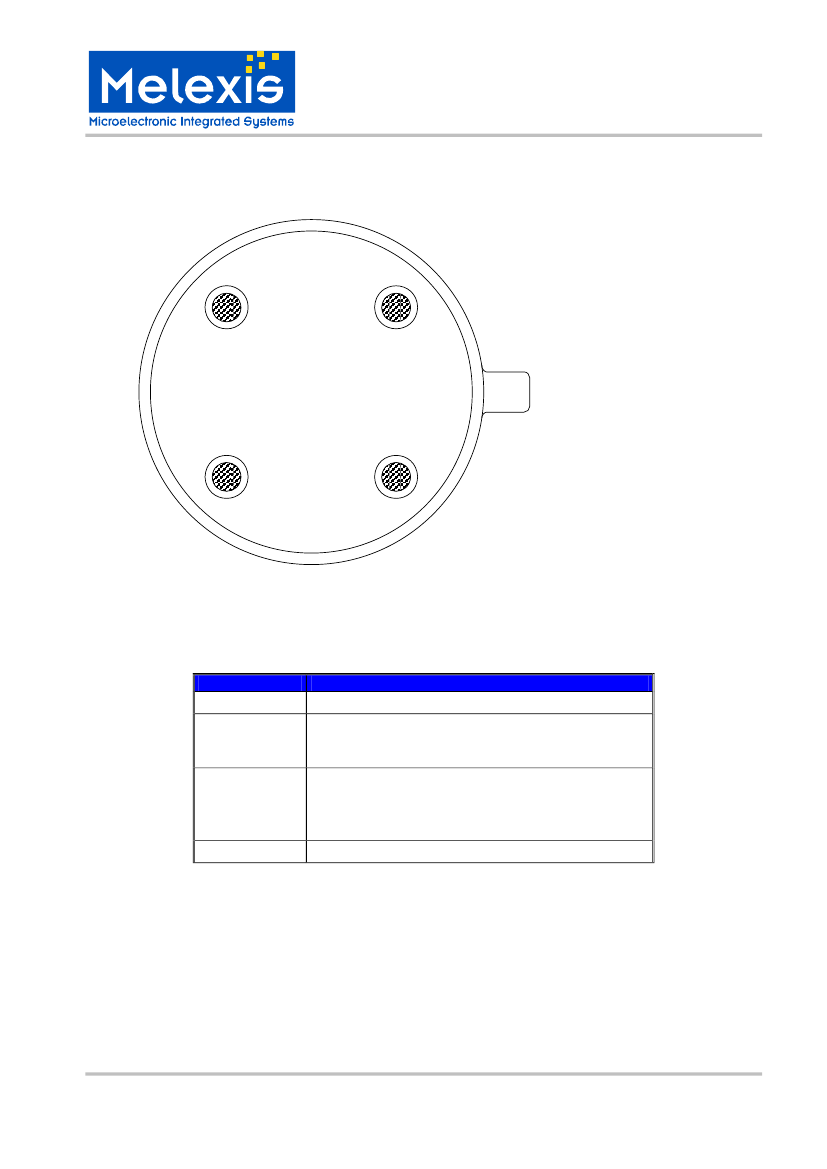

6 Pin definitions and descriptions ..................................................................................................................................................................5

7 Electrical Specifications ..............................................................................................................................................................................6

7.1 MLX90614Axx .....................................................................................................................................................................................6

7.2 MLX90614Bxx , MLX90614Dxx...........................................................................................................................................................8

8 Detailed description...................................................................................................................................................................................10

8.1 Block diagram....................................................................................................................................................................................10

8.2 Signal processing principle................................................................................................................................................................10

8.3 Block description ...............................................................................................................................................................................11

8.3.1 Amplifier .....................................................................................................................................................................................11

8.3.2 Supply regulator and POR .........................................................................................................................................................11

8.3.3 EEPROM....................................................................................................................................................................................11

8.3.4 RAM ...........................................................................................................................................................................................13

8.4 SMBus compatible 2-wire protocol ....................................................................................................................................................13

8.4.1 Functional description ................................................................................................................................................................13

8.4.2 Differences with the standard SMBus specification (reference [1]) ...........................................................................................14

8.4.3 Detailed description....................................................................................................................................................................14

8.4.4 AC specification for SMBus .......................................................................................................................................................15

8.4.5 Bit transfer..................................................................................................................................................................................16

8.4.6 Commands.................................................................................................................................................................................16

8.4.7 Sleep Mode ................................................................................................................................................................................17

8.5 PWM..................................................................................................................................................................................................18

8.5.1 Single PWM format ....................................................................................................................................................................18

8.5.2 Extended PWM format ...............................................................................................................................................................19

8.5.3 Customizing the temperature range for PWM output.................................................................................................................20

8.6 Switching Between PWM and SMBus communication......................................................................................................................21

8.6.1 PWM is enabled .........................................................................................................................................................................21

8.6.2 Request condition ......................................................................................................................................................................21

8.6.3 PWM is disabled ........................................................................................................................................................................21

8.7 Computation of ambient and object temperatures.............................................................................................................................22

8.7.1 Ambient temperature Ta ............................................................................................................................................................22

8.7.2 Object temperature To ...............................................................................................................................................................22

8.7.3 Calculation flow ..........................................................................................................................................................................22

8.8 Thermal relay.....................................................................................................................................................................................24

9 Unique Features........................................................................................................................................................................................25

10 Performance Graphs...............................................................................................................................................................................26

10.1 Temperature accuracy of the MLX90614 ........................................................................................................................................26

10.2 Field Of View (FOV) ........................................................................................................................................................................28

11 Applications Information..........................................................................................................................................................................30

11.1 Use of the MLX90614 thermometer in SMBus configuration ..........................................................................................................30

11.2 Use of multiple MLX90614s in SMBus configuration.......................................................................................................................30

11.3 PWM output operation.....................................................................................................................................................................31

11.4 Thermal alert / thermostat ...............................................................................................................................................................31

11.5 High voltage source operation.........................................................................................................................................................32

12 Application Comments ............................................................................................................................................................................33

13 Standard information regarding manufacturability of Melexis products with different soldering processes............................................35

14 ESD Precautions.....................................................................................................................................................................................35

15 FAQ.........................................................................................................................................................................................................36

16 Package Information ...............................................................................................................................................................................38

16.1 MLX90614XXA ................................................................................................................................................................................38

16.2 MLX90614XXC................................................................................................................................................................................39

17 References..............................................................................................................................................................................................40

18 Disclaimer ...............................................................................................................................................................................................40

3901090614

Rev 003

Page 3 of 40

Data Sheet

03/Oct/2007

Recommended Resources

Voltage controlled sawtooth oscillatora

Relay power saving circuit three

Inverter circuit four

Long time integrator circuit diagram

Window comparator circuit diagram 2

555 segmented timing circuit

Request 28335 to generate SVPWM program (ccs4): Dear experts, please help me to generate SVPWM in ccs4 environment...; 落日1004 DSP and ARM Processors

Design of digital temperature meter using single chip microcomputer: Design of digital temperature meter using single chip microcomputer...; haican MCU

Feel life with sound-USB sound card DIY information sharing: [size=4]Although I am a wooden ear (I think of Xiao Erduo who was recently banned, I miss him), I have always liked listening to music, tape recorders, mp3, mobile phones, computers, although they are...; shower.xu DIY/Open Source Hardware

There's really nothing much to say about this...: You can search on the Internet.....there are ready-made examples everywhere......; zhangf1982 DSP and ARM Processors

Wrong! The code is messed up.: Hey guys, when I debugged the program, after using loadlibrary, why did the code run to the code in another dll? It's very strange, and I deleted all the compilation results and recompiled, but it's s...; teikou Embedded System

RAWOS, STM32F107, CDC projects. Please use TrueStudio to open the project.: RAWOS version=1.X CUBEMX version=4.14 HAL library forSTM32F1 version=1.3.1 TrueStudio version=5.4 CDC mode. A ported official DEMO, descriptors and so on are already done. Use it directly. The serial ...; snikeguo Embedded System

Passive Intermodulation Measurement and Solutions

1. Overview Will passive devices produce nonlinear intermodulation distortion? The answer is yes! Although there is no systematic theoretical analysis, it has been found in engineerin...[Details]
How to enable analog engineers to achieve digital power conversion

Analog engineers have traditionally struggled with complexity when designing power supplies that required multiple outputs, dynamic load sharing, hot-swap, or extensive fault-handling capabilities....[Details]
Application of fighter jets based on LabVIEW

The Portable Digital Data Acquisition System (PDDAS) uses LabVIEW Real-Time and PXI to control the wind tunnel test and record air pressure data from 128 different channels. "The LabVIEW Real-...[Details]
The reason for the light decay of white LEDs: the decline of phosphor performance

The reason for the light decay of white LEDs: the decline of phosphor performance So far, the rapid decline of the luminous performance of white light LEDs, especially low-power white light LE...[Details]
Two CAN bus expansion methods based on ARM920T

1. Introduction With the gradual automation and modernization of industrial control systems, fieldbus control systems have received more and more attention and application. CAN bus is currentl...[Details]
Application of CC-Link in TFT Manufacturing

1. With the development of modern industry and the continuous improvement of automation, some medium and large control systems have been greatly facilitated, which not only makes control easier, bu...[Details]
Application of frequency converter based on PROFIBUS in continuous casting cutting machine

1 Introduction The Third Steel Plant of Jigang Group is a key investment project of Jigang Group during the "15th Five-Year Plan". It has introduced first-class domestic and foreign advanced eq...[Details]
Research and application of smart home appliance interconnection technology

With the rapid development of intelligent control technology, computers and information technology, the trend of information appliances IA (Information Application), computers and communications integ...[Details]
The main function of potentiometer in circuit

The potentiometer is an adjustable electronic component. The main functions of the potentiometer in the circuit are as follows: 1. Used as a voltage divider A potentiometer is a continuou...[Details]
Seven characteristics of automotive electronic products

According to the Industrial Technology Research Institute of Taiwan, due to factors such as the oil crisis and global warming, the issues of energy conservation and environmental protection have at...[Details]
Hardware design of embedded marine navigator based on BeiDou II system

Abstract: With the development and construction of BeiDou II system, China will shift from the situation dominated by GPS to the situation dominated by BeiDou II global navigation system independen...[Details]
Give low-quality LED flashlights a new look

A few days ago, I bought an 8LED flashlight in the market (the flashlight uses No. 5 batteries). Because I had other things to do, I didn't pay attention when purchasing it. When I got home and use...[Details]
LED lights are well preserved

store To prevent moisture, LEDs should be stored in a dry and ventilated environment with a storage temperature of -40°C to +100°C and a relative humidity below 85%. The LED should be use...[Details]
9 Coding Habits of Successful Software Developers

Some people think: as long as the program runs well, it doesn't matter how the original program is written. But this is absolutely not the case. Software is not completed in one go, and it is neces...[Details]
Design and implementation of single chip caller display

introduction Caller ID delivery (CID) is a service provided to the user's phone. The method is that the originating switch transmits the caller number and other information to the terminal swi...[Details]

Shortcut: S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 SA SB SC SD SE SF SG SH SI SJ SK SL SM SN SO SP SQ SR SS ST SU SV SW SX SY SZ T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 TA TB TC TD TE TF TG TH TI TJ TK TL TM TN TO TP TQ TR TS TT TU TV TW TX TY TZ U0 U1 U2 U3 U4 U6 U7 U8 UA UB UC UD UE UF UG UH UI UJ UK UL UM UN UP UQ UR US UT UU UV UW UX UZ V0 V1 V2 V3 V4 V5 V6 V7 V8 V9 VA VB VC VD VE VF VG VH VI VJ VK VL VM VN VO VP VQ VR VS VT VU VV VW VX VY VZ W0 W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO WP WR WS WT WU WV WW WY X0 X1 X2 X3 X4 X5 X7 X8 X9 XA XB XC XD XE XF XG XH XK XL XM XN XO XP XQ XR XS XT XU XV XW XX XY XZ Y0 Y1 Y2 Y4 Y5 Y6 Y9 YA YB YC YD YE YF YG YH YK YL YM YN YP YQ YR YS YT YX Z0 Z1 Z2 Z3 Z4 Z5 Z6 Z8 ZA ZB ZC ZD ZE ZF ZG ZH ZJ ZL ZM ZN ZP ZR ZS ZT ZU ZV ZW ZX ZY

Popular Components
