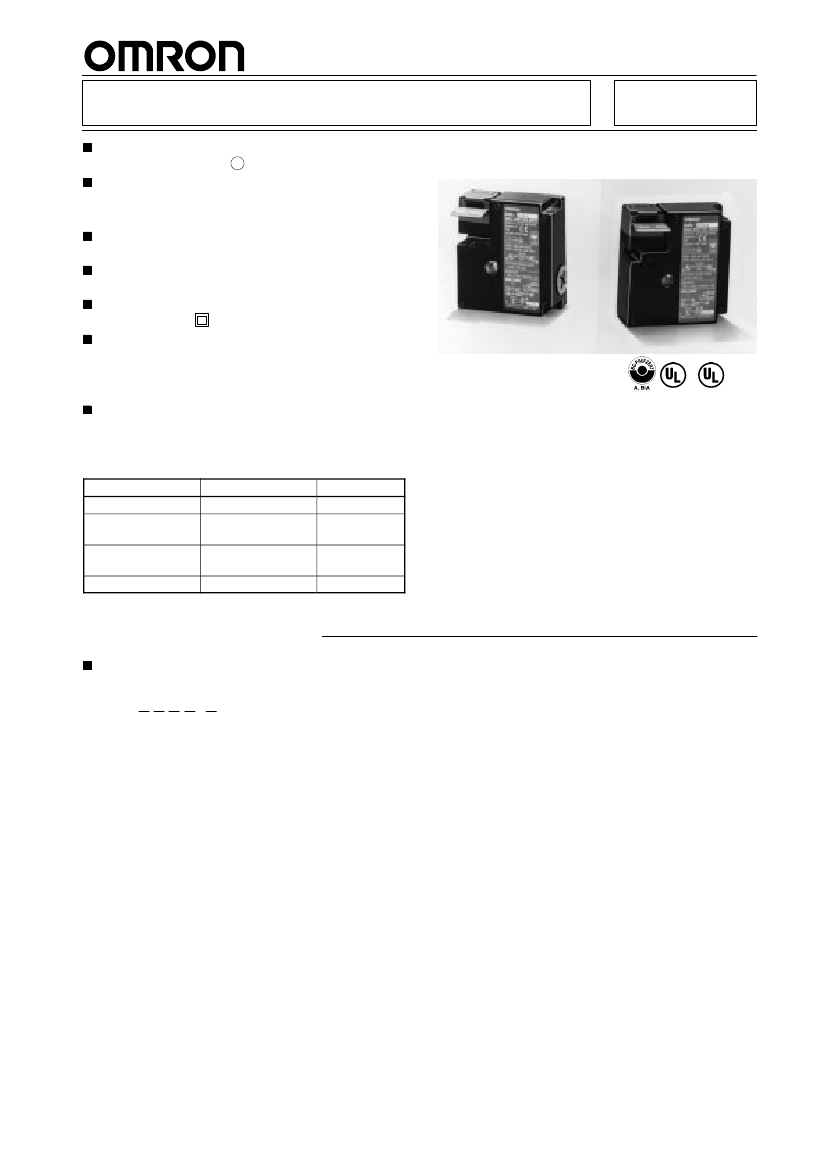

Compact Guard-locking Interlock Safety Door Switch
Polymer housing, IP65, and slow-action contacts
with positive opening
→
.
2 versions
•
Mechanical lock/Solenoid release
•
Solenoid lock/Mechanical release
Rotatable operating head provides four possible
key entry slots.
Incorporates an indicator that shows operation
status at a glance.
Double-insulation structure requires no grounding
terminals. (with
mark)
Three types of Operation Key are available:
•
Horizontal mounting
•
Vertical mounting
•
Angle-adjustable vertical mounting
Safety Standards
Conformity:
Machinery Directive, Low-voltage Directive, EN1088, SUVA
Approval:
Agency
TÜV Rheinland
BIA
UL (see note)
SUVA
Note:
Standard
EN60947-5-1
EN60947-5-1,
GS-ET-19
UL508, CSA C22.2
No.14
SUVA
File No.
J9650736
9610568
E76675
Pending
D4DL
c
E
Approval for CSA C22.2 No. 14 is authorized by
c
u
mark.
Ordering Information
Model Number Legend
Switches
D4DL-jjjj-j
1
2
3
4
5
1.
Conduit Size (2-conduit)
1: Pg13.5
2: G
1
/
2
Built-in Switch (with Safety Switch and Lock Monitor
Switch Contacts)
C: 1NC/1NO slow-action contacts plus 1NC slow-action
contact
D: 2NC slow-action contacts plus 1NC slow-action contact
Head Mounting Direction
F: Front
4.
2.
Door Lock and Release
A: Mechanical lock / 24-VDC solenoid release (see note)
B: Mechanical lock / 110-VAC solenoid release
C: Mechanical lock / 230-VAC solenoid release
G: 24-VDC solenoid lock / mechanical release (see note)
H: 110-VAC solenoid lock / mechanical release
J: 230-VAC solenoid lock / mechanical release
Indicator
B: 10 to 115 VAC/VDC (with orange LED indicator)
E: 100 to 250 VAC (with orange neon lamp indicator)
3.
5.
1
D4DL
Operation Keys
D4DL
D4DS-Kj
1
1.
Key Type
1: Horizontal mounting
2: Vertical mounting
3: Horizontal-adjustable vertical mounting
5: Vertical/Horizontal-adjustable vertical mounting
Switches
Solenoid voltage/indicator
Lock and release
types
Contact configuration
(Slow-action)
Approved force-separation
NC contact
1NC/1NO+1NC
C/ O
C
2NC+1NC
C
C
So e o d oc
Solenoid lock
Mechanical l
M h i l release
1NC/1NO+1NC
C/ O
C
2NC+1NC
C
C
So e o d
Solenoid: 110 VAC
0
C
Orange LED: 10 to 115 VDC/VAC
O
LED
t
Mechanical lock
ec a ca oc
Solenoid release
S l
id l
1NC/1NO+1NC
C/ O
C
2NC+1NC
C
C
So e o d oc
Solenoid lock
Mechanical l
M h i l release
1NC/1NO+1NC
C/ O
C
2NC+1NC
C
C
So e o d 30
Solenoid: 230 VDC
C
Orange neon lamp: 100 to 250 VAC
O
l
t
Mechanical lock
ec a ca oc
Solenoid release
S l
id l
1NC/1NO+1NC
C/ O
C
2NC+1NC
C
C
Solenoid lock
So e o d oc
M h i l release
Mechanical l
1NC/1NO+1NC
C/ O
C
2NC+1NC
C
C
Connector size
Model
So e o d
Solenoid: 24 VDC
C
Orange LED: 10 to 115 VDC/VAC
O
LED
t
Mechanical lock
ec a ca oc
Solenoid release
S l
id l
PG13.5
G1/2
PG13.5
G1/2
PG13.5
G1/2
PG13.5
G1/2
PG13.5
G1/2
PG13.5
G1/2
PG13.5
G1/2
PG13.5
G1/2
PG13.5
G1/2
PG13.5
G1/2
PG13.5
G1/2
PG13.5
G1/2
D4DL-1CFA-B∗
D4DL-2CFA-B
D4DL-1DFA-B∗
D4DL-2DFA-B
D4DL-1CFG-B∗
D4DL-2CFG-B
D4DL-1DFG-B∗
D4DL-2DFG-B
D4DL-1CFB-B
D4DL-2CFB-B
D4DL-1DFB-B
D4DL-2DFB-B
D4DL-1CFH-B
D4DL-2CFH-B
D4DL-1DFH-B
D4DL-2DFH-B
D4DL-1CFC-E
D4DL-2CFC-E
D4DL-1DFC-E
D4DL-2DFC-E
D4DL-1CFJ-E
D4DL-2CFJ-E
D4DL-1DFJ-E
D4DL-2DFJ-E
Note:
Models marked with “∗” are recommended
Operation Keys (Order Separately)
Type
Horizontal mounting
Model
D4DS-K1
Vertical mounting
D4DS-K2
Horizontal-adjustable
vertical mounting
D4DS-K3
Vertical/Horizontal
adjustable vertical
mounting
D4DS-K5
2
D4DL
D4DL
Specifications
Approved Standard Ratings
TÜV (EN60947-5-1)
Item
Utilization category
Rated operating current (I
e
)
Rated operating voltage (U
e
)
Note:
LED type
AC-15
6A
115 V
Neon lamp
type
AC-15
3A
250 V
Use a 10-A fuse type gI or gG as a short-circuit protection device that conforms to IEC269.
UL/CSA (UL508, CSA C22.2 No. 14)
A300
Rated voltage
a ed o age
120 VAC
240 VAC
Ca y cu e
Carry current
Make
10A
0
60
30
6
3
Current (A)
Break
7,200
, 00
Make
720
0
Voltage
Break
Characteristics
Degree of protection (see note 2)
Life expectancy (see note 3)
Operating speed
Operating frequency
Rated frequency
Positive opening force (see note 4)
Positive opening travel (see note 4)
Holding force
Insulation resistance
Rated insulation voltage (U
i
)
Conventional enclosed thermal current
(I
the
)
Rated impulse voltage (U
imp
)
IP65 (EN60947-5-1)
Mechanical:1,000,000 times min.
Electrical: 500,000 times min.
0.05 to 0.5 m/s
30 operations/minute max.
50/60 Hz
58.84 N {6 kgf} min. (EN60947-5-1)
10 mm min. (EN60947-5-1)
500 N {51 kgf} min. (GS-ET-19)
100 MΩ min. (at 500 VDC)
300 V (EN60947-5-1)
10 A (EN60947-5-1)
Between terminals of same or different polarity, each terminal and ground, and each
terminal and non-current-carrying metal part: 4 kV
Between the solenoid and non-current-carrying metal part: 0.8 kV for 24 VDC solenoid,
2.5 kV for 110 VAC solenoid, and 4 kV for 230 VAC solenoid (EN60947-5-1)
Conditional short-circuit current
Pollution degree (operating environment)
Protection against electric shock
Switching overvoltage
Contact resistance
Vibration resistance
Shock resistance
Ambient temperature
Ambient humidity
Weight
Material
ae a
Note:
Body and actuator flange
Actuator
1. The above values are initial values.
2. Although the switch box is protected from dust or water penetration, do not use the D4DL in places where foreign material may
penetrate through the key hole on the head, otherwise switch damage or malfunctioning may occur.
3. The above mechanical or electrical life is ensured at an ambient temperature of 5°C to 35°C and an ambient humidity of 40% to 70%.
4. These values must be satisfied to ensure safe operation.
100 A (EN60947-5-1)
3 (EN60947-5-1)
Class II (double insulation)
1,500 V max. (EN60947-5-1)
25 mΩ max. (initial value)
Malfunction:10 to 55 Hz, 0.75-mm single amplitude
Mechanical:1,000 m/s
2
(100G) min.
Malfunction:300 m/s
2
(30G) min.
Operating: –10°C to 55°C with no icing
Operating: 95% max.
Approx. 340 g (D4DL-1CFA-B)
Glass-fiber reinforced thermoplast, self-extinguishing
Stainless steel
3
