Film capacitors – Power Factor Correction
PhiCap capacitors
B32343C****A***
MKPxxx-D
Construction
Dielectric: metallized polypropylene film
Semi-dry; biodegradable soft resin; non-PCB
Case: extruded round aluminum can with
stud
Mounting and grounding: threaded stud on
bottom of can
M 8 (4 Nm/ Ø 53mm), M 12 (10 Nm/
63.5mm)
Degree of protection: IP00 (optionally IP54
with terminal cover; additional cable gland at
cable entry required)
Terminals: Fast on terminals
Features
Three-phase, delta-connected provided with
discharge resistors
Dual safety system: overpressure
disconnector, self-healing technology
C
US
file # E106388
C22.2 Nº190 MC # 236094
Naturally air cooled (or forced air cooling)
Indoor mounting

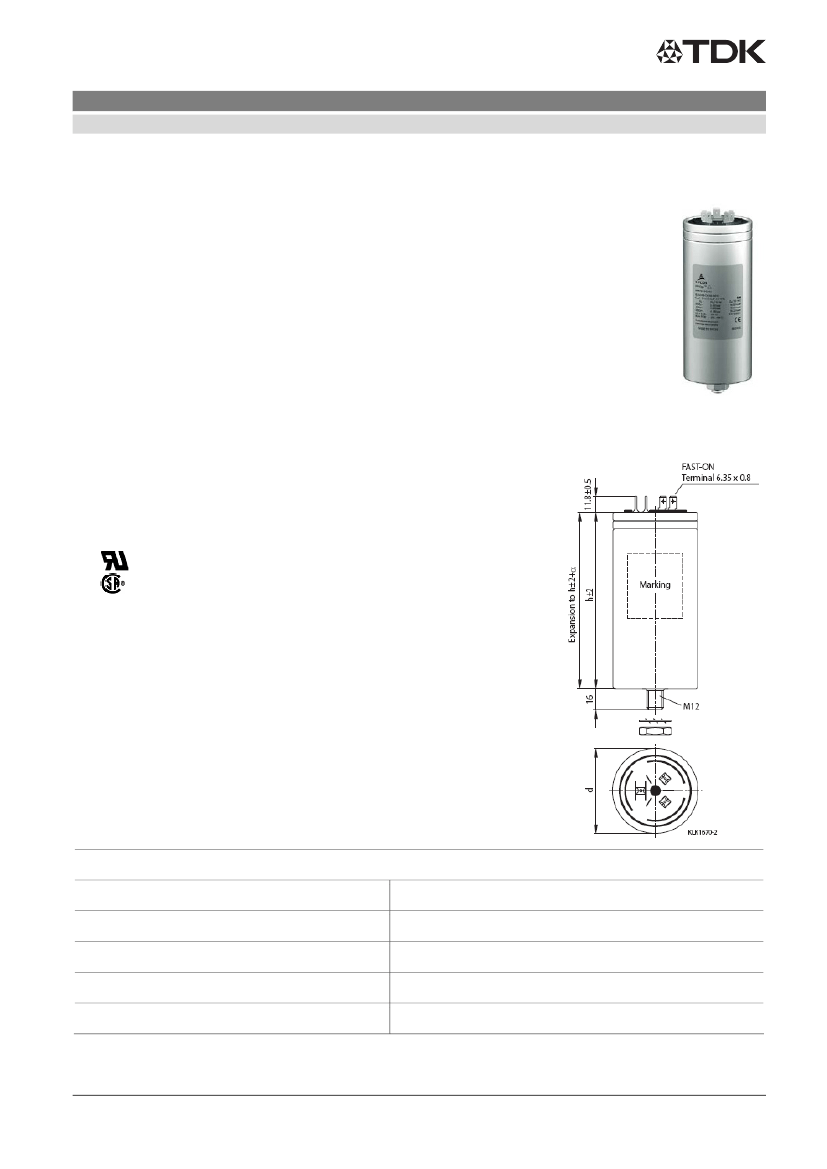

Dimensional drawing
Characteristics
Rated capacitance C
R
and Q
R
Tolerance
Connection
Rated voltage V
R
Rated frequency f
R
According to specification table
–5/+10%
D (Delta)
According to specification table
50/60 Hz
CAP FILM P PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 12
October 2013
Film capacitors – Power Factor Correction
PhiCap capacitors
B32343C****A***
MKPxxx-D
Technical data and specifications
Maximum ratings (accord. to IEC 60831)
Maximum permissible voltage V
max
V
R
+10% (up to 8 h daily)
V
R
+15% (up to 30 min daily)
V
R
+20% (up to 5 min daily)
V
R
+30% (up to 1 min daily)
Up to 1.3
I
R
(up to 1.5
I
R
incl. combined effects of
harmonics, over voltages and capacitance)
Up to 200
I
R
Maximum permissible current I
max
Maximum transient inrush current
Power dissipation (dielectric)
Power dissipation
(excluding discharge resistors)
Test data (accord. To IEC 60831)
AC test voltage terminal-to-terminal
Insulation voltage between terminals and
container
Dissipation factor tan
δ
at 100 Hz
Climatic category / -25/D (to IEC 60831)
< 0.2 W/kvar
< 0.45 W/kvar
2.15
V
R
, 2 s
3000 V AC, 10 s
≤
1.0
10
-3
Ambient temperature
Max. temp.=
Max. mean 24 h =
Max. mean 1 year =
Lowest temperature =
Average relative < 95%
4000 m
55 °C
45 °C
35 °C
-25 °C
Maximum permissible humidity
Maximum permissible altitude
Mean life expectancy
t
LD
Up to 100 000 operating hours
Max. 5000 switching operations according to IEC 60831
CAP FILM P PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 12
October 2013
Film capacitors – Power Factor Correction
PhiCap capacitors
B32343C****A***
MKPxxx-D
Design data
Dimensions (d × l)
Weight approx.
Filling
Fixing
Max. torque (Al can stud)
Mounting position
Terminals
Degree of protection
Creepage distance
Clearance
Safety
Mechanical safety
Max. short circuit current
Discharge resistor time
Reference standards
IEC 60831–1/2. UL 810-5
th
edition
Three phase resistor, included in the extend of delivery
Tear off fuses overpressure disconnector
(AFC: 10 kA) (to UL 810)
≤
1 min (75 V) , IEC 60831 specify 3 min.
IP00, option IP54 with plastic terminal cap; additional
cable gland at cable entry required.
10.5 mm (Ø 53); 10.0 mm (Ø 63.5)
13.0 mm (Ø 53); 16.5 mm (Ø 63.5) (to UL 810)
According to specification table
According to specification table
Biodegradable soft resin
Threaded bolt M12
10 Nm (for Ø 63.5 mm)
Upright. See “Installation and maintenance
instructions for PFC capacitors” for further details.
CAP FILM P PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 12
October 2013
Film capacitors – Power Factor Correction
PhiCap capacitors
B32343C****A***
MKPxxx-D
Three-phase capacitors – V
R
= 220 V AC, 50/60 Hz, delta connection
Product / Type
Ordering code
MKP220-D-0.4
B32343C2001A520
MKP220-D-0.6
B32343C2001A720
MKP220-D-0.8
B32343C2011A020
MKP200-D-1.2
B32343C2011A520
50 Hz
Output
I
R
kvar
A
0.4
0.6
0.8
1.2
1.1
1.6
2.2
3.3
60 Hz
Output
I
R
kvar
A
0.5
0.75
1.0
1.5
1.3
2.0
2.6
4.0
C
R
μF
3 × 9,0
3 × 13.5
3 × 18.5
3 × 27.5
Dimensions
d×h
mm
53 × 114
53 × 114
53 × 114
63.5 × 129
Weight
kg
0.30
0.30
0.30
0.40
Quantity
per
box
12
12
12
12
Three-phase capacitors – V
R
= 230 V AC, 50/60 Hz, delta connection
Product / Type
Ordering code
MKP230-D-0.5
B32343C2002A530
MKP230-D-0.7
B32343C2002A730
MKP230-D-1.0
B32343C2012A030
MKP230-D-1.5
B32343C2012A530
50 Hz
Output
I
R
kvar
A
0.5
0.7
1.0
1.5
1.3
1.9
2.5
3.8
60 Hz
Output
I
R
kvar
A
0.6
0.9
1.2
1.8
1.6
2.3
3.0
4.6
C
R
μF
3 × 10
3 × 15
3 × 20
3 × 30
Dimensions
d×h
mm
53 × 114
53 × 114
63.5 × 129
63.5 × 129
Weight
kg
0.30
0.30
0.30
0.40
Quantity
per
box
12
12
12
12
Three-phase capacitors – V
R
= 380 V AC, 50/60 Hz, delta connection
Product / Type
Ordering code
MKP380-D-0.8
B32343C3011A080
MKP380-D-1.3
B32343C3011A580
MKP380-D-1.7
B32343C3021A080
MKP380-D-2.1
B32343C3021A580
MKP380-D-4.2
B32343C3051A080
50 Hz
Output
I
R
kvar
A
0.8
1.3
1.7
2.1
4.2
1.3
1.9
2.5
3.2
6.3
60 Hz
Output
I
R
kvar
A
1.0
1.5
2.0
2.5
5.0
1.5
2.3
3.0
3.8
7.6
C
R
μF
3×6
3×9
3 × 12.5
3 × 15.5
3 × 31
Dimensions
d×h
mm
52 × 114
53 × 114
63.5 × 129
63.5 × 129
63.5 × 129
Weight
kg
0.30
0.30
0.40
0.40
0.40
Quantitiy
per
box
12
12
12
12
12
CAP FILM P PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 5 of 12
October 2013
