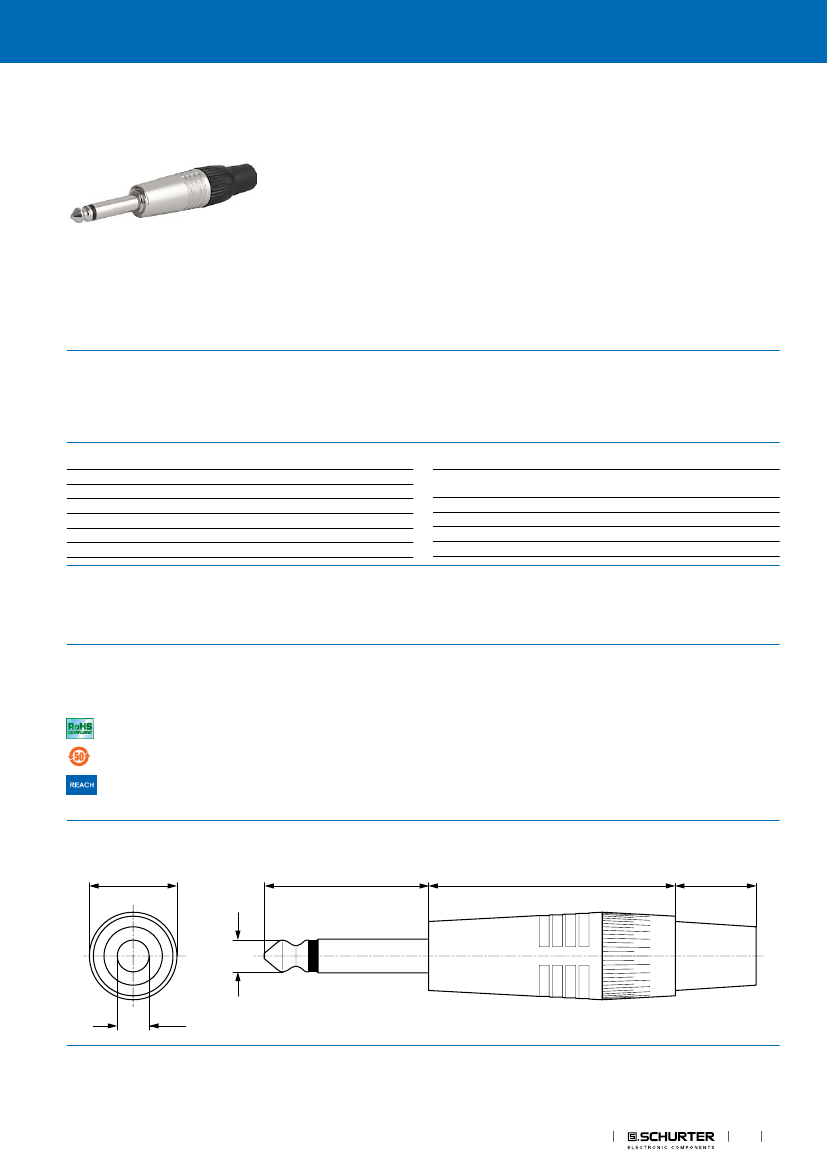

Audio Plug/Sockets
https://www.schurter.com /PG12
4833.1200
4833, solder terminal, screened, 2-pole, Audio Plug/Sockets, 6.3 mm
Approvals and Compliances
Description
- Solder terminal :
for cable mounting
- Audio entrances and exits
- Data and Signal transfer
- Audio Plug: 2-pole , shielded , straight
References
Alternative: Housing insulated
4833.1210; 4833.1220
Technical Data
Diameter
Number of Poles
Ratings DC
Ratings AC
Dielectric Strength
Insulation Resistance
6.3 mm
2-pole
1 A / 30 VDC
1 A / 30 VAC
500 VDC
> 50 MΩ␣ @ 500 VDC
Allowable Operation Tempe-
rature
Terminal
Housings
Style
Lifetime
-20 °C to 70 °C
solder terminal nickel-plated
screened
straight
5000 Insertions
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Compliances
The product complies with following Guide Lines
Identification
Details
RoHS
China RoHS
REACH
Initiator
SCHURTER AG
SCHURTER AG
SCHURTER AG
Description
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
Dimensions [mm]
ø 16.5
31.0
47.5
14.5
ø 6.0
ø 6.3
Appliance inlet
1
4833.1200
All Variants
Product group
Audio Plug/Sockets
Diameter [mm]
6.3
Number of Poles
2-pole
Terminal
solder terminal
Order Number
4833.1200
https://www.schurter.com /PG12
Audio Plug/Sockets
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Packaging unit
500 Pcs
Mating Outlets/Connectors
Category / Description
Audio Plug/Sockets Overview complete
4833, solder terminal, screened, 2-pole, Audio Plug/Sockets, 6.3 mm
4833, PCB terminals, screened, 2-pole, Audio Plug/Sockets, 6.3 mm
4833, PCB terminals, insulated, 2-pole, Audio Plug/Sockets, 6.3 mm
4833, solder terminal, insulated, 2-pole, Audio Plug/Sockets, 6.3 mm
Audio Plug/Sockets further types to 4833.1200
4833.2200
4833.2220
4833.2230
4833.3200
2
Appliance inlet
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
03.12.2017
