54ABT544/BKA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54ABT544/BKA

54ABT544/BKA: DescriptionIC ABT SERIES, 8-BIT REGISTERED TRANSCEIVER, INVERTED OUTPUT, CDFP20, Bus Driver/Transceiver; Categorylogic logic; File Size273KB，11 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

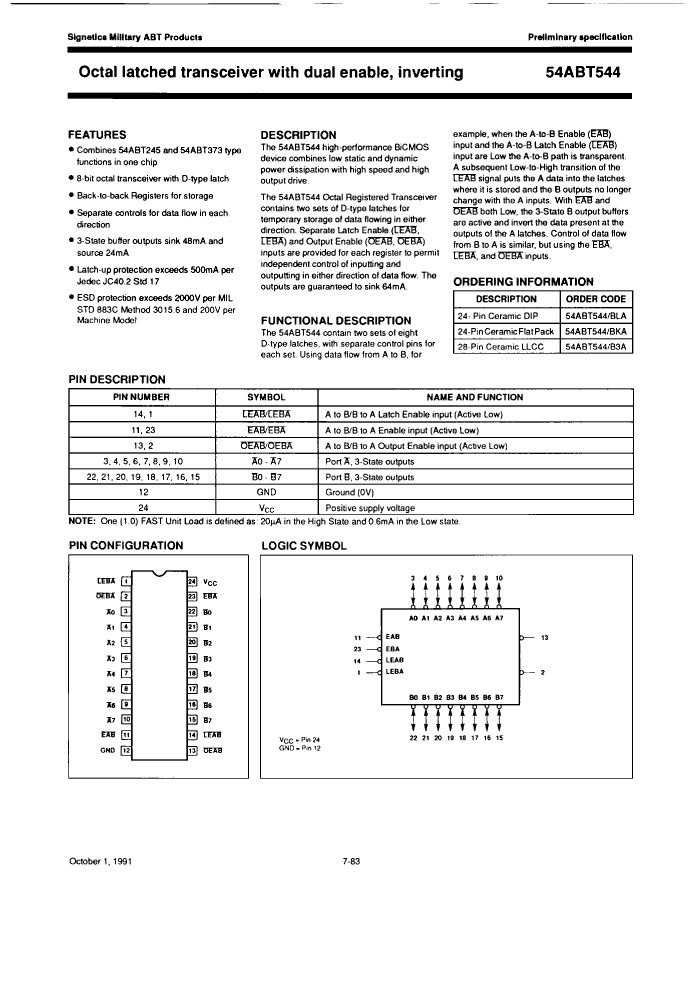

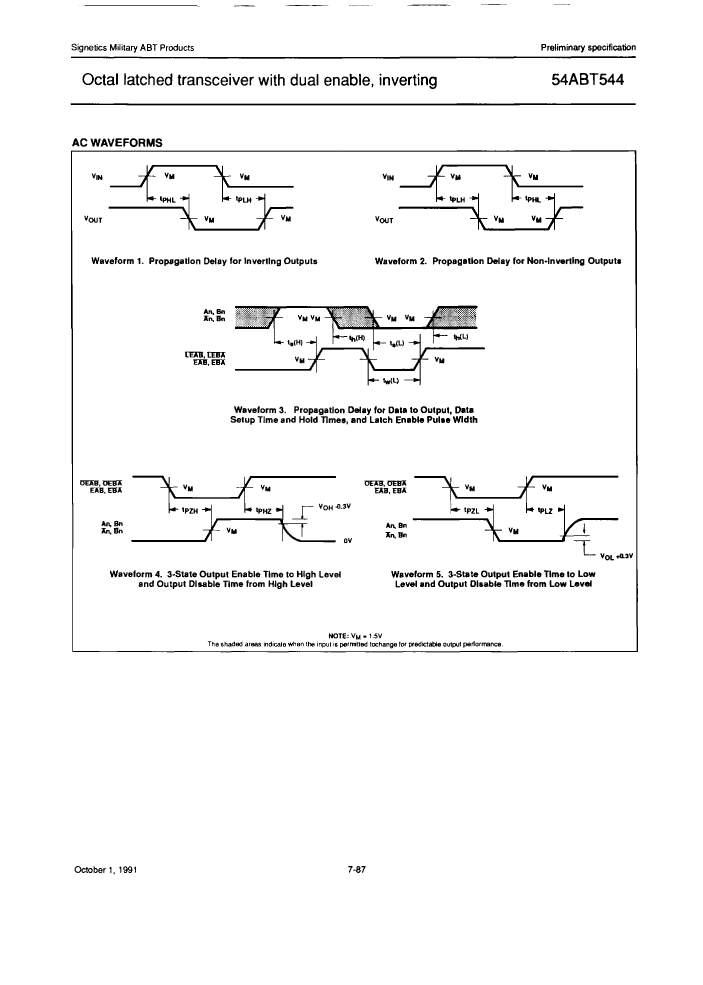

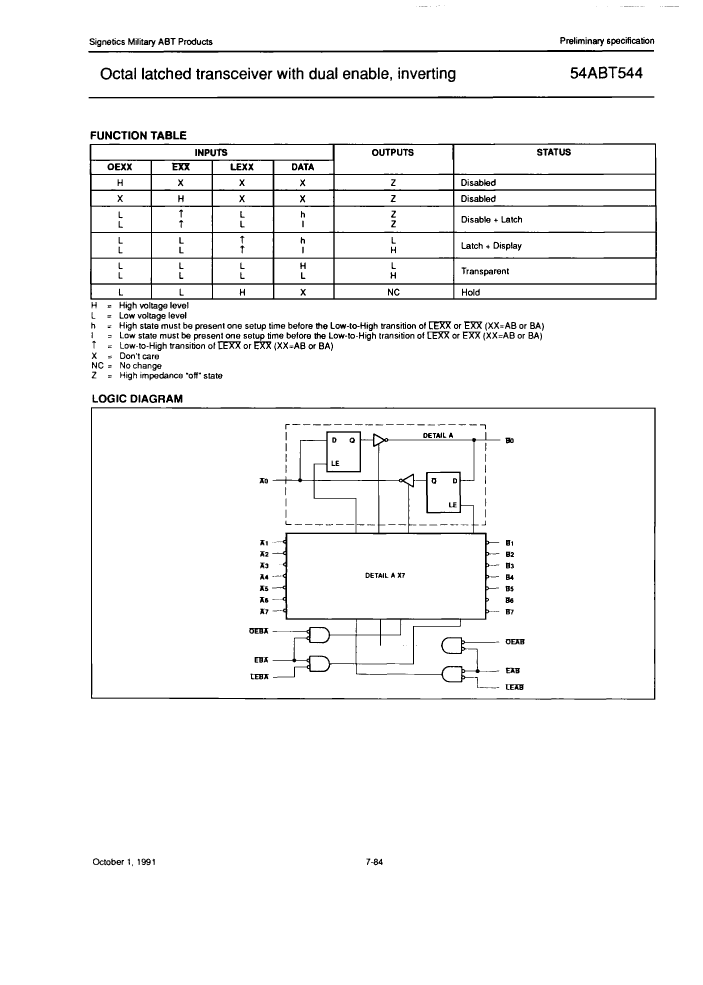

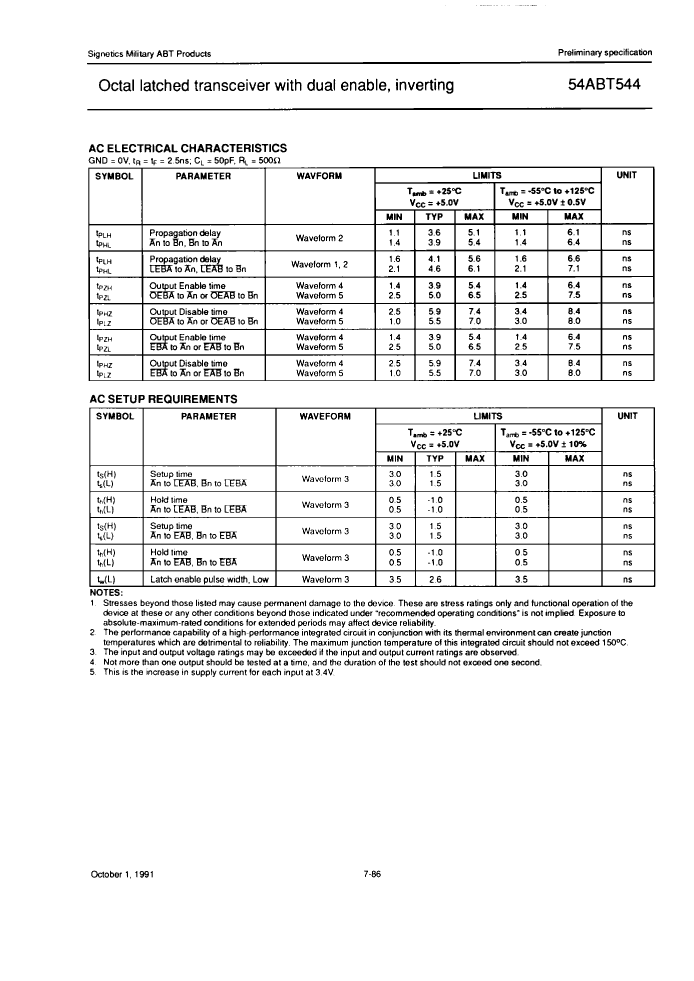

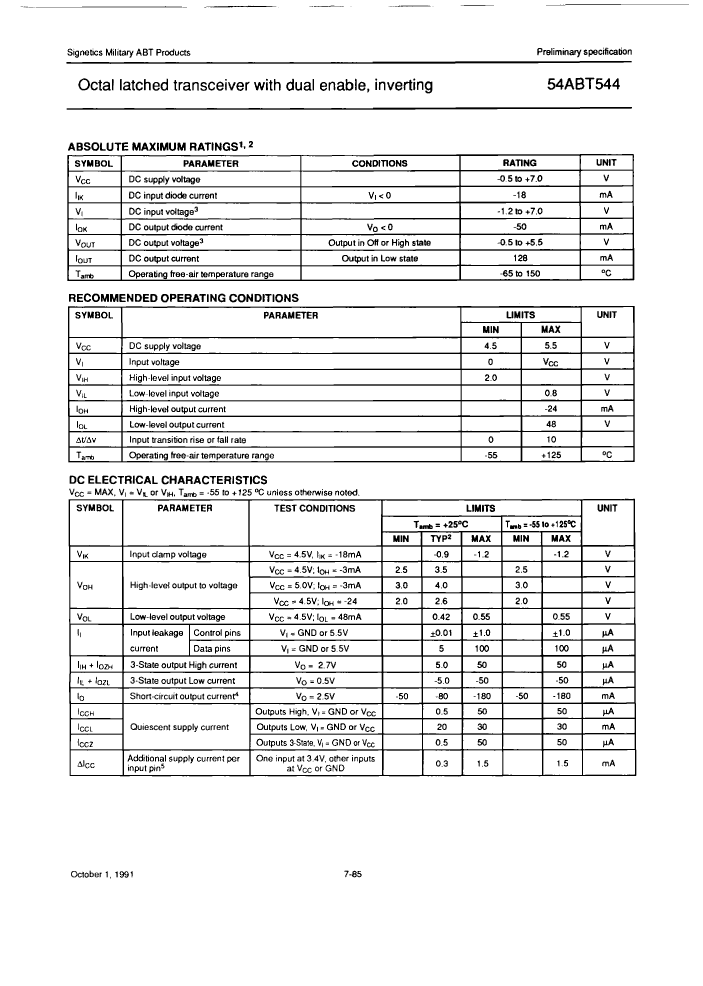

54ABT544/BKA Overview

IC ABT SERIES, 8-BIT REGISTERED TRANSCEIVER, INVERTED OUTPUT, CDFP20, Bus Driver/Transceiver

54ABT544/BKA Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	DFP,
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
series	ABT
JESD-30 code	R-CDFP-F20
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
propagation delay (tpd)	7.1 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BICMOS
Temperature level	MILITARY
Terminal form	FLAT
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

54ABT544/BKA Related Products

	54ABT544/BKA	54ABT544/BLA	54ABT544/B3A
Description	IC ABT SERIES, 8-BIT REGISTERED TRANSCEIVER, INVERTED OUTPUT, CDFP20, Bus Driver/Transceiver	IC ABT SERIES, 8-BIT REGISTERED TRANSCEIVER, INVERTED OUTPUT, CDIP20, Bus Driver/Transceiver	IC ABT SERIES, 8-BIT REGISTERED TRANSCEIVER, INVERTED OUTPUT, CQCC28, Bus Driver/Transceiver
package instruction	DFP,	DIP,	QCCN,
Reach Compliance Code	unknown	unknown	unknown
Other features	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
series	ABT	ABT	ABT
JESD-30 code	R-CDFP-F20	R-CDIP-T20	S-CQCC-N28
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER
Number of digits	8	8	8
Number of functions	1	1	1
Number of ports	2	2	2
Number of terminals	20	20	28
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DIP	QCCN
Package shape	RECTANGULAR	RECTANGULAR	SQUARE
Package form	FLATPACK	IN-LINE	CHIP CARRIER
propagation delay (tpd)	7.1 ns	7.1 ns	7.1 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	NO	YES
technology	BICMOS	BICMOS	BICMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	THROUGH-HOLE	NO LEAD
Terminal location	DUAL	DUAL	QUAD
Base Number Matches	1	1	1
Maker	NXP	NXP	-
ECCN code	3A001.A.2.C	3A001.A.2.C	-
