SMD MICROPROCESSOR CRYSTAL
ABMC2
FEATURES:
• 2.0 mm height
• Hermetically sealed package offers high reliability.
• AT cut offers tighter stability
• Resistance welded
• Extended temperature available
• Low frequency in SMD package
• IR Reflow capable
Pb
RoHS
Compliant
APPLICATIONS:
• PCMCIA applications
• Microprocessors
• Communication equipment, Networking,
Thin equipment
11.0 x 5.0 x 2.0 mm
| | | | | | | | | | | | | | |
STANDARD SPECIFICATIONS:
ABRACON P/N:
Frequency:
Operation mode:
ABMC2 Series
3.579545 MHz to 70 MHz
AT-strip or BT-strip
3.5 MHz - 32.00 MHz (Fundamental AT-cut: Standard)
32.00 MHz - 70.00 MHz (3rd OT AT-cut: Standard)
32.00 MHz - 41.00 MHz (Fundamental AT-cut: See options)
22.00 MHz - 46.00 MHz (Fundamental BT-cut: See options)
- 10°C to + 60°C (see options)
- 40°C to + 85° C
± 50 ppm max. (see options)
± 100 ppm max. (see options)
± 100 ppm max. over - 40°C to + 85° C only for BT-cut
See Table 1
7.0pF max.
18.0pF (see option)
100 µW max.
± 5 ppm max.
500 M
Ω
min. at 100 Vdc ± 15 Vdc
ESR(Ω ) max.
Ω
180
150
120
100
80
60
50
40
60
80
Operating temperature:
Storage temperature:
Frequency tolerance:
Frequency stability over the operating
temperature (Ref to +25° C):
Equivalent series resistance (max.):
Shunt capacitance C0:
Load capacitance CL:
Drive level:
Aging (per year) @ 25° C:
Insulation resistance:
Table 1 Standard ESR
Frequency (MHz)
3.500 - 3.999 (AT cut fund.)
4.000 - 4.999 (AT cut fund.)
5.000 - 5.999 (AT cut fund.)
6.000 - 6.999 (AT cut fund.)
7.000 - 8.999 (AT cut fund.)
9.000 - 12.999 (AT cut fund.)
13.00 - 19.999 (AT cut fund.)
20.00 - 41.00 (AT cut fund.)
22.00 - 46.00 (BT cut)
32.00 - 70.00 (3rd O/T)
ABRACON IS
ISO9001:2008
CERTIFIED
Revised: 08.19.10
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
SMD MICROPROCESSOR CRYSTAL
ABMC2
OPTIONS AND PART IDENTIFICATION:
(Left blank if standard)
Pb
RoHS
Compliant
11.0 x 5.0 x 2.0 mm
| | | | | | | | | | | | | | |
ABMC2 -
Frequency in MHz
e.g. 24.576MHz
14.31818MHz
26.000MHz
Load Capacitance
Please specify CL in pF or
S for Series (minimum 7pF)
MHz -
-R
-
-
-
-
-
Packaging
Blank: Bulk
T: Tape & Reel
Mode
F: Fund.AT for 32~41MHz
FB: Fund.BT for 22~46MHz
ESR
Specify a value in
Ω
Operating Temp.
E: 0°C ~ +70°C
B: -20°C ~ +70°C
C: -30°C ~ +70°C
N: -30°C ~ +85°C
D***: -40°C ~ +85°C
*** ± 100 ppm max. over
- 40°C to + 85° C only
for BT-cut
Freq. Tolerance
1: ±
7: ±
2: ±
3: ±
4: ±
10
15
20
25
30
ppm
ppm
ppm
ppm
ppm
Freq. Stability
U: ± 10 ppm(*)
G: ± 15 ppm(**)
X: ± 20 ppm
W: ± 25 ppm
Y: ± 30 ppm
H: ± 35 ppm
Z: ± 50 ppm
* -10°C to 60°C only
** Temp option E, B,
C, and N only

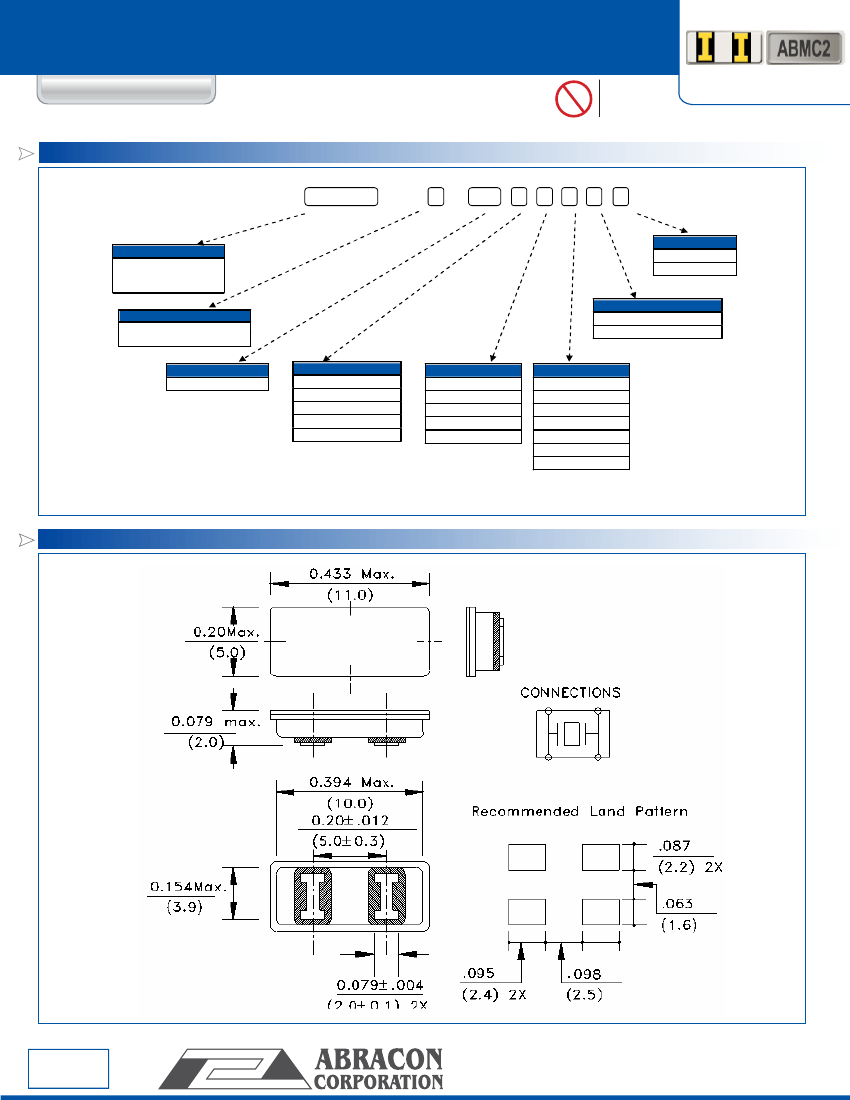

OUTLINE DRAWING:
Dimensions: inch (mm)
ABRACON IS
ISO9001:2008
CERTIFIED
Revised: 08.19.10
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
SMD MICROPROCESSOR CRYSTAL
ABMC2

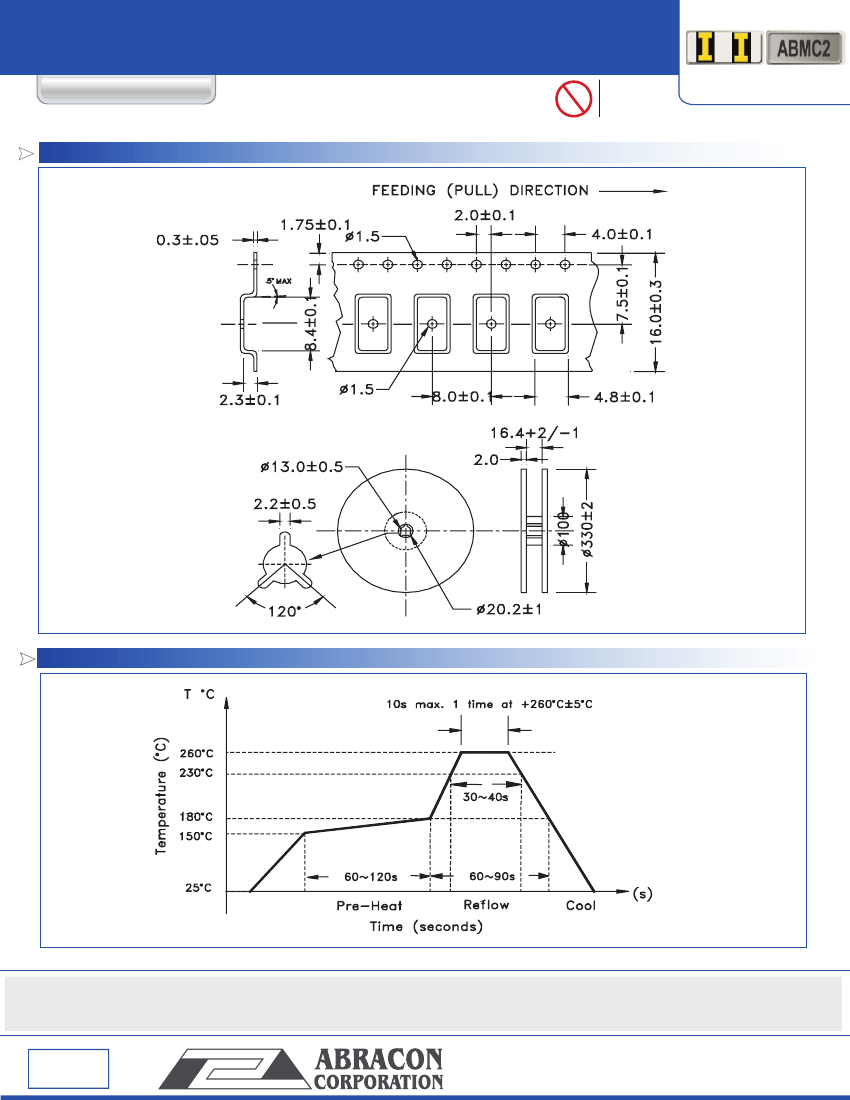

TAPE & REEL:
T = Tape and reel 1,000pcs/reel
Pb
RoHS
Compliant
| | | | | | | | | | | | | | |
11.0 x 5.0 x 2.0 mm
Dimensions: mm
REFLOW PROFILE:
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are
not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component failure could result in loss of life and/or property.
For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from Abracon Corporation is required. Please contact Abracon Corporation
for more information.
ABRACON IS
ISO9001:2008
CERTIFIED
Revised: 08-19-10
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
