HIF2C-30DT-1.27R datasheet, PDF

Datasheet> All Categories > The connector> The connector> HIF2C-30DT-1.27R

HIF2C-30DT-1.27R: Descriptionheaders & wire housings 30p idc dir pcb mnt housing gold plated; CategoryThe connector The connector; File Size135KB，5 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

HIF2C-30DT-1.27R Overview

headers & wire housings 30p idc dir pcb mnt housing gold plated

HIF2C-30DT-1.27R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Hirose
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW PROFILE
body width	0.394 inch
subject depth	0.193 inch
body length	1.701 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BERYLLIUM COPPER
contact mode	STAGGERED
Contact resistance	15 mΩ
Contact style	IDC
DIN compliance	NO
Dielectric withstand voltage	650VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	HIF2C
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	CABLE
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
polarization key	HOUSING SIDE
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	5.08 mm
Termination type	IDC
Total number of contacts	30
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.

All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

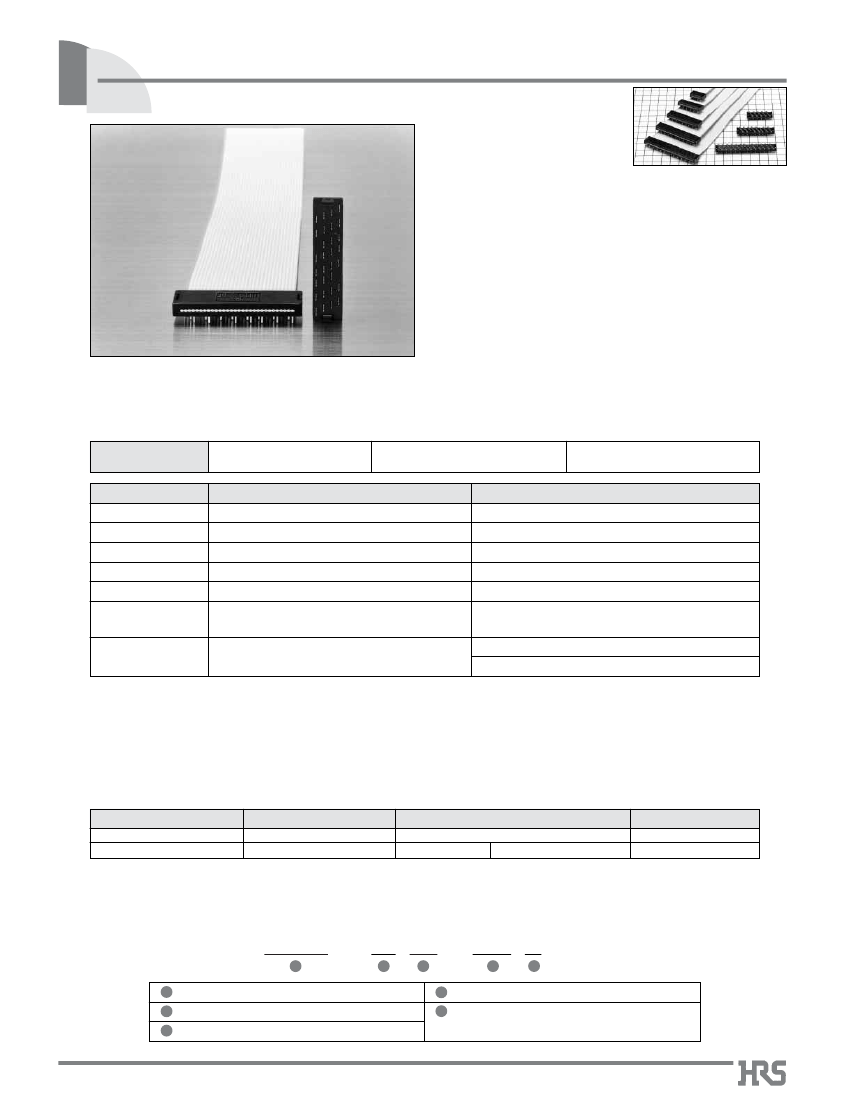

Staggered Connector Directly Mounted on Board

HIF2C Series

■

Features

1. Directly Mounted on Board

This connector can be directly mounted on the board

using 1.27mm pitch flat cable.

2. Variation in Number of Contacts

The number of contacts contains 10, 16, 20, 26, 30, 34,

40, 50, and 60 contacts.

3. Low Profile Type

The connector height is lower than that of the HIF2E series.

4. Applicable Cable

The applicable cable is UL2651 AWG

28 flat cable (7

cores./0.127mm, jacket dia. :0.8 to 1.0mm).

■

Applications

■

Product Specifications

Rating

Item

1. Insulation Resistance 1000M

ohms

min.

2. Withstanding voltage

No flashover or insulation breakdown.

3. Contact Resistance 15m

ohms

max.

4. Vibration

Current rating: 1A

Voltage rating: 200V AC

Specification

Computers, terminal equipment, PPC, various kinds of electronic equipment, business machines, etc.

Operating Temperature Range:–55 to

+85ç

(Note 1)

Operating Moisture Range:40 to 80%

Storage Temperature Range:–10 to

+60ç(Note

Storage Humidity Range:40 to 70% (Note 2)

Condition

500V DC

650V AC/1 minute

0.1A

No electrical discontinuity of 1μs or more

Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.

96 hours at temperature of 40ç and humidity of 90% to 95%

(–65ç: 30 minutes

➝15

to 35ç: 5 minutes max.

125ç: 30 minutes

➝15

to 35ç: 5 minutes max.) 5 cycles

Humidity (Steady state)

Insulation resistance: 1000M

ohms

min.

6. Temperature Cycle

No damage, cracks, or parts looseness.

7. Resistance to

Soldering heat

No deformation of components affecting performance.

Solder Bath: 260ç for 10 seconds

Manual soldering: 360ç for 5 seconds

Note 1: Includes temperature rise caused by current flow.

Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature

Range and Humidity range covers non conducting condition of installed connectors in storage, shipment or during

transportation.

Note 3. Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and

specifications for a specific part number shown.

■

Material

Part

Insulator

Contact

Material

PBT

Beryllium copper

Contact area

Finish

Black

Gold plated over nickel underplated

Remarks

UL94V-0

---------------

■

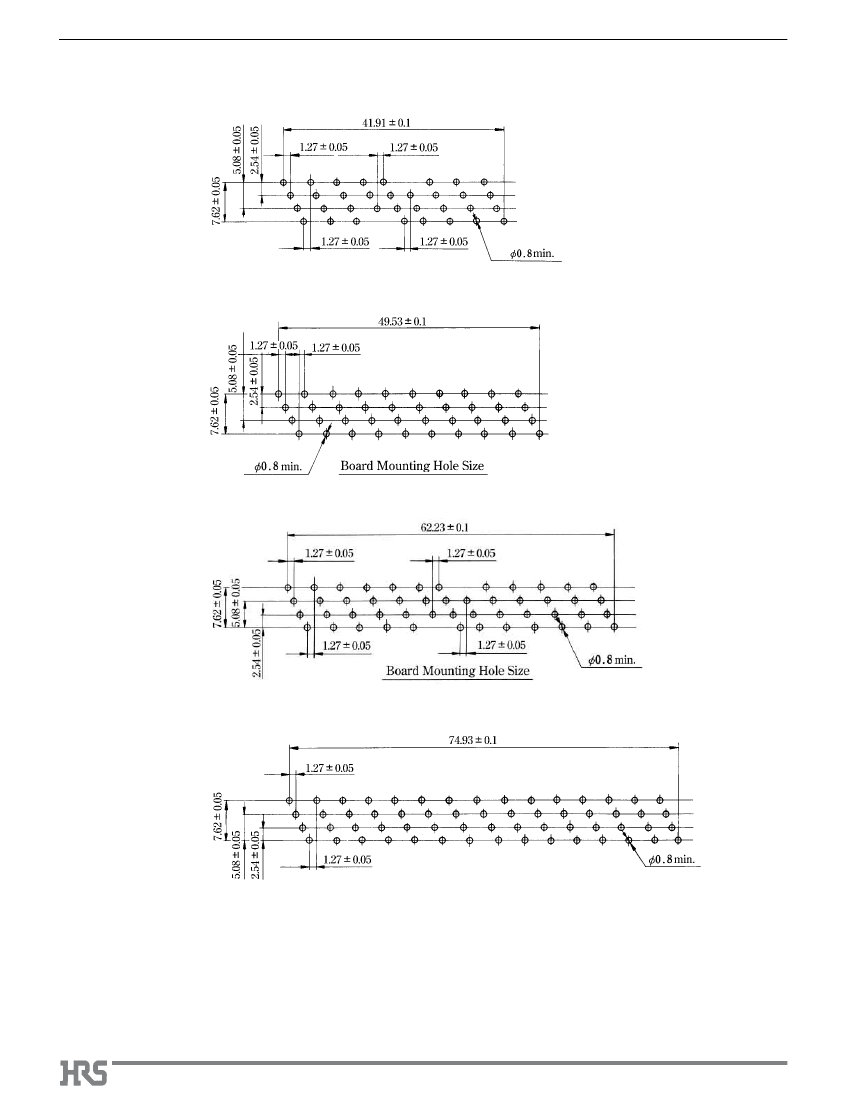

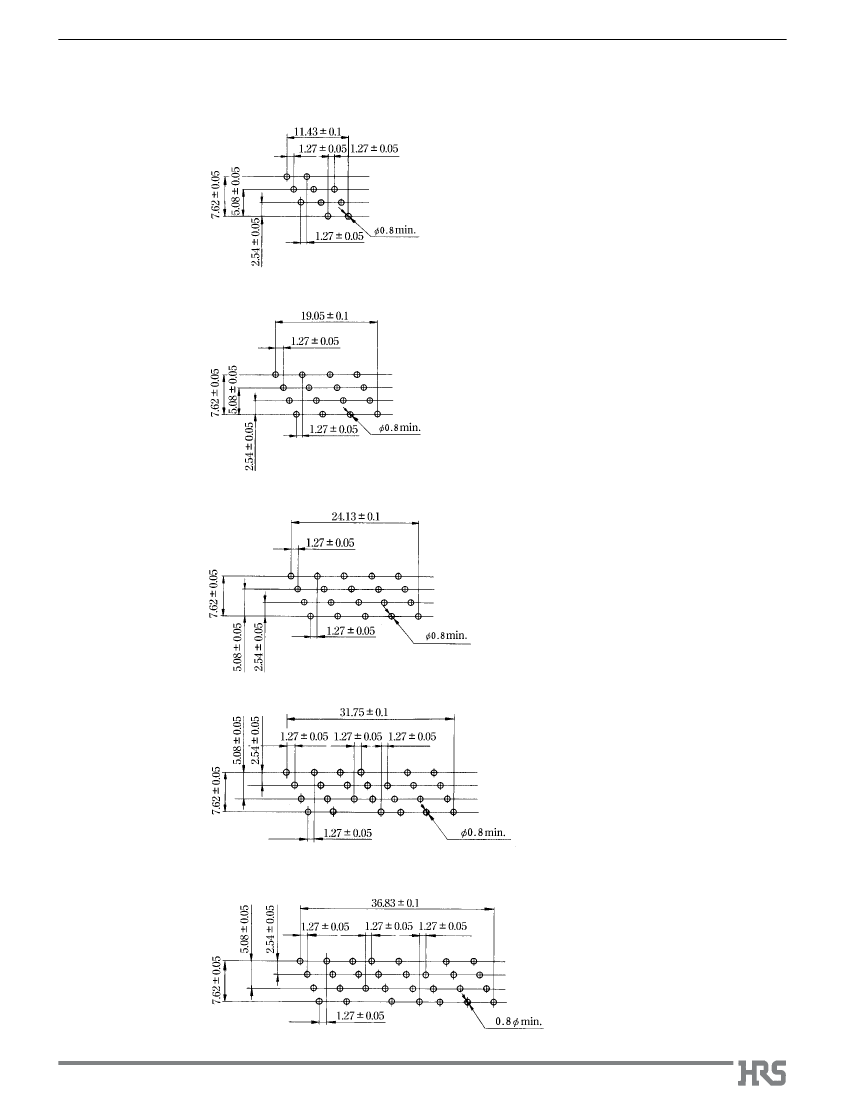

Ordering Information

HIF2C

Series Name: HIF 2C

DT - 1.27 R

Contact Pitch: 1.27mm

Connection type : R : ribbon cable

Number of contacts: 10, 16, 20, 26, 30, 34, 40, 50, and 60

Contact alignment: DT : staggered

B65

HIF2C-30DT-1.27R Related Products

	HIF2C-30DT-1.27R	HIF2C-60DT-1.27R(01)	HIF2C-50DT-1.27R	HIF2C-20DT-1.27R	HIF2C-26DT-1.27R
Description	headers & wire housings 30p idc dir pcb mnt housing gold plated	headers & wire housings 60p idc dir pcb mnt hse gld plt cnge fin	headers & wire housings 50p idc dir pcb mnt housing gold plated	headers & wire housings 20p idc dir pcb mnt housing gold plated	headers & wire housings 26p idc dir pcb mnt housing gold plated
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknow	unknow	unknown	unknown
Other features	LOW PROFILE	LOW PROFILE, STAGGERED CONFIGURATION	LOW PROFILE	LOW PROFILE	LOW PROFILE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	NOT SPECIFIED	AU	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	BERYLLIUM COPPER	NOT SPECIFIED	BERYLLIUM COPPER	NOT SPECIFIED	NOT SPECIFIED
contact mode	STAGGERED	RECTANGULAR	STAGGERED	STAGGERED	STAGGERED
Contact resistance	15 mΩ	15 mΩ	15 mΩ	15 mΩ	15 mΩ
Contact style	IDC	RND PIN-SKT	IDC	IDC	IDC
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	4	4	4	4	4
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Rated current (signal)	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Termination type	IDC	IDC	IDC	IDC	IDC
Total number of contacts	30	60	50	20	26
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	Hirose	-	-	Hirose	Hirose
ECCN code	EAR99	-	EAR99	EAR99	EAR99
body width	0.394 inch	-	0.394 inch	0.394 inch	0.394 inch
subject depth	0.193 inch	-	0.193 inch	0.193 inch	0.193 inch
body length	1.701 inch	-	2.701 inch	1.201 inch	1.5 inch
Body/casing type	PLUG	-	PLUG	PLUG	PLUG
Contact completed and terminated	GOLD	-	GOLD	Gold (Au)	Gold (Au)
Dielectric withstand voltage	650VAC V	-	650VAC V	650VAC V	650VAC V
Plug contact pitch	0.1 inch	-	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	-	0.1 inch	0.1 inch	0.1 inch
Number of connectors	ONE	-	ONE	ONE	ONE
PCB row number	4	-	4	4	4
PCB contact pattern	STAGGERED	-	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm
polarization key	HOUSING SIDE	-	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE
Terminal length	0.11 inch	-	0.11 inch	0.11 inch	0.11 inch
