5082-H211-J0000: Descriptionblack surface seven segment displays; File Size187KB，14 Pages; ManufacturerHP（Keysight）; Websitehttp://www.semiconductor.agilent.com/

Download Datasheet View All

5082-H211-J0000 Overview

black surface seven segment displays

Preview

Download Datasheet

View All

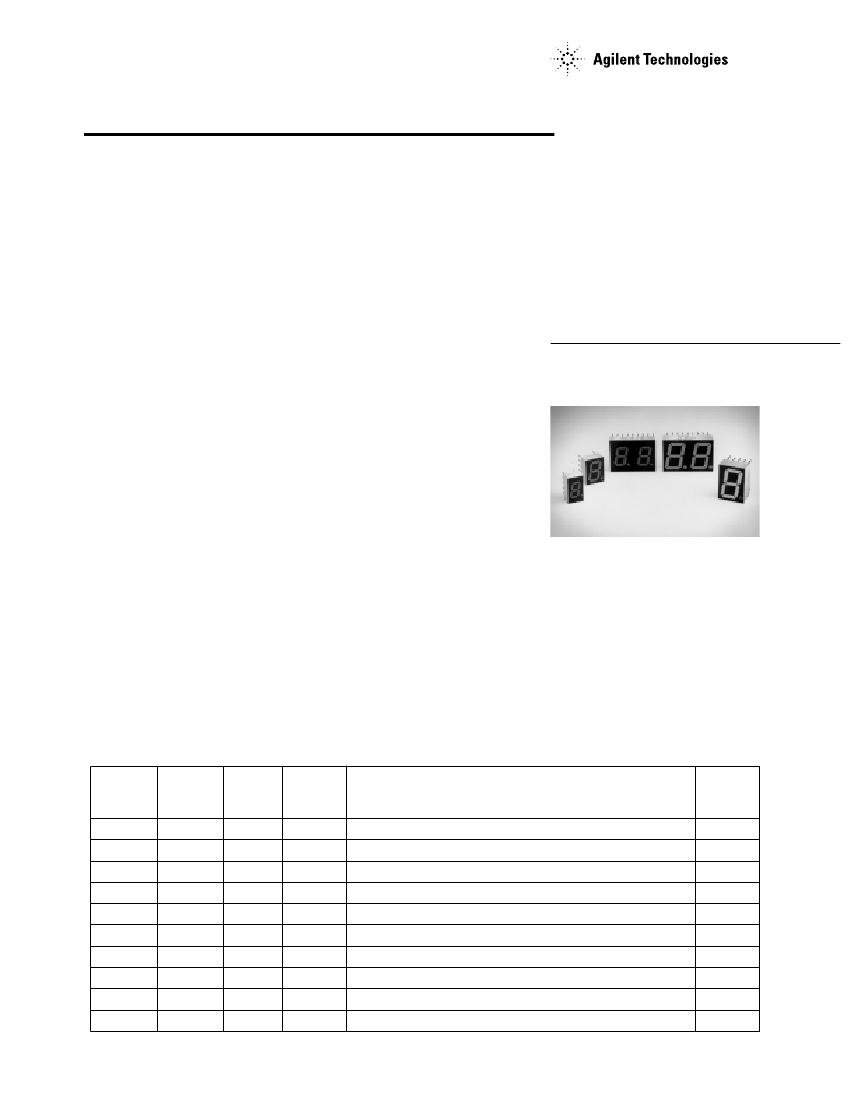

Black Surface Seven Segment

Displays

Technical Data

HDSP-AX11/-AX13 Series

HDSP-FX11/-FX13 Series

HDSP-GX11/-GX13 Series

HDSP-HX11/-HX13 Series

HDSP-KX11/-KX13 Series

Features

• Black Surface and Color

Tinted Epoxy

• Industry Standard Size

• Industry Standard Pinout

• Choice of Character Size

7.6 mm (0.30 in.), 10 mm

(0.40 in.), 14.2 mm (0.56 in.)

• Choice of Colors

AlGaAs Red, High Efficiency

Red (HER), Green, Orange

• Excellent Appearance

Evenly Lighted Segments

50° Viewing Angle

• Design Flexibility

Common Anode or Common

Cathode

Single and Two Digit

• Categorized for Luminous

Intensity

Categorized for Color: Green

Use of Like Categories Yields a

Uniform Display

• Excellent for Long Digit

String Multiplexing

finish. All devices are available as

either common anode or common

cathode.

Typical applications include

appliances, channel indicators of

TV, CATV converters, game

machines, and point of sale

terminals.

Description

These devices use industry

standard size package and pinout.

Available with black surface

Devices

Orange

HDSP-

A411

A413

F411

F413

G411

G413

H411

H413

K411

K413

AlGaAs

Red

HDSP-

A111

A113

F111

F113

G111

G113

H111

H113

K111

K113

HER

HDSP-

A211

A213

F211

F213

G211

G213

H211

H213

K211

K213

Green

HDSP-

A511

A513

F511

F513

G511

G513

H511

H513

K511

K513

Description

7.6 mm Common Anode Right Hand Decimal

7.6 mm Common Cathode Right Hand Decimal

10 mm Common Anode Right Hand Decimal

10 mm Common Cathode Right Hand Decimal

10 mm Two Digit Common Anode Right Hand Decimal

10 mm Two Digit Common Cathode Right Hand Decimal

14.2 mm Common Anode Right Hand Decimal

14.2 mm Common Cathode Right Hand Decimal

14.2 mm Two Digit Common Anode Right Hand Decimal

14.2 mm Two Digit Common Cathode Right Hand Decimal

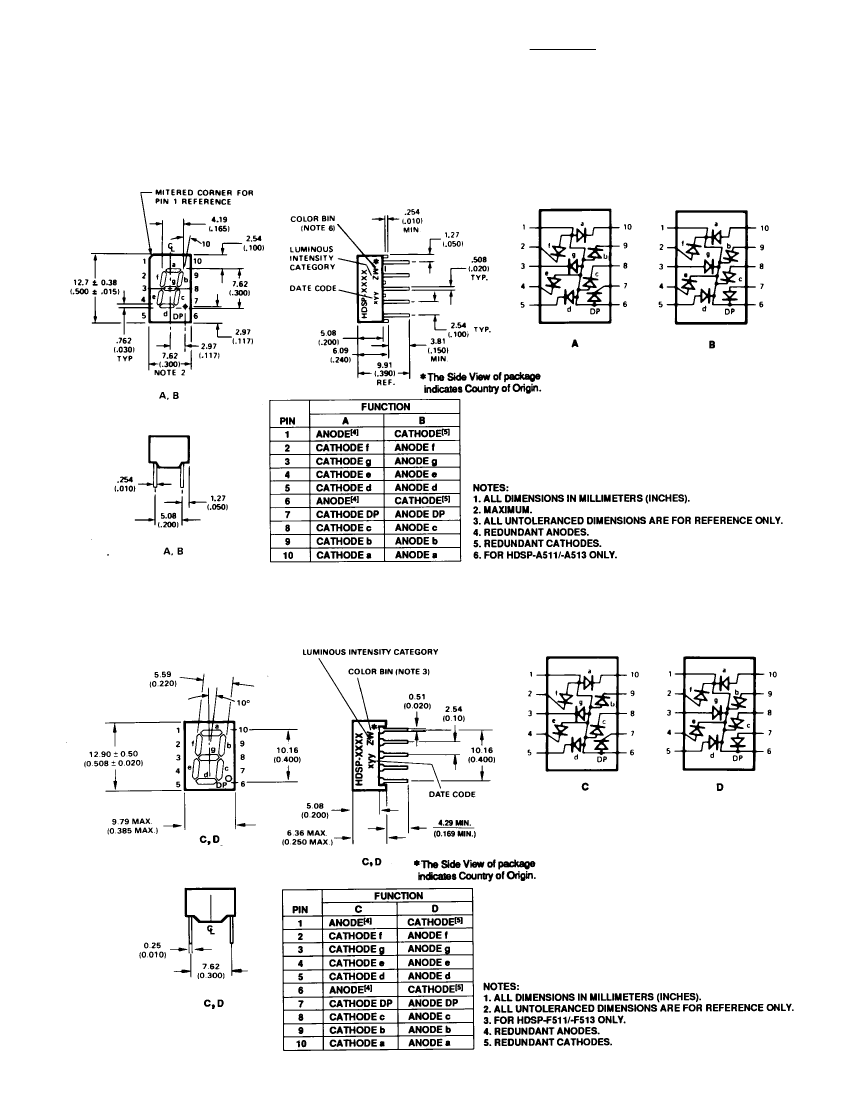

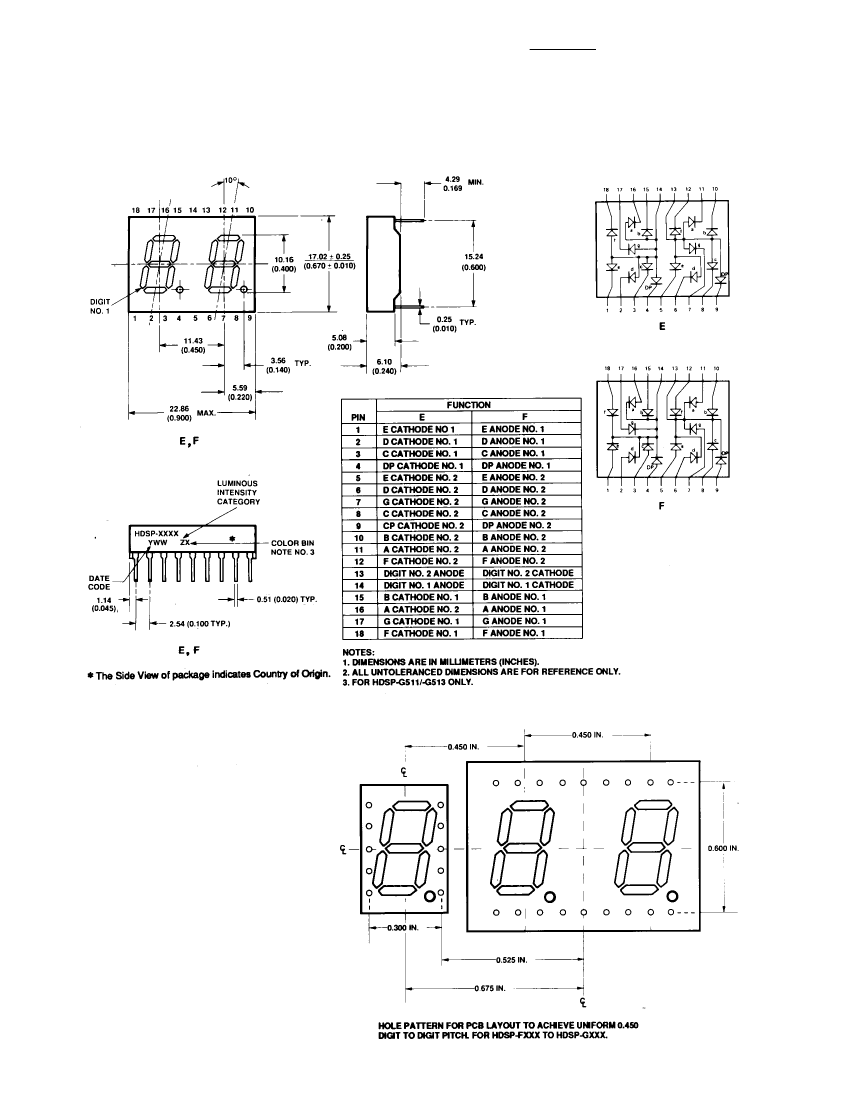

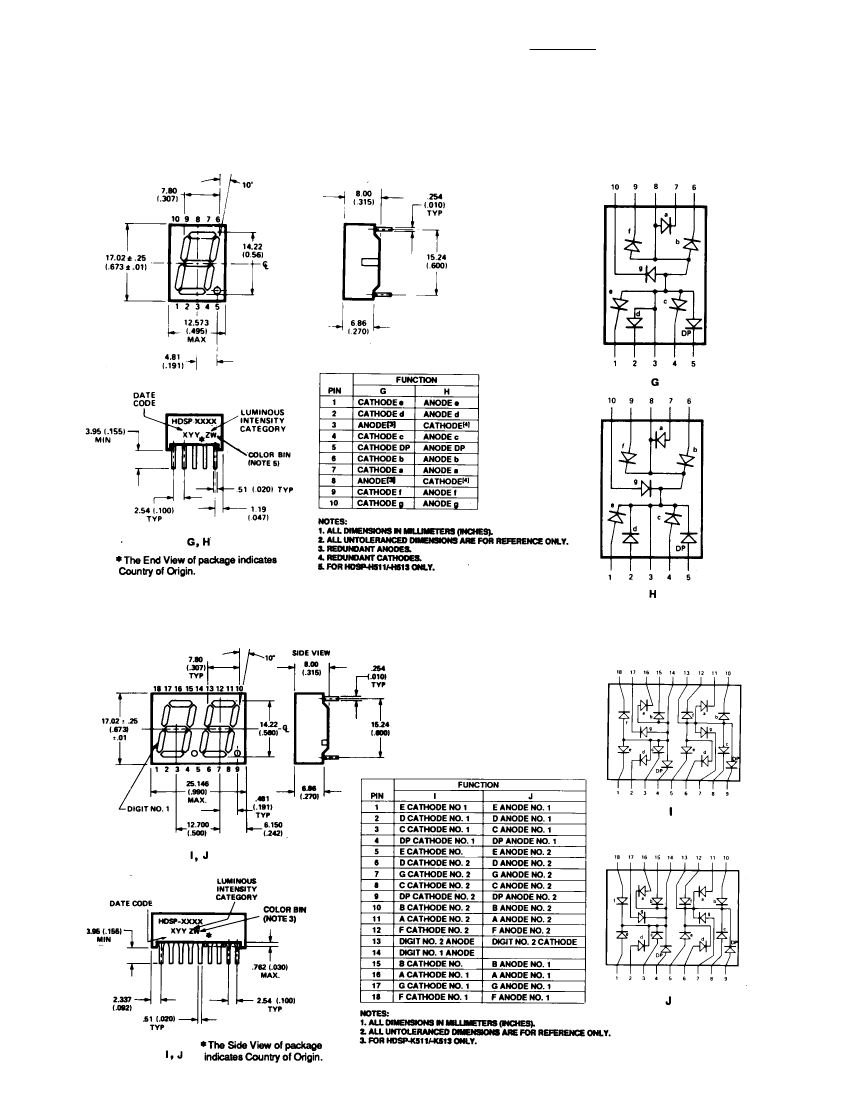

Package

Drawing
