EA2540HA22-40.000M datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> EA2540HA22-40.000M

EA2540HA22-40.000M: DescriptionQuartz Crystal Resonator 2.5mm x 4.0mm x 0.7mm 4 Pad Ceramic Surface Mount (SMD) 40.000MHz ±15ppm/30ppm over -20°C to +70°C; CategoryPassive components Crystal/resonator; File Size756KB，9 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EA2540HA22-40.000M Overview

Quartz Crystal Resonator 2.5mm x 4.0mm x 0.7mm 4 Pad Ceramic Surface Mount (SMD) 40.000MHz ±15ppm/30ppm over -20°C to +70°C

EA2540HA22-40.000M Parametric

Parameter Name	Attribute value
Brand Name	Ecliptek
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	7040774596
Parts packaging code	SMD Ceramic 2.5mm x 4.0mm
package instruction	SMD, 4 PIN
Contacts	4
Manufacturer packaging code	SMD Ceramic 2.5mm x 4.0mm
Reach Compliance Code	unknown

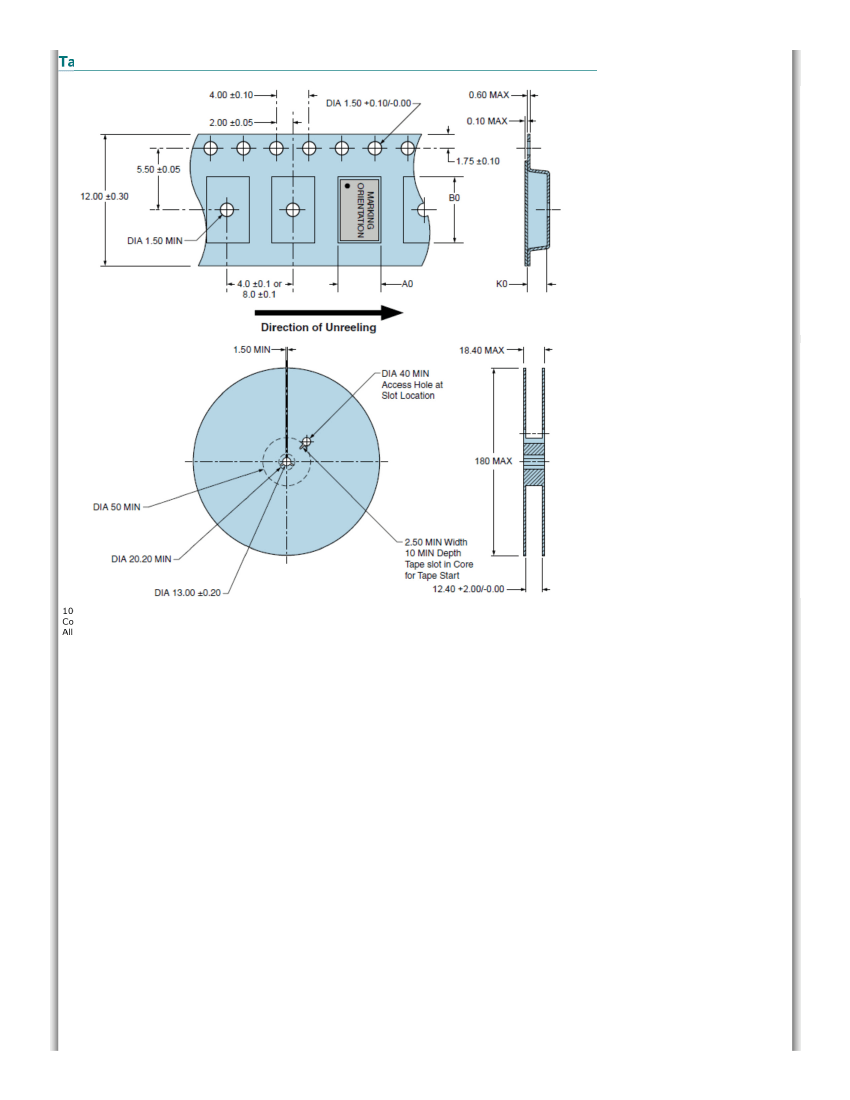

Other features	AT-CUT; BULK; TAPE
Ageing	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.003%
frequency tolerance	15 ppm
JESD-609 code	e4
load capacitance	22 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	40 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C

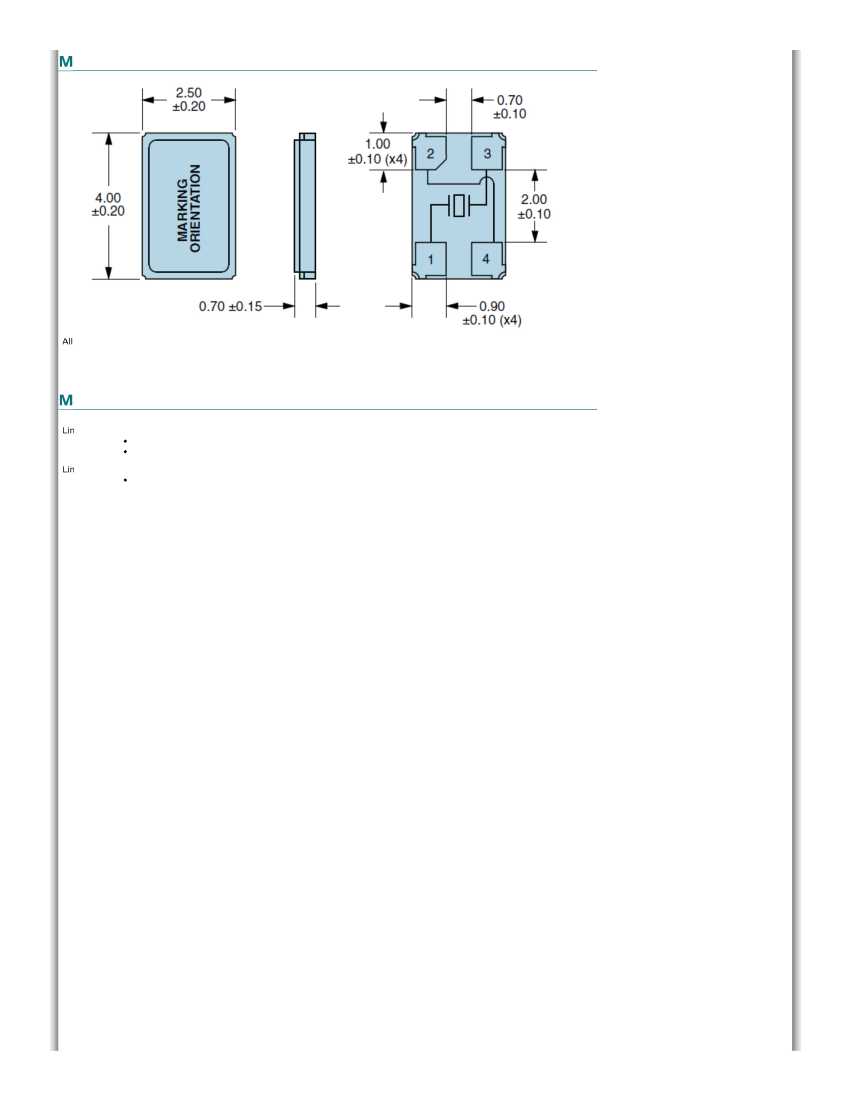

physical size	L4.0XB2.5XH0.7 (mm)/L0.157XB0.098XH0.028 (inch)
Series resistance	50 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

Ecliptek | EA2540 Series Crystal

http://www.ecliptek.com/crystals/EA2540/

Log On

| 714-433-1200 |

Email Customer Support

Home

Products

Quick Quote

My Parts List

Site Map

EA2540 Series Crystal

Quartz Crystal Resonator 2.5mm x 4.0mm x 0.7mm 4 Pad Ceramic Surface Mount (SMD)

2011/65 +

2015/863

168 SVHC

Electrical Specifications

Nominal Frequency

12.000MHz to 50.000MHz

Some frequencies within this range may not be available.

Revision A 12/05/2014

Frequency Tolerance (at 25°C)

±50ppm

±30ppm

±15ppm

±10ppm

Maximum

Frequency Stability

(over Operating Temperature Range)

±100ppm Maximum

±50ppm Maximum

±30ppm Maximum

±20ppm Maximum

±15ppm Maximum

0°C to +70°C

-20°C to +70°C

-40°C to +85°C

±3ppm/year Maximum

8pF Parallel Resonant to 32pF Parallel Resonant

Series Resonant

5pF Maximum

Click to Open ESR Table

AT-Cut Fundamental

100 Watts Maximum

Measured from Fo to Fo +5000ppm

-3dB Minimum

-40°C to +90°C

Measured at 100V

500 Megaohms Minimum

Operating Temperature Range

Aging at 25°C

Load Capacitance

Shunt Capacitance

Equivalent Series Resistance

Mode of Operation

Drive Level

Spurious Response

Storage Temperature Range

Insulation Resistance

1 of 9

28-Jan-2016 12:55 PM
