Network cable - NBC-MSD/ 5,0-93B/R4RC SCO - 1407518
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)

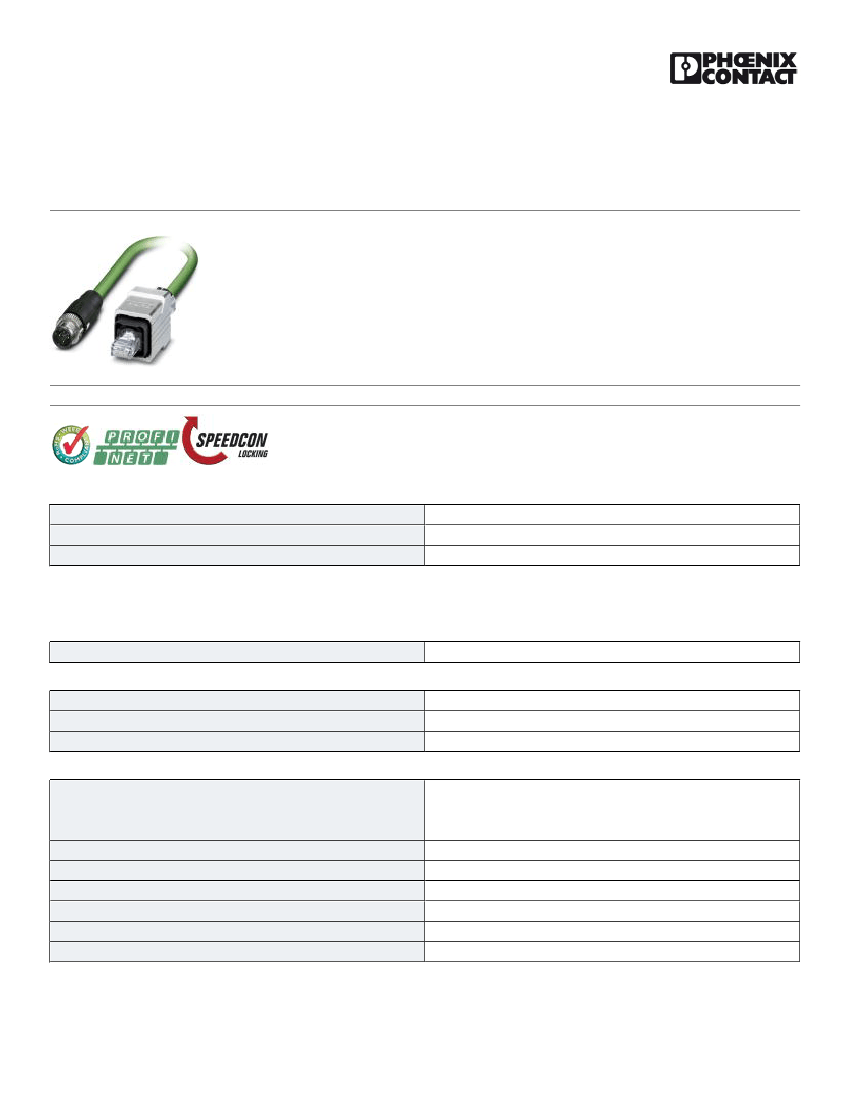

Network cable, PROFINET CAT5 (100 Mbps), PROFINET CAT5e (100 Mbps), 4-position, PVC/PVC, Green RAL
6018, shielded, Plug Straight M12 SPEEDCON / IP67, Coding: D, on Plug Straight RJ45 Push Pull / IP67, Cable
length: 5 m
Key commercial data
Packing unit
Custom tariff number
Country of origin
1 pc
85444210
Poland
Technical data
Dimensions
Length of cable
5m
Ambient conditions
Degree of protection
IP65 (M12 connector)
IP67 (M12 connector)
IP67 (RJ45 connector)
General data
Note
Rated current at 40°C
Rated voltage
Number of positions
Signal type/category
Standards/regulations
This product corresponds to the PROFINET Cabling and Interconnection
Technology Guideline for PROFINET regulations, version 2.00, order
no: 2.252, Chapter 8.2 Connectors for Outside Environment (Balanced
cabling)
1A
50 V
4
PROFINET CAT5 (IEC 11801:2002), 100 Mbps
PROFINET CAT5e (TIA 568B:2001), 100 Mbps
M12 connector IEC 61076-2-101
04/01/2014 Page 1 / 5
https://www.phoenixcontact.com/us/products/1407518
Network cable - NBC-MSD/ 5,0-93B/R4RC SCO - 1407518
Technical data
Characteristics head 1
Head type
No. of positions (pin connector pattern)
Coding
Color
Material (component)
Plug Straight M12 SPEEDCON / IP67
4
D (Data)
black
CuSn (Contact)
Ni/Au (Contact surface)
PA (Contact carriers)
TPU, hardly inflammable, self-extinguishing (Grip)
Zinc die-cast, nickel-plated (Screw connection)
Contact resistance
Insulation resistance
Insertion/withdrawal cycles
Torque
Ambient temperature (operation)
≤ 5 mΩ
≥ 100 MΩ
≥ 100
0.4 Nm
-25 °C ... 90 °C
Characteristics head 2
Head type
No. of positions (pin connector pattern)
Color
Material (component)
Plug Straight RJ45 Push Pull / IP67
4 (8)
silver
CuSn (Contact)
Ni/Au (Contact surface)
PC (Contact carriers)
Zinc die-cast, nickel-plated (Housing)
Insertion/withdrawal cycles
Ambient temperature (operation)
≥ 750
-40 °C ... 70 °C
Cable
Cable type
Cable type (abbreviation)
UL AWM style
Signal type/category
Cable structure
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Wire colors
PROFINET PVC stranded CAT5e
93B
21694
PROFINET CAT5 (IEC 11801:2002), 100 Mbps
PROFINET CAT5e (TIA 568B:2001), 100 bps
1x4xAWG22/7; SF/TQ
4x 0.34 mm²
22
7x 0.25 mm
approx. 1.5 mm
White, yellow, blue, orange
04/01/2014 Page 2 / 5
https://www.phoenixcontact.com/us/products/1407518
Network cable - NBC-MSD/ 5,0-93B/R4RC SCO - 1407518
Technical data
Cable
Overall twist
Shielding
Optical shield covering
External sheath, color
Outer sheath thickness
External cable diameter D
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Torsion force
Cable weight
Outer sheath, material
Material, inner sheath
Material conductor insulation
Conductor material
Insulation resistance
Loop resistance
Working capacitance
Wave impedance
Signal runtime
Coupling resistance
Nominal voltage, cable
Test voltage Core/Core
Test voltage Core/Shield
Flame resistance
Resistance to oil
Other resistance
Ambient temperature (operation)
Ambient temperature (installation)
Ambient temperature (storage/transport)
Star quad
Aluminum-coated foil, tinned copper braided shield
85 %
Green RAL 6018
approx. 0.9 mm
6.5 mm ±0.2 mm
3xD
7xD
± 180 °/m (30,000 torsion cycles)
67 kg/km
PVC
PVC
PE
Tin-plated Cu litz wires
≥ 500 MΩ*km
≤ 120 Ω (per kilometer)
52 pF
100 Ω ±15 Ω (at 100 MHz)
5.3 ns/m
≤ 20.00 mΩ/m
600 V
2000 V (50 Hz, 1 min.)
2000 V (50 Hz, 1 min.)
According to UL 1685 (CSA FT 4)
Resistant to oil to a limited extent
UV resistant According to UL 1581, Section 1200
-40 °C ... 70 °C (cable, fixed installation)
-40 °C ... 70 °C (cable, flexible installation)
-20 °C ... 60 °C
-50 °C ... 70 °C
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
27060307
27060307
27060307
04/01/2014 Page 3 / 5
https://www.phoenixcontact.com/us/products/1407518
Network cable - NBC-MSD/ 5,0-93B/R4RC SCO - 1407518
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27060307
27060307
27060307
27060307
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000830
EC001855
EC001855
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
31261501
31261501
31261501
31261501
31261501

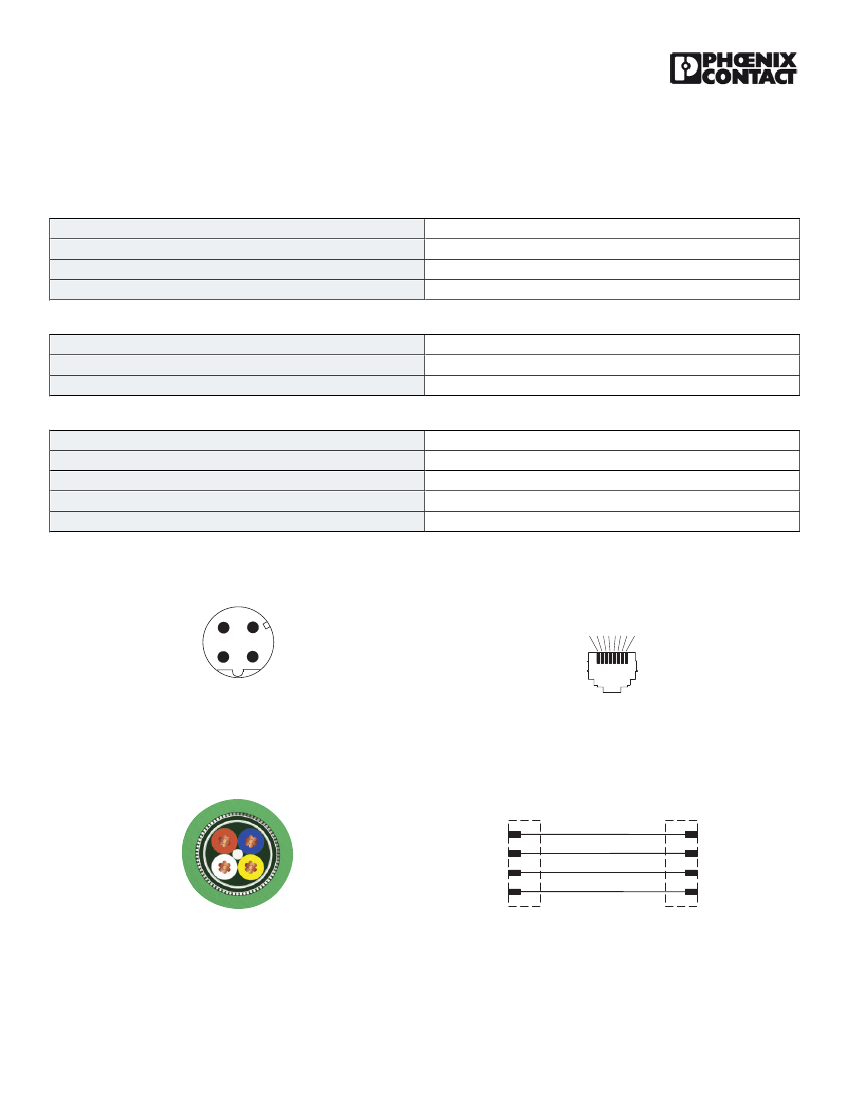

Drawings
Schematic diagram
4
3
Schematic diagram
8 765 432 1
1
2
Pin assignment M12 male connector, 4-pos., D-coded, male side
Connector pin assignment plug RJ45
Cable cross section
Circuit diagram
1
3
2
4
1 YE
2 OG
3 WH
6 BU
PROFINET PVC stranded CAT5e [93B]
Contact assignment of the M12 and RJ45 plug
04/01/2014 Page 4 / 5
https://www.phoenixcontact.com/us/products/1407518
Network cable - NBC-MSD/ 5,0-93B/R4RC SCO - 1407518
Dimensioned drawing
Dimensioned drawing
22
30
47,3
Ø14,8
M12
Ø12
Plug, M12 x 1, straight, shielded
RJ45 Push-Pull connector, IP67
Phoenix Contact 2014 © - all rights reserved
http://www.phoenixcontact.com
20,5
48,3
04/01/2014 Page 5 / 5
