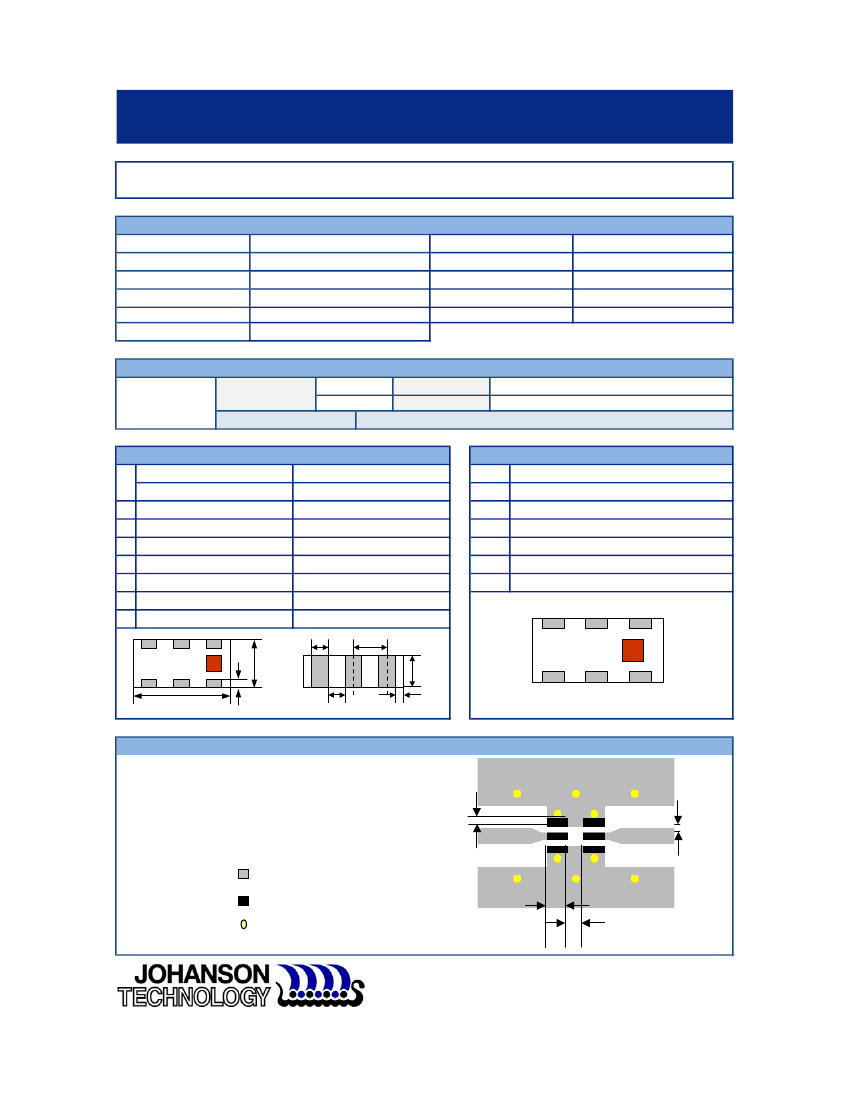

"High Frequency Ceramic Solutions"
2.45 GHz High Pass Filter
Detail Specification: 11/14/12
P/N 2450HP15A100
Page 1 of 2
General Specifications
Part Number
Frequency (MHz)
Insertion Loss
Attenuation (db)
Attenuation (db)
Attenuation (db)
2450HP15A100
2400 - 2500
0.85 dB max.
25 dB @ 875 - 920 MHz
20 dB @ 1705 - 1790 MHz
19 dB @ 1845 - 1915 MHz
Return Loss
Impedance
Operating Temperature
Reel Quanity
Input Power
9.5 dB max.
50 Ω
-40 to +85°C
4,000
3 W max.
Part Number Explanation
P/N Suffix
Bulk (Loose)
Suffix = S
eg. 2450HP15A100S
T&R
Suffix = E
eg. 2450HP15A100E
Evaluation Board
2450HP15A100-EB-SMA
Packing Style
Terminal Configuration
No.
Function
GND
1
IN
2
GND
3
GND
4
OUT
5
GND
6
3
2
1
Mechanical Dimensions
In
L
W
T
a
b
c
g
p
0.079
0.049
0.037
0.012
0.008
0.008
0.014
0.026
± 0.004
± 0.004
± 0.004
± 0.004
+ 0.004
± .004 / -.008
± 0.008
± 0.006
a
2.00
1.25
0.95
0.30
0.20
0.20
0.35
0.65
mm
± 0.10
± 0.10
± 0.10
± 0.10
+ 0.10
± 0.1 / -0.2
± 0.20
± 0.15
p
W
T
c
L
g
b
4
5
6
Mounting Considerations
Mount these devices with brown mark facing up.
*Line width should be designed to provide 50 Ω
impedance matching characteristics.
Units: mm
LEGEND
Solder
0.35
0.30
*
1.00
*
Land
Through-hole
(φ0.5)
0.80
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
Ver 2.1
2012 Johanson Technology, Inc. All Rights Reserved
"High Frequency Ceramic Solutions"
2.45 GHz High Pass Filter
Detail Specification: 11/14/12
P/N 2450HP14A100
Page 2 of 2

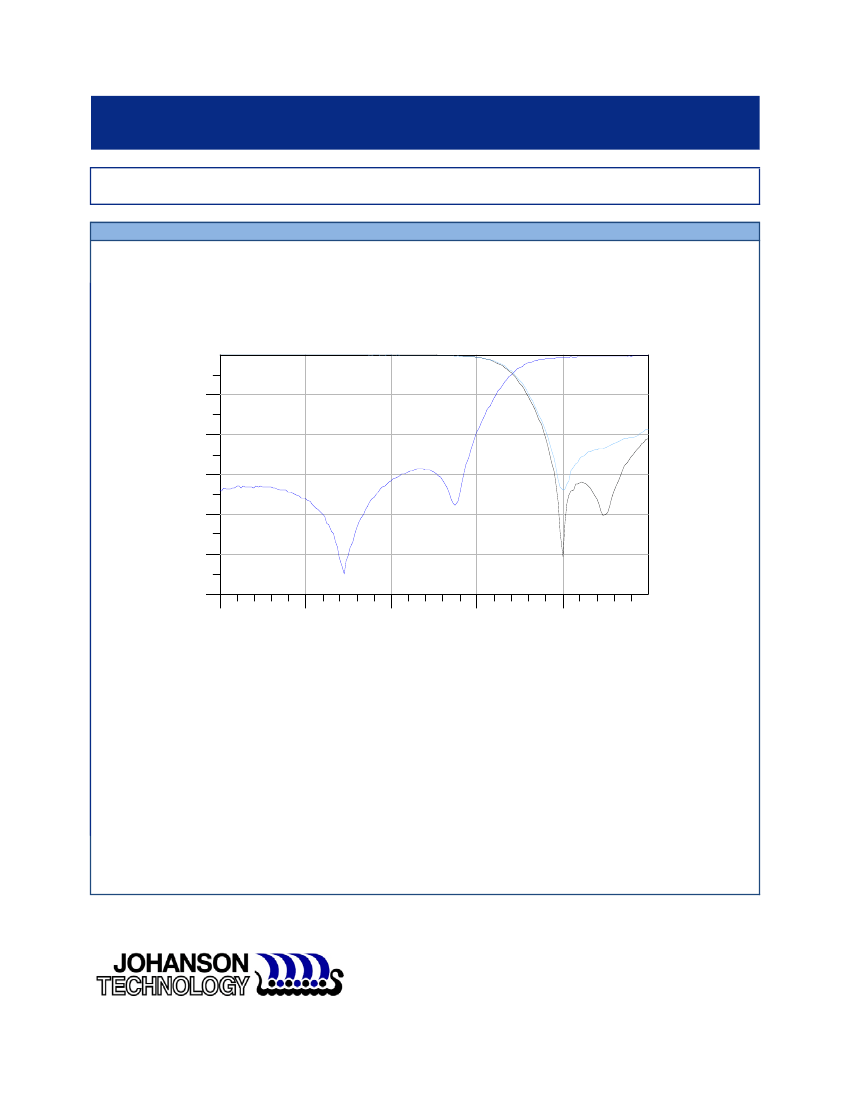

Typical Electrical Performance (T=25°C)
Insertion/Return Loss
0
-10
-20
dB(S(2,2))
dB(S(1,1))
dB(S(2,1))
-30
-40
-50
-60
0.5
1.0
1.5
freq, GHz
2.0
2.5
3.0
Johanson Technology, Inc. reserves the right to make design changes without notice. Please confirm the specifications
and delivery conditions when placing your order. All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
Ver 2.1
2012 Johanson Technology, Inc. All Rights Reserved
