Type 380LX / 382LX 85 °C High Capacitance, Snap-In Aluminum
2, 4 and 5 pin styles available
The excellent value of Type 380L/LX capacitors finds application in
switching power supply input and output circuits and even motor
drives where the high surface area of multiple units in parallel
approaches the ripple capability of our Type 520C computer-grade
capacitor. Type 380LX delivers more capacitance per can size while
Type 380L available in the largest case sizes gives lower ESR for the
same capacitance. Types 382L and 382LX give the choice of 4 or 5
leads for stable, reverse proof mounting.
Highlights
- Latest available ratings, worldwide
- Top performance in power supplies and motor drives
- Big selection of 46 case sizes
- 2, 4 and 5 leads available
–40 °C to +85 °C ≤ 250 Vdc
–25 °C to +85 °C ≥ 315 Vdc
16 Vdc to 500 Vdc
33 µF to 270,000 µF
± 20%
≤3√CV µA at 5 min
Ambient Temperature
45 ºC
1.5
Frequency
60 ºC
1.4
70 ºC
1.3
85 ºC
1.0

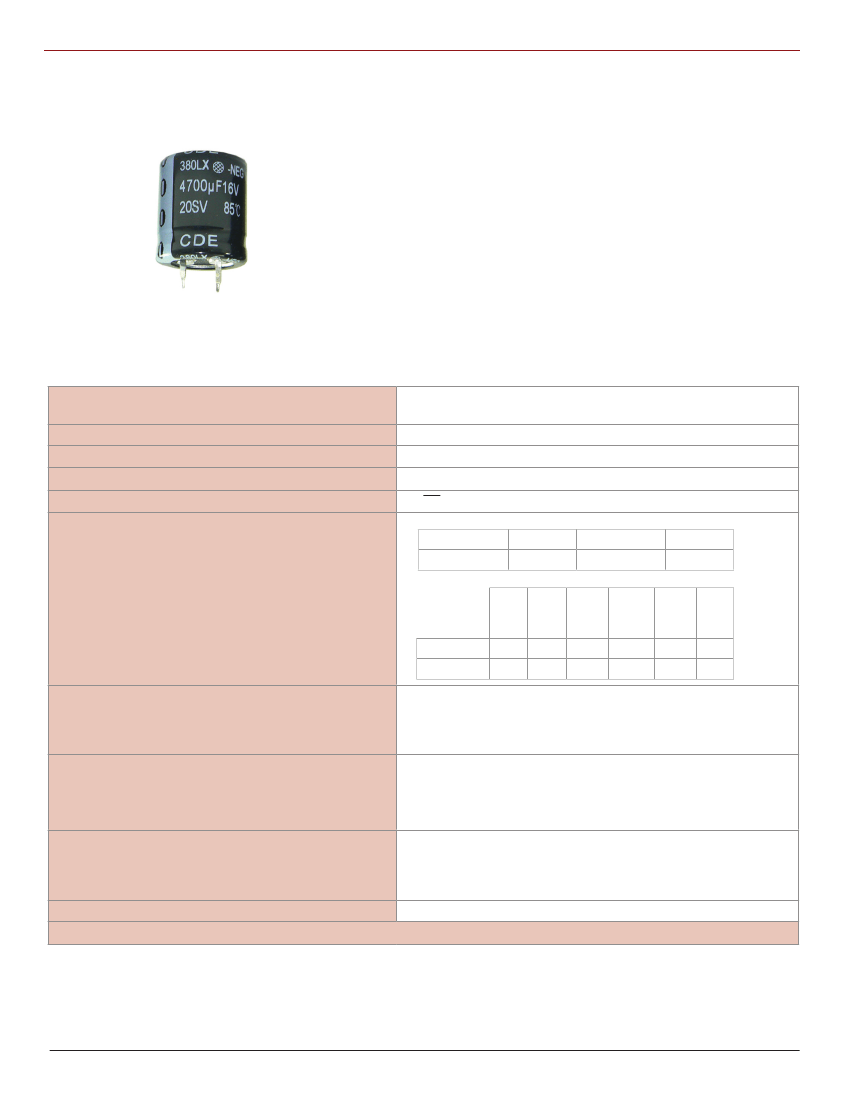

Specifications
Temperature Range
Rated Voltage Range
Capacitance Range
Capacitance Tolerance
Leakage Current
Ripple Current Multipliers
10
50 Hz 60 Hz 120 Hz 500 kHz 1 kHz kHz &
Up
16 - 100 WV
0.93
0.95
0.80
1.00
1.00
1.05
1.20
1.08
1.25
1.15
1.40
160 - 450 WV 0.75
Low Temperature Characteristics
Impedance ratio: Z
–20⁰C
∕ Z
+25⁰C
≤ 8 (16–50 Vdc)
≤ 4 (63–100 Vdc)
≤ 3 (150–500 Vdc)
3,000 h @ full load at +85 °C
∆ Capacitance ±20%
ESR 200% of limit
DCL 100% of limit
1,000 h @ 85 °C
∆ Capacitance ±20%
ESR 200% of limit
DCL 100% of limit
10 to 55 Hz, 0.06” and 10 g max, 2 h in each plane
RoHS Compliant
Endurance Life Test
Shelf Life Test
Vibration
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Type 380LX / 382LX 85 °C High Capacitance, Snap-In Aluminum
2, 4 and 5 pin styles available
Part Numbering System
382LX
272
M
200
N05
Case
Type
380L / LX
(2 pins)
Cap
272
= 2700 µF
Tolerance
M =
±20%
Voltage
200
= 200 Vdc
Code
Insulation
2
= PVC
# of pins
Blank
= 2 pins / 4 pins snap-in 6.3mm L
A
= 2 pins / 4 pins snap-in 4.0mm L
VS
= 5 pins snap-in 6.3mm L
V
= 5 pins standoff
2
V
+D
Blank =
no end disk if <250 V
D =
end disk, any voltage
382L / LX
(4 or 5 pins)
333
= 33000 µF

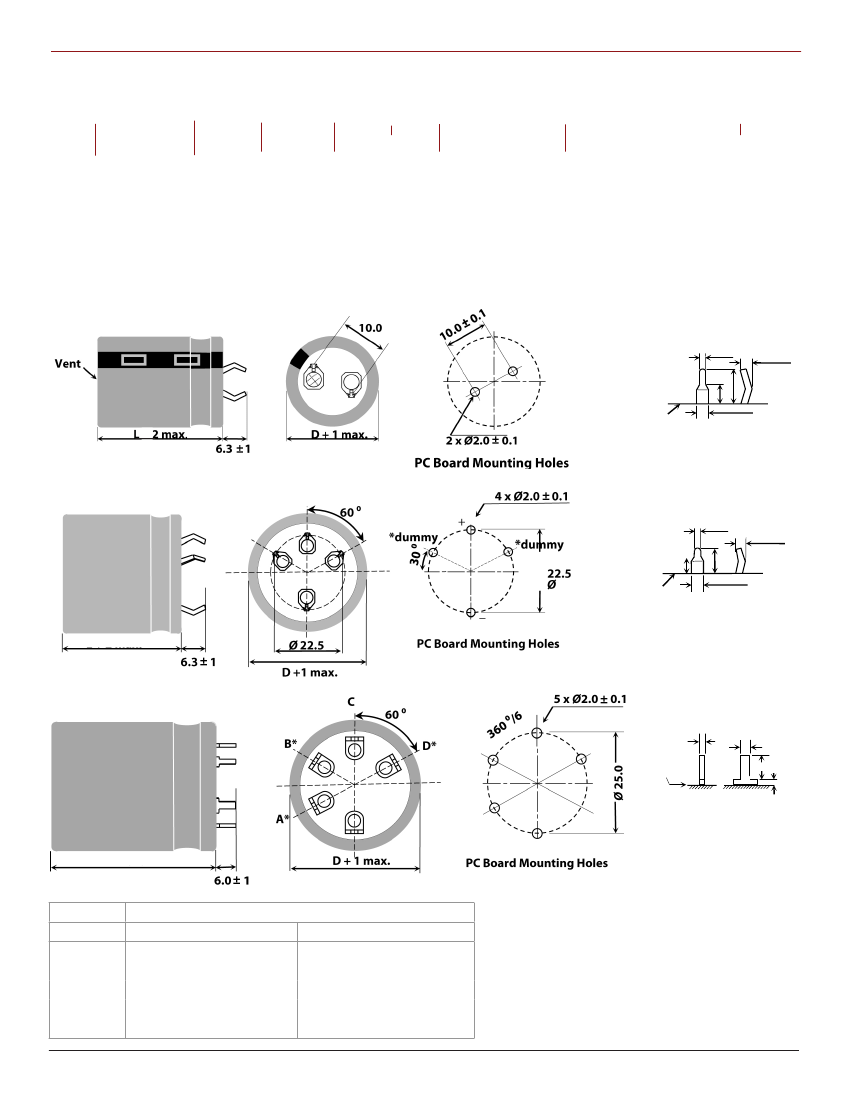

Outline Drawings
Dimensions shown are in mm
Two Pins
380L/LX (22 through 40 mm diameter)
Available in 2, 4 and 5 pins
+0.2
0.8 -0.1
6.3 1
2.0max.
4.0
±
Four Pins
382L/LX (35, 40 and 45mm diameter)
Top of
Capacitor
Body
1.5 0.2
6.3 mm
pin length
6.3
pin length
Available
in 2 and 4 pins
Available
in 2 and 4 pins
+0.2
0.8 -0.1
2.0max.
4.0
1.5 0.2
0.7
3.5
Top of
Capacitor
Body
L ± 2 max.
Five Pins
382L/LX (40 and 50mm diameter)
4.0
4.0 pin length
mm pin length
option (add “A” to end
of part#)
Available in 5 pins
1.5 0.1
3.75 0.1
Top of
Capacitor
Body
0.6 min.
L ± 2 max.
5 pin Standoff pin
style (add “V” to end
of part#)
Note that for 200 volts and under the insulating end disc is optional - If one is needed add a (+D) to the end of the part numbering system.
Connection
Terminal
A
B
C
D
–
40 mm Dia.
dummy
dummy
positive (+)
dummy
negative (–)
50 mm Dia.
negative (–)
dummy
positive (+)
positive (+)
negative (–)
Notes:
* Use dummy terminals for mechanical support only. Make
no electrical connection because they resistively connect
through the electrolyte to the negative terminal.
** Safety Vent may be on the bottom or on the side of the can.
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Type 380LX / 382LX 85 °C High Capacitance, Snap-In Aluminum
2, 4 and 5 pin styles available
Insulated Case Dimensions
Case Code
DIAMETER
“D”
mm
H20
H01
H02
H03
H04
H45
H05
J20
J01
J02
J03
J04
J45
J05
K20
K01
K02
K03
K04
K45
K05
A20
A01
A02
A03
22
22
22
22
22
22
22
25
25
25
25
25
25
25
30
30
30
30
30
30
30
35
35
35
35
inches
0.87
0.87
0.87
0.87
0.87
0.87
0.87
0.98
0.98
0.98
0.98
0.98
0.98
0.98
1.18
1.18
1.18
1.18
1.18
1.18
1.18
1.38
1.38
1.38
1.38
mm
20
25
30
35
40
45
50
20
25
30
35
40
45
50
20
25
30
35
40
45
50
20
25
30
35
LENGTH
“L”
inches
0.79
0.98
1.18
1.38
1.57
1.77
1.97
0.79
0.98
1.18
1.38
1.57
1.77
1.97
0.79
0.98
1.18
1.38
1.57
1.77
1.97
0.79
0.98
1.18
1.38
Typical
Weight
(grams)
14
16
19
22
24
28
31
16
20
24
27
31
35
38
25
30
35
40
44
48
53
35
42
48
54
A04
A45
A05
A55
A06
A07
A08
A10
N04
N05
N06
N08
N10
E05
E06
E75
E08
E09
E10
B05
B06
B08
B09
B10
Case Code
DIAMETER
“D”
mm
35
35
35
35
35
35
35
35
40
40
40
40
40
45
45
45
45
45
45
50
50
50
50
50
inches
1.38
1.38
1.38
1.38
1.38
1.38
1.38
1.38
1.57
1.57
1.57
1.57
1.57
1.77
1.77
1.77
1.77
1.77
1.77
1.97
1.97
1.97
1.97
1.97
mm
40
45
50
55
63
70
80
105
40
50
63
80
105
50
63
75
80
92
105
50
63
80
92
105
LENGTH
“L”
inches
1.57
1.77
1.97
2.17
2.48
2.76
3.15
4.13
1.57
1.97
2.48
3.15
4.13
1.97
2.48
2.65
3.15
3.62
4.13
1.97
2.48
3.15
3.62
4.13
Typical
Weight
(grams)
62
67
74
80
88
98
112
144
82
105
130
185
265
122
150
200
213
238
299
136
168
239
241
325
Typical Performance Curves
1000
Type 380L/LX Operating Life in Kilohours vs Ripple Current
Expected Operating Life, kh
100
45 ºC
55 ºC
65 ºC
75 ºC
10
85 ºC
1
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
1.1
1.2
1.3
1.4
1.5
Rated Ripple-Current Multiple
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Type 380LX / 382LX 85 °C High Capacitance, Snap-In Aluminum
2, 4 and 5 pin styles available
Typical Performance Curves
Life Test Data 380LX222M100J042
Capacitance, DF, Leakage Current
50
Life Test Data 380LX151M400J02
Capacitance, DF, Leakage Current
60
Capacitance, DF, Leakage Current
Leakage
(uADC)
40
30
20
10
0
Capacitance, DF, Leakage Current
50
40
30
20
10
0
-10
Leakage
(uADC)
DF
(%)
DF
(%)
Cap Change (%)
-10
0
500
1000
1500
Hours @ Rated Max Temp, Voltage, Ripple
2000
Cap
Change
(%)
0
500
1000
1500
Hours @ Rated Max Temp, Voltage, Ripple
2000
60
Life Test Data 380LX331M450K052
Capacitance, DF, Leakage Current
Capacitance, DF, Leakage Current
50
40
30
20
10
0
0
Leakage (uADC)
DF
(%)
Cap Change (%)
500
1000
1500
2000
Hours @ Rated Max Temp, Voltage, Ripple
18
Life Test Data 380L222M050K012
Capacitance, DF, Leakage Current
Leakage (uADC)
Capacitance, DF, Leakage Current
16
14
12
10
8
6
4
2
0
-2
0
DF
(%)
Cap
Change
(%)
500
1000
1500
Hours @ Rated Max Temp, Voltage, Ripple
2000
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Type 380LX, 85 °C High Capacitance, Snap-In Aluminum
Max. ESR
Cap.
(uF)
Catalog
Part Number
@ +25°C
Ripple Amps
@ +85°C
Nominal
Size
DxL
(mm)
Cap.
(uF)
Catalog
Part Number
Max. ESR
@ +25°C
Ripple Amps
@ +85°C
Nominal
Size
DxL
(mm)
120 Hz 20 kHz 120 Hz 20 kHz
(Ω)
(Ω)
(A)
(A)
120 Hz 20 kHz 120 Hz 20 kHz
(Ω)
(Ω)
(A)
(A)
25 Vdc (32 Vdc Surge)
18000 380LX183M025K032
22000 380LX223M025J452
22000 380LX223M025J052
22000 380LX223M025K042
27000 380LX273M025K042
27000 380LX273M025K452
27000 380LX273M025A032
33000 380LX333M025K452
33000 380LX333M025K052
39000 380LX393M025A452
47000 380LX473M025A052
100000 380LX104M025A102
0.035
0.030
0.030
0.030
0.025
0.023
0.023
0.020
0.030
0.020
0.019
0.010
0.028
0.024
0.023
0.023
0.020
0.020
0.020
0.017
0.016
0.017
0.015
0.008
5.50
6.10
6.10
6.10
6.21
6.20
6.20
6.84
6.84
7.40
8.00
9.50
6.30
4.02
7.00
7.00
7.14
7.10
7.10
7.87
7.90
8.50
9.20
12.00
30 x 35
25 x 45
25 x 50
30 x 40
30 x 40
30 x 45
35 x 35
30 x 45
30 x 50
35 x 45
35 x 50
35 x 105
50 Vdc (63 Vdc Surge)
2200 380LX222M050H012
2700 380LX272M050H012
3300 380LX332M050H012
3300 380LX332M050H022
3300 380LX332M050J012
3900 380LX392M050J012
4700 380LX472M050H032
4700 380LX472M050J012
4700 380LX472M050J022
4700 380LX472M050K012
5600 380LX562M050J032
5600 380LX562M050K022
6800 380LX682M050H452
1.50
2.30
2.70
3.30
3.30
3.40
3.40
2.60
3.26
4.00
4.40
4.42
4.40
5.05
5.60
5.60
5.60
5.70
5.70
6.10
6.10
6.80
6.84
7.15
7.91
8.56
9.50
1.25
1.75
2.60
3.10
3.70
3.70
3.90
3.90
2.99
3.75
4.60
5.10
5.08
5.10
5.81
6.40
6.40
6.40
6.50
6.50
7.02
7.00
7.90
7.87
8.22
9.10
9.84
11.00
1.45
22 x 25
22 x 25
22 x 25
22 x 30
25 x 25
22 x 30
25 x 25
25 x 30
25 x 30
25 x 35
22 x 45
25 x 30
35 x 25
25 x 40
25 x 50
30 x 40
35 x 30
30 x 45
35 x 35
30 x 45
35 x 40
35 x 45
35 x 50
35 x 50
35 x 50
35 x 55
35 x 105
22 x 25
8200 380LX822M050J452
8200 380LX822M050K032
10000 380LX103M050J052
10000 380LX103M050K042
10000 380LX103M050A022
12000 380LX123M050K452
12000 380LX123M050A032
15000 380LX153M050A452
18000 380LX183M050A452
22000 380LX223M050A052
47000 380LX473M050A102
1000 380LX102M063H012
1500 380LX152M063H012
2200 380LX222M063J012
2700 380LX272M063H042
3300 380LX332M063J022
3900 380LX392M063J022
4700 380LX472M063J032
4700 380LX472M063K022
4700 380LX472M063A012
5600 380LX562M063K022
6800 380LX682M063J052
6800 380LX682M063K042
8200 380LX822M063A032
10000 380LX103M063A042
12000 380LX123M063K052
15000 380LX153M063A052
18000 380LX183M063A082
0.150 0.115
0.154 0.115
0.151 0.113
0.100 0.075
0.100 0.075
0.085 0.065
0.070 0.055
0.080 0.060
0.070 0.055
0.070 0.055
0.060 0.045
0.060 0.045
0.073 0.055
0.067 0.050
0.067 0.050
0.040 0.030
0.040 0.030
0.040 0.030
0.033 0.025
0.041 0.031
0.027 0.020
0.028 0.021
0.025 0.020
0.014 0.011
0.332 0.250
0.221 0.167
0.151 0.114
0.126 0.094
0.106 0.080
0.106 0.080
0.080 0.060
0.080 0.060
0.080 0.060
0.070 0.050
0.060 0.045
0.060 0.045
0.050 0.040
0.033 0.025
0.035 0.026
0.028 0.021
0.023 0.012
1.80
2.20
2.41
2.70
2.70
2.80
3.00
2.10
3.00
3.00
3.40
3.40
3.85
4.40
4.40
5.00
5.00
5.00
5.60
5.58
6.40
6.94
7.60
10.27
1.20
1.70
2.50
2.72
3.13
3.13
3.99
4.90
4.90
4.11
5.80
5.80
6.00
6.50
7.15
7.91
9.40
2.10
2.60
2.77
3.10
3.10
3.20
3.50
2.40
3.50
3.50
3.90
3.90
4.43
5.10
5.10
5.70
5.70
5.70
6.40
6.42
7.40
7.98
8.71
11.81
1.40
2.00
2.90
3.13
3.60
3.60
4.56
5.60
5.60
4.72
6.70
6.70
6.90
7.50
8.22
9.10
10.80
22 x 25
22 x 25
22 x 25
22 x 30
25 x 25
25 x 25
22 x 35
25 x 25
25 x 30
30 x 25
25 x 35
30 x 30
22 x 45
25 x 45
30 x 35
25 x 50
30 x 40
35 x 30
30 x 45
35 x 35
35 x 45
35 x 45
35 x 50
35 x 105
22 x 25
22 x 25
25 x 25
22 x 40
25 x 30
25 x 30
25 x 35
30 x 30
35 x 25
30 x 30
25 x 50
30 x 40
35 x 35
35 x 40
30 x 50
35 x 50
35 x 80
35 Vdc (44 Vdc Surge)
2200 380LX222M035H012
3300 380LX332M035H012
3900 380LX392M035H012
4700 380LX472M035H022
4700 380LX472M035J012
5600 380LX562M035H022
5600 380LX562M035J012
6800 380LX682M035J022
8200 380LX822M035J022
8200 380LX822M035J032
10000 380LX103M035H452
10000 380LX103M035J022
10000 380LX103M035A012
12000 380LX123M035J042
15000 380LX153M035J052
15000 380LX153M035K042
15000 380LX153M035A022
18000 380LX183M035K452
18000 380LX183M035A032
22000 380LX223M035K452
22000 380LX223M035A042
27000 380LX273M035A452
27000 380LX273M035A052
33000 380LX333M035A052
39000 380LX393M035A052
47000 380LX473M035A552
68000 380LX683M035A102
1500 380LX152M050H012
0.166
0.110
0.095
0.080
0.080
0.083
0.083
0.073
0.071
0.057
0.050
0.058
0.050
0.048
0.036
0.036
0.036
0.480
0.480
0.026
0.026
0.021
0.021
0.018
0.017
0.014
0.010
0.220
0.125
0.085
0.070
0.060
0.060
0.063
0.063
0.055
0.053
0.043
0.037
0.044
0.037
0.036
0.027
0.027
0.027
0.037
0.037
0.020
0.020
0.017
0.016
0.014
0.014
0.014
0.008
0.170
50 Vdc (63 Vdc Surge)
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
京公网安备 11010802033920号
EEWORLD
