D-104-0122-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> D-104-0122-9

D-104-0122-9: DescriptionD-104-0122-9; CategoryThe connector; File Size80KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

D-104-0122-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D-104-0122-9	-	-	View	Buy Now

D-104-0122-9 Overview

D-104-0122-9

D-104-0122-9 Parametric

Parameter Name	Attribute value
Pre-installed leads	yes
Expand inner diameter (minimum value)	10.65 mm [ .42 in ]
Recovered inner diameter (maximum value)	4.4 mm [ .175 in ]
Wire Size Range (AWG)	22
Wire size range (mm²)	.34
Operating temperature (max) (°C)	150
Wire temperature (max) (°C)	125

Preview

Download Datasheet

View All

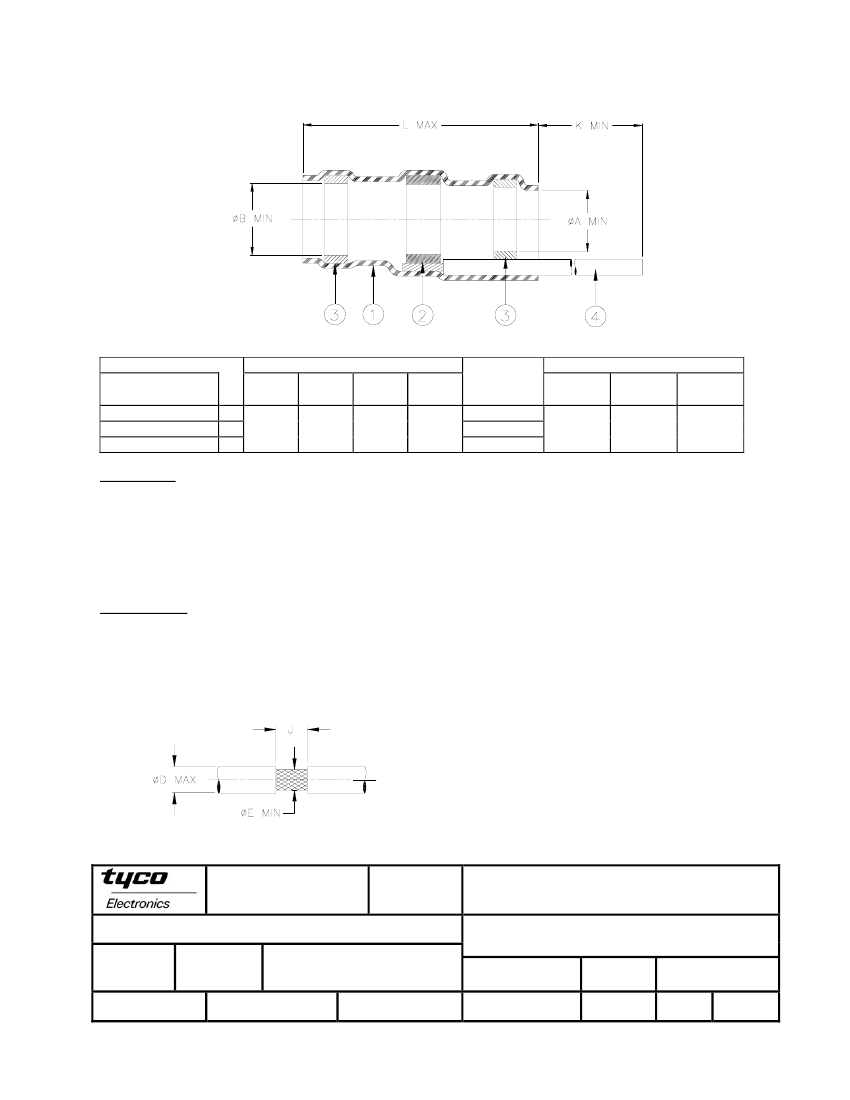

SPECIFICATION CONTROL DRAWING

Product Revisions

Product

Name

D-104-0122-3

D-104-0122-4

D-104-0122-9

max

31.20

[1.230]

Product Dimensions

øA

øB

min

10.65

[0.420]

11.70

[0.460]

min

150

[5.900]

Color

(Item 4)

Orange

Yellow

White

Cable Dimensions

øD

øE

J±0.50

min

[J±0.020]

10.65

[0.420]

4.40

[0.175]

9.00

[0.350]

MATERIALS

1. INSULATION SLEEVE: Heat-shrinkable, transparent blue, radiation cross-linked polyvinylidene fluoride.

2. SOLDER PREFORM WITH FLUX:

SOLDER: TYPE Sn63 per ANSI/J-STD-006.

FLUX:

TYPE ROL1 per ANSI/J-STD-004.

3. MELTABLE SEALING RINGS: Thermally stabilized thermoplastic. Color: clear.

4. GROUND LEAD: RAYCHEM 55A0111-22 in accordance with MIL-W-22759/32, AWG 22, stranded tin-plated copper.

Color: (see table).

APPLICATION

1. These parts are designed to provide an environment protected shield termination on cables, rated for 125°C minimum,

meeting the dimensional criteria listed, having tin or silver-plated copper shields.

2. Temperature range: -55°C to +150°C.

3. Install using Tyco Electronics/Raychem-approved convection or infrared heating tools in accordance with Tyco Electronics/

Raychem process standard RCPS-100-70.

For best results, prepare the cable as shown:

Tyco Electronics Corporation

300 Constitution Drive,

Menlo Park, CA. 94025, U.S.A.

Unless otherwise specified dimensions are in millimeters.

[Inches dimensions are shown in brackets]

TOLERANCES:

0.00 N/A

0.0 N/A

0 N/A

PREPARED BY:

TITLE:

Raychem

SOLDERSLEVE DEVICE WITH

PRE-INSTALLED LEAD

DOCUMENT NO.:

D-104-0122-X

PROD. REV.:

DOC. ISSUE:

DATE:

Tyco Electronics reserves the right to amend

this drawing at any time. Users should

evaluate the suitability of the product for their

ROUGHNESS IN

application.

MICRON

DCR NUMBER:

REPLACES:

ANGLES: N/A

SEE TABLE

CAGE CODE :

SCALE:

SIZE:

13-Apr-04

SHEET:

mforonda

D040077

D010540

06090

---

1 of 1

If this document is printed it becomes uncontrolled. Check the latest revision.
