B-040-22-03

Description
B-040-22-03
CategoryWire/cable
File Size61KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

B-040-22-03 Online Shopping

Suppliers Part Number Price MOQ In stock
B-040-22-03 - - View Buy Now

B-040-22-03 Overview

B-040-22-03

B-040-22-03 Parametric

Parameter NameAttribute value
Suitablecoaxial cable
Temperature identificationno
Connector typewelded casing
Temperature identification typeno
Preassembled lead types55A0111
Cable shielding materialssilver, tin
Shield outer diameter (maximum value)2.8 mm
Lead splittingStranded wire
Lead plating materialstin
Lead colorWhite Blue
Termination methodwelding
Insulating sleeve outer diameter4.4 mm [ .173 in ]
Conductor outer diameter.3 – 1.6 mm [ .012 – .06 in ]
Dielectric outer diameter2.5 mm [ .098 in ]
Dielectric outer diameter2.5 mm [ .098 in ]
Preassembled lead size (mm²).38
total length28 mm [ 1.102 in ]
Preassembled lead size (AWG)22
Resistance propertiesSplash protection
Operating temperature (max) (°C)150
Meet government qualificationsno
MIL/NAS specifications (MIL-S-83519, NAS-1747)no

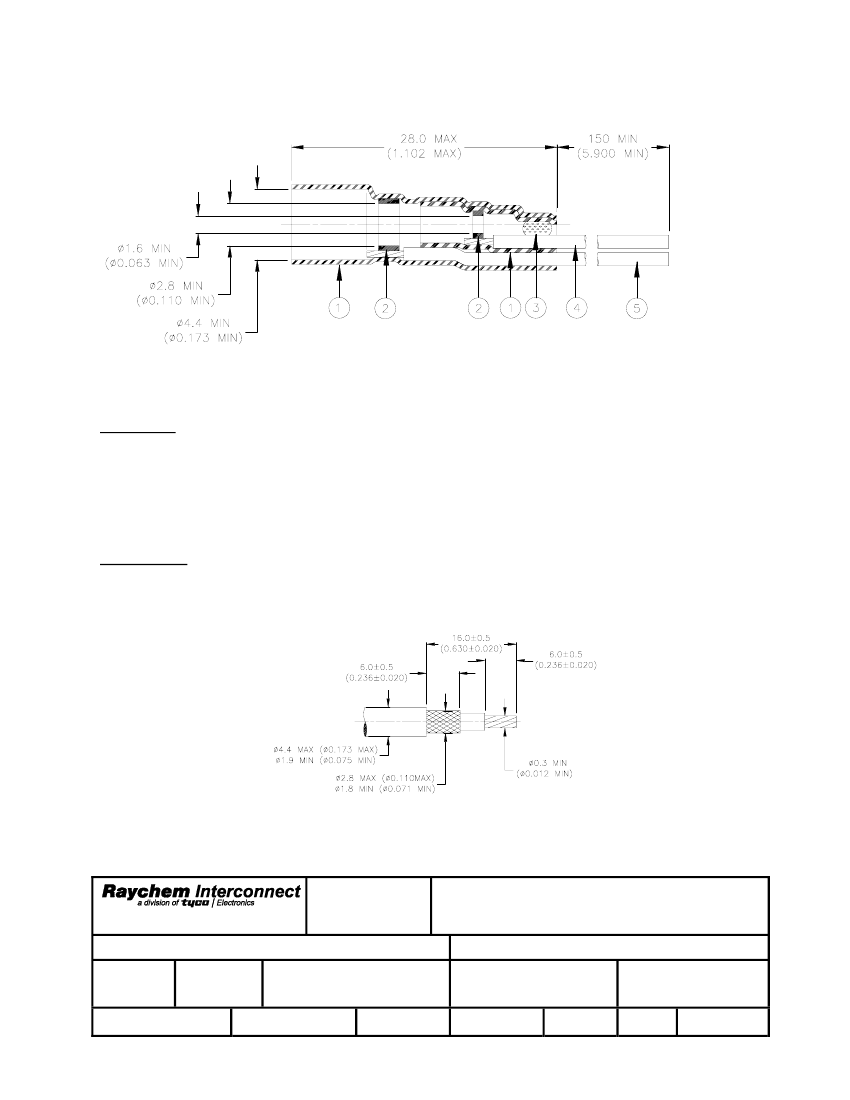

SPECIFICATION CONTROL DRAWING
MATERIALS
1. INSULATION SLEEVE: Heat-shrinkable, transparent blue, radiation cross-linked modified polyvinylidene fluoride.
2. SOLDER PREFORMS WITH FLUX:
SOLDER: TYPE Sn63 per ANSI-J-STD-006.
FLUX:
TYPE ROL1 per ANSI-J-STD-004.
3. MELTABLE RING: Thermally stabilized thermoplastic.
4. CONDUCTOR LEAD (Color: white): RAYCHEM 55A0111-22-9 AWG22, stranded, tin plated copper.
5. GROUND LEAD (Color: blue): RAYCHEM 55A0111-22-6 AWG22, stranded, tin plated copper.
APPLICATION
1. This controlled soldering device is designed for termination of a coaxial cable to a connector or a printed circuit board.
It will terminate the tin or silver plated copper center conductor and the single or double tin or silver plated copper braid of a
coaxial cable having an insulation rated for at least +125°C.
2. Temperature range: -55°C to +150°C.
For best results, prepare
the cable as shown:
TITLE :
300 Constitution Drive
Menlo Park, CA 94025, USA
THERMOFIT
DEVICES
COAXIAL SOLDERSLEEVE DEVICE WITH
PRE-INSTALLED WIRES
DOCUMENT NO.:
DCR NUMBER:
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETERS.
INCHES DIMENSIONS ARE BETWEEN BRACKETS.
Raychem reserves the right to amend this
ANGLES: N/A
TOLERANCES:
drawing at any time. Users should evaluate
0.00 N/A
the suitability of the product for their
ROUGHNESS IN
0.0 N/A
application.
MICRON
0 N/A
B-040-22-03
REPLACES:
D001322
SCALE:
None
SIZE:
A
N/A
SHEET:
1 of 1
DRAWN BY:
DATE:
PROD. REV.
DOC ISSUE:
M. FORONDA
18-Dec.-00
C
1
If this document is printed it becomes uncontrolled. Check for the latest revision.
