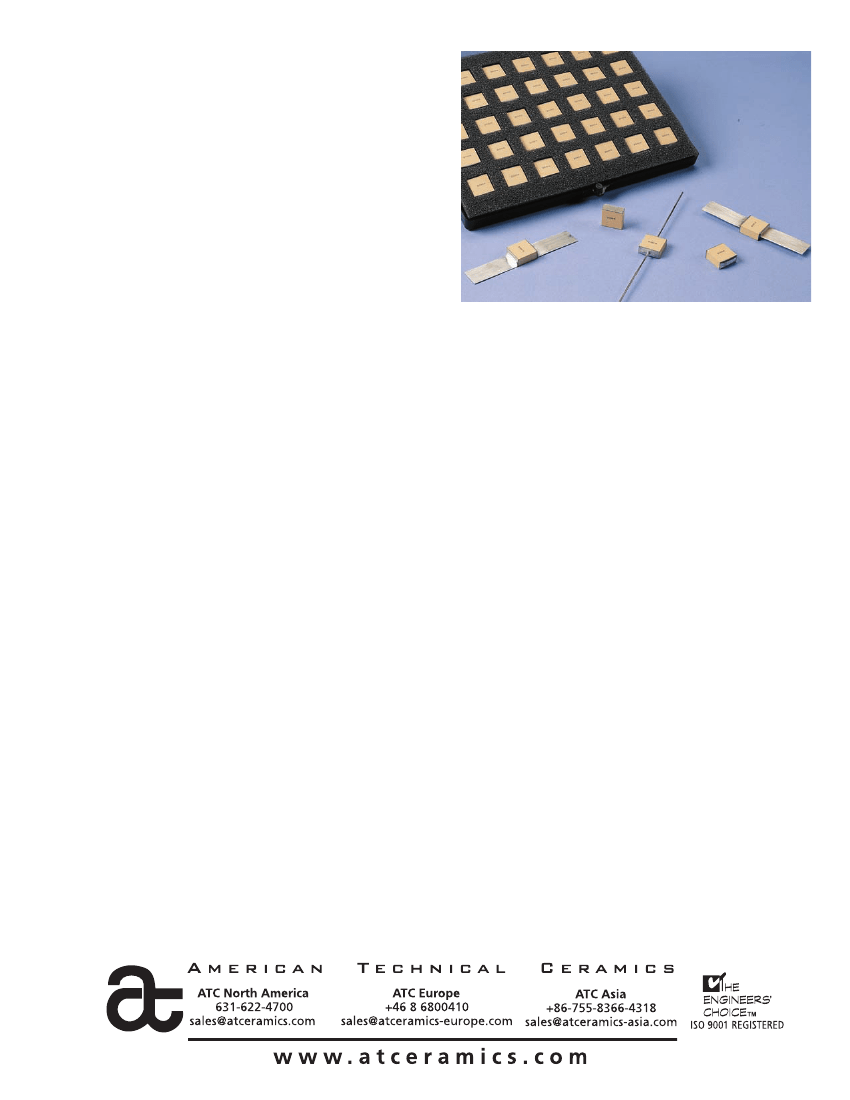

ATC 100 E Series
Porcelain High RF Power
Multilayer Capacitors
• Case E Size
(.380" x .380")
• High Q
• Low ESR/ESL
• High RF Power
• Extended WVDC
up to 7200 VDC
• Capacitance Range
1 pF to 5100 pF
• Ultra-Stable Performance
• High RF Current/Voltage
• High Reliability
• Available with
Encapsulation Option*
ELECTRICAL AND MECHANICAL
SPECIFICATIONS
QUALITY FACTOR (Q):
Greater than 10,000 (1 pF to 1000 pF) @ 1 MHz.
Greater than 10,000 (1100 pF to 5100 pF) @ 1 KHz.
ATC, the industry leader, offers new improved ESR/ESL performance
for the 100 E Series RF Capacitors. This high Q multilayer capacitor is
ultra-stable under high RF current and voltage applications. High
density porcelain construction provides a rugged, hermetic package.
ATC offers an encapsulation option for applications requiring extended
protection agains arc-over and corona.
Typical functional applications: Bypass, Coupling, Tuning, Impedance
Matching and DC Blocking.
Typical circuit applications: HF/RF Power Amplifiers, Transmitters,
Antenna Tuning, Plasma Chambers and Medical (MRI coils).
*For leaded styles only
TEMPERATURE COEFFICIENT OF CAPACITANCE (TCC):
+90 ±30 PPM/°C (-55°C to +125°C)
INSULATION RESISTANCE (IR):
1 pF to 5100 pF:
10
5
Megohms min. @ +25°C at 500 VDC.
10
4
Megohms min. @ +125°C at 500 VDC.
WORKING VOLTAGE (WVDC):
See Capacitance Values Table, page 2.
ENVIRONMENTAL TESTS
ATC 100 E Series Capacitors are designed and manufactured to
meet and exceed the requirements of EIA-198, MIL-PRF-55681 and
MIL-PRF-123.
DIELECTRIC WITHSTANDING VOLTAGE (DWV):
*
See page 2.
RETRACE:
Less than ±(0.02% or 0.02 pF), whichever is greater.
AGING EFFECTS:
None
PIEZOELECTRIC EFFECTS:
None
(No capacitance variation with voltage or pressure).
THERMAL SHOCK:
MIL-STD-202, Method 107, Condition A.
MOISTURE RESISTANCE:
MIL-STD-202, Method 106.
CAPACITANCE DRIFT:
±(0.02% or 0.02 pF), whichever is
greater.
LOW VOLTAGE HUMIDITY:
MIL-STD-202, Method 103, Condition A, with 1.5 Volts DC applied
while subjected to an environment of 85°C with 85% relative humidity
for 240 hours min.
OPERATING TEMPERATURE RANGE:
From -55°C to +125°C (No derating of working voltage).
TERMINATION STYLES:
Available in various surface mount and leaded styles.
See Mechanical Configurations, page 3.
LIFE TEST:
MIL-STD-202, Method 108, for 2000 hours, at 125°C.
Voltage applied.
1 pF to 680 pF: at WVDC
820 pF to 2200 pF: 120% of WVDC
2700 pF to 5100 pF: 200% of WVDC
TERMINAL STRENGTH:
Terminations for chips and pellets
withstand a pull of 10 lbs. min., 25 lbs. typical, for 5 seconds in
direction perpendicular to the termination surface of the capacitor.
Test per MIL-STD-202, method 211.
ATC # 001-809 Rev. G 12/04
ATC 100 E Capacitance Values
CAP.
CODE
1R0
1R2
1R5
1R8
2R2
2R7
3R3
3R9
4R7
5R6
6R8
8R2
100
120
150
CAP.
(pF)
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
TOL.
RATED WVDC
STD.
EXT.
CAP.
CODE
180
220
270
330
390
470
560
680
820
101
121
151
181
221
271
CAP.
(pF)
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
TOL.
RATED WVDC
STD.
EXT.
CAP.
CODE
331
391
471
561
681
821
102
122
152
182
222
272
332
472
512
CAP.
(pF)
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
4700
5100
RATED WVDC
TOL.
3600
2500
F, G,
J, K,
M
1000
B, C,
D
3600
7200
3600
F, G,
J, K,
M
7200
5000
3600
F, G,
J, K,
M
G, J,
K, M
500
VRMS = 0.707 X WVDC
• SPECIAL VALUES, TOLERANCES AND MATCHING AVAILABLE. • EXTENDED WORKING VOLTAGES ARE AVAILABLE FOR COMMERCIAL ORDERS ONLY.
• ENCAPSULATION OPTION AVAILABLE. PLEASE CONSULT FACTORY.
to
secs.
*
DWV:
1 pF pF 680 pF: 120% of rated WVDC for 5for 5 secs.
820 to 2200 pF: 150% of rated WVDC
2700 pF to 5100 pF: 250% of rated WVDC for 5 secs.
CAPACITANCE TOLERANCE
Code
B
C
D
F
G
J
K
M
Tol.
±0.1 pF ±0.25 pF ±0.5 pF ±1% ±2% ±5% ±10% ±20%
ATC PART NUMBER CODE
ATC100 E 39 1
Series
Case Size
Capacitance Code:
First 2 significant digits for capacitance.
R=Decimal Point
Indicates number of zeros following digits
of capacitance in picofarads except for decimal values.
Capacitance Tolerance
K
W 3600 X
C
Packaging
C - ATC Waffle-pack (Standard)
B - Bulk Packaging
(packed in plastic bags)
I - Special Packaging. Consult Factory
Laser Marking
WVDC
Termination Code
The above part number refers to a 100 E Series (case size E) 390 pF capacitor,
K tolerance (±10%), 3600 WVDC, with W termination (Tin /Lead, Solder Plated over Nickel Barrier), laser marking and Waffle-packaging.
ATC accepts orders for our parts using designations
with
or
without
the
“ATC” prefix. Both methods of defining the part number are equivalent, i.e.,
part numbers referenced with the “ATC” prefix are interchangeable to parts
referenced without the “ATC” prefix. Customers are free to use either in
specifying or procuring parts from American Technical Ceramics.
For additional information and catalogs contact your ATC
representative or call direct at (631) 622-4700.
Consult factory for additional performance data.
A M E R I C A N
2
ATC North America
631-622-4700 • sales@atceramics.com
T E C H N I C A L
ATC Europe
+46 8 6800410 • sales@atceramics-europe.com
C E R A M I C S
ATC Asia
+86-755-8366-4318 • sales@atceramics-asia.com
w
w
w
.
a
t
c
e
r
a
m
i
c
s
.
c
o
m

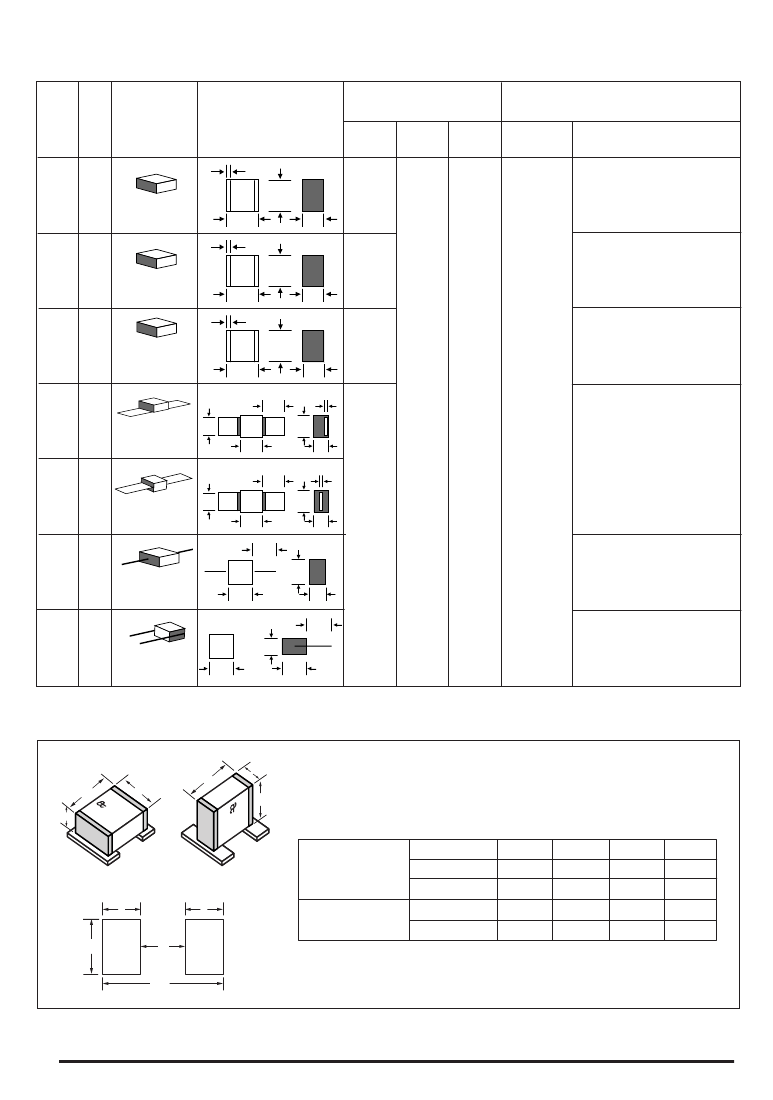

ATC 100 E Capacitors: Mechanical Configurations
ATC
ATC
SERIES
TERM.
& CASE
CODE
SIZE
OUTLINES
CASE SIZE
& TYPE
W/T IS A
TERMINATION SURFACE
Y
W
BODY DIMENSIONS
Inches (mm)
LENGTH
(L)
.380
+.015 -.010
(9.65
+0.38
-0.25)
.380
+.040 -.010
(9.65
+1.02
-0.25)
.380
+.015 -.010
(9.65
+0.38
-0.25)
.380
+.015 -.010
(9.65
+0.38
-0.25)
TL
LEAD AND TERMINATION
DIMENSIONS AND MATERIALS
OVERLAP
(Y)
MATERIALS
WIDTH
(W)
THICKNESS
(T)
E
100E
W
Solder Plate
E
100E
P
Pellet
Tin /Lead, Solder Plated over
Nickel Barrier Termination
L
T
Y
W
L
T
Heavy Tin/Lead Coated,
over Nickel Barrier Termination
Y
E
100E
T
Lead-Free
Solderable Nickel
Barrier
Y
W
L
T
Lead-Free
and RoHS Compliant
Tin Plated over
Nickel Barrier Termination
100E
CA
E
Gold Chip
E
L
W
T
Lead-Free
and RoHS Compliant
.380
±.010
(9.65
±0.25)
.170
(4.32)
max.
.040
(1.02) max.
Gold Plated over
Nickel Barrier Termination
LL
100E
MS
Microstrip
E
High Purity
Silver Leads
LL = .750 (19.05) min.
WL = .350 ±.010
(8.89 ±0.25)
TL = .010 ±.005
(0.25 ±0.13)
Leads are Attached with
High Temperature Solder.
Silver-plated Copper Leads
Dia. = .032 ±.002
(.813 ±.051)
LL = 2.25 (57.2) min.
Silver-plated Copper Leads
Dia. = .032 ±.002
(.813 ±.051)
LL = 1.0 (25.4) min.
WL
L
W
T
TL
LL
100E
AR
Axial Ribbon
E
WL
L
W
T
LL
100E
AW
Axial Wire
E
• •
L
W
•
T
.380
+.035 -.010
(9.65
+0.89
-0.25)
LL
100E
RW
Radial Wire
• •
L
T
W
Custom lead styles and lengths are available; consult factory. All leads are high purity silver attached with high temperature solder and are
RoHS
compliant.
A M E R I C A N
3
ATC North America
631-622-4700 • sales@atceramics.com
T E C H N I C A L
ATC Europe
+46 8 6800410 • sales@atceramics-europe.com
C E R A M I C S
ATC Asia
+86-755-8366-4318 • sales@atceramics-asia.com
w
w
w
.
a
t
c
e
r
a
m
i
c
s
.
c
o
m
ATC 100 E Capacitors: Non-Magnetic Mechanical Configurations
ATC
ATC
SERIES
TERM.
& CASE
CODE
SIZE
OUTLINES
CASE SIZE
& TYPE
W/T IS A
TERMINATION SURFACE
Y
BODY DIMENSIONS
Inches (mm)
LENGTH
(L)
.380
+.015 -.010
(9.65
+0.38
-0.25)
.380
+.040 -.010
(9.65
+1.02
T
LEAD AND TERMINATION
DIMENSIONS AND MATERIALS
OVERLAP
(Y)
MATERIALS
WIDTH
(W)
THICKNESS
(T)
100E
WN
E
Non-Mag
Solder Plate
Y
L
W
T
Tin/Lead, Solder Plated over
Non-Magnetic Barrier Termination
100E
PN
E
Non-Mag
Pellet
Y
L
W
Heavy Tin/Lead Coated, over
Non-Magnetic Barrier Termination
-0.25)
.380
+.015 -.010
(9.65
+0.38
E
100E
TN
Non-Mag
Lead-Free
Solderable Barrier
E
100E
MN
Non-Mag
Microstrip
E
100E
AN
Non-Mag
Axial Ribbon
E
100E
BN
Non-Mag
Axial Wire
WL
L
WL
L
W
L
T
TL
LL
W
T
Lead-Free
and RoHS Compliant
Tin Plated over
Non-Magnetic Barrier Termination
-0.25)
.380
±.010
(9.65
±0.25)
.170
(4.32)
max.
.040 (1.02)
max.
High Purity
Silver Leads
LL = .750 (19.05) min.
WL = .350 ±.010
(8.89 ±0.25)
TL = .010 ±.005
(0.25 ±0.13)
Leads are Attached with
High Temperature Solder.
Silver-plated Copper Leads
Dia. = .032 ±.002
(.813 ±.051)
LL = 2.25 (57.2) min.
Silver-plated Copper Leads
Dia. = .032 ±.002
(.813 ±.051)
LL = 1.0 (25.4) min.
TL
LL
W
T
LL
• •
L
W
•
T
LL
.380
+.035 -.010
(9.65
+0.89
-0.25)
100E
RN
E
Non-Mag
Radial Wire
• •
L
T
W
Custom lead styles and lengths are available; consult factory. All leads are high purity silver attached with high temperature solder and are
RoHS
compliant.
Suggested Mounting Pad Dimensions
T
L
L
3
9
W
W
T
K
1
391K
Case E
Pad Size
A Min.
.185
.165
.405
.385
B Min.
.050
.030
.050
.030
C Min.
.325
.325
.325
.325
D Min.
.425
.385
.425
.385
Normal
High Density
Horizontal Mount
Normal
High Density
Horizontal
Electrode Orientation
B
Vertical
Electrode Orientation
B
Vertical Mount
A
C
D
A M E R I C A N
4
ATC North America
631-622-4700 • sales@atceramics.com
T E C H N I C A L
ATC Europe
+46 8 6800410 • sales@atceramics-europe.com
C E R A M I C S
ATC Asia
+86-755-8366-4318 • sales@atceramics-
w
w
w
.
a
t
c
e
r
a
m
i
c
s
.
c
o
m
ATC 100 E Performance Data
ESR VS. CAPACITANCE
ATC SERIES 100, CASE E
1
100000
Q VS. CAPACITANCE
ATC SERIES 100, CASE E
ESR (Ohms)
10000
30 MHz
0.1
30 MHz
Q
1000
(Typical)
0.01
1
10
100
1000
(Typical)
100
1
10
100
1000
CAPACITANCE (pF)
(1.0 pF to 400 pF)
CAPACITANCE (pF)
(1.0 pF to 400 pF)
ESR VS. CAPACITANCE
ATC SERIES 100, CASE E
0.1
1000
Q VS. CAPACITANCE
ATC SERIES 100, CASE E
ESR (Ohms)
30 MHz
0.01
30MHz
Q
100
(Typical)
0.001
100
10
1000
10000
100
1000
(Typical)
10000
CAPACITANCE (pF)
(430 pF to 5100 pF)
CAPACITANCE (pF)
(430 pF to 5100 pF)
A M E R I C A N
5
ATC North America
631-622-4700 • sales@atceramics.com
T E C H N I C A L
ATC Europe
+46 8 6800410 • sales@atceramics-europe.com
C E R A M I C S
ATC Asia
+86-755-8366-4318 • sales@atceramics-asia.com
w
w
w
.
a
t
c
e
r
a
m
i
c
s
.
c
o
m
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Lithium battery fast charger circuit diagram design

Operational amplifier stabilized power supply circuit 2

Three voltage rectifier circuit b

LT108 constitutes a negative output +-12V power supply circuit diagram

Positive polarity DC, DC converter circuit diagram

810E computer motherboard circuit diagram_13

Electronic password lock program problem
Haha, I have encountered a problem with my graduation project. The attachment is the schematic diagram, which can be opened with protues. I have some problems with the program part. Please help me, ma...
lingbing700 MCU
Programming classes are coming to primary and secondary schools. What do you think?
This morning I browsed various WeChat public accounts and saw a post by Hanba, saying that he recently participated in the compilation of computer textbooks for primary and secondary school students i...
okhxyyo Talking
Say goodbye to film! Design a smarter car sunroof
Thanks to new technology for future vehicles, sunroofs and car window tints are now programmable features in your car. At the turn of a switch, you can now block the light coming through your car's su...
zqy1111 TI Technology Forum
Has anyone tried 6437 to connect a high-definition webcam?
The vehicle-mounted equipment is required to be small and to perform image processing. I do not want to use an industrial computer. The camera is far away from the cab, more than five meters away in a...
ddnerve01 TI Technology Forum
What is a push button switch?
A push-button switch is a switch that uses a button to push the transmission mechanism to connect or disconnect the moving contact and the static contact and realize circuit switching. A push-button s...
15890725284 Sensor
EEWORLD University Hall----Power Supply Design Seminar: Control Strategy of Constant Frequency Buck Converter
Power Design Seminar: Control Strategies for Constant-Frequency Buck Converters : https://training.eeworld.com.cn/course/2307...
hi5 Power technology
Shortcut:   A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components

  1. ELXZ500ELL391MJ30S
  2. 64-23229-A2-0300
  3. SAF-XE164GM-24F80L
  4. LNB015-49GTRTV
  5. TFM-148-02-S-S-SN
  6. 240-032-1-25PCE4K5-18
  7. SIT3342ABA2B2-25NY122.123456
  8. Y163384R5000C0W
  9. UF1003CT
  10. P4SMAJ9.0A_R2_10001
  11. P4KE47A
  12. A1275WV-30P

Popular Articles

  1. Volkswagen and Argo AI unveil first autonomous ID Buzz test car
  2. Pfeiffer Vacuum launches new OmniControl® universal controller
  3. The battery does not explode or catch fire at 1037℃, Great Wall Dayu battery technology released
  4. Detailed explanation of the main circuit inside the inverter
  5. Deepen AI Launches Radar and IMU Sensor Calibration and Optimizer to Improve Accuracy
  6. 51 MCU-Hongjing STC and hardware simulation
  7. Engineer's Guide: How to dynamically adjust the appropriate output voltage
  8. Preamplifier and pure power amplifier
  9. [ARM bare metal program][1] ARM bare metal program development environment construction
  10. Design of embedded industrial control calorimeter based on S3C2410A chip and Flash memory

Technical ResourceMore

  1. Application of MAX038 in Precision Frequency Synthesis Waveform Generator
  2. NE555 circuit intelligent design software
  3. Application design of buttons and menus in embedded systems
  4. Ultrasonic distance measurement digital tube display
  5. Wireless and RF Solutions
  6. The principle and application of text-to-speech single-chip processor WTS701
  7. Shortened 3D corner reflector antenna
  8. TCL2566B Drawing
  9. Research on Fault Transient Simulation of Synchronous Generator
  10. Development of a new centralized wireless anti-theft system for valuable equipment

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 513  894  1467  1810  2520  11  18  30  37  51
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
