ATC700A241JT150XTV

Description
Ceramic Capacitor, Multilayer, Ceramic, 150V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.00024uF, Surface Mount, 0606, CHIP, ROHS COMPLIANT
CategoryPassive components    capacitor
File Size404KB,6 Pages
ManufacturerATC [American Technical Ceramics]
Environmental Compliance
Download Datasheet Parametric View All

ATC700A241JT150XTV Overview

Ceramic Capacitor, Multilayer, Ceramic, 150V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.00024uF, Surface Mount, 0606, CHIP, ROHS COMPLIANT

ATC700A241JT150XTV Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid1669540461
package instruction, 0606
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresMIL-PRF-55681, MIL-PRF-123
capacitance0.00024 µF
Capacitor typeCERAMIC CAPACITOR
dielectric materialsCERAMIC
high1.45 mm
JESD-609 codee3
length1.4 mm
Installation featuresSURFACE MOUNT
multi-layerYes
negative tolerance5%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package formSMT
method of packingTR
positive tolerance5%
Rated (DC) voltage (URdc)150 V
size code0606
surface mountYES
Temperature characteristic codeC0G
Temperature Coefficient30ppm/Cel ppm/°C
Terminal surfaceTin (Sn) - with Nickel (Ni) barrier
Terminal shapeWRAPAROUND
width1.4 mm
ATC 700 A Series NPO
Porcelain and Ceramic
Multilayer Capacitors
• Case A Size
(.055" x .055")
• Low ESR/ESL
• Low Noise
• Extended WVDC
up to 250 VDC
ATC, the industry leader, offers new improved ESR/ESL performance
for the 700 A Series RF/Microwave Capacitors. The superior high
self- resonance and zero TCC characteristic of this Series provide ex-
cellent performance over a broad range of RF and microwave appli-
cations requiring minimum drift. High density porcelain and ceramic
constructions provide a rugged, hermetic package.
Typical functional applications: Bypass, Coupling, Tuning and DC
Blocking.
Typical circuit applications: Filters, Oscillators and Timing
• Capacitance Range
0.1 pF to 1000 pF
• Zero TCC
• High Self-Resonance
• Rugged Construction • Established Reliability (QPL)
ELECTRICAL AND MECHANICAL
SPECIFICATIONS
QUALITY FACTOR (Q):
Greater than 10,000 (0.1 pF to 100 pF) @ 1 MHz.
Greater than 2000 (110 pF to 1000 pF) @ 1 MHz.
TEMPERATURE COEFFICIENT OF CAPACITANCE (TCC):
0 ±30 PPM/°C (-55°C to +125°C)
INSULATION RESISTANCE (IR):
0.1 pF to 470 pF:
10
6
Megohms min. @ +25°C at rated WVDC.
10
5
Megohms min. @ +125°C at rated WVDC.
510 pF to 1000 pF:
10
5
Megohms min. @ +25°C at rated WVDC.
10
4
Megohms min. @ +125°C at rated WVDC.
ENVIRONMENTAL TESTS
ATC 700 A Series Capacitors are designed and manufactured to
meet and exceed the requirements of EIA-198, MIL-PRF-55681
and MIL-PRF-123.
WORKING VOLTAGE (WVDC):
See Capacitance Values Table, p 2.
DIELECTRIC WITHSTANDING VOLTAGE (DWV):
250% of rated WVDC for 5 secs.
RETRACE:
Less than ±(0.02% or 0.02 pF), whichever is greater.
AGING EFFECTS:
None
PIEZOELECTRIC EFFECTS:
None
(No capacitance variation with voltage or pressure).
THERMAL SHOCK:
MIL-STD-202, Method 107, Condition A.
MOISTURE RESISTANCE:
MIL-STD-202, Method 106.
CAPACITANCE DRIFT:
±(0.02% or 0.02 pF), whichever is greater.
OPERATING TEMPERATURE RANGE:
From -55°C to +125°C (No derating of working voltage).
LOW VOLTAGE HUMIDITY:
MIL-STD-202, Method 103, Condition A, with 1.5 Volts DC applied
while subjected to an environment of 85°C with 85% relative hu-
midity for 240 hours min.
TERMINATION STYLES:

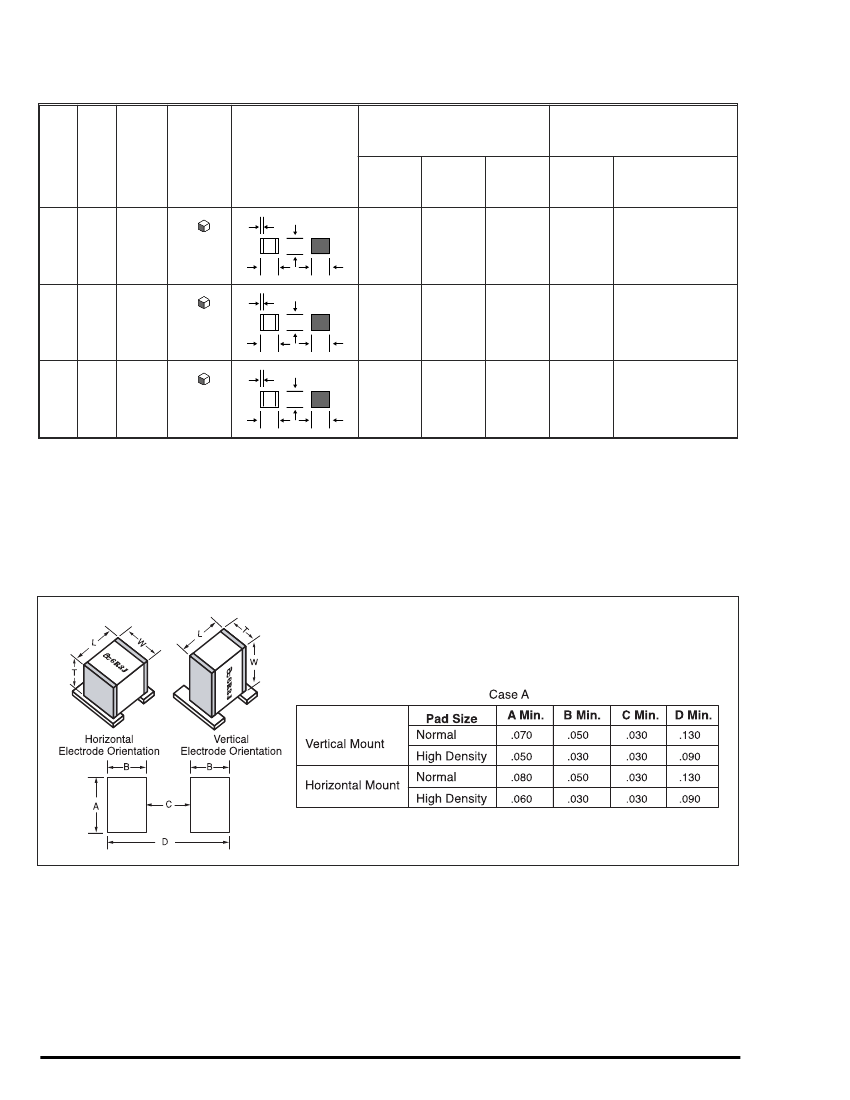

Available in various surface mount
styles. See Mechanical Configurations, page 3.
LIFE TEST:
MIL-STD-202, Method 108, for 2000 hours, at 125°C.
200% WVDC applied.
TERMINAL STRENGTH:
Terminations for chips and pellets withstand
a pull of 5 lbs. min., 10 lbs. typical, for 5 seconds in direction perpendi-
cular to the termination surface of the capacitor.
ATC # 001-813 Rev. N, 9/14
