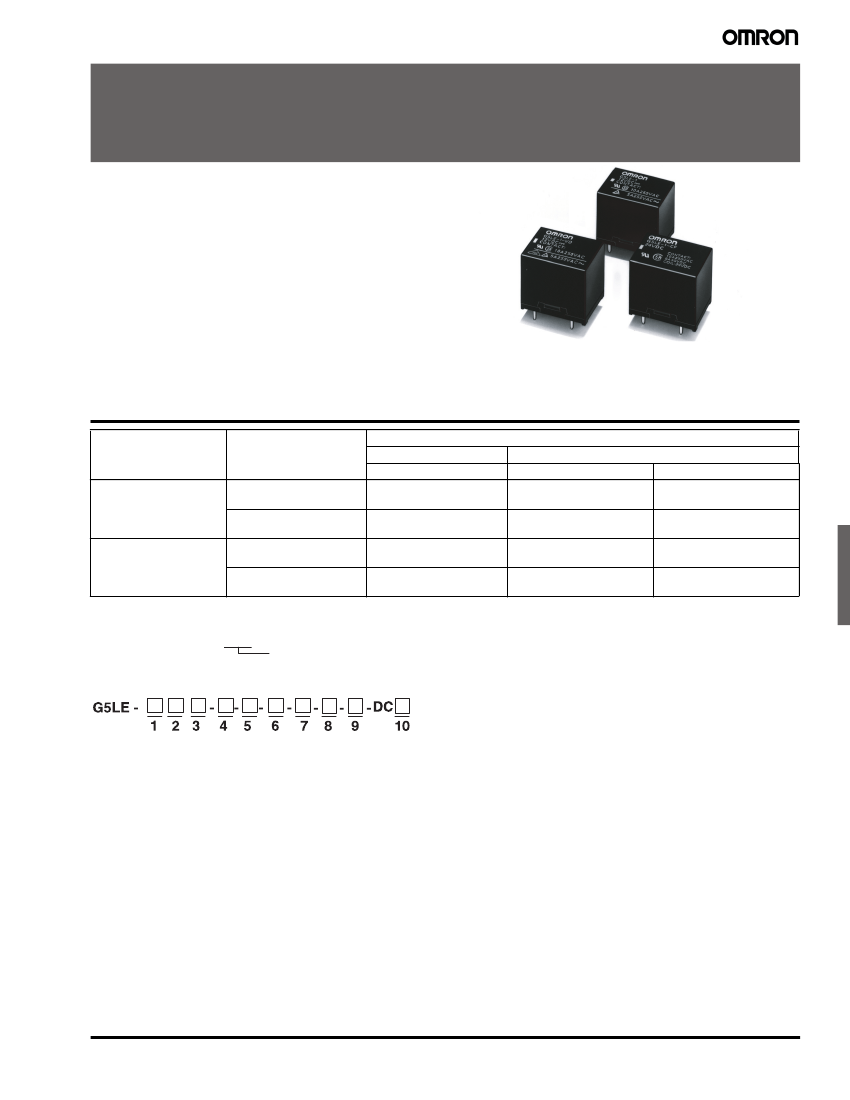

PCB Relay
G5LE
A Cubic, Single-pole 10-A Power Relay
• High Capacity (-E) versions
• Subminiature “sugar cube” relay with universal footprint.
• Conforms to EN 61810-1. UL recognized/ CSA certified.
• UL class-F coil insulation model available
(UL class-B coil insulation for standard model).
• Withstands impulse of up to 4,500 V.
• 400-mW and 360-mW coil power types available.
• RoHS Compliant
X
RC
VDE
Ordering Information
Contact material
Enclosure ratings
Flux protection
Contact form/Style
SPDT
SPST-NO
Fully sealed
SPDT
SPST-NO
AgSnO
2
Standard
G5LE-1
G5LE-1-CF
G5LE-1A
G5LE-1A-CF
G5LE-14
G5LE-14-CF
G5LE-1A4
G5LE-1A4-CF
AgSnIn
Standard
G5LE-1-ASI
G5LE-1-ASI-CF
G5LE-1A-ASI
G5LE-1A-ASI-CF
G5LE-14-ASI
G5LE-14-ASI-CF
G5LE-1A4-ASI
G5LE-1A4-ASI-CF
High Capacity
G5LE-1-E
G5LE-1A-E
---
---
Note:
When ordering, add the rated coil voltage to the model number.
Example: G5LE-1 DC12
Rated coil voltage
Model Number Legend
1. Number of Poles
1:
1 pole
2. Contact Form
None: SPDT
A:
SPST-NO
3. Enclosure Ratings
None: Flux protection
4:
Fully sealed
(Not applicable with -E versions)
4. Contact Material
None: AgSnO
2
(AgSnIn for -E versions)
ASI: AgSnIn
5. Insulation System
None: Class B (Class F for -E versions)
CF: Class F (UL and CSA only)
6. Classification
E:
High capacity type
7. Coil Power Consumption/Coil Characteristic
None: Approx. 400 mW (Approx. 700mW for -G versions)
36: Approx. 360 mW (Not applicable for -G versions)
8. Approved Standards
None: UL, CSA, and VDE
9. Packaging
None: Standard polystyrene tray
SP: Anti-static tube packaging
10.Rated Coil Voltage
5, 9, 12, 24, 48 VDC
PCB Relay
G5LE
191
Specifications
■
Coil Ratings
400-mW Type
Rated voltage
Rated current
Coil resistance
Must operate voltage
Must release voltage
Max. voltage
Power consumption
5 VDC
79.4 mA
63
Ω
9 VDC
45 mA
200
Ω
12 VDC
33.3 mA
360
Ω
24 VDC
16.7 mA
1,440
Ω
48 VDC
8.33 mA
5,760
Ω
75% max. of rated voltage (max.)
10% min. of rated voltage (min.)
130% of rated voltage at 85°C, 170% of rated voltage at 23°C
Approx. 400 mW
Note:
The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of
±10%.
360-mW Type
Rated voltage
Rated current
Coil resistance
Must operate voltage
Must release voltage
Max. voltage
Power consumption
5 VDC
72 mA
70
Ω
9 VDC
40 mA
225
Ω
12 VDC
30 mA
400
Ω
24 VDC
15 mA
1,600
Ω
48 VDC
7.5 mA
6,400
Ω
75% max. of rated voltage (max.)
10% min. of rated voltage (min.)
130% of rated voltage at 85°C, 170% of rated voltage at 23°C
Approx. 360 mW
Note:
The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of
±10%.
■
Contact Ratings
Standard
Load
Rated load
G5LE-E
Resistive load (cosφ = 1)
10 A at 120 VAC; 8 A at 30 VDC
10A at 240VAC (12 and 24 VDC coil)
AgSnO
2
(AgSnIn optional)
10 A
250 VAC, 125 VDC
(30 VDC when UL/CSA standard is applied)
AC: 10 A; DC: 8 A
1,200 VA, 240 W
16A at 250VAC
Contact Material
Rated carry current
Max. switching voltage
Max. switching current
Max. switching power
Minimum Permissible Load (See note)
AgSnIn
16A
250VAC
AC: 16A
4,000VA
100 mA at 5 VDC
Note:
Reference value - P level:
λ
60
= 0.1 x 10
–6
operations
192
PCB Relay
G5LE
■
Characteristics
Contact resistance
Operate time
Release time
Bounce Time
Max. switching frequency
Insulation resistance
Dielectric strength
Impulse withstand voltage
Insulation
Distance
100 mΩ max.
10 ms max.
5 ms max.
Operate: Approx. 0.6ms
Release: Approx. 7.2ms
Mechanical:
Electrical:
18,000 operations/hr
1,800 operations/hr at rated load
100 MΩ min. (at 500 VDC)
2,000 VAC, 50/60 Hz for 1 min between coil and contacts
750 VAC, 50/60 Hz for 1 min between contacts of same polarity
4,500 V (1.2 x 50
μs)
between coil and contacts
Creepage (Typ)
3.3 mm
Clearance (Typ)
2.7 mm
250 V
Destruction:
Malfunction:
Destruction:
Malfunction:
Mechanical:
Electrical:
10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
1,000 m/s
2
100 m/s
2
10,000,000 operations min. (at 18,000 operations/hr)
100,000 operations min. (at 1,800 operations/hr) for standard type
36,000 operations min. (10A at 250VAC)
100,000 operations min. (at 1,800 operations/hr), 12A 250 VAC) - applicable for
G5LE-1-E,NO contact only
Tracking Resistance (CTI)
Vibration resistance
Shock resistance
Endurance
Ambient temperature
Ambient humidity
Weight
Operating:
−40°C
to 85°C (with no icing)
Operating: 5% to 85%
Approx. 12 g
■
Approved Standards
UL Recognized (File No. E41643)
CSA Certified (File No. LR34815)
Model
G5LE
Coil rating
3 to 48 VDC
(Standard)
5 to 24 VDC
(-E versions)
Contact rating
10 A, 250 VAC (general use), 6,000 cycles, 40°C (excluding -G type)
10 A, 125 VAC (general use), 100,000 cycles, 40°C (excluding -E, -G types)
8 A, 30 VDC (resistive load), 6,000 cycles, 40°C (excluding -E, -G types)
125 VA, 125 VAC, pilot duty, 100,000 cycles, 105°C (excluding -G type)
NO:
13 A, 120 VAC, resistive, 100,000 cycles, 85°C (AgSnO
2
& -E types, only)
1/2 hp, 125 VAC, 100,000 cycles, 40°C (excluding -G type)
1/3 hp, 125 VAC, 30,000 cycles, 70°C (AgSnO
2
type only, excluding -E, -G types)
400W-T (3.3A), 120 VAC, tungsten, 100,000 cycles (AgSnO
2
type only, excluding -E, -G types)
TV-5, 120 VAC, 40°C (-ASI type only, excluding -E, -G types)
12 A, 250 VAC, general use, 100,000 cycles, 1s=on, 1s=off, 105°C (-E type only)
TV-8,120 VAC, 25,000 cycles, 40°C (-E type only)
10 A, 35 VDC, resistive, 100,000 cycles, 1s=on, 1s=off, 40°C (-G type only)
NC:
12 A, 250 VAC, general use, 30,000 cycles, 1s=on, 9s=off, 40°C (-E type only)
10 A, 35 VDC, resistive, 50,000 cycles, 5s=on, 5s=off, 40°C (-G type only)
1/8 hp, 120 VAC, 50,00 cycles, 40°C (AgSnO
2
type only, excluding -E, -G types)
EN 61810-1, EN 60255, IEC (VDE TUV Reg No. R9151267, VDE Reg No. 6850UG)
Model
G5LE
Coil rating
Approx. 400 mW
3, 5, 6, 9, 12, 24, 48 VDC
Approx. 360 mW
5, 6, 12, 24, 48 VDC
Contact rating
10A, 250VAC (resistive load, 50,000 cycles at 85°C)
5A, 30VDC
2.5 A, 250 VAC (cosφ = 0.4)
PCB Relay
G5LE
193
