OJE-SS-109HM,000 Overview

OJE-SS-109HM,000

OJE-SS-109HM,000 Parametric

Parameter Name	Attribute value
Power relay type	standard
Terminal limit breaking current (A)	10
Coil excitation system	Monostable, DC
Coil Power Rating Class (mW)	400 – 500
Coil Power Rating (DC) (mW)	450
Coil resistance (Ω)	180
Coil characteristics	UL Coil Insulation Class B
Coil Voltage Rating (VDC)	9
Terminal switch load (minimum)	100mA @ 5V
Terminal switching voltage (max) (VAC)	277
Terminal switching voltage (max) (VDC)	30
Terminal Voltage Rating (VAC)	250
Terminal Voltage Rating (VDC)	30
Insulation leakage between terminal and coil	3.6 mm [ .141 in ]
Initial dielectric between terminal and coil (Vrms)	3000
Insulation leakage type (mm)	3 – 5.5
Terminal limit continuous current (A)	10
Terminal limit short-time current (A)	10
Terminal limit closing current (A)	10
Open terminal insulation initial dielectric (Vrms)	750
Coil/terminal insulation initial dielectric type (V)	2500 – 3000
product weight	9 g [ .318 oz ]
Insulating properties	Tracking index of relay base PTI250
Terminal arrangement	1 Form A (NO)
Terminal current type (A)	5 – 10, 16
Contact Current Rating (Max) (A)	10
Terminal material	AgSnO2
Number of terminal poles	1
Terminal type	PCB-THT
Relay installation type	A printed circuit board
Product height	14.7 mm [ .579 in ]
Product length	18.2 mm [ .717 in ]
Product width	10.2 mm [ .4 in ]
Width type (mechanical) (mm)	10 – 12
Insulation gap between terminal and coil	3.2 mm [ .125 in ]
Height type (mechanical) (mm)	14 – 15
Insulation gap type (mm)	0 – 2.5
Length type (mechanical) (mm)	16 – 20
Environmental Protection Category	RTII
Ambient temperature (maximum)	70 °C [ 158 °F ]
Ambient temperature category (°C)	50 – 70
Encapsulation method	Tray, boxes and trays

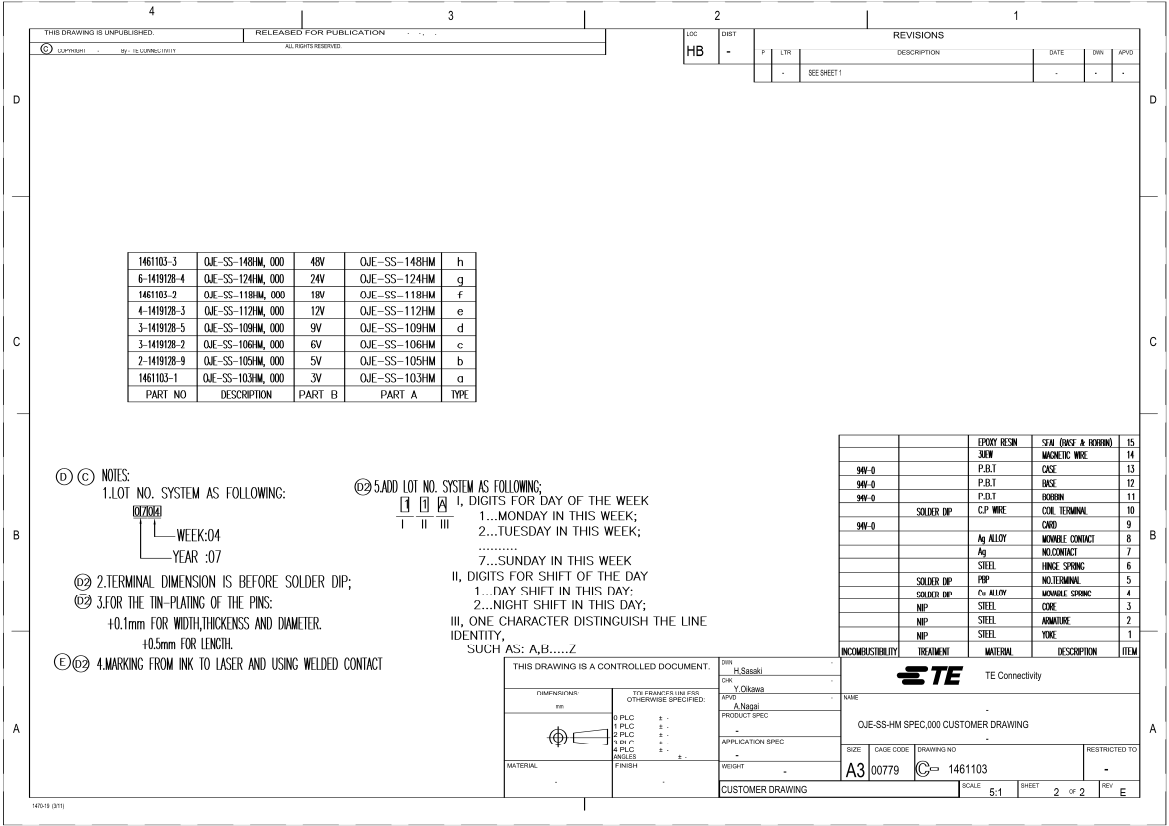

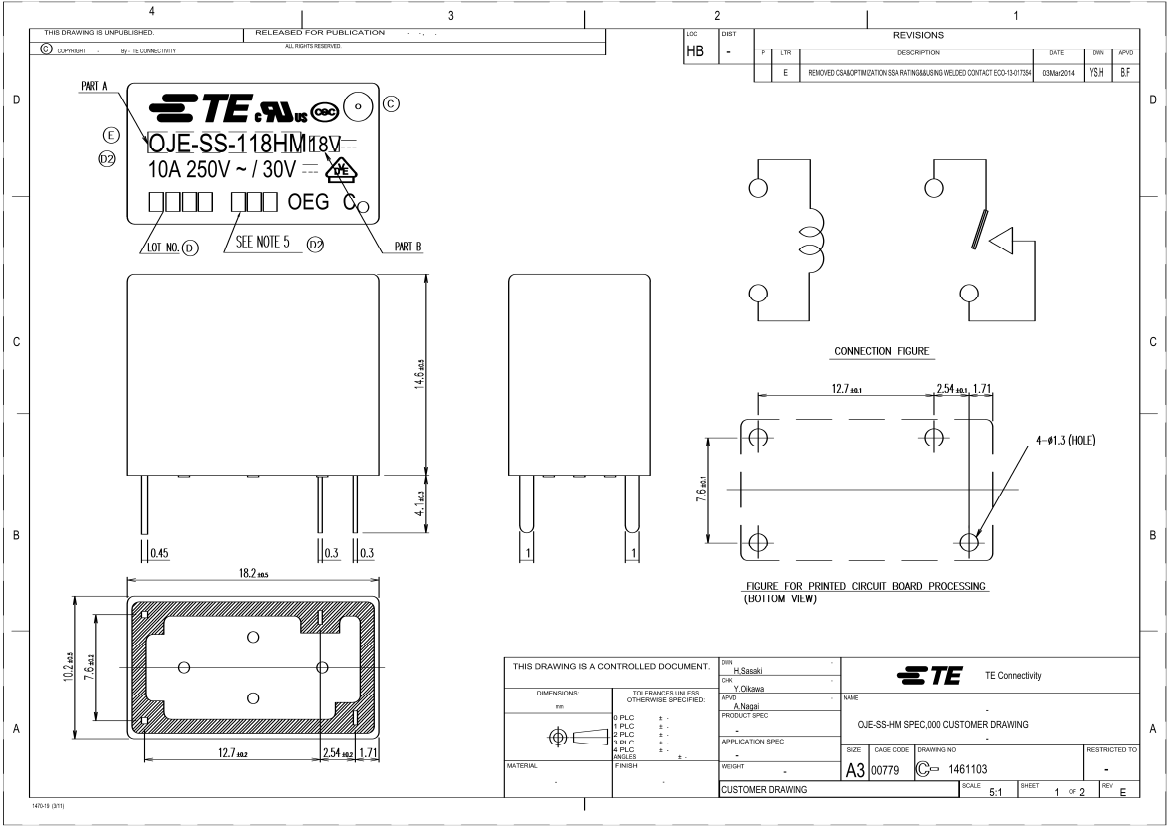

Preview

Download Datasheet

View All

OJE-SS-109HM,000 Related Products

	OJE-SS-109HM,000	OJE-SS-105HM,000
Description	OJE-SS-109HM,000	OJE-SS-105HM,000
Power relay type	standard	standard
Terminal limit breaking current (A)	10	10
Coil excitation system	Monostable, DC	Monostable, DC
Coil Power Rating Class (mW)	400 – 500	400 – 500
Coil Power Rating (DC) (mW)	450	450
Coil resistance (Ω)	180	55.6
Coil characteristics	UL Coil Insulation Class B	UL Coil Insulation Class B
Coil Voltage Rating (VDC)	9	5
Terminal switch load (minimum)	100mA @ 5V	100mA @ 5V
Terminal switching voltage (max) (VAC)	277	277
Terminal switching voltage (max) (VDC)	30	30
Terminal Voltage Rating (VAC)	250	250
Terminal Voltage Rating (VDC)	30	30
Insulation leakage between terminal and coil	3.6 mm [ .141 in ]	3.6 mm [ .141 in ]
Initial dielectric between terminal and coil (Vrms)	3000	3000
Insulation leakage type (mm)	3 – 5.5	3 – 5.5
Terminal limit continuous current (A)	10	10
Terminal limit short-time current (A)	10	10
Terminal limit closing current (A)	10	10
Open terminal insulation initial dielectric (Vrms)	750	750
Coil/terminal insulation initial dielectric type (V)	2500 – 3000	2500 – 3000
product weight	9 g [ .318 oz ]	9 g [ .318 oz ]
Insulating properties	Tracking index of relay base PTI250	Tracking index of relay base PTI250
Terminal arrangement	1 Form A (NO)	1 Form A (NO)
Terminal current type (A)	5 – 10, 16	5 – 10, 16
Contact Current Rating (Max) (A)	10	10
Terminal material	AgSnO2	W + AgSnO2
Number of terminal poles	1	1
Terminal type	PCB-THT	PCB-THT
Relay installation type	A printed circuit board	A printed circuit board
Product height	14.7 mm [ .579 in ]	14.7 mm [ .579 in ]
Product length	18.2 mm [ .717 in ]	18.2 mm [ .717 in ]
Product width	10.2 mm [ .4 in ]	10.2 mm [ .4 in ]
Width type (mechanical) (mm)	10 – 12	10 – 12
Insulation gap between terminal and coil	3.2 mm [ .125 in ]	3.2 mm [ .125 in ]
Height type (mechanical) (mm)	14 – 15	14 – 15
Insulation gap type (mm)	0 – 2.5	0 – 2.5
Length type (mechanical) (mm)	16 – 20	16 – 20
Environmental Protection Category	RTII	RTII
Ambient temperature (maximum)	70 °C [ 158 °F ]	70 °C [ 158 °F ]
Ambient temperature category (°C)	50 – 70	50 – 70
Encapsulation method	Tray, boxes and trays	Tray, boxes and trays
