196H3FL112002-01 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 196H3FL112002-01

196H3FL112002-01: DescriptionBoard Connector, 2 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Kinked Leads Terminal, Locking, Black Insulator, Plug; CategoryThe connector The connector; File Size68KB，2 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric View All

196H3FL112002-01 Overview

Board Connector, 2 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Kinked Leads Terminal, Locking, Black Insulator, Plug

196H3FL112002-01 Parametric

Parameter Name	Attribute value
Objectid	304377770
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.1 inch
subject depth	0.335 inch
body length	0.2 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Filter function	NO
Insulator color	BLACK
insulator material	POLYAMIDE
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	2

Preview

Download Datasheet

View All

Ratioplast-Electronics

Serie

Homepage: www.ratioplast.de / E-Mail: info@ratioplast.de

Tel.: +49 (0) 5741 / 23 661-0 / Fax: +49 (0) 5741 / 23 661-20

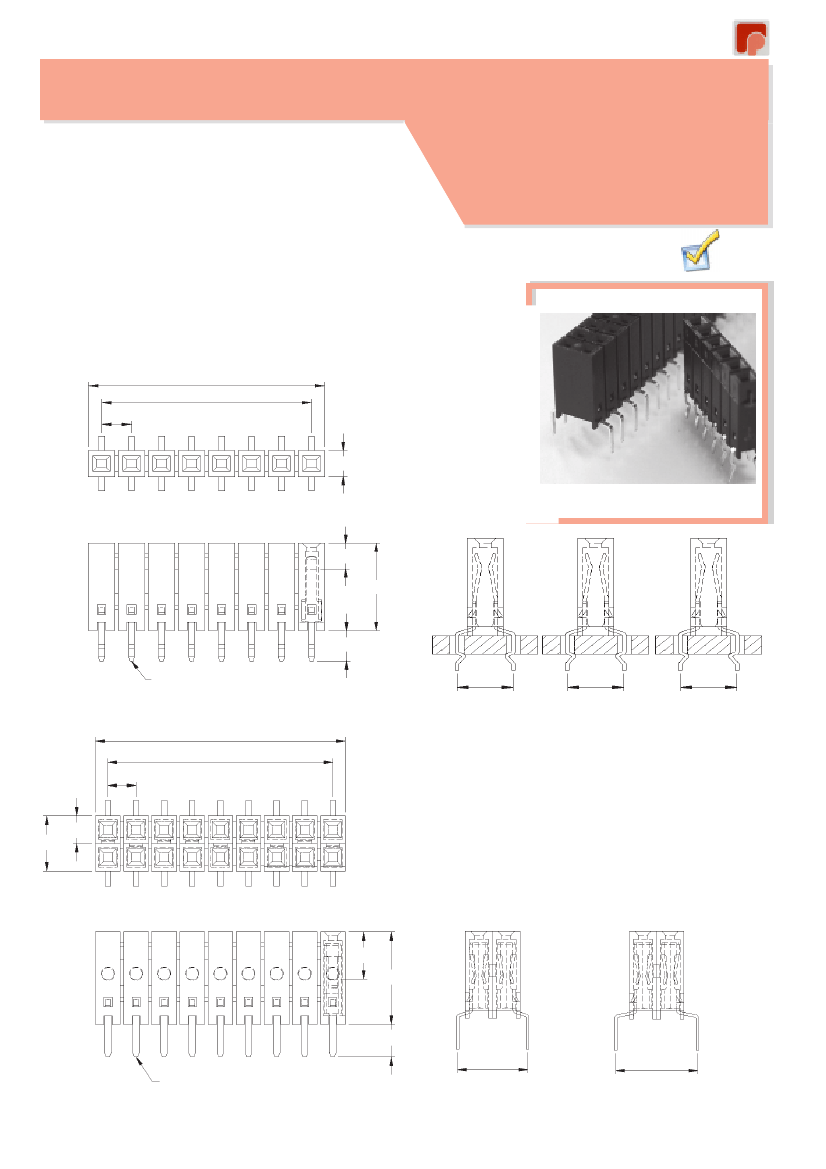

196

BUCHSENLEISTEN

FEMALE HEADERS

1-, 2-REIHIG, GERADE, Raster = 2,54 mm

1-, 2-ROW, STRAIHGT, Pitch = 2,54 mm

Von oben durchsteckbare Buchsenleiste;

Bauhöhe 8,50 mm; für Vierkantstift 0,635 mm

Female header top entry type; total height

8,50 mm; accepts square contacts 0,635 mm

RoHs

N x 2,54

(N-1) x 2,54

2,54

2,50

8,50

3,00

0,5x0,25

A=3,17

Version H1

(N/2) x 2,54

(N/2-1) x 2,54

2,54

A=3,96

Version H2

A=5,08

Version H3

2,54

5,08

Version H6

Version H7

4,35

8,50

3,00

0,6x0,25

A=6,50

A=7,62

220

Ratioplast-Electronics,

H.Wiedemann GmbH 2006 Sonderanfertigungen und andere Veredelungen auf Anfrage / Customer Designs and special platings on request

Die Vervielfältigung dieser Unterlagen durch Kopieren oder Nachdruck ist nur mit ausdrücklicher Genehmigung des Herausgebers gestattet.

Zuwiderhandlung verplichtet zu Schadensersatz. Design und technische Änderung vorbehalten.
