442-10-202-00-593100 datasheet, PDF

Datasheet> All Categories > The connector> socket> 442-10-202-00-593100

442-10-202-00-593100: DescriptionIC Socket, DIP2, 2 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size120KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

442-10-202-00-593100 Overview

IC Socket, DIP2, 2 Contact(s), ROHS COMPLIANT

442-10-202-00-593100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	DIP SOCKET
Contact to complete cooperation	GOLD (10) OVER NICKEL (150)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	DIP2
Shell material	GLASS FILLED POLYETHYLENE POLYESTER
JESD-609 code	e4
Number of contacts	2
Base Number Matches	1

Preview

Download Datasheet

View All

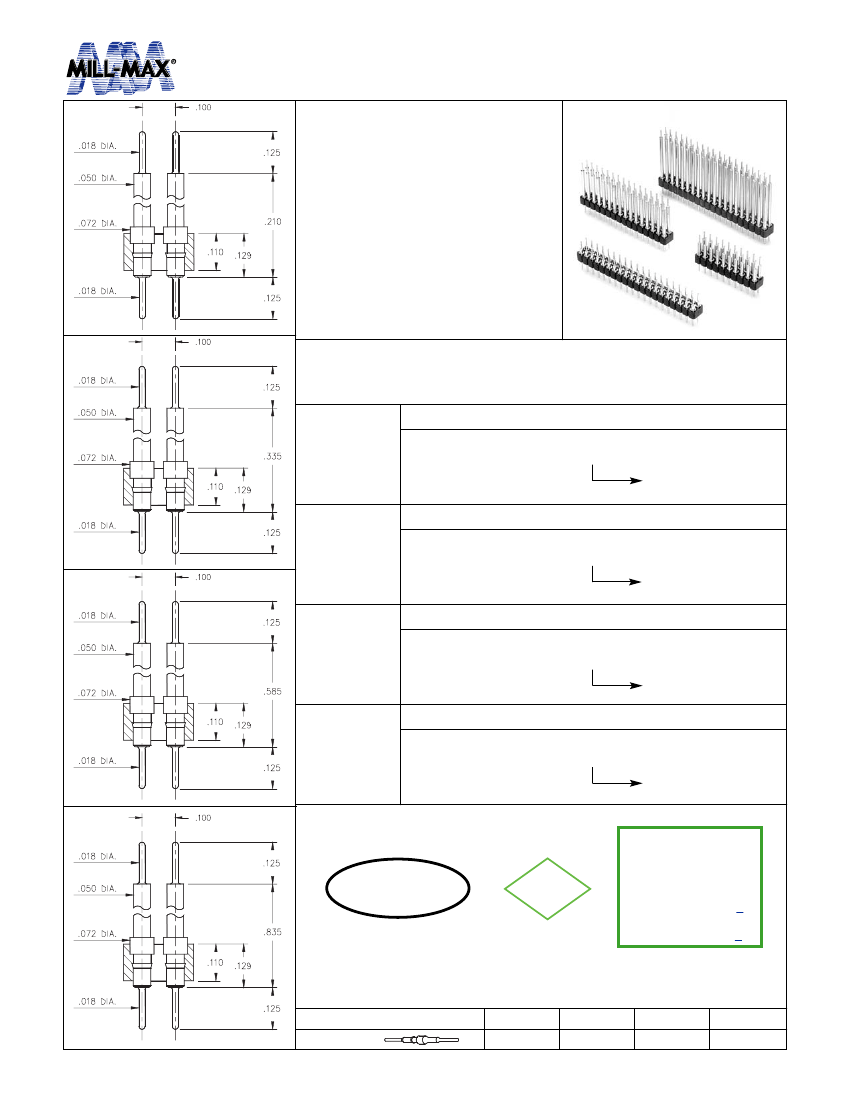

HEADER STRIPS

Interconnect

Double Row

•

Series 442 Interconnect Header

Strips come in four heights with

.018” dia. pluggable solder tails at

both ends. (M-M# 4259-1, 4259-2,

4259-3, & 4259-4. See page 170

for details).

•

Strips are available four heights.

L = .210”

L = .335”

L = .585”

L = .835”

Fig. 1

Series 442

Ordering Information

Series 442...591

.018 / .018 Interconnect

Fig. 1

442-XX-2_ _-00-591000

Specify # of pins

Series 442...592

02-64

.018 / .018 Interconnect

Fig. 2

442-XX-2_ _-00-592000

Specify # of pins

Series 442...593

02-64

.018 / .018 Interconnect

Fig. 3

442-XX-2_ _-00-593000

Specify # of pins

Series 442...594

02-64

.018 / .018 Interconnect

Fig. 4

Fig. 3

442-XX-2_ _-00-594000

Specify # of pins

02-64

XX=Plating Code

See Below

For RoHS compliance,

select plating code.

For the gold option

(XX=10) also change

part number from

442-XX-2XX-00-59X000

442-10-2XX-00-59X100

SPECIFY PLATING CODE XX=

10μ” Au

200μ” Sn/Pb

200μ” Sn

Fig. 4

Pin Plating

w w w. m i l l - m a x . c o m

516-922-6000

442-10-202-00-593100 Related Products

	442-10-202-00-593100	442-10-202-00-594	442-10-204-00-591	442-10-202-00-592100	442-10-202-00-591	442-10-202-00-591100	442-10-202-00-594100	442-10-202-00-593
Description	IC Socket, DIP2, 2 Contact(s), ROHS COMPLIANT	IC Socket, 2 Contact(s)	IC Socket, 4 Contact(s)	IC Socket, DIP2, 2 Contact(s), ROHS COMPLIANT	IC Socket, 2 Contact(s)	IC Socket, DIP2, 2 Contact(s), ROHS COMPLIANT	IC Socket, DIP2, 2 Contact(s), ROHS COMPLIANT	IC Socket, 2 Contact(s)
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	DIP SOCKET	SIP HEADER	SIP HEADER	DIP SOCKET	SIP HEADER	DIP SOCKET	DIP SOCKET	SIP HEADER
Contact to complete cooperation	GOLD (10) OVER NICKEL (150)	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL (150)	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL (150)	GOLD (10) OVER NICKEL (150)	GOLD (10) OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL	Gold (Au) - with Nickel (Ni) barrier	GOLD (10) OVER NICKEL	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	GOLD (10) OVER NICKEL
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Shell material	GLASS FILLED POLYETHYLENE POLYESTER	GLASS FILLED POLYETHYLENE POLYESTER	GLASS FILLED POLYETHYLENE POLYESTER	GLASS FILLED POLYETHYLENE POLYESTER	GLASS FILLED POLYETHYLENE POLYESTER	GLASS FILLED POLYETHYLENE POLYESTER	GLASS FILLED POLYETHYLENE POLYESTER	GLASS FILLED POLYETHYLENE POLYESTER
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4
Number of contacts	2	2	4	2	2	2	2	2
Base Number Matches	1	1	1	1	1	1	1	1
