2TL119-12-A03 datasheet, PDF - EEWORLD Datasheet

2TL119-12-A03: Descriptionswitch toggle dpdt 15a 125v; CategoryMechanical and electronic products switch; File Size100KB，1 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

2TL119-12-A03 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2TL119-12-A03	-	-	View	Buy Now

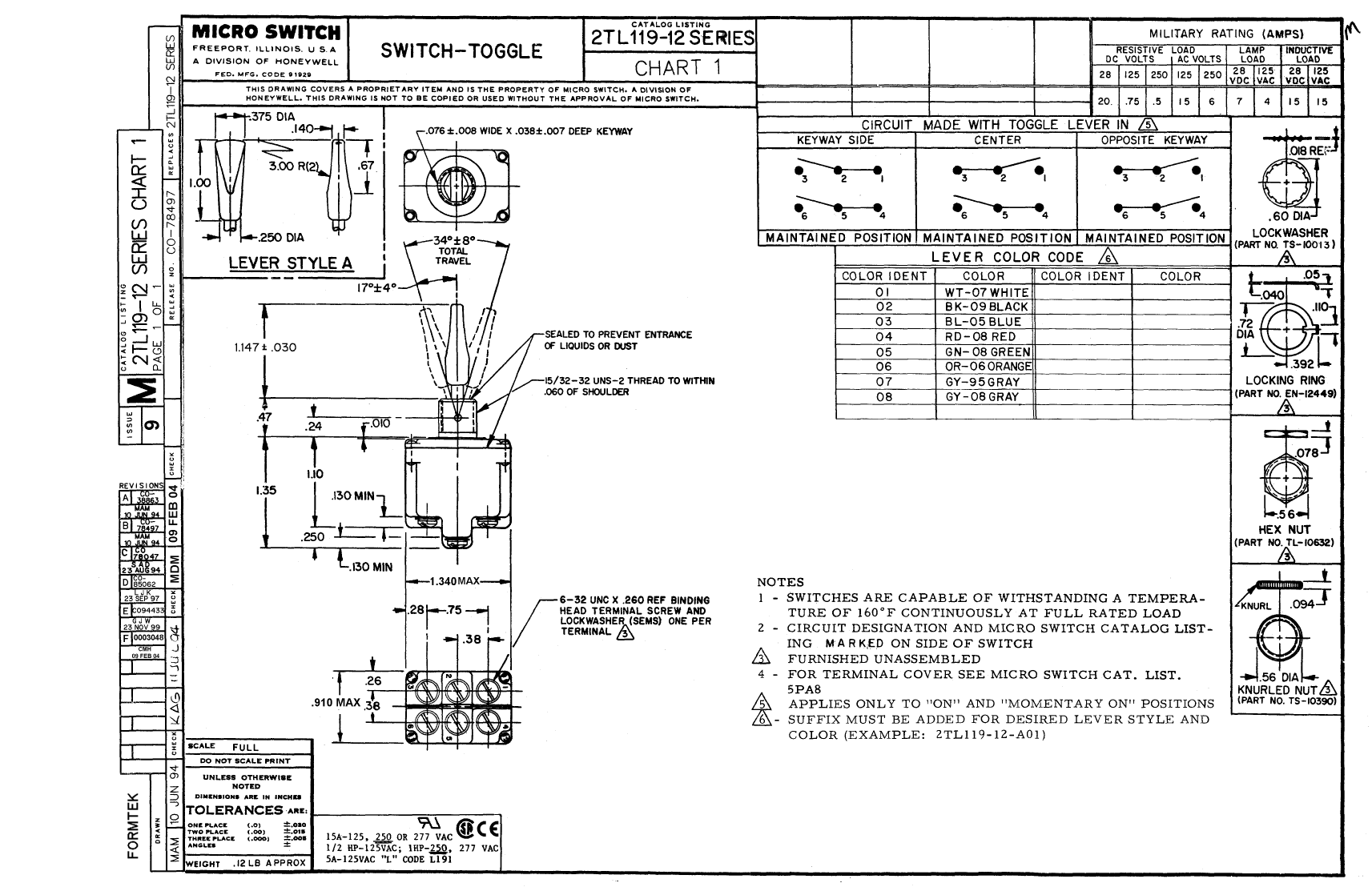

switch toggle dpdt 15a 125v

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Actuator type	TAB LEVER
Contact (AC) maximum rated R load	15A@277VAC
Maximum contact current (AC)	15 A
Maximum contact current (DC)	20 A
Contact (DC) maximum rated R load	20A@28VDC
Maximum contact voltage (AC)	277 V
Maximum contact voltage (DC)	28 V
Manufacturer's serial number	TL
Installation features	PANEL MOUNT
surface mount	NO
Switch action	LATCHED
switch function	DPDT
Switch type	TOGGLE SWITCH
Termination type	SCREW
Base Number Matches	1

	2TL119-12-A03	2TL119-12
Description	switch toggle dpdt 15a 125v	Toggle Switch, SPDT, Latched, 20A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount
Reach Compliance Code	unknown	unknow
Actuator type	TAB LEVER	LEVER
Contact (AC) maximum rated R load	15A@277VAC	15A@125VAC
Maximum contact current (AC)	15 A	15 A
Maximum contact current (DC)	20 A	20 A
Contact (DC) maximum rated R load	20A@28VDC	20A@28VDC
Maximum contact voltage (AC)	277 V	125 V
Maximum contact voltage (DC)	28 V	28 V
Manufacturer's serial number	TL	2TL119-12
Installation features	PANEL MOUNT	PANEL MOUNT
surface mount	NO	NO
Switch action	LATCHED	LATCHED
switch function	DPDT	SPDT
Switch type	TOGGLE SWITCH	TOGGLE SWITCH
Termination type	SCREW	SCREW
Base Number Matches	1	1
