UHE2A821MHD1CM

Description
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 820uF
CategoryPassive components    capacitor
File Size847KB,5 Pages
ManufacturerNichicon
Websitehttp://www.nichicon.co.jp
Environmental Compliance
Download Datasheet Parametric View All

UHE2A821MHD1CM Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 820uF

UHE2A821MHD1CM Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid1223872138
package instruction,
Reach Compliance Codecompliant
Country Of OriginJapan
ECCN codeEAR99
YTEOL6.97
capacitance820 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
diameter18 mm
dielectric materialsALUMINUM (WET)
length40 mm
negative tolerance20%
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
Package formRadial
method of packingBulk
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)100 V
ripple current2470 mA
Terminal pitch7.5 mm

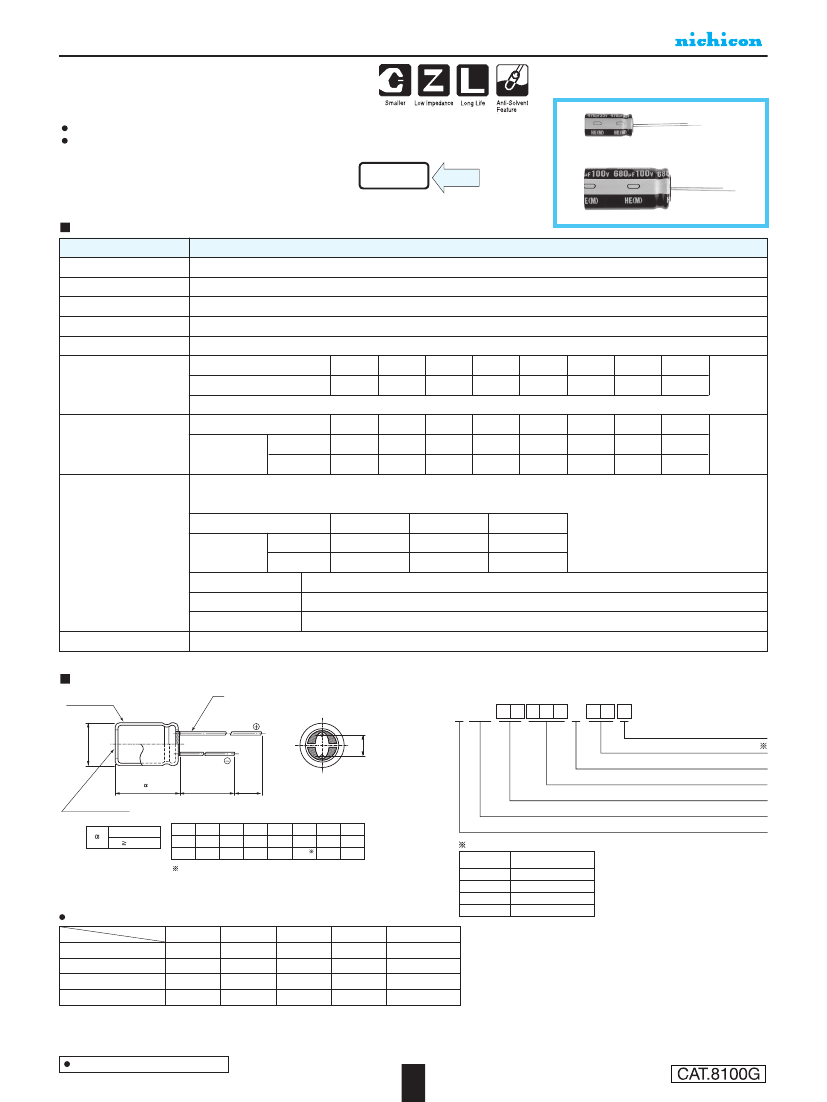

ALUMINUM ELECTROLYTIC CAPACITORS
UHE
Specifications
ltem
Miniature Sized, Low Impedance,
High Reliability
Approved by Reliability Center for Electronic
Component, Japan-Certification No. RCJ-03-23C
Low impedance and high reliability withstanding 4000 hours to 10000 hours.
Compliant to the RoHS directive (2011/65/EU).
UHE
Long Life
UHD
Performance Characteristics
–40 to +105˚C
6.3 to 100V
2.2 to 18000µF
± 20% at 120Hz, 20˚C
After 2 minutes' application of rated voltage at 20°C, leakage current is not more than 0.01CV or 3 (µA), whichever is greater.
Rated voltage (V)
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
6.3
0.22
10
0.19
16
0.16
25
0.14
35
0.12
50
0.10
63
0.09
100
0.08
120Hz
20˚C
Tangent of loss angle (tan
δ
)
tan
δ
(MAX.)
For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.
Rated voltage (V)
Stability at Low Temperature
6.3
4
8
10
3
6
16
2
4
25
2
3
35
2
3
50
2
3
63
2
3
100
2
3
120Hz
Impedance ratio
ZT / Z20 (MAX.)
Z–25˚C / Z+20˚C
Z–40˚C / Z+20˚C
The following specifications shall be met when the capacitors are restored to 20˚C after D.C. bias plus rated ripple current is
applied at 105˚C , the peak voltage shall not exceed the rated voltage.
Case size
Endurance
φD
< 6.3
=
4000 hours
5000 hours
φD
= 8 , 10
6000 hours
7000 hours
φD
> 12.5
=
8000 hours
10000 hours
Rated voltage
(V)
6.3
to
10WV
16
to
100WV
Capacitance change
tan
δ
Leakage current
Marking
Within ± 25% of the initial capacitance value
200% or less than the initial specified value
Less than or equal to the initial specified value
Printed with white color letter on black sleeve.
Radial Lead Type
Sleeve (P.E.T.)
φd
Type numbering system (Example : 10V 1000µF)
1
2
3
4
5
6
7
8
9
10 11
12
U HE 1 A 1 0 2 M PD
φD
+
0.5 MAX.
Size code
P
±0.5
Configuration
Capacitance tolerance ( ±20%)
L+
Pressurerelief vent
(φ6.3up)
MAX.
15
MIN
4
MIN
Rated capacitance (1000
µ
F)
Rated voltage (10V)
(mm)
Series name
Type
Configuration
φ
D
5
6.3
8 · 10
12.5 to 18
Pb-free leadwire
Pb-free PET sleeve
(L < 20) 1.5
(L 20) 2.0
φD
P
φd
5
2.0
0.5
6.3
2.5
0.5
8
3.5
0.6
10
5.0
0.6
12.5
5.0
0.6
16
7.5
0.8
18
7.5
0.8
In case L > 25 for the
φ12.5
dia. unit, lead dia.
φd
= 0.8mm
DD
ED
PD
HD
Please refer to page 20 about the end seal configuration.
Frequency coefficient of rated ripple current
Cap. (µF)
Frequency
50Hz
0.45
0.60
0.65
0.75
120Hz
0.55
0.70
0.75
0.80
300Hz
0.70
0.85
0.90
0.95
1kHz
0.90
0.95
0.98
1.00
10kHz or more
1.00
1.00
1.00
1.00
2.2 to 33
39 to 330
390 to 1000
1200 to 18000
Please refer to page 20, 21, 22 about the formed or taped product spec.
Please refer to page 4 for the minimum order quantity.
Dimension table in next page.
