MEH20-2000F1-C3 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> MEH20-2000F1-C3

MEH20-2000F1-C3: DescriptionOptical Position Encoder, ROTARY OPTICAL POSITION ENCODER; CategoryLED optoelectronic/LED photoelectric; File Size32KB，1 Pages; ManufacturerCUI; Websitehttp://www.cui.com

Download Datasheet Parametric View All

MEH20-2000F1-C3 Overview

Optical Position Encoder, ROTARY OPTICAL POSITION ENCODER

MEH20-2000F1-C3 Parametric

Parameter Name	Attribute value
Maker	CUI
Reach Compliance Code	compliant
Optoelectronic device types	ROTARY POSITION ENCODER
Base Number Matches	1

Preview

Download Datasheet

View All

F1 Type

C U I Stack, Inc.,

1997

3-M3

Ø5

120˚

3-M3

Ø5

Ø6.7

Ø32

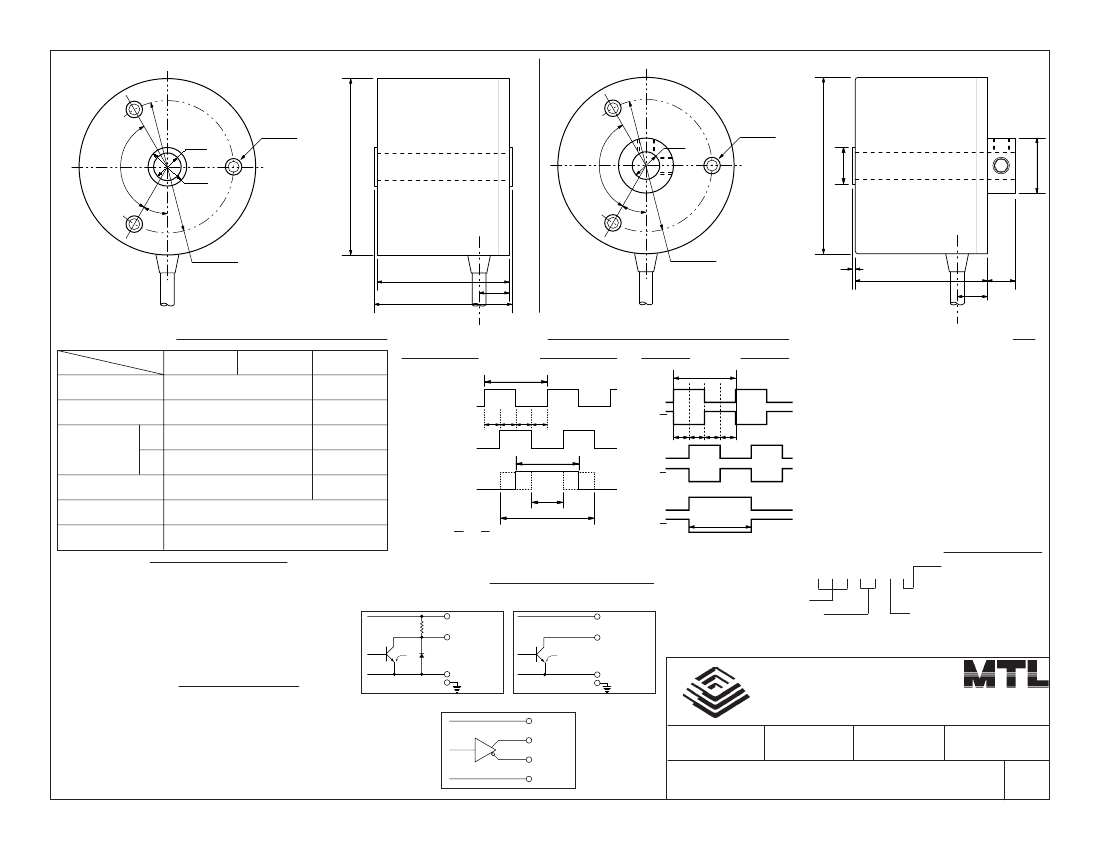

SPECIFICATIONS

Supply Voltage

Current

Output

Voltage

Sink Current

Signal Risetime

Freq. Response

MECHANICAL

1. Max Shaft Load, radial: 2.0 kgf

axial: 1.0 kgf

2. Moment of Inertia: 3 g•cm

3. Angular Acceleration: 1x10

rad/S

4. Max Slewing Speed: 6000 RPM

5. Starting Torque: 20 gf•cm max.

6. Rotational Life: 1 x 10

rpm•hrs

ENVIRONMENTAL

Operating Temp: -10° to +60° C

Storage Temp: -20° to +80° C

Humidity: 90% RH, no condensation

Vibration: 10~55 Hz, 1.5 mm, 2 hrs

Shock: 50G, 11ms, 3 axes, 3 reps

langiS

120˚

30˚

Ø7

30˚

PCD24

5.5

PCD24

0.5

5.5

OUTPUT WAVEFORM

TYPE

5VDC

±5%

≤

150 mA

≥

4.2V

≤

0.5V

≤

20 mA

TYPE R,C

(Clockwise rotation viewed from front)

TYPE E

5 ~ 12 VDC

24 VDC ±10%

Sig A

Signal A

a b c d

60mA max.

Sig A

Sig B

Vcc - 1V

≤

0.5V

20mA max.

≤

2µS

50 - 100kHz

Signal B

Signal Z

h min

a b c d

STANDARD RESOLUTIONS

MEH20-XXX

40 P/R

500

500 P/R

60 P/R

600

600 P/R

100 100 P/R

720

720 P/R

200 200 P/R

800

800 P/R

300 300 P/R

1000 1000 P/R

360 360 P/R

1024 1024 P/R

400 400 P/R

2000 2000 P/R

2048 2048P/R

Line Driver N/A

P = 1÷ PPR

a,b,c,d = P ± P

Sig Z

h max

Sig Z

h = P ± 0.75P

Wave Duty Ratio: 50% ± 25%

ORDERING INSTRUCTIONS

OUTPUT CIRCUITS

TYPE R (Voltage)

Vcc

2kΩ

MEH20-_ _ _ _ _-_ _

TYPE C (Open Coll)

Vcc

Signal

30mA

max

Signal

20mA

max

Resolution

Bore/Hub:

= Through/No Hub

F1 = Through/Hub

F2 = 14mm/Hub

Input Voltage:

1 = 5VDC

±10%

3 = 5~12VDC

±10%

4 = 24VDC

±10%

Output Format:

= TTL Voltage

C = Open Coll

E = Diff Driver

CABLE SHIELD

TYPE E (Line Driver)

Vcc

Signal

DRAWN BY

C U I Stack, Inc.

9615 SW Allen Blvd. #103

Beaverton, OR 97005

Tel: 503/643-4899 FAX: 503/643-6129

UPDATED

CHECKED

RELEASED

PART NO.

REV.

MEH20-XXXXX-XX
