W51-A122B1-20 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> W51-A122B1-20

W51-A122B1-20: DescriptionW51-A122B1-20=CKTBKR,THERM,ROC; CategoryMechanical and electronic products switch; File Size175KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

W51-A122B1-20 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	W51-A122B1-20	-	-	View	Buy Now

W51-A122B1-20 Overview

W51-A122B1-20=CKTBKR,THERM,ROC

W51-A122B1-20 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	14 weeks
Actuator type	ROCKER
body width	12.8 mm
body height	21.8 mm
Body length or diameter	33.3 mm
Contact (AC) maximum rated R load	20A@250VAC
Maximum contact current (AC)	20 A
Maximum contact current (DC)	20 A
Contact (DC) maximum rated R load	20A@50VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	50 V
illumination	RED LAMP
Installation features	PANEL MOUNT
Maximum operating temperature	60 °C
Minimum operating temperature
surface mount	NO
Switch action	LATCHED
switch function	SPDT
Switch type	ROCKER SWITCH
Termination type	QUICK CONNECT
Base Number Matches	1

Preview

Download Datasheet

View All

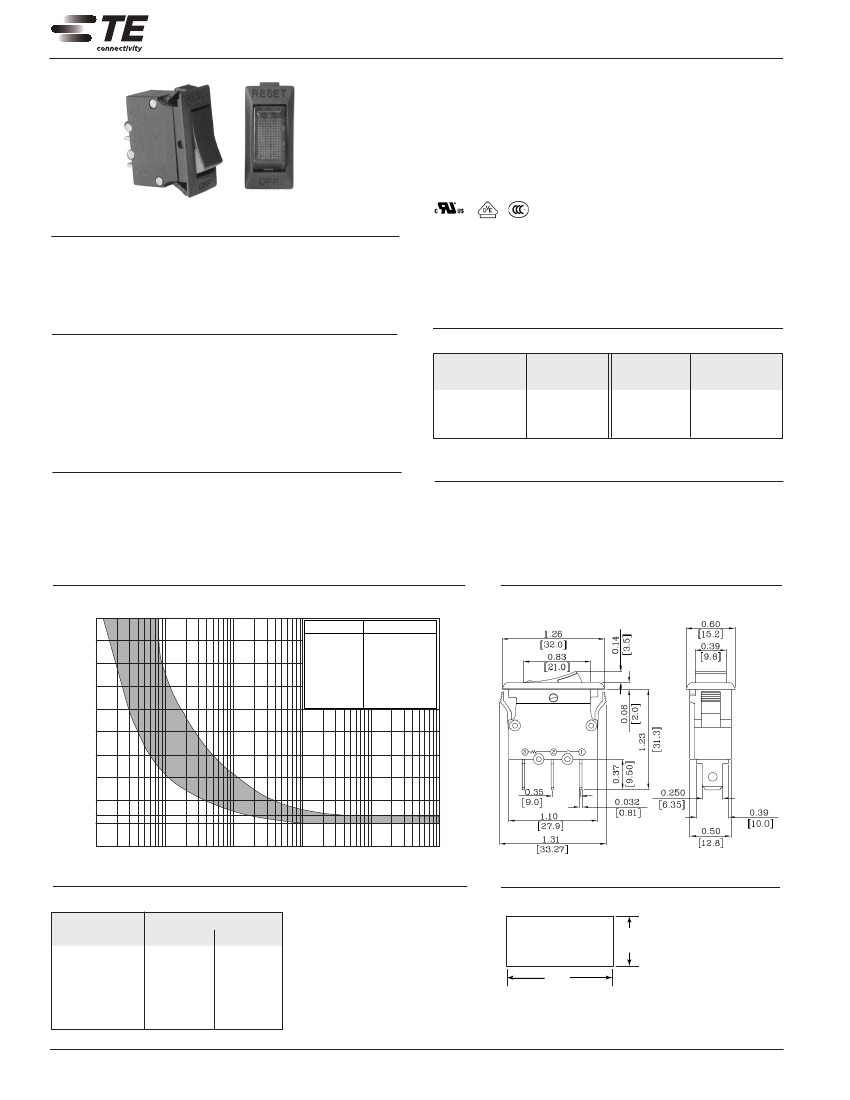

Catalog 1308242

Issued 3-03 (PDF Rev. 08-13)

Potter & Brumfield

W51

series

Rocker-Actuated

Thermal Circuit Breaker/Power Switch

With Optional Indicator Lamp

Features

• Compact, trip-free, rocker-actuated design.

• 5 to 20 amp ratings.

• Provides circuit protection and power switching in a single unit.

• Available with optional indicator lamp.

• Snaps into the same cutout as many common power switches.

• Various color, marking and termination options.

Interrupt Capacity: 1,000 amps in accordance with UL standard 1077.

Resettable Overload Capacity: Ten times rated current.

Switch Endurance Cycling: Typically 6,000 operations at 100% of rating.

Reset Time: 60 seconds.

Agency Approvals

W51 series is UL 1077 Recognized as Supplementary Protectors,

File E69543, for Canada and the United States. Approved to VDE

0642/EN60934 (Circuit Breakers for Equipment) License Number

40017023 (for AC loads only). CCC mark compliant, certificate

2004010307123223.

Users should thoroughly review the technical data before selecting a product part

number. It is recommended that users also seek out the pertinent approvals files

of the agencies/laboratories and review them to ensure the product meets the

requirements for a given application.

Typical Resistance vs. Current Rating @ +25°C

Current

Rating

in Amps

5.0

6.0

7.0

8.0

Typical

Resistance

in Ohms

0.050

0.042

0.036

0.031

Current

Rating

in Amps

10.0

15.0

20.0

Typical

Resistance

in Ohms

0.025

0.017

0.0125

Electrical Data @ 25°C

Calibration: Will continuously carry 100% of rating.

May trip between 101% and 134%, but must trip at 135%* of rating

within one hour at +25°C. * 150% for 5-8A models

Dielectric Strength: 1,500VAC (60 seconds).

Insulation Resistance: 100 megohms.

Maximum Operating Voltages: 50VDC; 125 or 250VAC, 50/60 Hz. (model

dependent).

Mechanical/Environmental Data

Operating Temperature Range: 0°C to +60°C for 10-20A models

0°C to +50°C for 5-8A models

Termination: .250” (6.35mm) quick connects, solder terminals or right angle PC

terminals.

Mounting: Snaps into 1.122 x .531 (28.5 x 13.5) panel cutout.

Approximate Weight: 0.37 oz. (10.5g).

Time vs. Current Trip Curve @ +25°C

1000

900

800

Load Current As A Percent

Of Breaker Rating

700

600

500

400

300

200

100

Time In Seconds

1000

10,000

135

Outline Dimensions

Overload

100%

135%

200%

300%

400%

500%

600%

Trip Times

No Trip

Trip in 1 hour

4.0 - 40.0 Sec.

1.2 - 12.0 Sec.

0.6 - 5.0 Sec.

0.4 - 2.8 Sec.

0.3 - 1.8 Sec.

Ambient Compensation Table

Ambient

Temperature

in °C

Revised 04-17

www.te.com

Rating Correction Factor

5-8A Models

.80

.90

1.00

1.10

1.25

1.61

10-20A Models

.80

.90

1.00

1.05

1.15

1.25

1.40

To use this chart: Divide the

breaker rating by the correction

factor to determine the

compensated rating. Calculate

the overloads in terms of the

compensated rating to use the

published trip curve.

Do not use these devices

outside their specified operating

temperature ranges.

Dimensions are shown for reference

purposes only. Specifications and

availability subject to change.

Recommended Panel Cutout

SUGGESTED

PANEL CUTOUT

1.122

(28.5)

.531

(13.5)

Panel Thickness

W51 series circuit breakers accommodate panel thicknesses

from 0.030 in. to 0.118 in. (0.75 mm - 3.0 mm).

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-1106-0803

SouthAmerica:55-11-2103-6000

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 44-8706-080208

112

Dimensionsareininchesover

(millimeters)unlessotherwise

specified.
