Datasheet> All Categories > Discrete semiconductor> diode> D20XB20-4101

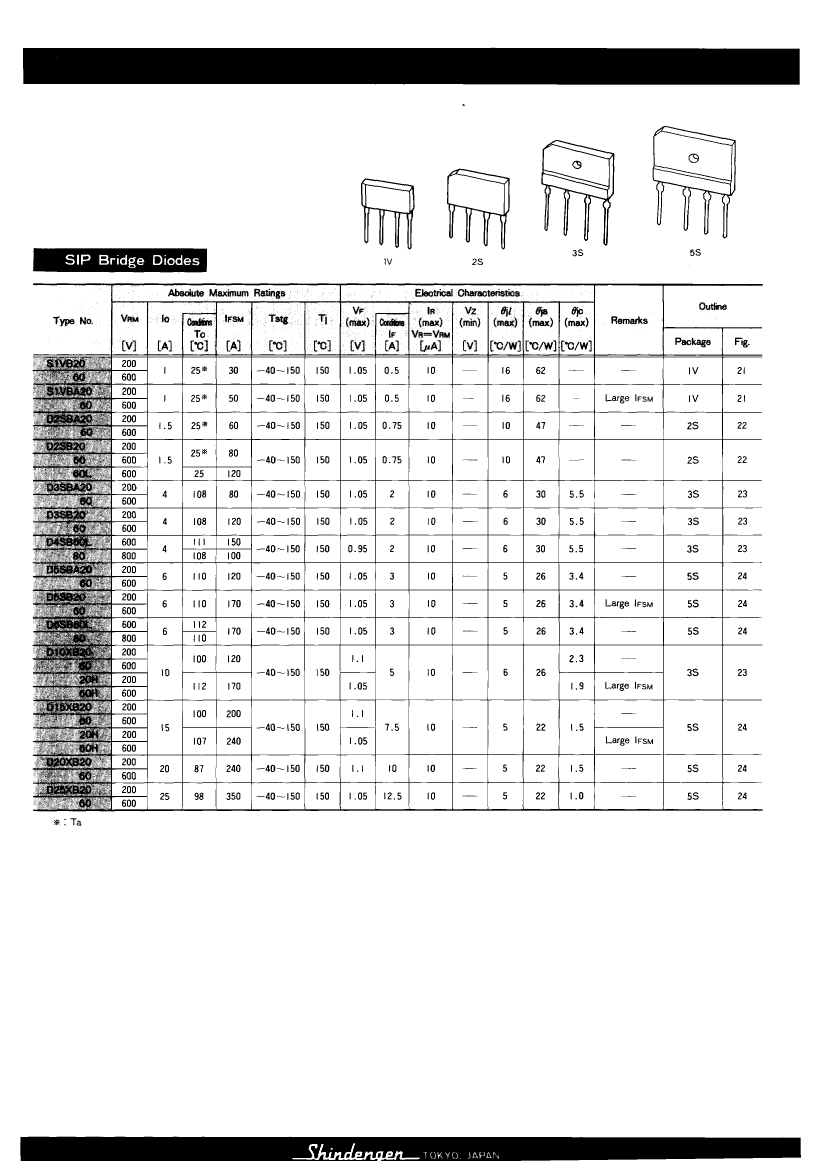

Preview

D20XB20-4101: DescriptionBridge Rectifier Diode, 1 Phase, 20A, Silicon, SIP-4; CategoryDiscrete semiconductor diode; File Size107KB，1 Pages; ManufacturerSHINDENGEN; Websitehttps://www.shindengen.com

Download Datasheet Parametric Compare View All

D20XB20-4101 Overview

Bridge Rectifier Diode, 1 Phase, 20A, Silicon, SIP-4

D20XB20-4101 Parametric

Parameter Name	Attribute value
Maker	SHINDENGEN
package instruction	R-PSFM-T4
Contacts	4
Reach Compliance Code	unknown
Minimum breakdown voltage	200 V
Shell connection	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-30 code	R-PSFM-T4
Maximum non-repetitive peak forward current	240 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Maximum output current	20 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum reverse current	10 µA
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1

Preview

Download Datasheet

View All

D20XB20-4101 Related Products

	D20XB20-4101	D3SB20-4100	D5SBA20-4101	S1VBA20-4101	D15XB20-4101	D3SBA20-4100	S1VB20-4101	D10XB20H-4100	D15XB20H-4101
Description	Bridge Rectifier Diode, 1 Phase, 20A, Silicon, SIP-4	Bridge Rectifier Diode, 1 Phase, 4A, Silicon, SIP-4	Bridge Rectifier Diode, 1 Phase, 6A, Silicon, SIP-4	Bridge Rectifier Diode, 1 Phase, 1A, Silicon, SIP-4	Bridge Rectifier Diode, 1 Phase, 15A, Silicon, SIP-4	Bridge Rectifier Diode, 1 Phase, 4A, Silicon, SIP-4	Bridge Rectifier Diode, 1 Phase, 1A, Silicon, SIP-4	Bridge Rectifier Diode, 1 Phase, 2.9A, Silicon,	Bridge Rectifier Diode, 1 Phase, 3.5A, Silicon,
package instruction	R-PSFM-T4	R-PSFM-T4	R-PSFM-T4	SIP-4	R-PSFM-T4	R-PSFM-T4	SIP-4	R-PSFM-T4	R-PSFM-T4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Minimum breakdown voltage	200 V	200 V	200 V	200 V	200 V	200 V	200 V	200 V	200 V
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.05 V	1.05 V	1.05 V	1.1 V	1.05 V	1.05 V	1.05 V	1.05 V
JESD-30 code	R-PSFM-T4	R-PSFM-T4	R-PSFM-T4	R-PSIP-T4	R-PSFM-T4	R-PSFM-T4	R-PSIP-T4	R-PSFM-T4	R-PSFM-T4
Maximum non-repetitive peak forward current	240 A	120 A	120 A	50 A	200 A	80 A	30 A	170 A	240 A
Number of components	4	4	4	4	4	4	4	4	4
Phase	1	1	1	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	20 A	4 A	6 A	1 A	15 A	4 A	1 A	2.9 A	3.5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	IN-LINE	FLANGE MOUNT	FLANGE MOUNT	IN-LINE	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse current	10 µA	0.00001 µA	0.00001 µA	0.00001 µA	10 µA	0.00001 µA	0.00001 µA	0.00001 µA	10 µA
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maker	SHINDENGEN	SHINDENGEN	SHINDENGEN	-	-	SHINDENGEN	SHINDENGEN	SHINDENGEN	SHINDENGEN
Contacts	4	4	4	4	4	4	4	-	-
Shell connection	ISOLATED	ISOLATED	ISOLATED	-	ISOLATED	ISOLATED	-	ISOLATED	ISOLATED
Base Number Matches	1	1	1	1	1	-	-	-	-
