NOTES, UNLESS OTHERWISE SPECIFIED:
These crimping heads are used with Panduit CT-2500 and CT-2500/E Battery Operated
Crimping Tools.
Weight
Dimensions:
CT-2525CH or
CD-525
1.74 lbs. (0,79 kg)
5-1/16” L x 2-3/4” H x 1-7/16” W (with Locator)
[129 L x 70 H x 37 W] mm
Crimping head or die insert for installing the following Panduit products:
#26 – #22 AWG (0,14 – 0,5 mm
2
) insulated terminals and splices,
#22 – #10 AWG (0,5 – 6,0mm
2
) fully insulated disconnects, insulated parallel
splices; and specific #22 – #14 AWG (0,5 – 2,5mm
2
) barrel insulated
disconnects.
Crimping head or die insert for installing the following Panduit products:
#22 – #10 AWG (0,5 – 6,0mm
2
) insulated terminals and splices;
and specific insulated disconnects.
Reduced crimp effort advantage for #12 – #10 AWG (4,0 – 6,0mm
2
)
terminations.
Crimping head or die insert for installing most of the following Panduit
products:
#22 – #10 AWG (0,5 – 6,0mm
2
) non-insulated terminals, disconnects; and
specific non-insulated splices.
Crimping head (frame only); to be used with crimping die inserts CD-525,
CD-550 or CD-570 (sold
separately).

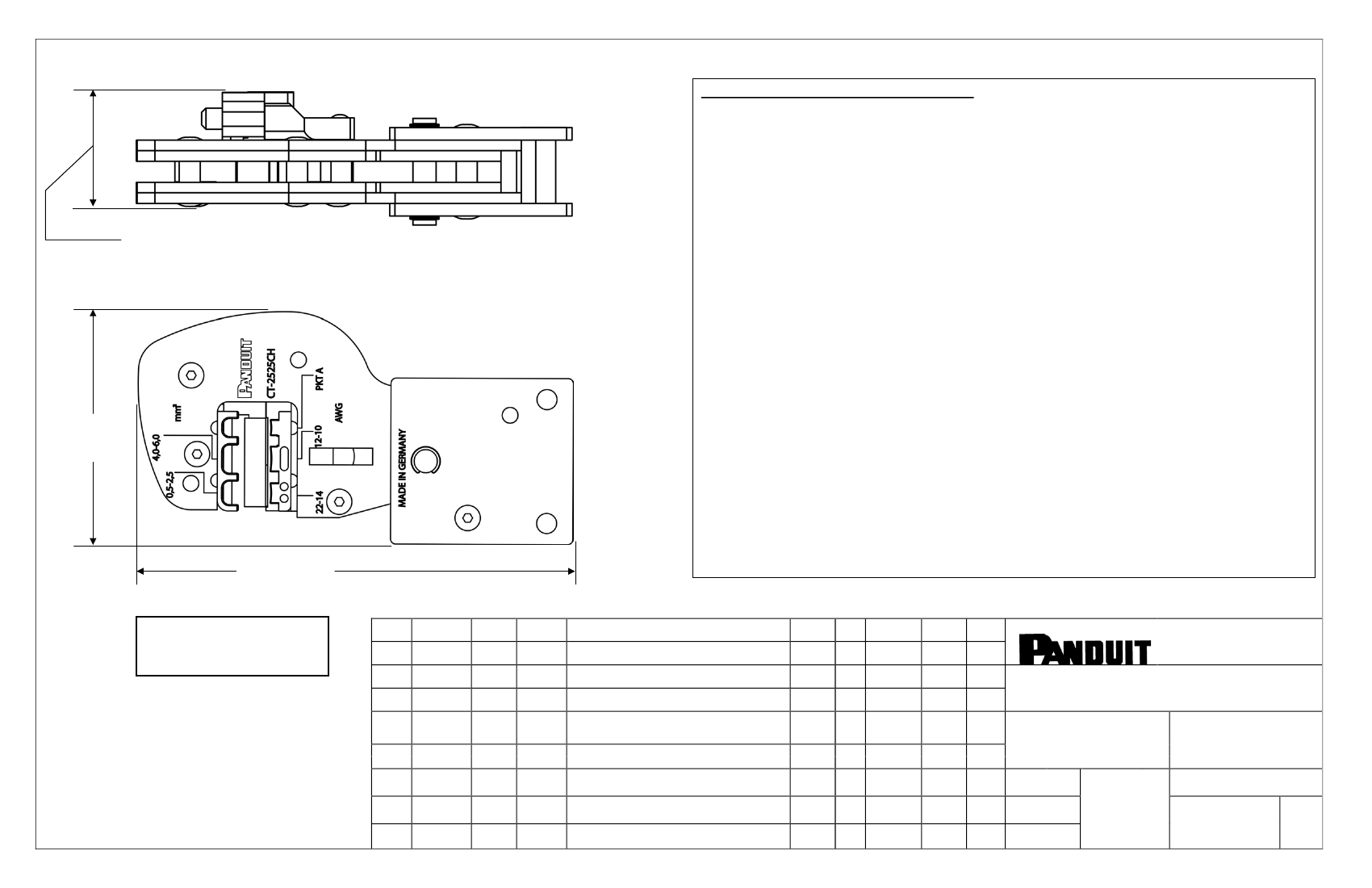

1.44” [37] CT-2525CH, CT-2550CH & CT-2500CH (WITH LOCATOR)
1.25” [32] CT-2570CH (WITHOUT LOCATOR)
CT-2550CH or
CD-550
CT-2570CH or
CD-570
2.75”
[70]
CT-2500CH
The Crimping Head and/or Die Insert Installation Instructions can be found at www.panduit.com,
search for CT-2525CH, CT-2550CH, CT-2570CH, CT-2500CH, CD-525, CD-550 or CD-570.
Dimensions in [brackets] are in millimeters.
All dimensions are for reference only.
5.06” [129]
