8
7
6
5
4
3
2
1
REV.
A
B
C
F
ECO. NO
1682
1852
2103
2337
2537
REVISIONS
DESCRIPTION
INITIAL RELEASE
UPDATE DIM "C", TABLE, NOTE 3 & TOLERANCE BLOCK
ADD BOX INSIDE DEPTH 6.40mm, NOTE 10, MATED
COMPONENTS & HEIGHT ON SHEET 2.
ADD INSULATOR MATERIAL 'NYLON 6T' OPTION
UPDATE PROCESSING TEMPERATURE FOR PBT MATERIAL
DATE
05/08/2008
11/12/2008
04/08/2010
08/17/2011
02/29/2012
BY
VJ
JH
LH
LH
LH
F
D
E
A
.100 2.54
E
.039[
1.00]
E
C .012[ 0.30]
2x .045 1.15
(REF.)
.100 2.54
.256 6.50
.100 2.54
RECOMMENDED PCB LAYOUT
.177 4.50
( .098[2.50] FOR POSITION # 3)
D
D
B .012[ 0.30]
.252 6.40
.346 8.80
.118[3.00]
C
C
.358 9.10
.100 2.54
A
.025 0.64
.100 2.54
.346 8.80 .358 9.10
B
B
A
NOTES:
1. INSULATOR MATERIAL: SEE PART NUMBER CODING, UL 94V-0.
COLOR: SEE PART NUMBER CODING.
2. CONTACT MATERIAL: BRASS.
3. CONTACT PLATING: .000030"~.000050" NICKEL UNDERPLATE, GOLD FLASH OVERALL.
4. OPERATING TEMPERATURE: -40° C TO + 85° C.
5. CONTACT RESISTANCE: 20 MILLIOHMS MAX.
6. CURRENT RATING: 3 AMPS PER CONTACT.
7. DIELECTRIC WITHSTANDING: 500 V AC.
8. INSULATOR RESISTANCE: 1000 MEGOHMS MIN.
9. MATES WITH SFH11, SFH210 & SFH213 IDC SOCKET SERIES.
DRAWN
DATE
05/08/2008
NAME
VJ
TITLE
Pb
R
oHS COMPLIANT
4
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCHES [MM]
TOLERANCES:
ANGULAR:
DECIMALS
.XX= .012 [.3]
.XXX= .008 [.20]
.XXXX= .0040 [.100]
3
THE INFORMATION HEREIN CONTAINS
PROPIETARY INFORMATION OF
SULLINS ELECTRONICS AND IS NOT
TO BE REPRODUCED, USED OR
DISCLOSED TO OTHERS FOR ANY
PURPOSE EXCEPT AS SPECIFICALLY
AUTHORIZED IN WRITING BY AN
OFFICER OF SULLINS ELECTRONICS.
PART NUMBER
SIZE

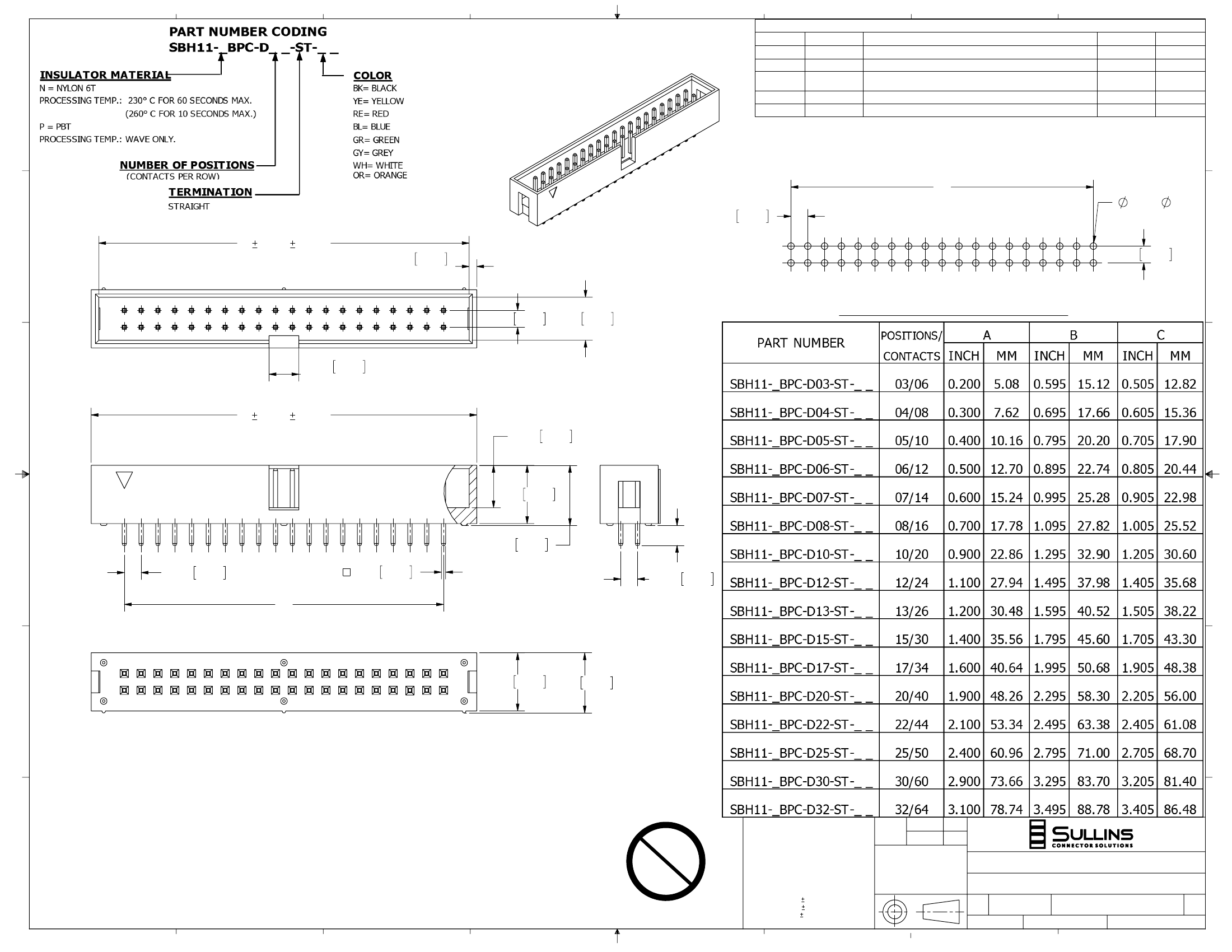

BOX HEADER, .100[2.54] CC/RS, ST
SBH11-_BPC-D_ _-ST-_ _
DWG. NO.
A
SCALE: 4:1
2
C
CAGE CODE
54453
11091
SHEET 1 OF 2
1
REV
E
8
7
6
5
FILE NAME: Z:\ECO PENDING\2537, BOX HEADER -- REMOVE PBT PROCESSING TEMP\11091\11091, SBH11-_BPC-D_ _-ST-_ _ PRINT: 4/19/2012
8
7
6
5
4
3
2
1
F
F
2
.441 11.20
1
2
2
E

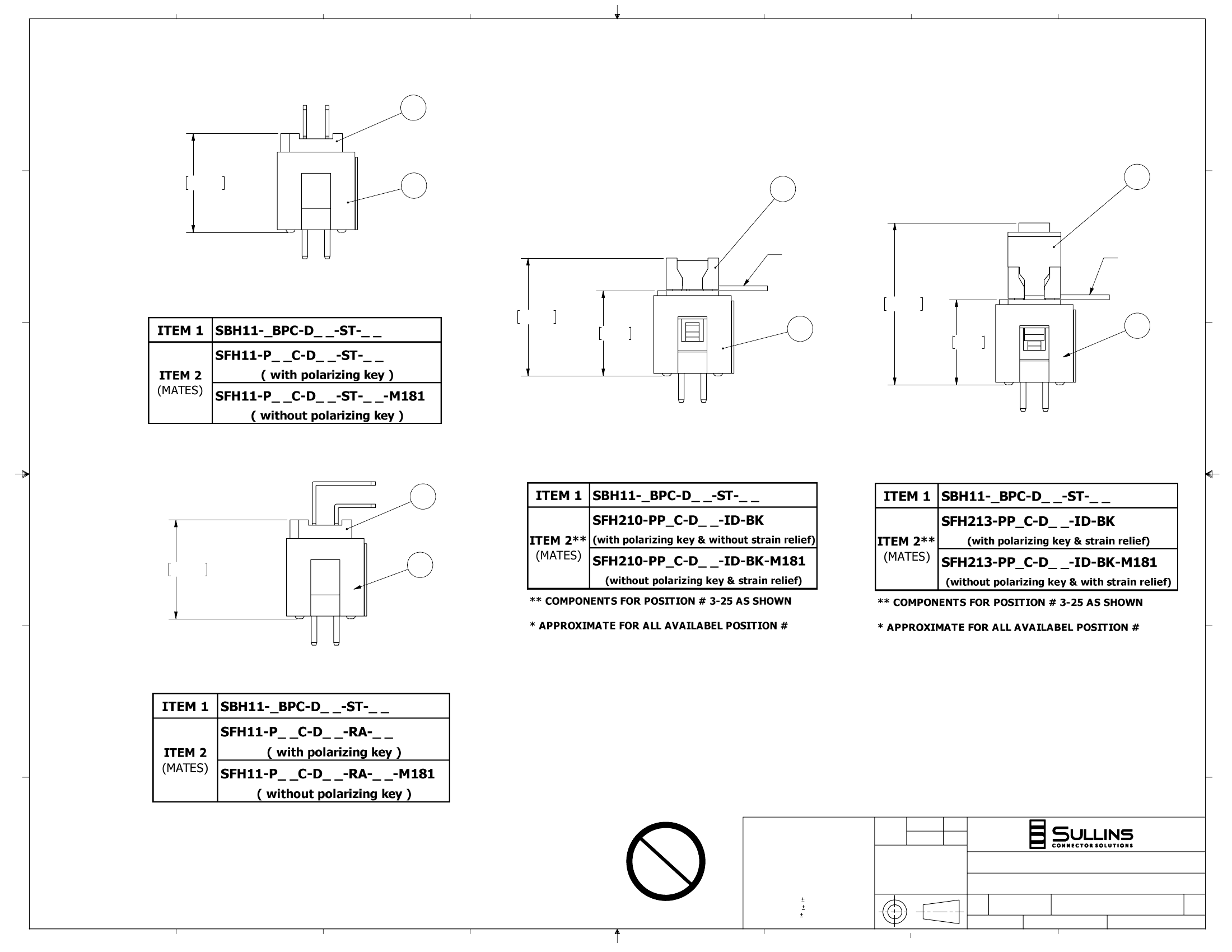

FLAT CABLE
E
FLAT CABLE
.722 18.35 *
.526 13.35 *
.380 9.65
1
1
.380 9.65
D
D
2
C
C
.441 11.20
1
B
B
DRAWN
A
DATE
05/08/2008
NAME
VJ
TITLE
Pb
R
oHS COMPLIANT
8
7
6
5
4
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCHES [MM]
TOLERANCES:
ANGULAR:
DECIMALS
.XX= .012 [.3]
.XXX= .008 [.20]
.XXXX= .0040 [.100]
3
THE INFORMATION HEREIN CONTAINS
PROPIETARY INFORMATION OF
SULLINS ELECTRONICS AND IS NOT
TO BE REPRODUCED, USED OR
DISCLOSED TO OTHERS FOR ANY
PURPOSE EXCEPT AS SPECIFICALLY
AUTHORIZED IN WRITING BY AN
OFFICER OF SULLINS ELECTRONICS.
PART NUMBER
SIZE
BOX HEADER, .100[2.54] CC/RS, ST
CAGE CODE
A
SBH11-_BPC-D_ _-ST-_ _
DWG. NO.
SCALE: 2:1
2
C
54453
11091
SHEET 2 OF 2
1
REV
E
FILE NAME: Z:\ECO PENDING\2537, BOX HEADER -- REMOVE PBT PROCESSING TEMP\11091\11091, SBH11-_BPC-D_ _-ST-_ _ PRINT: 4/19/2012
