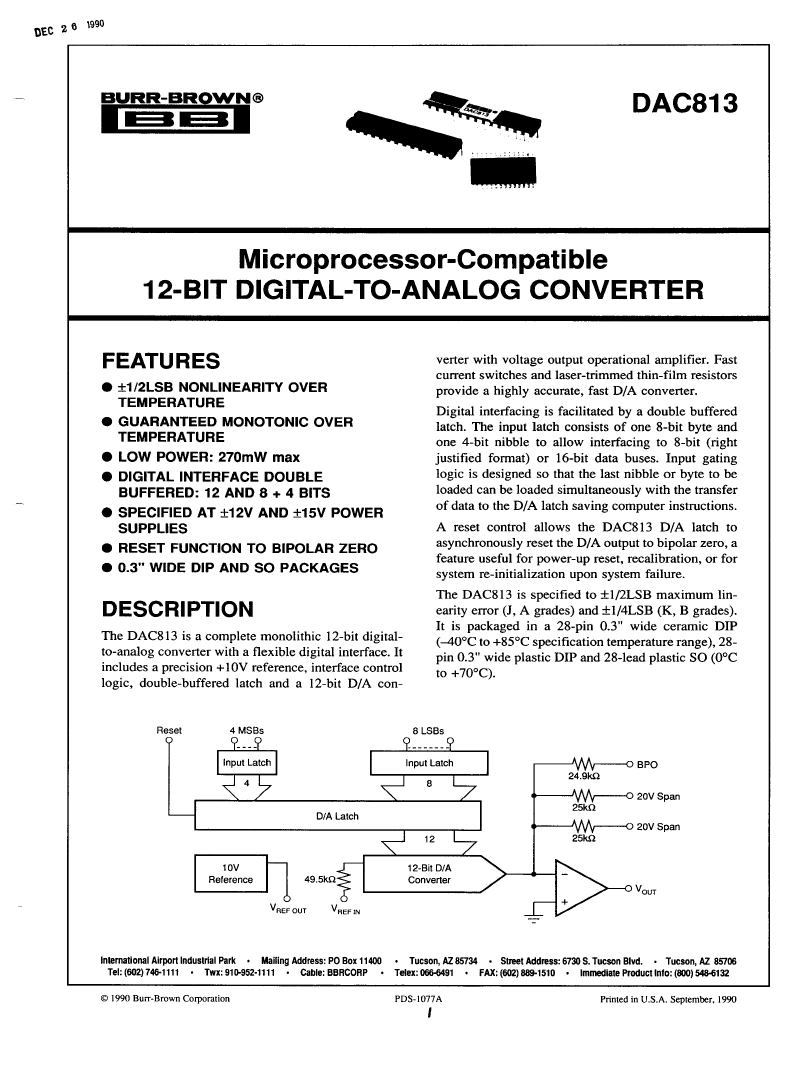

DAC813BH |
DAC813AH |

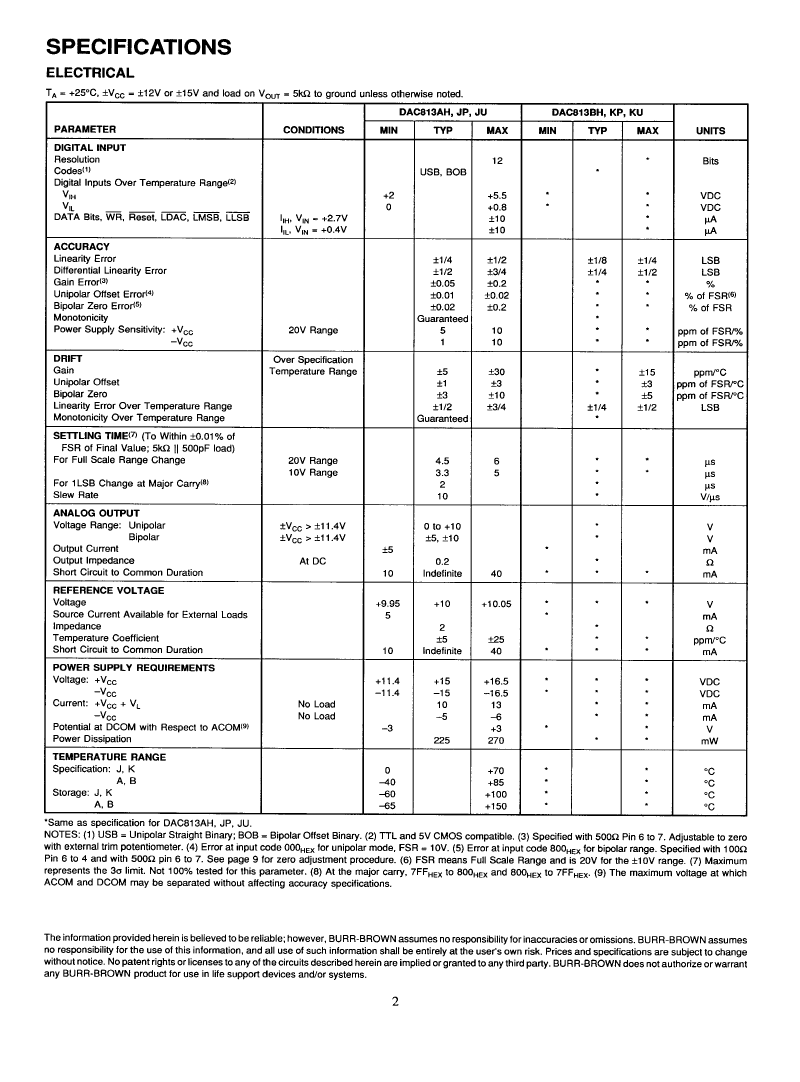

| Description |
D/A Converter, 1 Func, Parallel, Word Input Loading, 4.5us Settling Time, CDIP28, |
D/A Converter, 1 Func, Parallel, Word Input Loading, 4.5us Settling Time, CDIP28, |
| Is it Rohs certified? |
incompatible |
incompatible |
| Maker |
Burr-Brown |
Burr-Brown |
| Reach Compliance Code |
unknown |
unknown |
| Maximum analog output voltage |
10 V |
10 V |
| Minimum analog output voltage |
-10 V |
-10 V |
| Converter type |
D/A CONVERTER |
D/A CONVERTER |
| Enter bit code |
BINARY, OFFSET BINARY |
BINARY, OFFSET BINARY |
| Input format |
PARALLEL, WORD |
PARALLEL, WORD |
| JESD-30 code |
R-CDIP-T28 |
R-CDIP-T28 |
| JESD-609 code |
e0 |
e0 |
| Maximum linear error (EL) |
0.0061% |
0.0122% |
| Nominal negative supply voltage |
-15 V |
-15 V |
| Number of digits |
12 |
12 |
| Number of functions |
1 |
1 |

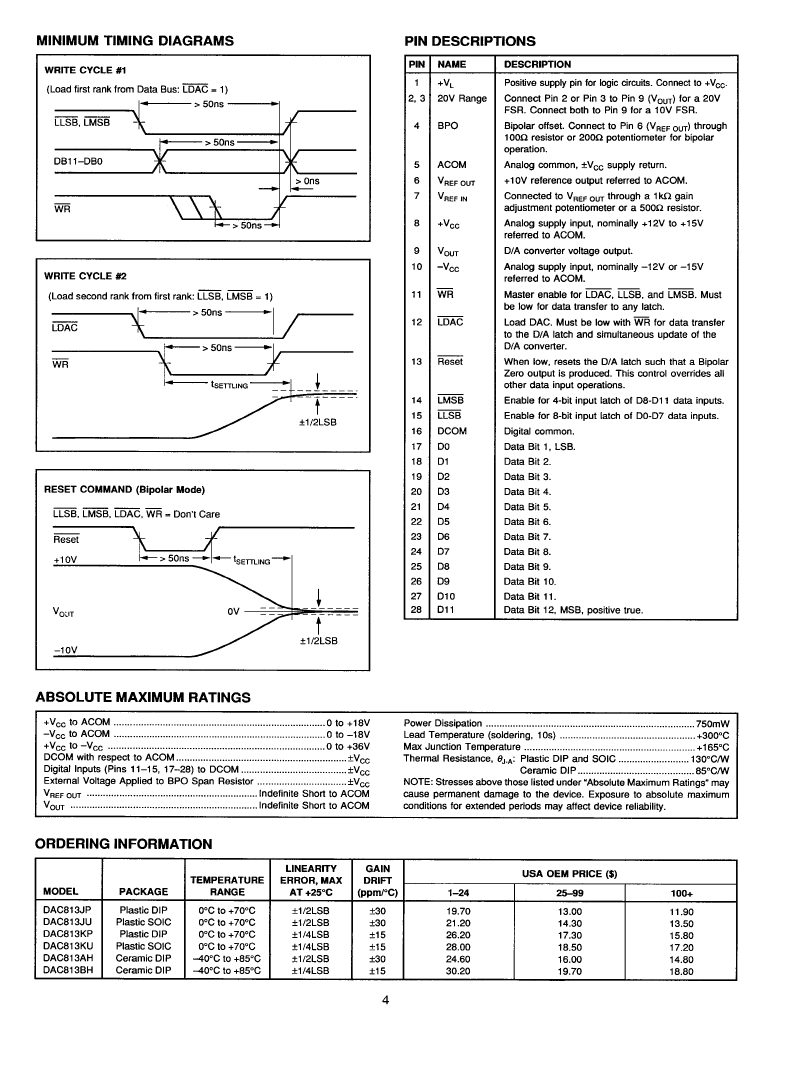

| Number of terminals |
28 |
28 |
| Maximum operating temperature |
85 °C |
85 °C |
| Minimum operating temperature |
-40 °C |
-40 °C |

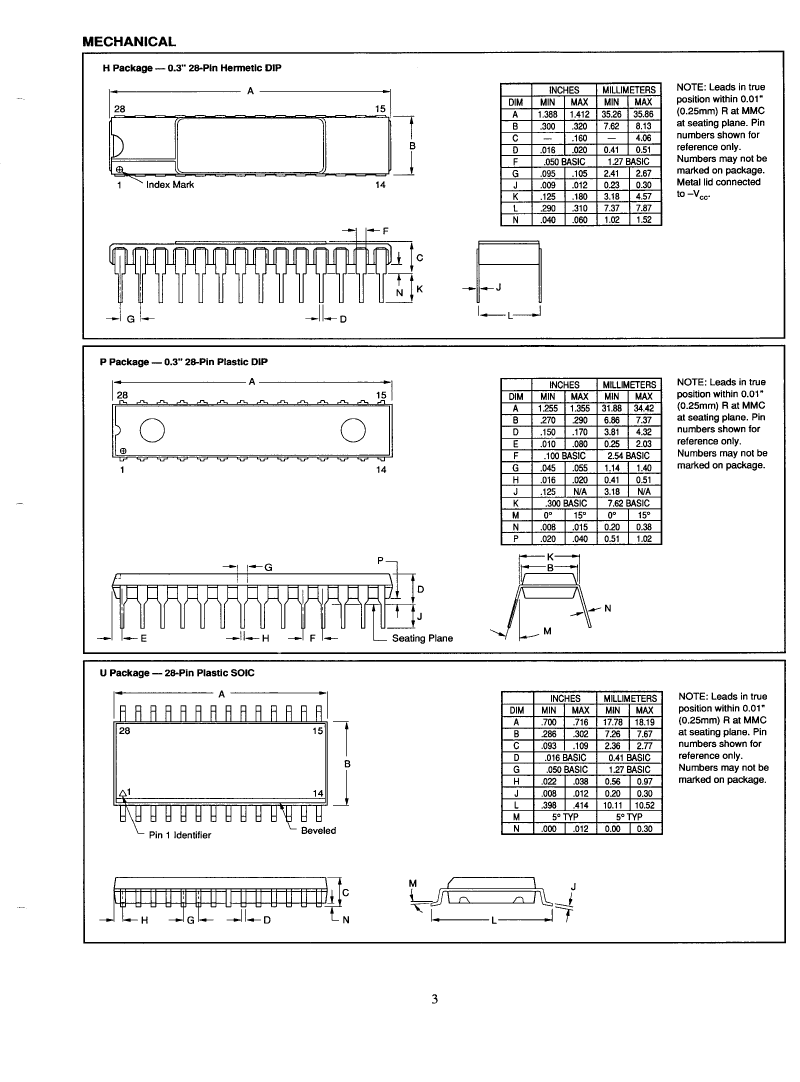

| Package body material |
CERAMIC, METAL-SEALED COFIRED |
CERAMIC, METAL-SEALED COFIRED |
| encapsulated code |
DIP |
DIP |
| Encapsulate equivalent code |
DIP28,.3 |
DIP28,.3 |
| Package shape |
RECTANGULAR |
RECTANGULAR |
| Package form |
IN-LINE |
IN-LINE |
| Peak Reflow Temperature (Celsius) |
NOT SPECIFIED |
NOT SPECIFIED |
| power supply |
+-12/+-15 V |
+-12/+-15 V |
| Certification status |
Not Qualified |
Not Qualified |
| Maximum stabilization time |
6 µs |
6 µs |

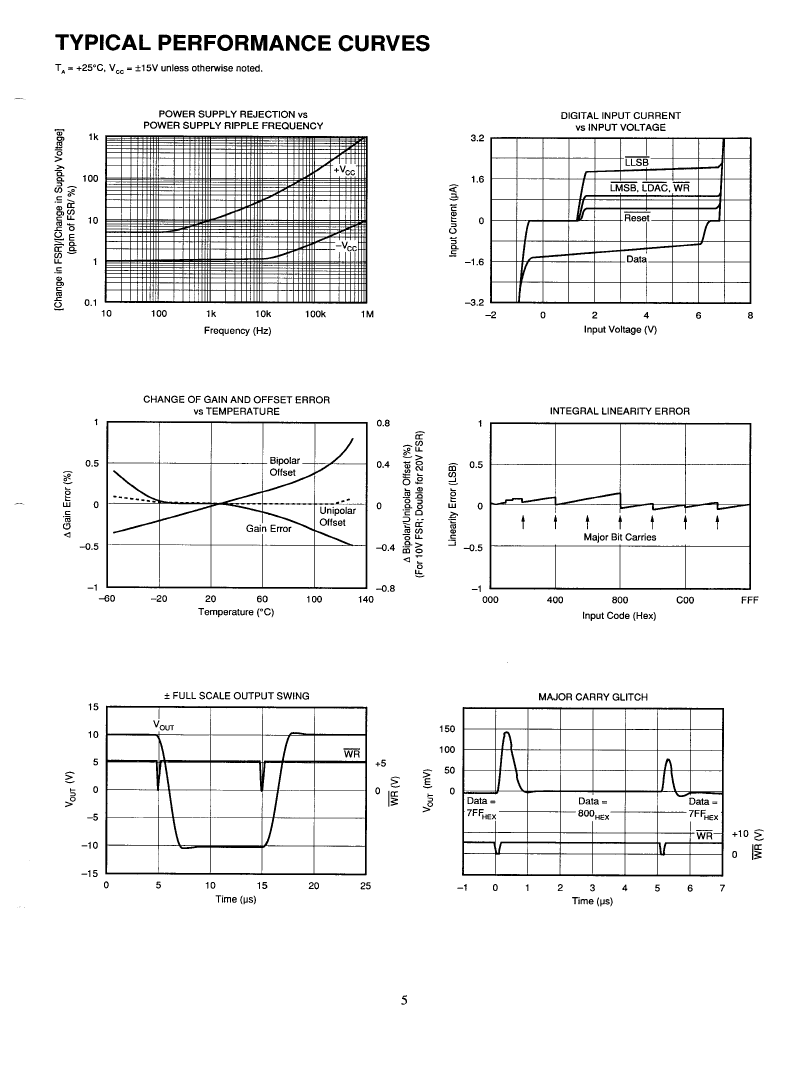

| Nominal settling time (tstl) |
4.5 µs |
4.5 µs |
| Maximum slew rate |
15 mA |
15 mA |
| Nominal supply voltage |
15 V |
15 V |
| surface mount |
NO |
NO |
| Temperature level |
INDUSTRIAL |
INDUSTRIAL |
| Terminal surface |
Tin/Lead (Sn/Pb) |
Tin/Lead (Sn/Pb) |
| Terminal form |
THROUGH-HOLE |
THROUGH-HOLE |
| Terminal pitch |
2.54 mm |
2.54 mm |
| Terminal location |
DUAL |
DUAL |
| Maximum time at peak reflow temperature |
NOT SPECIFIED |
NOT SPECIFIED |
| Base Number Matches |
1 |
1 |
