Bussmann
®
Modular Fuseblocks
0-600V, 100 Amps
Mounting Dimensions mm (inches)
Catalog No.
FWA 70A-100A
FWH 35B-60B
FWH 70B-100B
FWX 35A-60A
FWX 70A-100A
KAC 1-30
KAC 35-60
KAC 70-100
KBC 35-60
KBC 70-100
LPJ 70SP-100SP
JJS 70-100
JKS 70-100
80-100L14C
80-100L09C
“A”
49.3
58.9
72.4
59.4
59.7
63.5
88.9
105.7
88.9
93.0
95.5
59.9
96.3
89.9
112.0
(1.94)
(2.32)
(2.85)
(2.34)
(2.35)
(2.50)
(3.50)
(4.16)
(3.50)
(3.66)
(3.76)
(2.36)
(3.79)
(3.54)
(4.41)
16.0
25.6
39.1
26.1
26.4
30.2
55.6
72.3
55.6
59.6
62.2
26.6
62.9
56.6
78.7
“B”
(0.63)
(1.01)
(1.54)
(1.03)
(1.04)
(1.19)
(2.19)
(2.85)
(2.19)
(2.35)
(2.45)
(1.05)
(2.48)
(2.23)
(3.10)
1BS101
Catalog Symbol:
1BS101
Voltage Rating:
600V
Current Rating:
100A
Base:
Molded black phenolic, 150°C
Mounting Studs:
Zinc-plated steel
⁄Ω¢∑ - 20 ≈ ⁄Ω™∑ hex head bolt
Nut:
Zinc-plated steel
Washer:
Zinc-plated steel
⁄Ω¢∑ Belleville washer
Connector:
Tin-plated aluminum
Wire Range:
Single #2/0 through single #14AWG
Wire Types:
Copper or aluminum
Stranded or solid
Withstand Rating:
200,000A RMS. SYM. or the interrupting rating of the fuse
used, whichever is smaller.
Dovetail Interlock:
Dovetail interlock feature on each side of the base allows
mounting multiple poles adjacent to one another.
Torque Requirements:
Conductor Set Screw: 120 lbs-in
Fuse Mounting Bolt: 70 lbs-in
Agency Approvals:
U.L. Recognized, Guide No. IZLT2, File No. E14853
CSA Certified, Class 6225-01, File 47235
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000 Vac, 75-1500 Vdc). Refer to BIF document #8002 or contact
Bussmann Application Engineering at 314-527-1270 for more information.
“C”
95.4
(3.75)
104.9
(4.13)
118.3
(4.66)
105.4
(4.15)
105.6
(4.16)
109.4
(4.31)
134.8
(5.31)
151.6
(5.97)
134.8
(5.31)
138.9
(5.47)
141.4
(5.57)
105.9
(4.17)
142.2
(5.60)
135.8
(5.35)
157.9
(6.22)
Dimensions
C
L
44.7
(1.76)
C
L

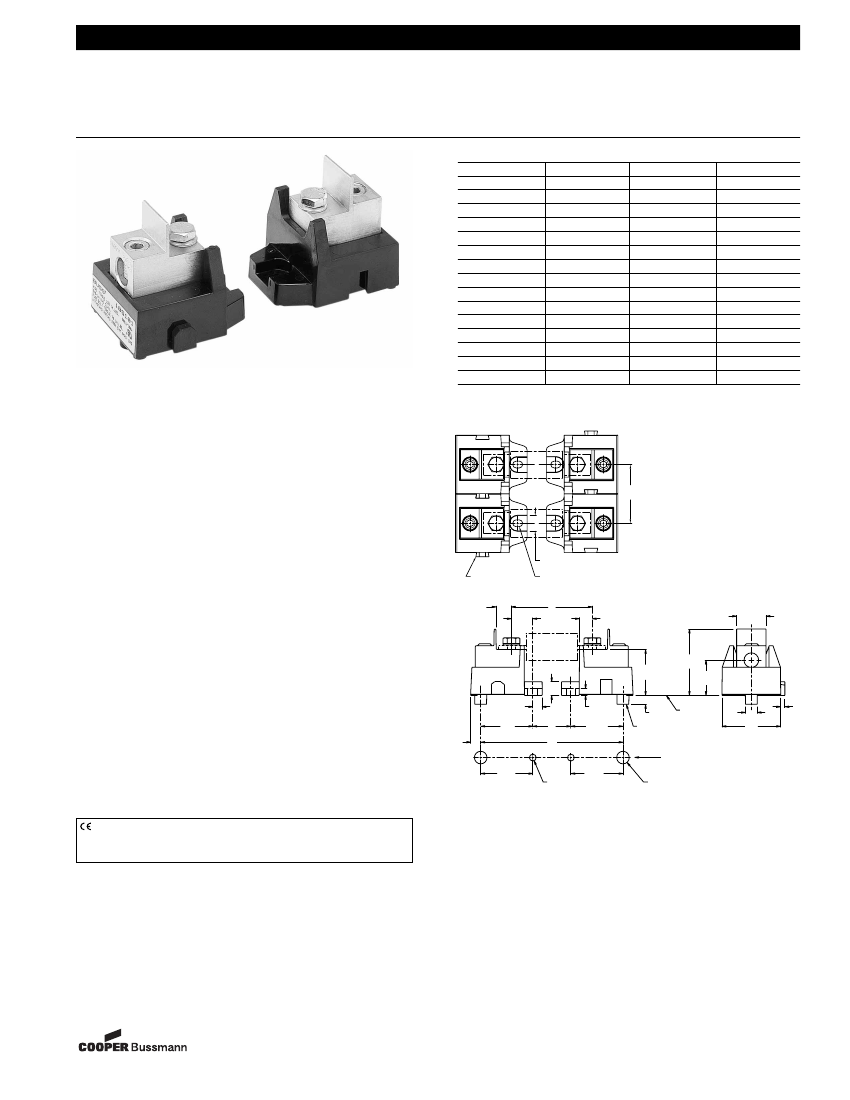

BLOCK NO. 1BS101
This block is furnished with an interlocking
dovetail feature as shown. When mounting
multiple fuseblocks side by side, center-to-
center distance between mounting holes
each pole is 44.58 (1.755).
11.4
CLEARANCE FOR SCREW HEAD
(.45)
Maximum fuse blade width is 25.40 (1.000).
INTERLOCKING
DOVETAIL TAB
5.1 X 7.7 MOUNTING HOLE SLOT FOR #10 SCREW
(.20) (.30)
11.2
(.44)
16.8
(.66)
'A'
REF.
10.4
(.41)
22.4
(.88)
34.8
(1.37)
10.4
(.41)
7.1
(.28)
39.62
(1.560)
7.6
(.30)
'B'
REF.
'C'
REF.
5.1
(.20)
39.62
(1.560)
50.8
(2.00)
26.7
(1.05)
6.4
(.25)
MOUNTING
SURFACE
9.4
(.37)
44.5
(1.75)
3.3
(.13)
ANTI-ROTATION PIN
MOUNTING HOLE ARRANGEMENT
39.62
(1.560)
39.62
(1.560)
5.16 DIA.
(.203)
9.53 DIA.
(.375)
