APT-16008 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> APT-16008

APT-16008: DescriptionDatacom Transformer, LAN; 10 BASE-T; ETHERNET Application(s), 1:1, DIP-16; CategoryPower management transformer; File Size4MB，3 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

APT-16008 Overview

Datacom Transformer, LAN; 10 BASE-T; ETHERNET Application(s), 1:1, DIP-16

APT-16008 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	DIP-16
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	DESIGN INCLUDE LOW PASS BUTTERWORTH FILTER ARRAY
application	LAN; 10 BASE-T; ETHERNET
ET product minimum value	3.5 V-us
high	6.35 mm
Insulation voltage	1500 V
length	22.9 mm
Manufacturer's serial number	APT-16008
Installation features	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	BULK

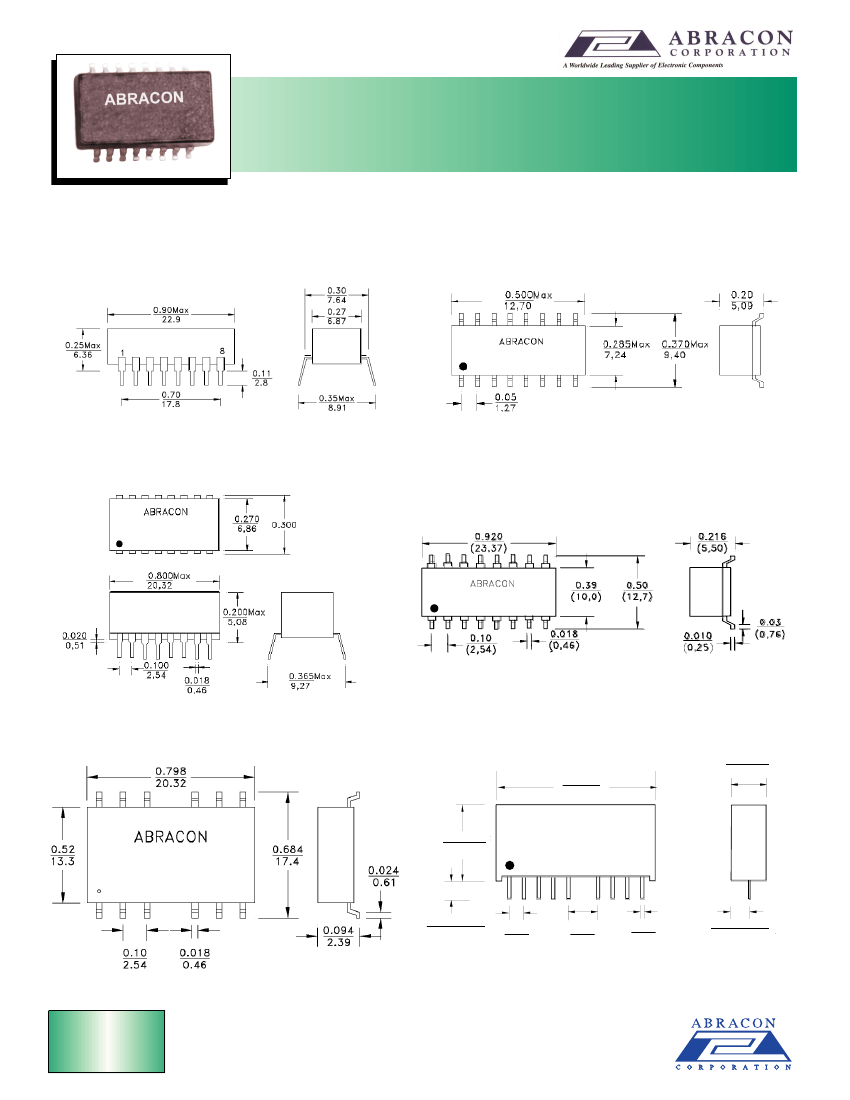

physical size	L22.9XB7.62XH6.35 (mm)
Primary inductance	500 µH
Maximum pulse rise time	3.5 ns
surface mount	YES
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1:1
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

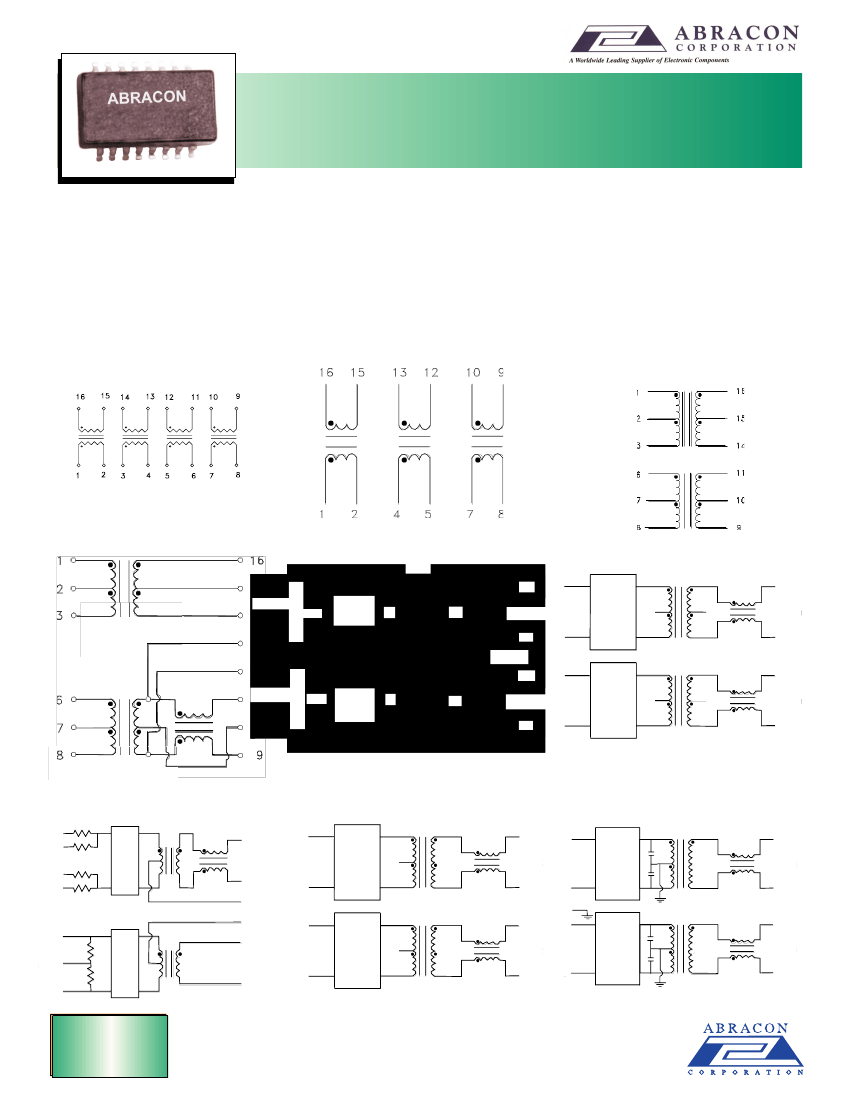

LAN Coupling Transformers

(10Base-T and Ethernet)

FEATURES:

•

Supports Industry Standard 10Base-T and Ethernet Transceivers

Operating Temperature Range of -40° C to 85° C Available

Excellent Return & Insertion Loss Characteristics

Meets Standard Dielectric Withstanding Voltage Requirements

Through-hole & Surface Mountable Configurations Available

Designs Support Multiple Data Rate Applications

Conforms to IEEE/ISO8802.3 Standards Requirements

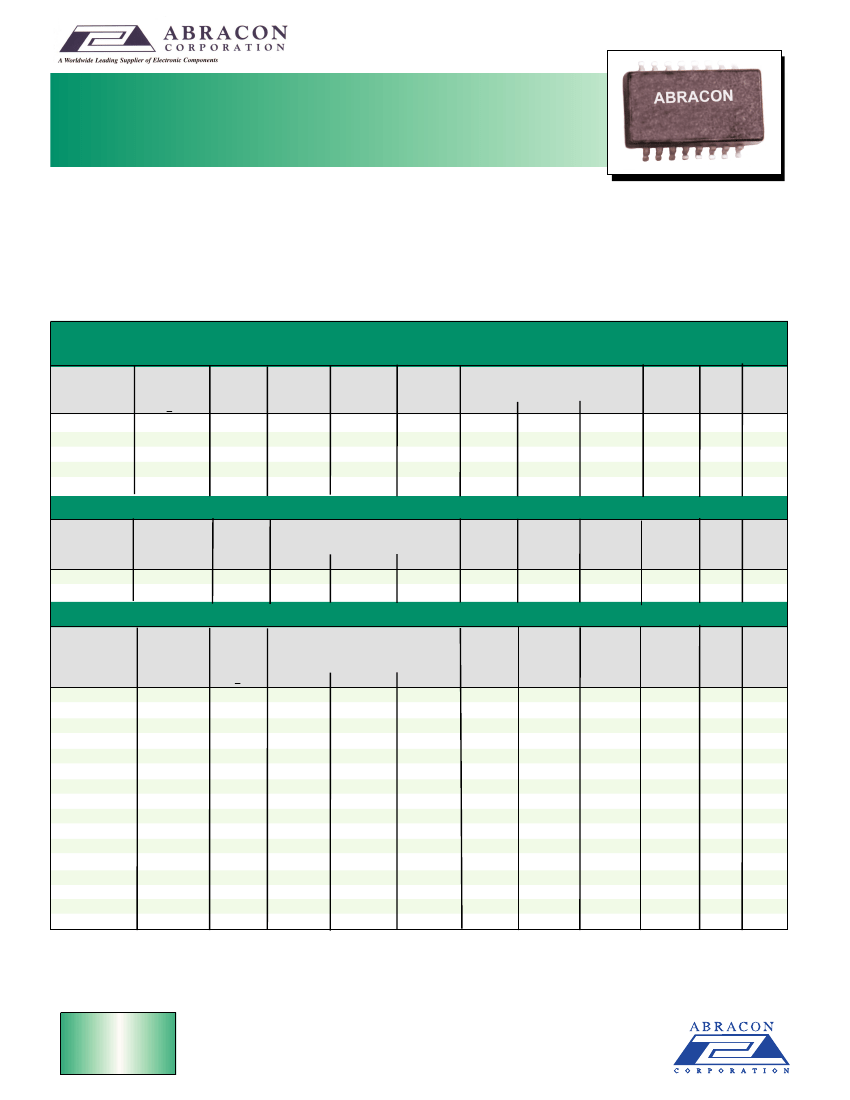

PERFORMANCE SPECIFICATIONS @ 25°

10BASE-T FILTER CONFIGURATIONS

P/N

ALAN-106

ALAN-107

ALAN-109

ALAN-111

ALAN-115

TURNS

RATIO

3,4

(+2%)

OCL

MHz

(mH MIN)

140

200

1CT:1CT

1CT:1.41

1CT:1.41CT

1CT:1CT

(dB)

MHz

5 - 10

L(dB)

MHz

1 - 10

1.0

5.0

1.0

X-Talk

(dB)

MHZ

5 - 10

CMR

(dB)

MHz

100

Hipot

RMS

(MIN)

2000

1500

(pF max) Cir

200

Pkg

10BASE-T TRANSFORMER CONFIGURATIONS

P/N

APT-114

APT-122

OCL

TURNS

3,4

MHz

RATIO

(mH MIN)

(± 2%)

1CT:1.41CT

140

1CT:1.41CT

110

PRIMARY PINS

XMIT

6-7-8

RCV

1-2-3

(uH MAX)

0.2

0.4

DCR

(W MAX)

0.3

1.0

Cir

Pkg

ETHERNET TRANSFORMER CONFIGURATIONS

P/N

APT-117

APT-120

APT-123-101

APT-123-151

APT-123-750

APT-124-101

APT-124-151

APT-124-750

APT-16001

APT-16002

APT-16003

APT-16004

APT-16005

APT-16006

APT-16007

APT-16008

TURNS

RATIO

3,4

(± 2%)

1:1

(X3)

(X4)

OCL

MHz

(mH +20%)

PRIMARY PINS

XMIT

1-2

1-2,3-4

1-2,3-5

1-2,3-4

Col Det

7-8

RCV

4-5

5-6,7-8

(pF max) (uH MAX)

0.2

0.3

0.25

0.3

0.2

0.25

0.3

0.2

0.35

0.4

0.45

0.5

Hipot

RMS

(MIN)

2000

1500

DCR

(W MAX)

0.3

0.35

0.25

0.3

0.2

0.25

0.3

0.2

0.3

0.35

0.45

Cir

Pkg

150

350

100

150

100

150

100

150

200

500

Test Conditions:

1. OCL: 100 mV @ 100 KHz with appropriate I

2. R

measurements assume 100

media interface

3. DWV: 1,500 VRMS for 1 minute min; greater isolation voltage available

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

29 Journey • Aliso Viejo, CA 92656 • USA

(949) 448-7070 •

: (949) 448-8484

E-

MAIL

abinfo

abracon.com •

NTERNET

DDRESS

www.abracon.com
