Programmable Display
GT
SERIES
Conforming to EMC Directive
Listing
Enhanced Environmental Resistance
A new IP67 environmental rating gives the GT-32E Series excellent visibility,
operability, and functionality.
The LCD picture is simulated images.
2011.09
panasonic-electric-works.net/sunx
Introducing the GT32-E Series
with Excellent Environmental Resistance
Monochrome LCD type GT32M-E
Color LCD type GT32T-E
−20 °C to
+60 °C
−4 °F to
+140 °F
Wide Operating
Temperature Range!
IP67
-20 °C to +60 °C
-4 °F to +140 °F
(-20 °C to +55 °C
-4 °F to +131 °F
when horizontally installed)
High Waterproof
Performance!
Front panel: Rated IP67
UV
Reduction
Resistant to UV Rays!
A front protection layer reduces the
intensity of UV rays
Anti-Glare
Coating
High Visibility Display
Improved brightness and contrast,
coupled with a new anti-glare coating
provides exceptional viewing characteristics.
See page 8 for details.
New additions of the GT02 and GT12 lineups
●
GT02M: A black body type
●
GT02G: A silver body type
●
GT12: A model without an SD
memory card slot.
02
GT series
○
: Available
Rated
voltage
Display
Screen
size
Display type
Display
color
Resolution
Backlight
Memory
Displayable
capacity
characters*
1
(F-ROM)
External
interface
USB
port
—: Not available
SD / SDHC
memory
card

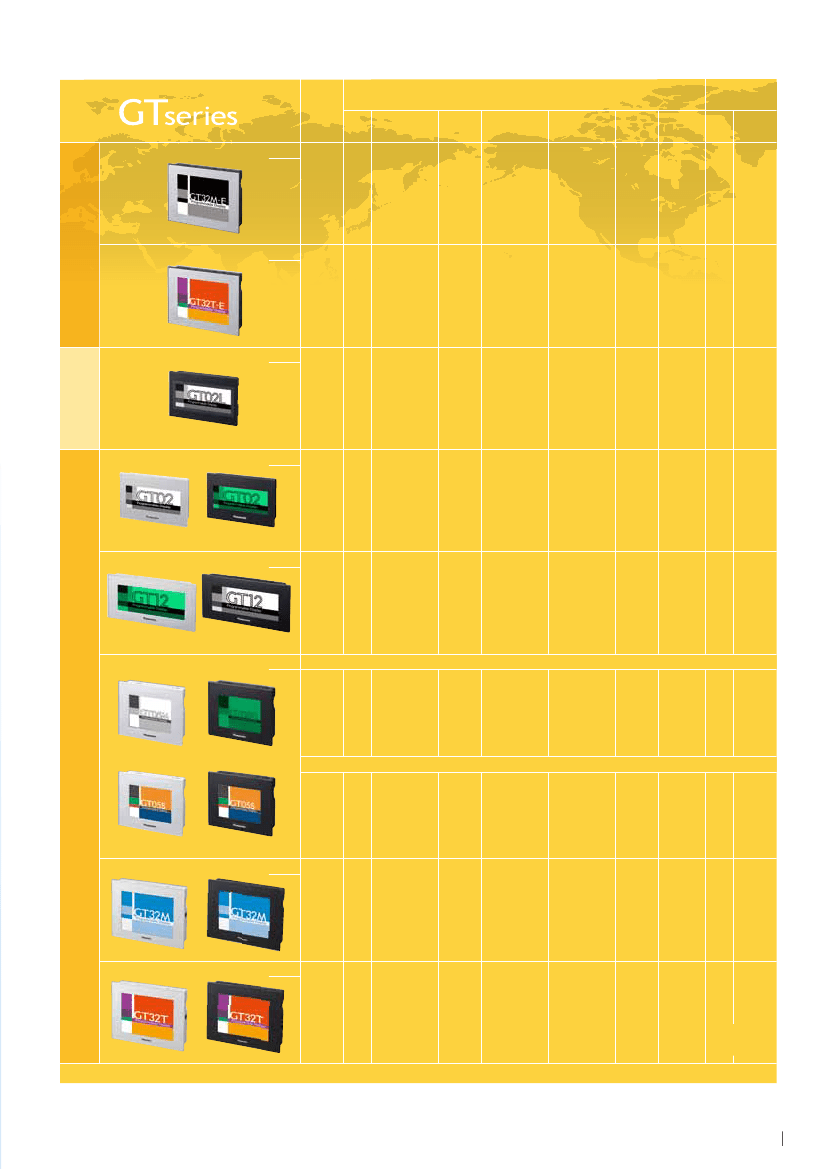

GT32M-E
P.8
2 colors
(black /
white)
(16-gray
scale)
24 V DC
Environ-
mentally-
resistant
Tough
series
5.7 TFT monochrome
inch
LCD
320(W) × 240(H)
dots
White LED
768
12 Mbyte
characters
○
○
GT32T-E
P.8
24 V DC
5.7
inch
TFT color LCD
4,096
colors
320(W) × 240(H)
dots
White LED
768
12 Mbyte
characters
○
○
GT02L
Entry-level
model
P.10
5 V DC
3.7 STN monochrome
inch
LCD
2 colors
(black /
white)
160(W) × 64(H)
dots
White LED
96
704 kbyte
characters
(mini)
○
—
GT02
P.11
GT02M:
3-color LED
(white/pink/red)
GT02G:
3-color LED
(green/orange/red)
5 V DC
24 V DC
GT02M
GT02G
P.12
3.8 STN monochrome
inch
LCD
2 colors
(black /
white)
240(W) × 96(H)
dots
216
characters
2 Mbyte
(mini) AIG02MQ2
*
D
and
AIG02GQ2
*
D
only
○
○
GT12
24 V DC
4.6 STN monochrome
inch
LCD
2 colors
(black /
white)
(8-gray
scale)
320(W) × 120(H)
dots
GT12M:
3-color LED
(white/pink/red)
GT12G:
3-color LED
(green/orange/red)
384
characters
2 Mbyte
GT12G
GT12M
P.13
(mini) AIG12MQ1
*
D
and
AIG12GQ1
*
D
only
○
○
GT05
GT05M/GT05G
GT05M:
3-color LED
(white/pink/red)
GT05G:
3-color LED
(green/orange/red)
24 V DC
3.5 STN monochrome
LCD
inch
2 colors
(black /
white)
320(W) × 240(H)
dots
768
characters
2 Mbyte
○
○
GT series
GT05M
GT05G
GT05S
24 V DC
GT05S
GT05S
P.14
3.5
inch
STN color LCD*
2
4,096
colors
320(W) × 240(H)
dots
White LED
768
characters
12 Mbyte
○
○
GT32M
24 V DC
5.7 STN monochrome
LCD
inch
2 colors
(blue /
white)
320(W) × 240(H)
dots
CFL
768
characters
2 Mbyte
○
○
GT32T
P.15
24 V DC
5.5
inch
TFT color LCD
4,096
colors
320(W) × 240(H)
dots
CFL
768
characters
12 Mbyte
○
○
GT32T0
*1 With the 10-dot font
GT32T1
*2 Display device of GT05S will be changed to TFT color LCD from production in December 2011.
GT32T1 has
Ethernet and
sound output ports.
GT series
03
FEATURES 1
SD Solutions only
Panasonic can provide
Links and expansion via SD
As small-size touch panels have significantly improved their image quality,
easy to read displays with sharp characters are no longer special features these days.
Instead, programmable displays will evolve with maximum "user-friendliness"
in various applications with PCs or other devices.
As shown below, our touch panels exchange and store data using SD memory card,
data for many applications.
Image Processing Device
Touch panel
PLC

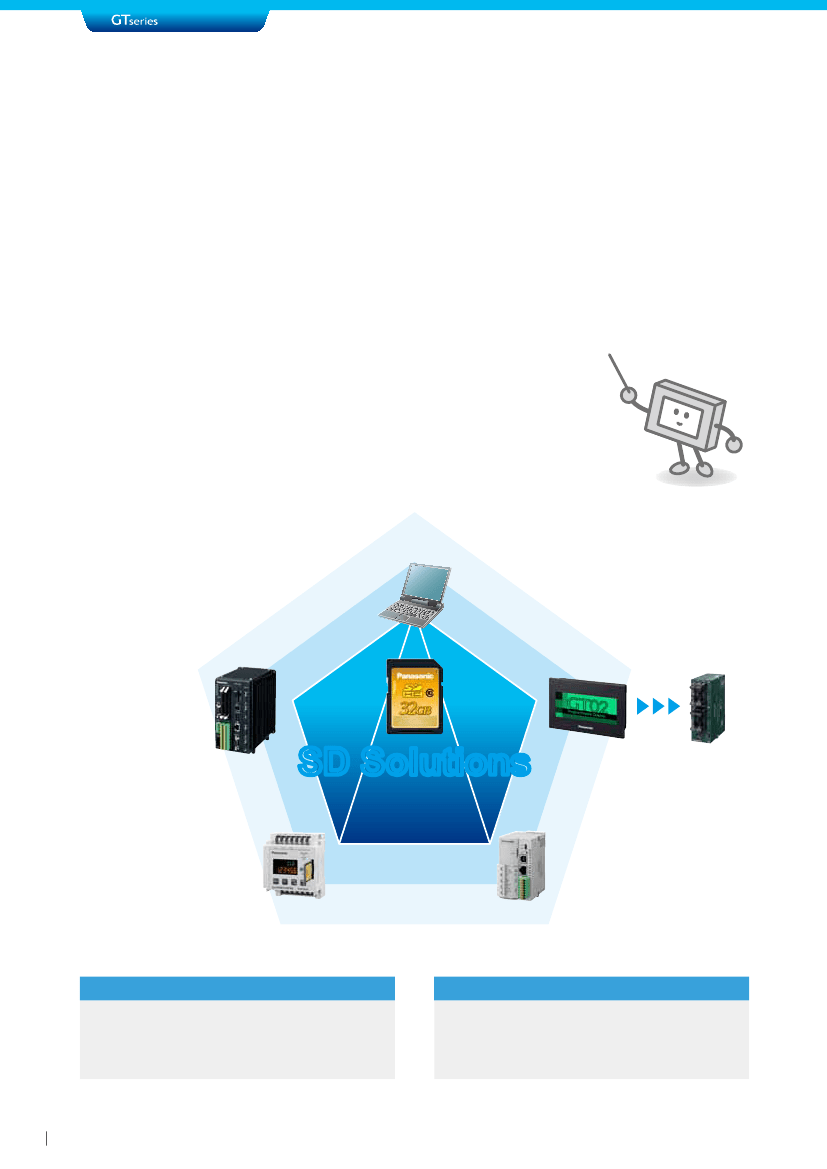

SD Solutions
Eco-POWER METER
Data Logger
Links via SD
►►
SD recipe function
(Data table management)
►►
Transfer of PLC program data
Expansion via SD
►►
Saving alarm history data on an SD
►►
Logging function
►►
Display of graphs of stored data
04
GT series
PLC program transfer without the use of a PC

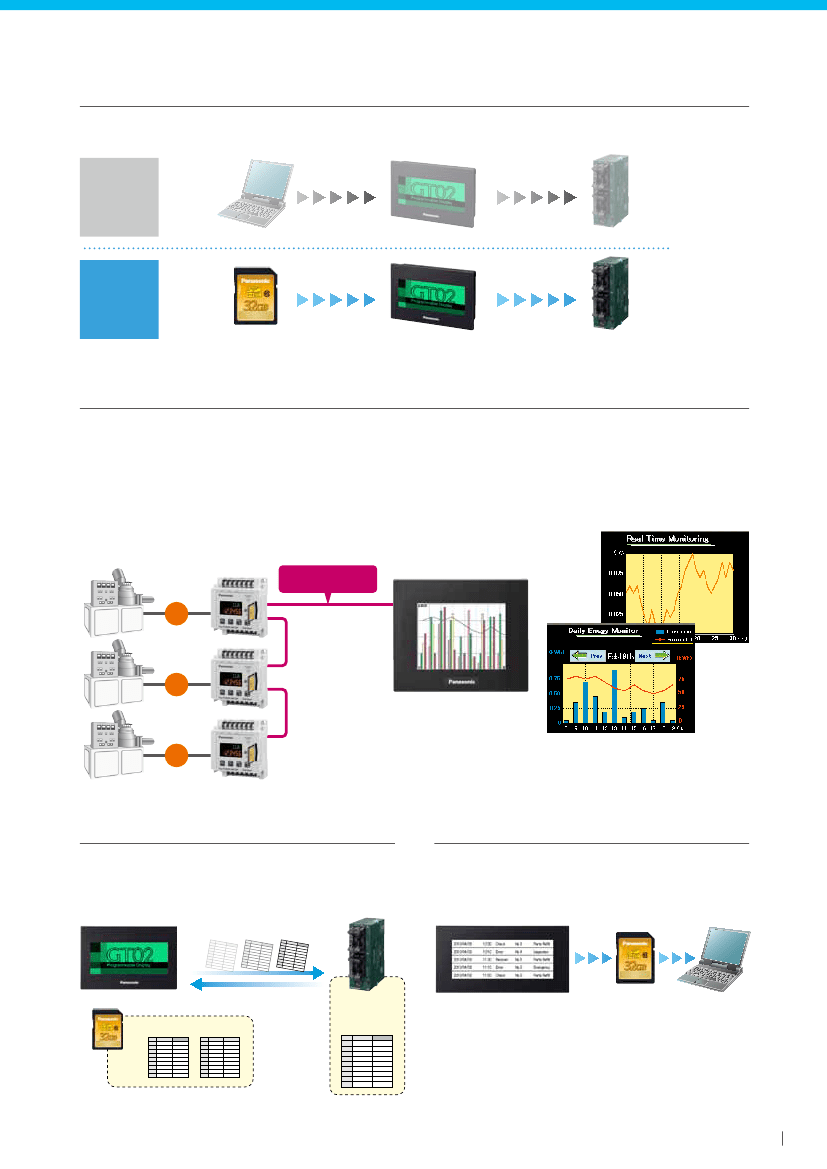

It is possible to modify PLC ladder programs as well as the GT screen programs by using an SD / SDHC memory card.
SD / SDHC memory card enables everyone to easily modify programs.
Conventional
PC
GT series
PLC
SD Solutions
SD / SDHC memory card
GT series
PLC
SD logging function to produce data “Visualization”
Capable of automatically collecting electrical power readings of Eco-POWER METERS and displaying them in a
real time graph, allowing users to take quick actions for solutions.
● The GT unit can collect data, such as electrical power on an SD / SDHC memory card, and display the log data in a real time graph.
You can make data “Visualization” without using a PC as a display or Data logger for collecting data.
● One bar graph has a maximum of eight bars and can be combined with line graphs.
● The following three conditions can be selected to trigger an operation to save log data.
(1) Specified time (2) Specified cycle (1 sec. to 24 hrs.) (3) Specified condition
● Large volumes of data can be saved on an SD / SDHC memory card, which can be carried with you.
Data collection and
graph creation
CT
CT
CT
SD recipe function
For high-mix production, recipe data up to 64 types and 4,096
devices in total, can be easily set on a PC. The created recipe data
is saved on an SD / SDHC memory card, and the specified data can
be written or read from a PLC.
Write and Read
Produ
A
1
2
3
4
5
6
DT10
7
DT20
8
DT21
9
DT22
Saving alarm history data on an
SD / SDHC memory card
The alarm history data stored in the GT built-in memory can be
saved on an SD / SDHC memory card, making it possible to easily
control problems on a PC.
ct A
B
Produ
A
1
2
3
4
5
6
DT10
7
DT20
8
DT21
9
DT22
ct A
B
Produ
A
1
2
3
4
5
6
DT10
7
DT20
8
DT21
9
DT22
ct A
B
10
20
40
50
10
20
40
50
10
20
40
50
GT series
Product A Product B
A
1
2
3
4
5
6
7
8
9
B
1
2
3
4
5
6
7
8
9
A
B
PLC built-in
memory
Product A
A
1
2
3
4
5
6
7
8
9
B
SD / SDHC
memory card
PC
SD / SDHC
memory card
DT10
DT20
DT21
DT22
10
20
40
50
DT10
DT20
DT21
DT22
20
50
70
90
DT10
DT20
DT21
DT22
10
20
40
50
●
The LCD images on this page are composites.
GT series
05
