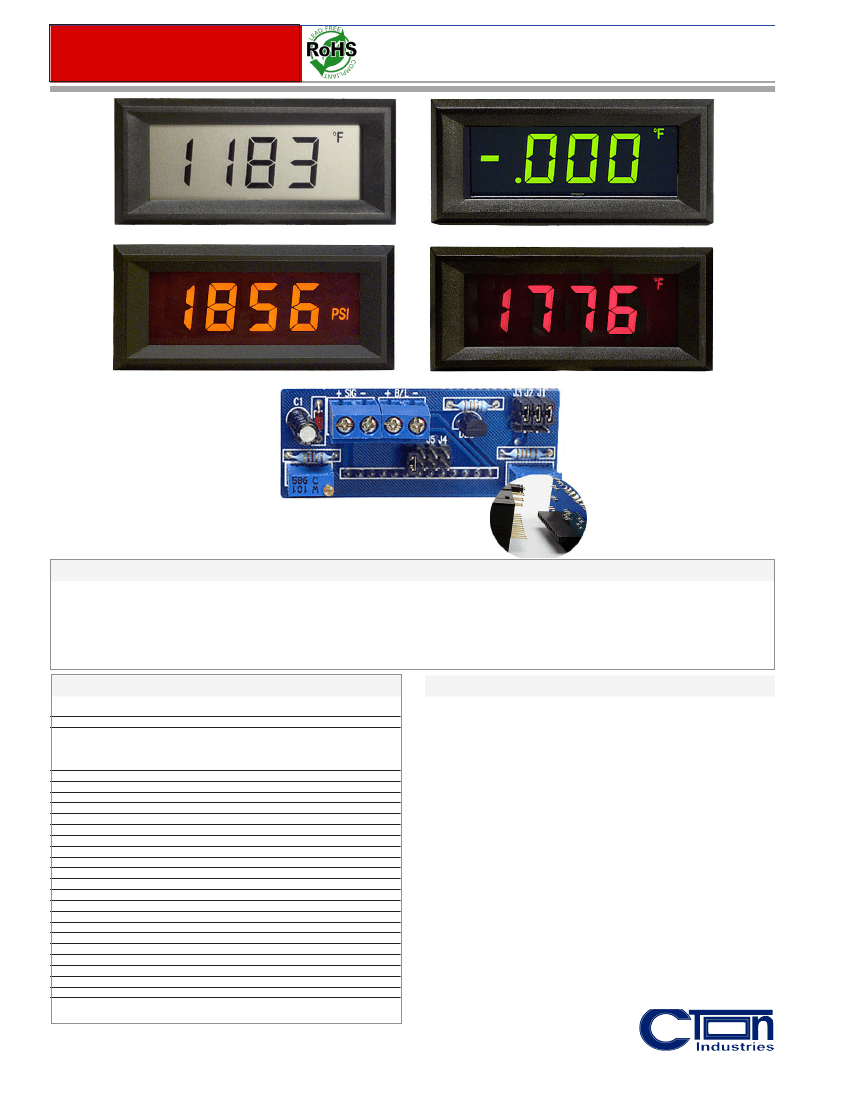

DK191 Series

EPIC SERIES

Loop Powered LCD Digital Panel Meters

3½ Digit LCD with Loop Power Board

Features:

◊ Low-cost, high-performance replacement for many OEM DPMs

◊ Optional RED, GREEN or AMBER backlighting

◊ Snap-in bezel mount eliminates mounting hardware

◊ Resistant to RF and EMI

◊ 3½ digits with high-contrast LCD

◊ 4-20 mA loop powered input

◊ User selectable, displayed engineering units

Specifications:

Display:

Backlighting:

Inputs:

Performance:

Environment:

Power Supply:

Mounting:

Connection:

Digits:

Type:

Polarity:

Annuciators:

Decimal Points:

Overrange:

Ranges:

Configuration:

Impedance:

Accuracy:

Conversion Rate:

Normal Mode Rejection:

Common Mode Range:

Common Mode Rej.:

Adjustments:

Warmup:

Temperature Coefficient:

Operating Range:

Storage Range:

Optional Backlight:

3 ½ digits (±1999 counts)

0.45" (11.4 mm) 7 segment LCD

Optional Red Negative (red numbers/black background)

Optional Green Negative (green numbers/black background)

Optional Amber Negative (amber numbers/black background)

Optional Green Positve (black numbers/green background)

automatic, “-” displayed

°F, °C, PSI, % , user selectable, or V, A, KW, PF

3 position, user selectable

three lower order digits blank for inputs >1999 & < -1999

4-20 mA DC

bipolar differential

300Ω nominal

±(0.1% fs + 2 count)

3 per second

>30 db @ 60 Hz

±1 VDC max

>86 dB

span (gain) and zero (offset)

10 minutes typical

± 100 ppm per °C typical

0 to 50 °C

-20 to 70 °C

24 VDC at 35 mA typical

snap-in bezel mount

2 screw terminal (4 with backlight)

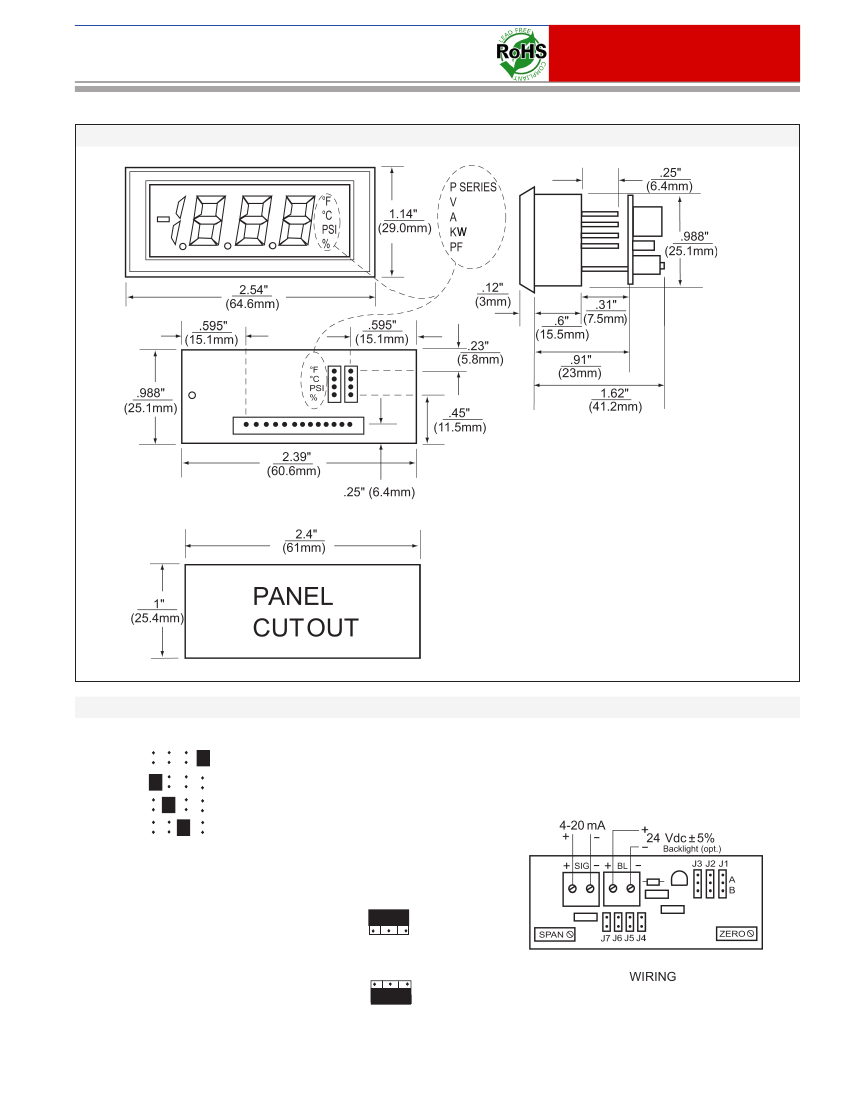

Ordering Information:

PART NUMBER

BACKLIGHT COLOR

BACKLIGHT POWER

DK191* ........................................ NO BACKLIGHT ............................................. NONE

DK192* ........................................ NEG AMBER ................................................. 24VDC

DK193* ........................................ NEG GREEN ................................................. 24VDC

DK194* ........................................ NEG RED ...................................................... 24VDC

DK195* ........................................ POS GREEN ................................................. 24VDC

*Add (P) for Power Engineering Units V, A, KW, PF

PW2-24 ..................................................Regulated 120V AC to 24V DC Power Supply

PW1.0 ........................................................... 24V AC to adjustable DC output

CPW1.5 ........................................................ 24V AC to adjustable DC output

CVC ..................................................................................................Calibrator

C-TON I

NdusTrIes

• PO B

172 • S

unaPee

, nH, 03782 • uSa • P

HOne

(603)456-2655 •

INfO

CTONINdusTrIes

COm
