DK809AC
LCD Digital Panel Meters
Specifications Installation and Operating Instructions

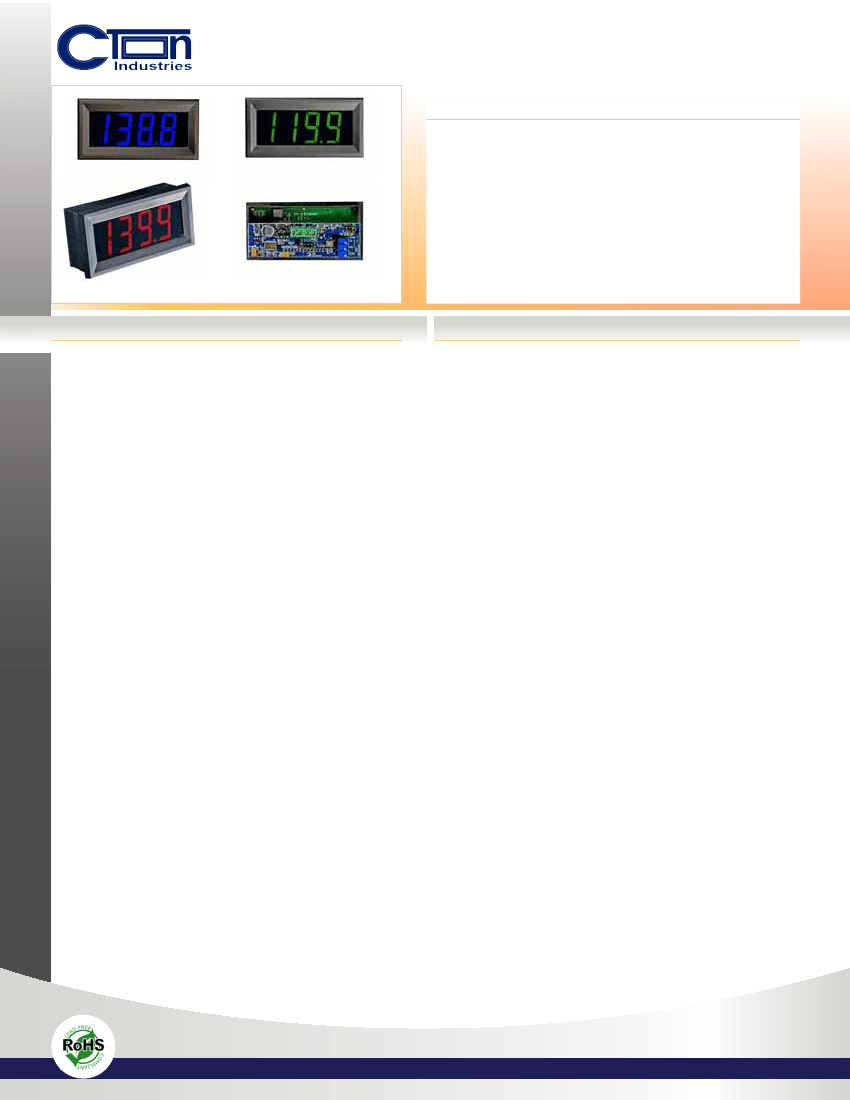

Large 1" - 3½ Digit AC/DC Powered, Voltage Controlled LCD DPM
FEATURES
}
}
}
}
}
}
}
}
}
}
}
}
}
}
Large}1”,}3½}digit}display}for}easy}viewing.}
User-selectable}decimal}points
User-selectable}engineering}units
Optional}AMBER,}GREEN,}RED}or}BLUE}backlit}LCD}
Wide}ZERO}(Offset)}&}SPAN}(Gain)}adjustment}
Standard}1/8}DIN}package}
Snap-in}panel}mounting
SPECIFICATIONS
ORDERING INFO
PART NUMBER
BACKLIGHT COLOR
METER INPUT
METER POWER
DISPLAY
Digits:
Type:
Polarity:
Annunciators:
Decimal Points:
Overrange:
3 ½ digits (±1999 counts)
1" (24.9 mm) 7 segment high contrast LCD
automatic, “-” displayed
°F, °C, PSI, %, user selectable
3 position, user selectable
three lower order digits blank for
inputs >1999 & < -1999
5 V, 10 V adjustable, 200mV fixed
single ended
±(0.05% of full scale + 1 count)
3 per second
>30 dB @ 60 Hz
10 minutes typical
± 100 ppm per °C typical
25 turn potentiometers
-1999 to +1999
1 to 1999 (custom ranges available)
-10 to 50 °C
-10 to 75 °C
24 VAC/DC
snap-in panel mount
screw terminals
DK809AC ....................NONE .........................Voltage .................24VAC/DC
.
DK809ACA ................. AMBER ........................Voltage .................24VAC/DC
.
DK809ACB ..................BLUE .........................Voltage .................24VAC/DC
.
DK809ACG ..................GREEN ........................Voltage .................24VAC/DC
.
DK809ACR ....................RED ..........................Voltage .................24VAC/DC
.
INPUTS
Voltage Ranges:
Configuration:
ACCESSORIES
PERFORMANCE
CVC ............................................................................................................ Calibrator
Accuracy:
Conversion Rate:
Normal Mode Rejection:
Warmup:
Temperature Coeff.:
Adjustments:
Offset Range:
Gain Range:
ENVIRONMENT
Operating Range:
Storage Range:
POWER SUPPLY

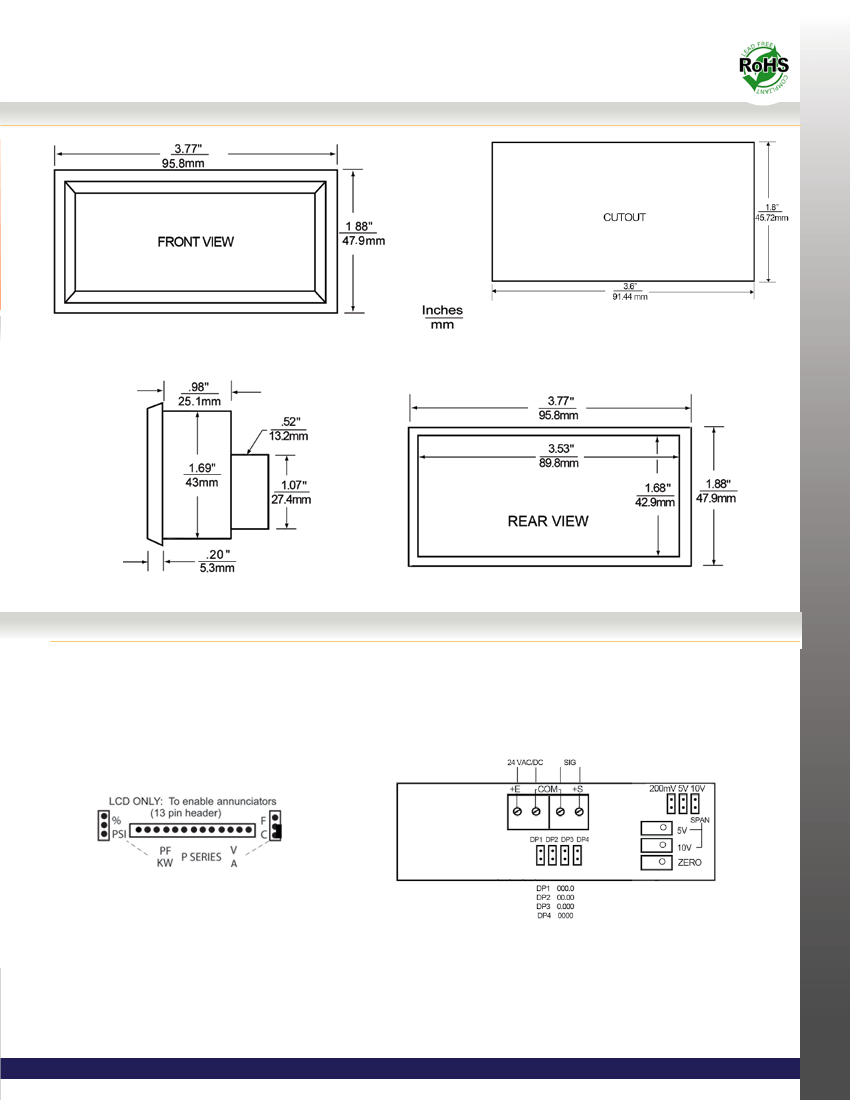

MOUNTING
CONNECTION
