80-190032-7I datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 80-190032-7I

Preview

80-190032-7I: DescriptionMIL Series Connector, 35 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle; CategoryThe connector The connector; File Size32KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

80-190032-7I Overview

MIL Series Connector, 35 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle

80-190032-7I Parametric

Parameter Name	Attribute value
Objectid	1223800684
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	8.4
Other features	STANDARD: MIL-DTL-5015, POLARIZED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	YES
Environmental characteristics	CORROSION/ENVIRONMENT/MOISTURE RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	CADMIUM
Shell material	ALUMINUM ALLOY
Housing size	32
Termination type	CRIMP
Total number of contacts	35

Preview

Download Datasheet

View All

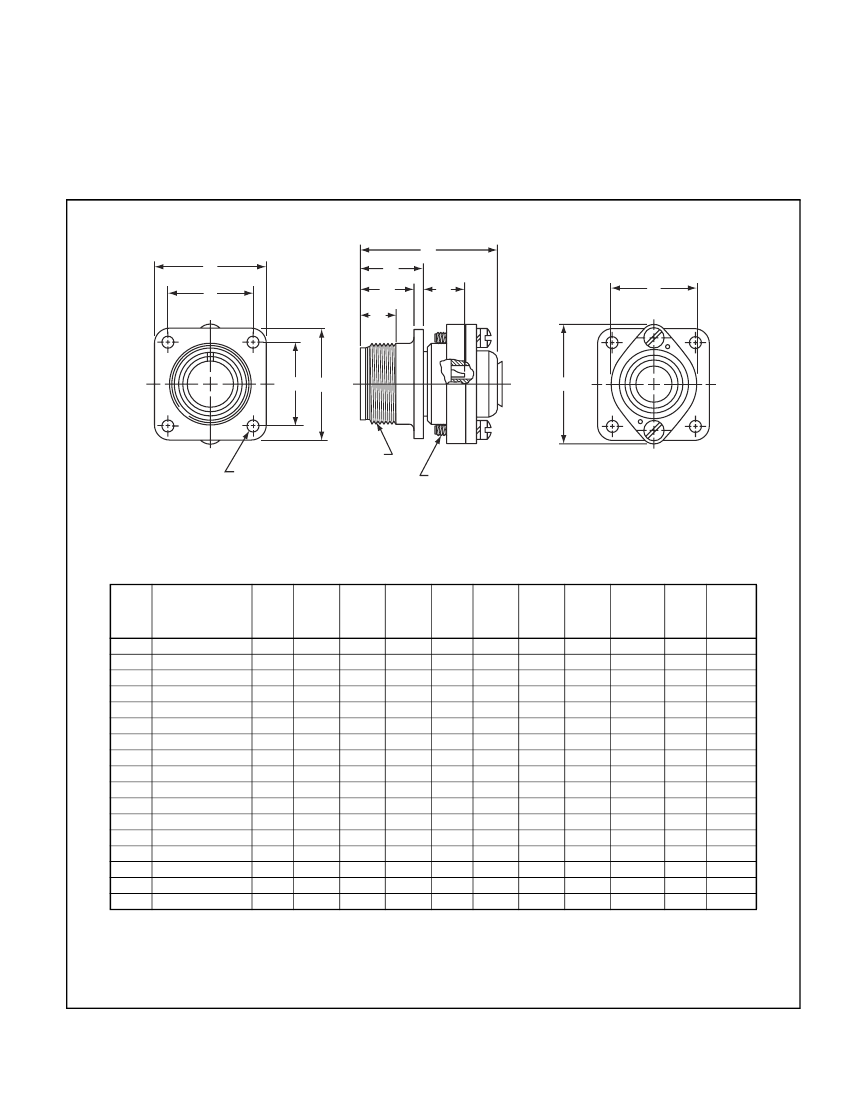

MS/Standard

MS3100R

wall mounting receptacle

L

S

R

B

K

M

Z

P

R

S

H

T

4 Holes

A

Thread

Y

To complete order number, see “how to order” pg. 70.

For solder well data, see page 67.

All lockwire holes are .045 dia. min.

B

Min.

Full

Thread

T

Dia.

+.004

–.002

Shell

Size

A

Thread

Class 2A

H

Dia.

Max.

K

+.020

–.010

L

Max.

M

+.010

–.000

P

Dia.

Max.

R

±.005

S

±.031

Y

Thread

Class 2

Z

+.050

–.060

8S

10S

10SL

12S

12

14S

14

16S

16

18

20

22

24

28

32

36

40

.5000-28UNEF

.6250-24NEF

.7500-20UNEF

.8750-20UNEF

1.0000-20UNEF

1.1250-18NEF

1.2500-18NEF

1.3750-18NEF

1.5000-18NEF

1.7500-18NS

2.0000-18NS

2.2500-16UN

2.5000-16UN

.391

.450

.625

.450

.625

.450

.625

.959

1.026

1.120

1.307

1.432

1.557

1.744

1.869

1.994

2.166

2.541

2.729

2.979

.672

.860

.672

.860

.672

.860

.891

.953

1.031

1.588

1.931

1.588

1.931

1.588

1.931

2.009

2.072

.562

.750

.562

.750

.562

.750

.812

.875

.557

.682

.807

.932

1.057

1.182

1.291

1.432

1.557

1.807

2.057

2.260

.594

.719

.812

.906

.969

1.063

1.156

1.250

1.375

1.562

1.750

1.938

2.510

.875

1.000

1.094

1.188

1.281

1.375

1.500

1.625

1.750

2.000

2.250

2.500

2.750

6-32NC

8-32NC

10-32NF

.120

.147

.173

.422

.672

.422

.672

.422

.672

.641*

.578*

.500*

* Increase Z dimension by .312 for size “0” contact only.
