BH3532FS-E2 datasheet, PDF - EEWORLD Datasheet

BH3532FS-E2: DescriptionIC pot audio digital ssop-a20; CategoryAnalog mixed-signal IC Consumption circuit; File Size83KB，6 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

BH3532FS-E2 Overview

IC pot audio digital ssop-a20

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SSOP
package instruction	SSOP,
Contacts	20
Reach Compliance Code	compliant
ECCN code	EAR99
Commercial integrated circuit types	VOLUME CONTROL CIRCUIT
JESD-30 code	R-PDSO-G20
JESD-609 code	e3/e2
length	8.7 mm
Number of channels	2
Number of functions	1
Number of terminals	20
Maximum operating temperature	75 °C
Minimum operating temperature	-25 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.9 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	3 V
surface mount	YES
Temperature level	COMMERCIAL EXTENDED
Terminal surface	TIN/TIN COPPER
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	5.4 mm

Audio ICs

Audio digital potentiometers

BH3532FS

The BH3532FS is a digital potentiometer designed for use in audio devices. Its built-in 22kΩ resistance systems can

be used to set the data from the microcomputer in 256 steps.

FApplications

Volume of recording and playing

FFeatures

1) Resistance can be set to any of 256 steps using digi-

tal codes (serial data).

FAbsolute

maximum ratings (Ta = 25_C)

2) Two built-in channels (Lch, Rch)

3) SSOP-A20 package

FRecommended

operating conditions (Ta = 25_C)

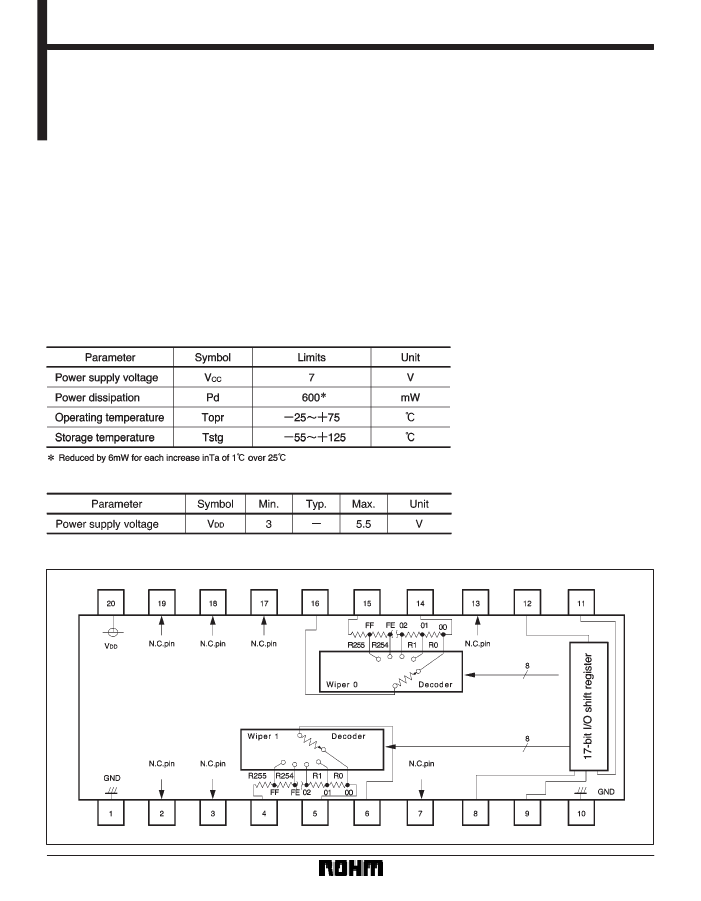

FBlock

diagram
