ATC, the industry leader, offers new improved ESR/ESL perform-
ance for the 200 B Series Capacitors. This Series exhibits high
volumetric efficiency with superior IR characteristics. Ceramic
construction provides a rugged, hermetic package.
Typical functional applications: Bypass, Coupling and DC Blocking.
Typical circuit applications: Switching Power Supplies and High
Power Broadband Coupling.
ELECTRICAL AND MECHANICAL
SPECIFICATIONS
DISSIPATION FACTOR (DF):
2.5% max. @ 1 KHz
TEMPERATURE COEFFICIENT OF CAPACITANCE (TCC):
±15% maximum (-55°C to +125°C)
INSULATION RESISTANCE (IR):
5000 pF to 0.1 MFd:
10
4
Megohms min. @ +25°C at rated WVDC.
10
3
Megohms min. @ +125°C at rated WVDC.
ENVIRONMENTAL TESTS
ATC 200 B Series Capacitors are designed and manufactured to
meet and exceed the requirements of EIA-198, MIL-PRF-55681
and MIL-PRF-123.
WORKING VOLTAGE (WVDC):
See Capacitance Values Table, page 2.
DIELECTRIC WITHSTANDING VOLTAGE (DWV):
Case B: 250% of rated WVDC for 5 secs. (125 VDC)
THERMAL SHOCK:
MIL-STD-202, Method 107, Condition A.
AGING EFFECTS:
3% maximum per decade hour.
PIEZOELECTRIC EFFECTS:
Negligible
DIELECTRIC ABSORPTION:
2% typical
OPERATING TEMPERATURE RANGE:
From -55°C to +125°C (No derating of working voltage).
MOISTURE RESISTANCE:
MIL-STD-202, Method 106.
LOW VOLTAGE HUMIDITY:
MIL-STD-202, Method 103, Condition A, with 1.5 Volts DC ap-
plied while subjected to an environment of 85°C with 85% relative
humidity for 240 hours min.
TERMINATION STYLES:
Available in various surface mount and leaded styles.
See Mechanical Configurations, page 3.
LIFE TEST:
MIL-STD-202, Method 108, for 2000 hours, at 125°C.
200% WVDC applied.
TERMINAL STRENGTH:
Terminations for chips and pellets
withstand a pull of 5 lbs. min., 15 lbs. typical, for 5 seconds in
direction perpendicular to the termination surface of the capac-
itor. Test per MIL-STD-202, method 211.
ATC # 001-812 Rev. N, 11/15
ATC 200 B Capacitance Values
CAP.
CODE
502
562
682
822
103
123
153
183
203
223
CAP.
(pF)
5000
5600
6800
8200
10,000
12,000
15,000
18,000
20,000
22,000
TOL.
RATED WVDC
CAP.
CODE
273
333
393
473
503
563
683
823
104
CAP.
(pF)
TOL.
RATED WVDC
27,000
33,000
39,000
47,000
50,000 K, M, N
56,000
68,000
82,000
100,000
K, M, N
50
50
VRMS = 0.707 x WVDC
• SPECIAL VALUES, TOLERANCES, HIGHER WVDC AND MATCHING AVAILABLE.
PLEASE CONSULT FACTORY.
CAPACITANCE TOLERANCE
Code
Tol.
K
±10%
M
±20%
N
±30%
ATC PART NUMBER CODE
ATC200 B
Series
Case Size
Capacitance Code:
First 2 significant digits for capacitance.
Indicates number of zeros following digits
of capacitance in picofarads except for decimal values.
Capacitance Tolerance
Termination Code
WVDC
The above part number refers to a 200 B Series (case size B) 8200 pF capacitor,
M tolerance (±20%), 50 WVDC, with W termination (Tin /Lead, Solder Plated over Nickel Barrier), laser marking and ATC Cap-Pac
®
packaging.
82 2
M W 50 X
T
Packaging
T - Tape and Reel, 1000 pc. qty.*
TV - Vertical Orientation of Product,
Tape and Reel, 1000 pc. qty.*
I - Special Packaging. Consult Factory.
*
Consult ATC for other quantities
ATC Cap-Pac® packaging (100 pc. qty. std.) is also
available. For this option, leave last field blank.
Laser Marking
ATC accepts orders for our parts using designations
with
or
without
the
“ATC” prefix. Both methods of defining the part number are equivalent,
i.e., part numbers referenced with the “ATC” prefix are interchangeable to
parts referenced without the “ATC” prefix. Customers are free to use either
in specifying or procuring parts from American Technical Ceramics.
For additional information and catalogs contact your ATC
representative or call direct at (+1-631) 622-4700.
Consult factory for additional performance data.
A M E R I C A N
ATC North America
sales@atceramics.com
T E C H N I C A L
ATC Europe
saleseur@atceramics.com
C E R A M I C S
ATC Asia
sales@atceramics-asia.com
2
w w w.a t ce r a m ics .c o m

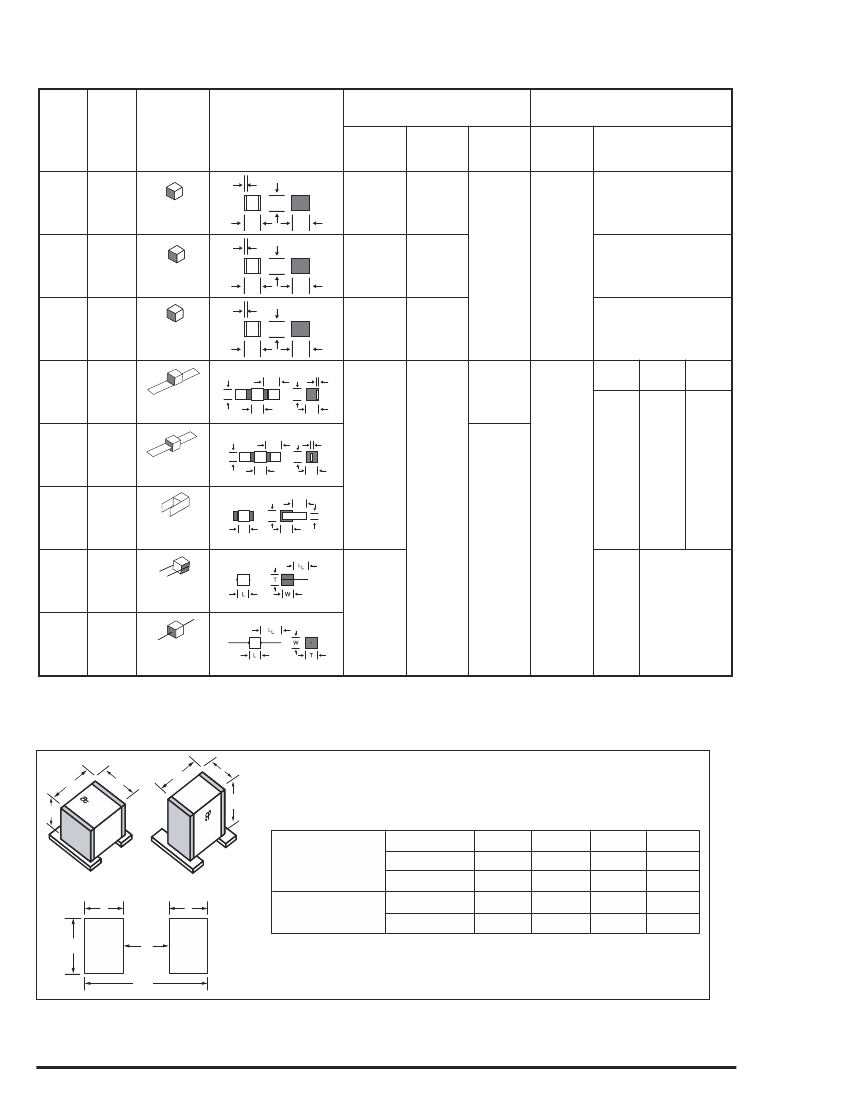

ATC 200 B Capacitors: Mechanical Configurations
ATC
SERIES
& CASE
SIZE
ATC
TERM.
CODE
CASE SIZE
& TYPE
W/T IS A
TERMINATION SURFACE
Y
Y
Y
L
L
L
L
W
W
W
LL
200B
W
B
Solder Plate
Y
OUTLINES
W
T
T
T
T
W
L
T
BODY DIMENSIONS
INCHES (mm)
LENGTH
(L)
.110
+.020 -.010
(2.79
+0.51 -0.25)
.110
+.035 -.010
(2.79
+0.89 -0.25)
.110
+.020 -.010
(2.79
+0.51 -0.25)
.110
+.020 -.010
(2.79
+0.51 -0.25)
TL
LEAD AND TERMINATION
DIMENSIONS AND MATERIALS
OVERLAP
(Y)
MATERIALS
WIDTH
(W)
THICKNESS
(T)
.110 ±.015
(2.79 ±0.38)
Tin / Lead, Solder Plated over
Nickel Barrier Termination
200B
P
B
Pellet
.110 ±.015
(2.79 ±0.38)
.102 (2.59)
max.
.110 ±.015
(2.79 ±0.38)
.015 (0.38)
±.010 (0.25)
Heavy Tin / Lead Coated,
over Nickel Barrier Termination
200B
T
B
RoHS Compliant
Tin Plated over
Nickel Barrier Termination
Solderable
Nickel Barrier
200B
CA
B
Gold Chip
.110 ±.015
(2.79 ±0.38)
RoHS Compliant
Gold Plated over
Nickel Barrier Termination
Length
( LL )
Width
( WL )
Thickness
( TL )
200B
MS
B
WL
.120 (3.05)
max.
Microstrip
B
Axial Ribbon
TL
LL
WL
200B
AR
200B
RR
B
Radial Ribbon
L
L
W
T
LL
W
T
WL
.135 ±.015
(3.43 ±0.38)
.250
(6.35)
min.
.110 ±.015
(2.79 ±0.38)
.100 (2.54)
max.
.093 ±.005 .004 ±.001
(2.36
(.102
±0.13)
±.025)
N/A
200B
RW
B
Radial Wire
.145 ±.020
(3.68 ±0.51)
.500
(12.7)
min.
#26 AWG.,
.016 (.406) dia.
nominal
200B
AW
B
Axial Wire
Additional lead styles available: Narrow Microstrip (NM), Narrow Axial Ribbon (NA) and Vertical Narrow Microstrip (H). Other lead lengths are available; consult factory.
All leads are high purity silver attached with high temperature solder and are
RoHS
compliant. For a complete military catalog, request American Technical Ceramics
document ATC 001-818.
A M E R I C A N
ATC North America
sales@atceramics.com
T E C H N I C A L
ATC Europe
saleseur@atceramics.com
C E R A M I C S
ATC Asia
sales@atceramics-asia.com
3
w w w.a t c e ra m ic s .c om
ATC 200 B Capacitors: Non-Magnetic Mechanical Configurations
ATC
SERIES
& CASE
SIZE
ATC
TERM.
CODE
CASE SIZE
& TYPE
W/T IS A
TERMINATION SURFACE
Y
Y
L
L
L
W
W
LL
200B
WN
B
Non-Mag
Solder Plate
Y
OUTLINES
W
T
T
T
W
L
T
BODY DIMENSIONS
INCHES (mm)
LENGTH
(L)
.110
+.025 -.010
(2.79
+0.64 -0.25)
.110
+.035 -.010
(2.79
+0.89 -0.25)
.110
+.025 -.010
(2.79
+0.64 -0.25)
TL
LEAD AND TERMINATION
DIMENSIONS AND MATERIALS
OVERLAP
(Y)
MATERIALS
WIDTH
(W)
THICKNESS
(T)
.110 ±.015
(2.79 ±0.38)
Tin /Lead, Solder Plated over
Non-Magnetic Barrier
Termination
Heavy Tin/ Lead Coated, over
Non-Magnetic Barrier
Termination
200B
PN
B
Non-Mag
Pellet
B
Non-Mag
.110 ±.015
(2.79 ±0.38)
.102 (2.59)
max.
.015 (0.38)
±.010 (0.25)
RoHS Compliant
.110 ±.015
(2.79 ±0.38)
200B
TN
Solderable Bar-
rier
B
200B
MN
Non-Mag
Microstrip
B
200B
AN
Non-Mag
Axial Ribbon
Tin Plated over
Non-Magnetic Barrier
Termination
.120 (3.05)
max.
Length
( LL )
Width
( WL )
Thickness
( TL )
WL
TL
WL
200B
FN
B
Non-Mag
Radial Ribbon
L
L
W
LL
W
T
LL
T
WL
.135 ±.015
(3.43 ±0.38)
.250
(6.35)
min.
.110 ±.015
(2.79 ±0.38)
.100 (2.54)
max.
N/A
.093 ±.005 .004 ±.001
(2.36
(.102
±0.13)
±.025)
200B
RN
B
Non-Mag
Radial Wire
.145 ±.020
(3.68 ±0.51)
.500
(12.7)
min.
#26 AWG.,
.016 (.406) dia.
nominal
200B
BN
B
Non-Mag
Axial Wire
L
Additional lead styles available: Narrow Microstrip (DN), Narrow Axial Ribbon (GN) and Vertical Narrow Microstrip (HN). Other lead lengths are available; consult factory.
All leads are high purity silver attached with high temperature solder and are
