420MXH560MOOESN30X50 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 420MXH560MOOESN30X50

420MXH560MOOESN30X50: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 420V, 560uF, THROUGH HOLE MOUNT, CAN, ROHS COMPLIANT; CategoryPassive components capacitor; File Size159KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

420MXH560MOOESN30X50 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 420V, 560uF, THROUGH HOLE MOUNT, CAN, ROHS COMPLIANT

420MXH560MOOESN30X50 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1872579926
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	0
capacitance	560 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	1.45492 mA
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	420 V
ripple current	2100 mA
surface mount	NO
Delta tangent	0.2
Terminal surface	Tin (Sn)
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

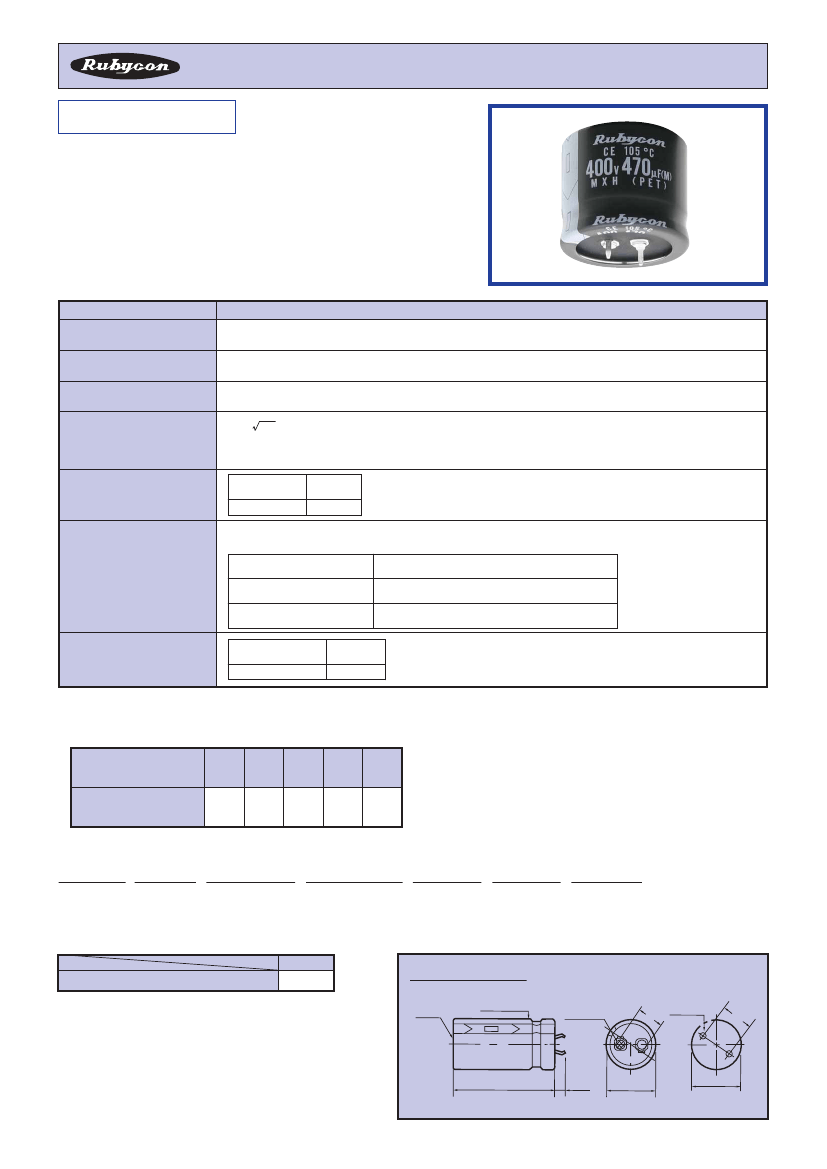

LARGE CAN TYPE ALUMINUM ELECTROLYTIC CAPACITORS

MXH

SERIES

105℃ Ultra Miniaturized, Snap-in Terminal Type

◆FEATURES

・

Load Life : 105℃ 2000 hours.

・

Smaller size than MXG series.

・

RoHS compliance.

◆SPECIFICATIONS

Items

Category Temperature Range

Rated Voltage Range

Capacitance Tolerance

Characteristics

−25∼＋105℃

400, 420, 450V.DC

±20％

（20℃，

120Hz）

I＝3

CV (After 5 minutes application of rated voltage)

Leakage Current(MAX)

I＝(μA)

Leakage Current

C＝(μF)

Rated Capacitance

V＝(V)

Rated Voltage

(tanδ)

Dissipation Factor(MAX)

Rated Voltage 400∼450

tanδ

0.20

（20℃，

120Hz）

After applying rated voltage with rated ripple current for 2000 hours at 105℃,

the capacitors shall meet the following requirements.

Capacitance Change

Endurance

Dissipation Factor

Leakage Current

Low Temperature Stability

Impedance Ration(MAX)

Rated Voltage

（−25℃）（20℃）

Not more than 200％ of the speciﬁed value.

Not more than the speciﬁed value.

400∼450

（120Hz）

Within ±20％ of the initial value.

◆MULTIPLIER FOR RIPPLE CURRENT

Frequency Coeﬃcient

Frequency

Coeﬃcient

（Hz）

60(50) 120

500

10k≦

0.80 1.00 1.20 1.25 1.40

◆PART NUMBER

□□□

Rated Voltage

MXH

Series

□□□□□

Rated Capacitance

Capacitance Tolerance

□□□

Option

Terminal Code

D×L

Case Size

◆OPTION

Code

PET Sleeve without plate

◆DIMENSIONS

EFC

●

［4(3.5)mm½

terminal type

SLEEVE

（PET）

VENT

NEGATIVE

（mm）

Terminal code : SN(Tin plating)

2-φ2

±0.1

L±2

※

4±0.5

φD±1

※For φ35, 3.5±0.5

MOUNTING HOLES
