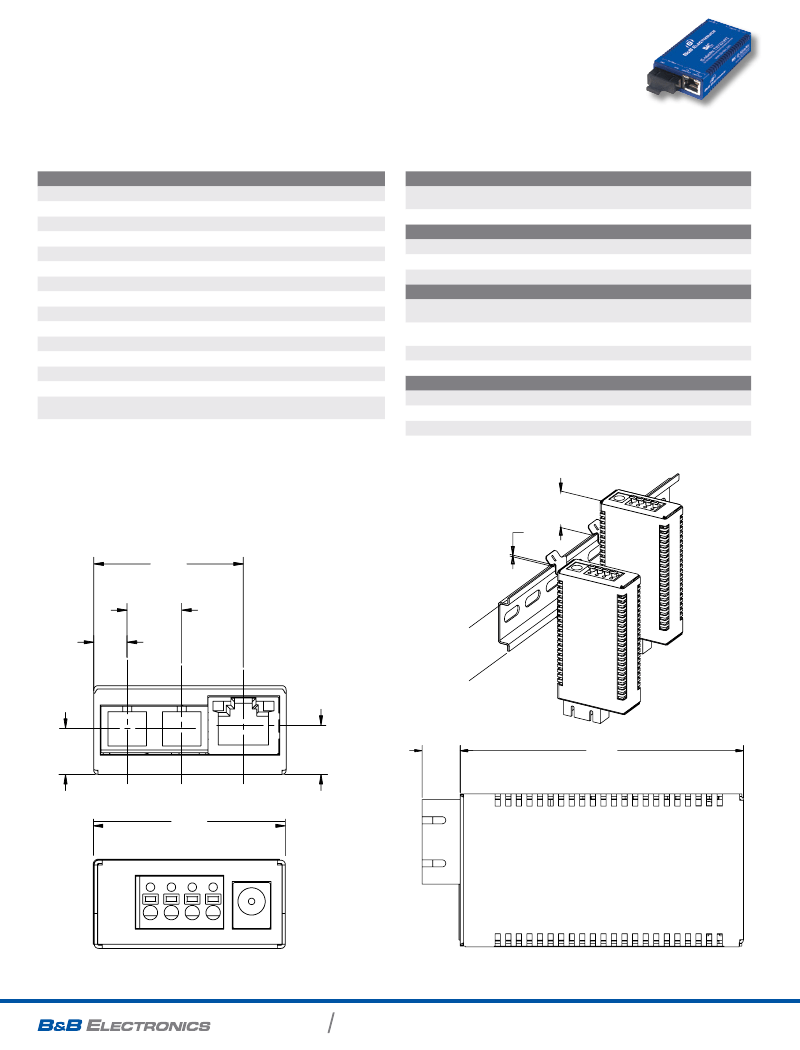

Industrial grade 10/100 miniature
media converters
IE-MiniMc/LFPT & Telco-LFPT
product FEaturEs
• Extended operating temperature of -25 to +85° C
• Auto-Cross automatic selection between crossover or
straight-through connections
• Status LEDs
• Link Fault Pass-Through (LFPT) capability
Measuring less than 3.5 inches deep and 2 inches wide, the IE-MiniMc
Series converters are some of the industry’s smallest copper-to-fiber
media converters, with both data connections on the same side. The
IE-MiniMc family of media converters are a fraction of the cost of other
industrial grade alternatives. These products provide the ease and
convenience of plug-and-play operation with features including Auto
Negotiation and Auto-Cross.
Advanced features such as Link Fault Pass-Through (LFPT) assist
operators in identifying breaks in the network when using unmanaged
network hardware. Multiple powering options include Power over
Ethernet (PoE/PD), -48 VDC for Telco, AC wall adapter and USB, which
offers unsurpassed flexibility for a variety of installations.
ordErIng InFormatIon
Model
FiBer range
FiBer
nuMBer
Ports
ie-MiniMc/lFPt
855-19822 MM850-SC
1
2 km
855-19824 MM1300-SC
1
5 km
855-19830 SM1310/PLUS-SC 1
30 km
855-19832 SM1310/LONG-SC 1
80 km
855-19833 SM1550/LONG-SC 1
80 km
ordErIng InFormatIon
Model
FiBer range
FiBer
nuMBer
Ports
ie-MiniMc/telco-lFPt
855-19202 MM850-SC
1
2 km
855-19204 MM1300-SC
1
5 km
855-19210 SM1310/PLUS-SC 1
30 km
855-19212 SM1310/LONG-SC 1
80 km
855-19213 SM1550/LONG-SC 1
80 km
ethernet
Ports
1
1
1
1
1
ethernet
ConneCtor
1
1
1
1
1
ethernet
Ports
1
1
1
1
1
ethernet
ConneCtor
1
1
1
1
1
accEssorIEs
806-39105
- DIN Rail Clip
806-39638
- Double-USB Power Cable, 36”/.9m
806-39650
- 12”/.3m Barrel-Connector Power Cable
850-13086
- IE-PowerTray/18-AC (-20°C to +70°C), 18-slot AC powered chassis
895-39229
- Wall Mount Bracket
806-39753 - IE-Power/5V Module, AC to DC DIN Rail Power Adapter
www
.
bb
-
elec
.
com
|
IE-MiniMc/LFPT & Telco-LFPT_3713ds
Industrial grade 10/100 miniature
media converters
IE-MiniMc/LFPT & Telco-LFPT
SpecificationS
Technical
IEEE 802.3 10Base-T twisted pair
IEEE 802.3u 100Base-TX twisted pair
IEEE 802.3u 100Base-FX fiber
IEEE 802.3af Power Over Ethernet
Supports jumbo packets up to 1916 bytes
Plug-and-play operation
RJ45 and ST or SC ports available
50/125µm or 62.5/125µm multi-mode fiber
9/125µm single-mode fiber
Available with single-strand fiber support
Includes terminal DC power block
Country-specific, high-reliability power adapter
Auto Negotiation
Auto-Cross for MDI/MDIX
Layer 2 packet switching, store and forward (forwarding rate: 14,881 pps for 10
Mbps, 148,100 pps for 100 Mbps)
Status LEDs
mEchanIcal dIagram
(dimensions in inches & millimeters)
Mechanical
Dimensions
Shipping Weight
input specifictaions
DC Terminal (Telco): 12 to 48 VDC
Barrel Connector: 5 to 24 VDC
PoE: Maximum supply voltage is 50V
environMental
Operating Temperature: DC or
-13° F to 185° F (-25° C to +85° C)
PoE (PD)
Operating Temperature: AC wall +14° F to +122° F (-10° C to +50° C)
adapter
Storage Temperature:
-31° F to +167° F (-35° C to +75° C)
Operating Humidity
5% to 95% (non-condensing)
regulatory approvals
FCC Class A (using DC terminal or PoE power)
FCC Class B (using any DC jack, optional)
UL/cUL, CSA, CE
0.83”H x 1.80”W x 3.35”D
(2.11 x 4.57 x 8.51 cm)
0.7 lbs (.317 kg)
1.04
(26,4)
.04
(1.0)
1.40
(35,6)
.51
(12,9)
REF
.31
(7,9)
1.25
(31,75)
.43
(11,0)
.46
(11,7)
.45
(11,4)
3.35
(85,1)
1.81
(46,0)
