BABCOCK Inc.
MODEL:
PD02B104
DISPLAY PRODUCTS DIVISION
128 X 64 DOT MATRIX, GAS-PLASMA DISPLAY SYSTEM
PLASMADOT™ full field dot matrix DC plasma display systems include driver electronics. Babcock’s display drivers have been
designed for applications that have requirements for customized fonts, overlays or detailed graphic animation. Model PD02B104
requires +5 V(dc) from the host system and +70 V (dc) and –110 V (dc) from an external power supply to operate. The refresh
control of the display is then performed externally by the host system processor.
FEATURES
Display Format:
Overall Size:
Overall Viewing Area:
Pixel Size:
Row Pitch:
Column Pitch:
Luminance:
Viewing Angle:
Contrast Ratio:
Color:
64 rows x 128 columns
8.00” x 5.00” x .95”
5.10" x 2.54"
. 020” x .020”
. 040”
. 040”
50 fL
130
o
20:1
Orange
ELECTRICAL SPECIFICATIONS
Absolute Maximum Ratings
Item
Logic Supply Voltage
Row Driver Supply Voltage
Column High Voltage Supply
Anode High Voltage Supply
Total High Voltage (Vsp to Vsn)
Logic Input High
Logic Input Low
Symbol
Vcc
Vrw
Vsp
Vsn
Vtotal
Vih
Vil
Min
-0.5
Vsn –0.5
+2.40
-0.50
Max
+7.0
Vsn +15.0
+80
-135
215
Vcc +1.5
+ 0.08
Unit
V
V
V
V
V
V
V
Recommended Operating Conditions
(Measured with all pixels lit.)
Item
Symbol
Min
Typ
Logic Supply Voltage
Vcc
4.75
5.0
Logic Supply Current
Icc
Column High Voltage Supply
Vsp
60.0
70.0
Column High Voltage Current
Isp
Row Drive Logic Supply
Vrw
Vsn +10.8 Vsn +12.0
Row Drive Logic Supply Current
Row Driver High Voltage Supply
Vsn
-100
-110
Row Drive High Voltage Current
Isn
Max
5.25
50
75.0
100
Vsn +13.2
30
-120
130
Unit
Volts
mA
Volts
mA
Volts
mA
Volts
mA
SPECIFICATIONS ARE FOR REFERENCE ONLY
9200-0111 Rev. A
_________________________________________________________________________________________________________
Phone: (714) 994-6500
14930 East Alondra Blvd., La Mirada, CA 90638-5752
www.babcockinc.com
Fax: (714) 994-3013
Page
1 of 4
BABCOCK Inc.
MODEL:
PD02B104
DISPLAY PRODUCTS DIVISION
128 X 64 DOT MATRIX, GAS-PLASMA DISPLAY SYSTEM
Environmental Specifications
Item
Operating Temperature
Storage Temperature
Humidity (Non-Condensing)
Vibration (10-55 Hz, .06” P-P)
Shock P (acceleration, 11 Msec)
Altitude (Operating)
Altitude (Non-Operating)
Min
0
-40
0
Max
+60
+ 85
95
3
30
20,000
70,000
Unit
°
C
°
C
%
G
G
ft.
ft.
CUSTOMER INTERFACE
Interface Connector
Mating Connector:
Pin No.
1
3
5
7
9
11
13
Name
DE
RDATA
RCLK
COLLATCH
DOTCLOCK
SDATA
GND
AMP Part No. 746285-2, Molex 71247-0429, 3M 3385-6600
Description
Display Enable
Signal
Row Driver
Data Input
Row Driver
Clock Input
Column Driver
Latch Input
Column Driver
Clock Input
Column Driver
Data Input
Signal Ground
Pin No.
2
4
6
8
10
12
14
Name
GND
GND
GND
GND
GND
GND
GND
Description
Signal Ground
Signal Ground
Signal Ground
Signal Ground
Signal Ground
Signal Ground
Signal Ground
Power Supply Connector
Mating Connector: Amp Part No. 640428-8, Molex 09-50-3081, 09-06-5087, Methode 3300-108
Pin No.
1
2
3
4
5
6
7
8
Name
Vsn
Vrw
KEY
GND
GND
Vcc
Vsp
Description
Row Driver Negative High Voltage Supply
Row Driver Logic Supply
Keying Position (no pin)
High Voltage Supply Ground
Logic Supply Ground
Digital Logic Supply (-5V)
No Connection
Column Driver Position High Voltage
SPECIFICATIONS ARE FOR REFERENCE ONLY
9200-0111 Rev. A
_________________________________________________________________________________________________________
Phone: (714) 994-6500
14930 East Alondra Blvd., La Mirada, CA 90638-5752
www.babcockinc.com
Fax: (714) 994-3013
Page
2 of 4
BABCOCK Inc.
MODEL:
PD02B104
DISPLAY PRODUCTS DIVISION
128 X 64 DOT MATRIX, GAS-PLASMA DISPLAY SYSTEM
Block Diagram
To drive a dot matrix display, both the columns and the rows need to be independently driven. Figure 1 shows how a
PLASMADOT display is driven. There is one driver for each column that sources current to the display and one driver for each
row that sinks that current to the return supply. When the display is scanned, only one row driver is on at a time but any number of
the column drivers can be on.
FI U R E 1:
G
SD A TA
SD A TA
CU STO M ER
D O TCLO CK
I TERFA CE
N
CO LLA TCH
FRO M D I
SPLA Y
DE
REFRESH
RCLK
CO N TRO LLER
RD A TA
I PU T
N
BU FFERS
( C04)
74H
D O TCLO CK
CO LLA TCH
DE
A N O D E ( LU M N ) D RI ERS
CO
V
SH I REG I
FT
STERS
W I H I H V O LTA G E D RI ERS
TH
G
V
A N D CU RREN T LI I N G
M TTI
Col n N
um
Col n 1
um
CU STO M ER
H I H V O LTA G E
G
PO W ER SU PPLY
Vs
p
V cc
Vr
w
Vs
n
...................................
...................................
...................................
...................................
FU LL FI
ELD G A S PLA SM A
D O T M A TRI D I
X SPLA Y
...................................
..................................
...................................
..................................
Row N
Row 1
RCLK
CA TH O D E ( W ) D RI ERS
RO
V
SH I REG I
FT
STERS
W I H I H V O LTA G E D RI ERS
TH
G
V
LEV EL
SH I
FTERS
RD A TA
DE
Display Intensity Control:
There are two methods of controlling the brightness of the display.
•
To control the brightness of the entire display, vary the display on time with the DE signal.
•
Second method is by frame rate modulation, this method requires less hardware complexity but limits the number of intensity
levels that may be achieve.
With either method of intensity control, it should be noted that the intensity of a DC plasma display is not linear with the pixels on
time. (i.e. The pixel is not half as bright when left on for half the time.)
SPECIFICATIONS ARE FOR REFERENCE ONLY
9200-0111 Rev. A
_________________________________________________________________________________________________________
Phone: (714) 994-6500
14930 East Alondra Blvd., La Mirada, CA 90638-5752
www.babcockinc.com
Fax: (714) 994-3013
Page
3 of 4
BABCOCK Inc.
MODEL:
PD02B104
DISPLAY PRODUCTS DIVISION
128 X 64 DOT MATRIX, GAS-PLASMA DISPLAY SYSTEM

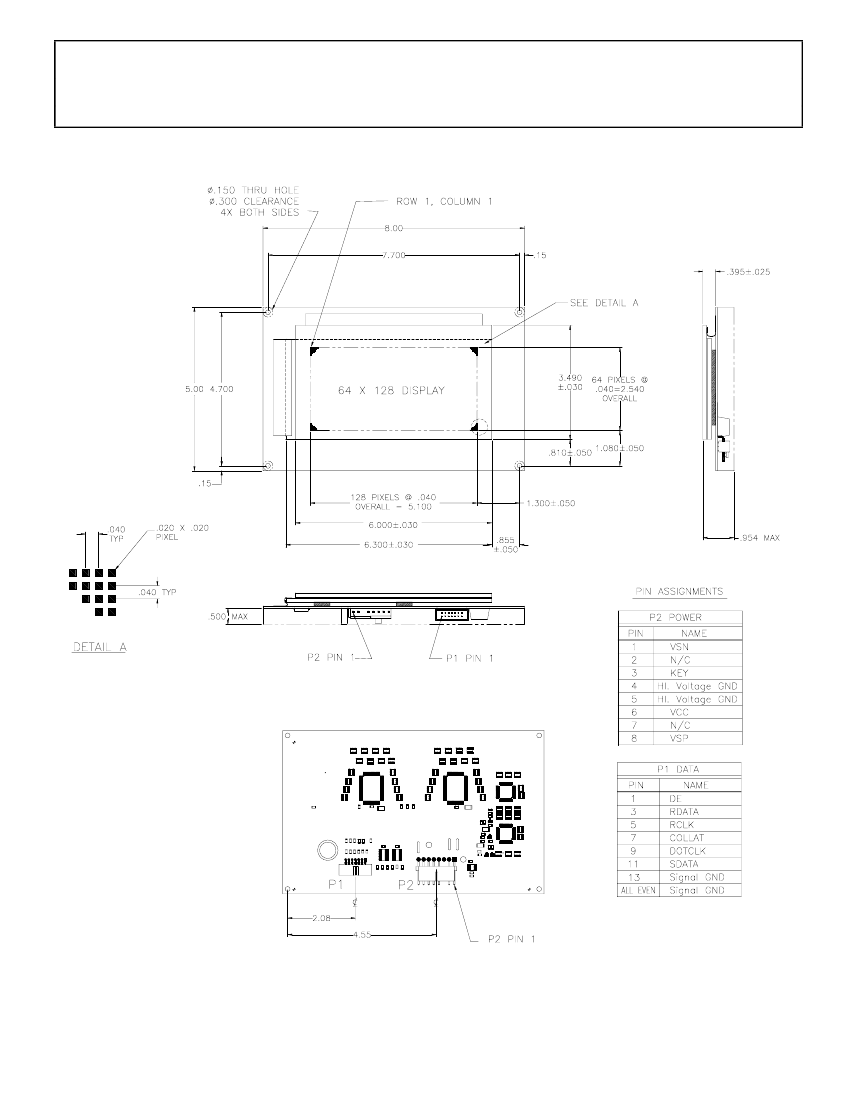

Outline and Mounting Dimensions:
SPECIFICATIONS ARE FOR REFERENCE ONLY
9200-0111 Rev. A
_________________________________________________________________________________________________________
Phone: (714) 994-6500
14930 East Alondra Blvd., La Mirada, CA 90638-5752
www.babcockinc.com
Fax: (714) 994-3013
Page
4 of 4
