5098-B-1900-A-1 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 5098-B-1900-A-1

5098-B-1900-A-1: DescriptionMains Power Connector, 10/15A, 250VAC, Female, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size310KB，2 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric View All

5098-B-1900-A-1 Overview

Mains Power Connector, 10/15A, 250VAC, Female, Solder Terminal, ROHS COMPLIANT

5098-B-1900-A-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1214635568
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
YTEOL	8.45
Other features	STANDARDS: IEC/EN 60320-2-2/F, UL 94V-0; UL 498, CSA C22.2, VDE
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
insulator material	POLYAMIDE6
MIL compliance	NO
Power Connector Ratings	10/15A, 250VAC
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation type	PANEL
Options	GENERAL PURPOSE
Termination type	QUICK CONNECT
Total number of contacts	3

Preview

Download Datasheet

View All

Connectors (Inlets/Outlets)

www.schurter.com/pg07

IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder or Quick-connect Terminal

5098

70° C

Description

- Panel Mount:

Screw-on mounting, from front side

- Connector, Pin temperature 70 °C, protection class I or II

- Solder terminals or quick connect terminals

References

Weblinks

We recommend for new applications the type 6600-3

pdf, html, General Product Information, Approvals, RoHS, CHINA-RoHS,

Mating Connectors, e-Shop, SCHURTER-Stock-Check, Distributor-

Stock-Check, Accessories

Approvals

- VDE Certificate Number: 40010295

- UL File Number: E57445

- CSA File Number: 27324

Technical Data

Ratings IEC

Ratings UL/CSA

Dielectric Strength

10 A / 250 VAC; 50 Hz

15 A / 250 VAC; 60 Hz

> 4 kVAC between L-N

> 2 kVAC between L/N-PE

(1 min/50 Hz)

-25 °C to 70 °C

from front side IP 20 acc. to IEC 60529

Suitable for appliances with protection

class 1 or 2 acc. to IEC 61140

Solder terminals or quick connect ter-

minals

PA6, black / grey / white, UL 94V-0

Appliance Outlet

F acc. to IEC/EN 60320-2-2

UL 498, CSA C22.2 no. 42 (for cold

conditions) pin-temperature 70 °C, 10 A,

Protection Class 1 or 2

Allowable Operation Temp.

Degree of Protection

Protection Class

Terminal

Material: Housing

Dimensions

50.4

50.4 mm

25.7

R 10

32.2

24.7

- 0

24.5

+0.2

Length of the terminal please find at the order code configuration table

32.4

- 0

+0.2

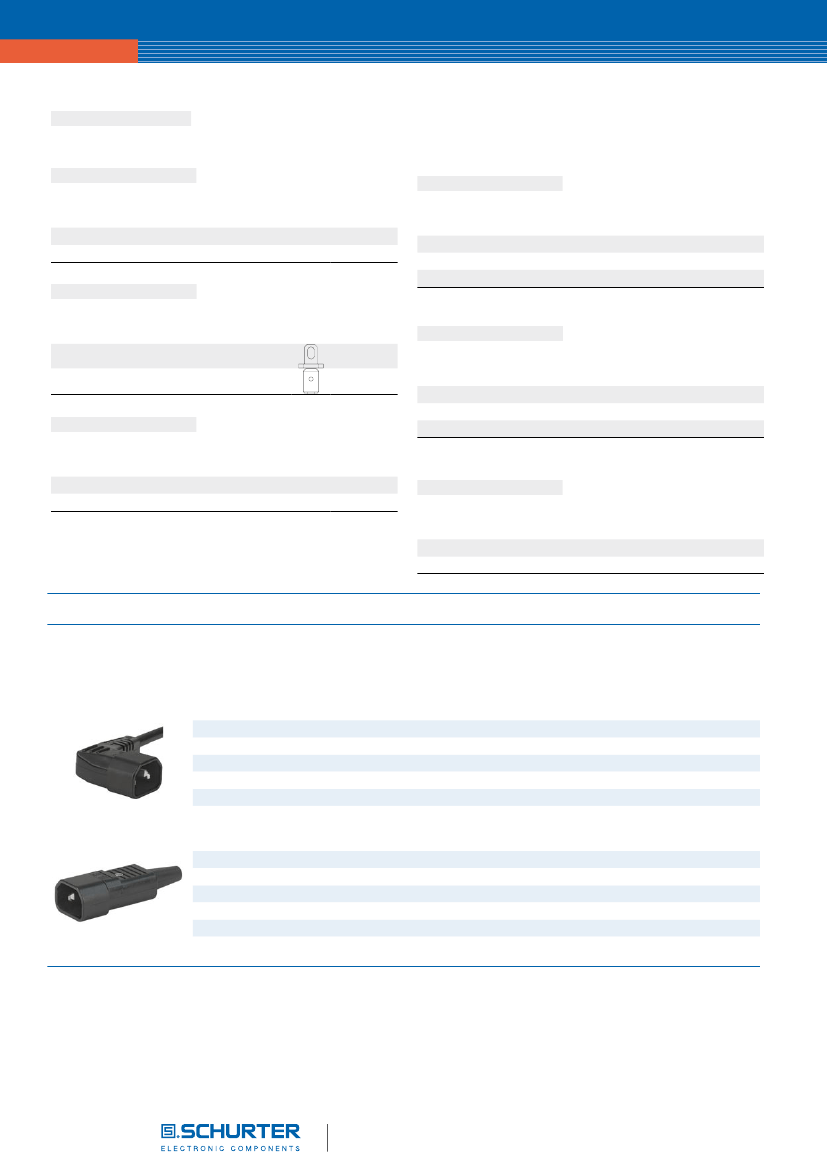

Connectors
