TC9293FN datasheet, PDF - EEWORLD Datasheet

TC9293FN: DescriptionMODUALATION SYSTEM DA CONVERTER WITH ANALOG FILTERl; CategoryOther integrated circuit (IC) Consumption circuit; File Size590KB，19 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

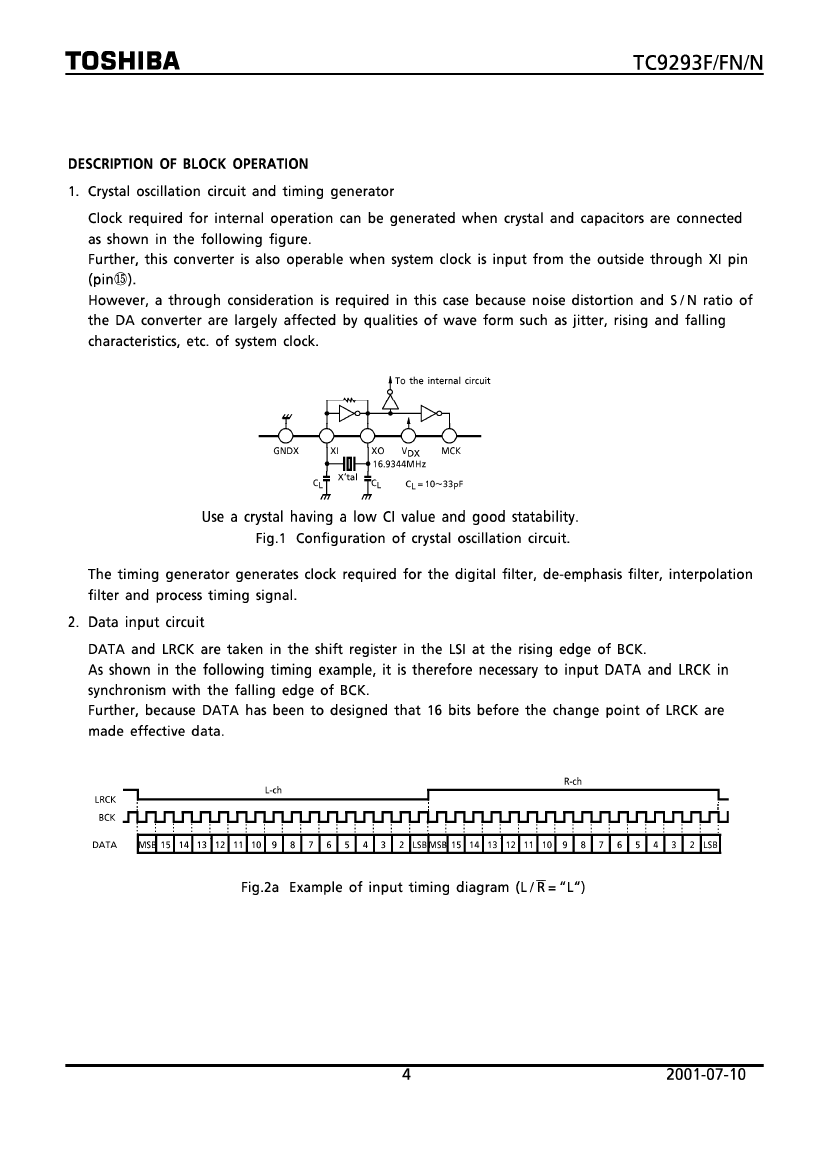

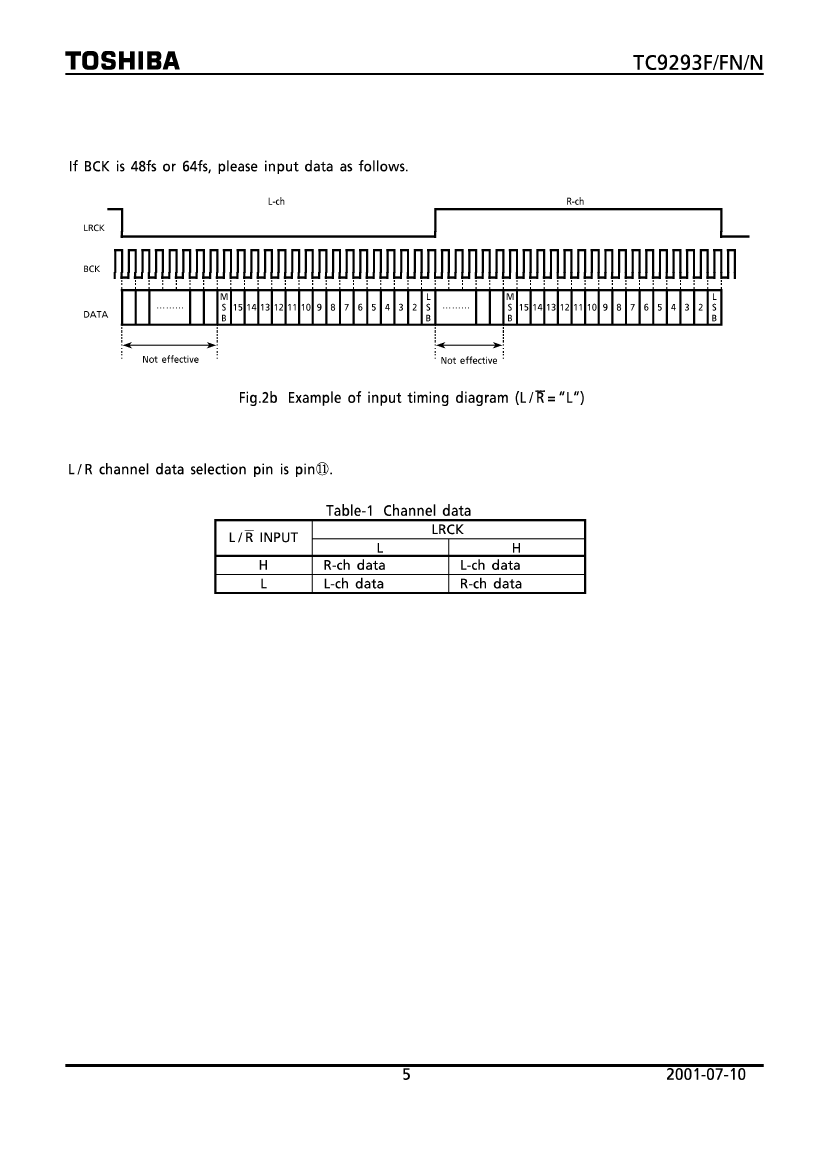

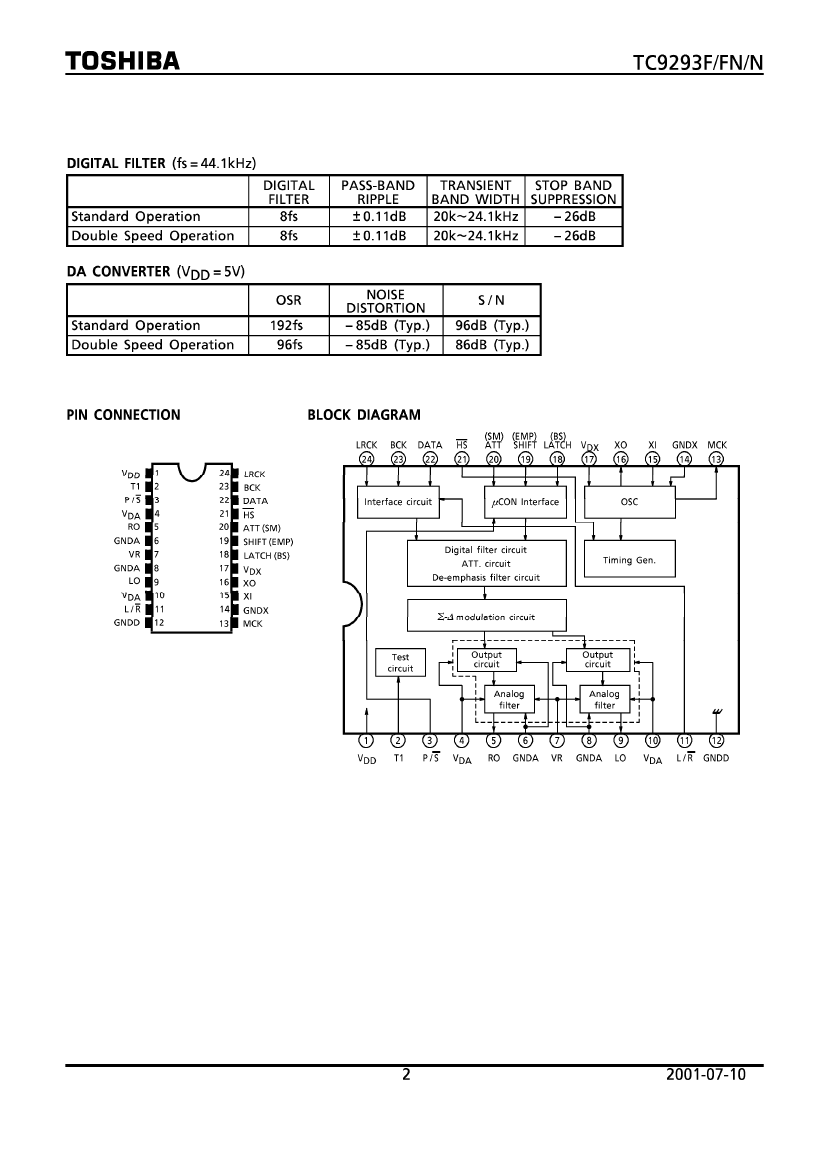

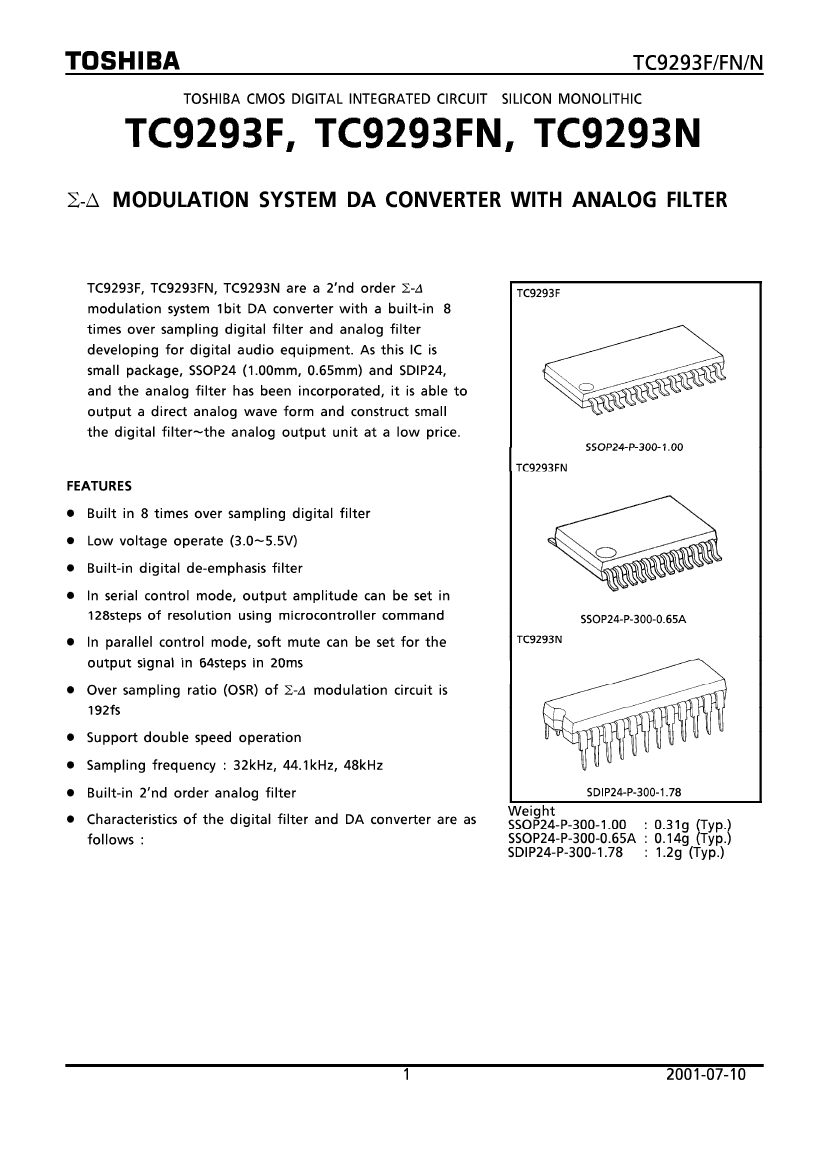

TC9293FN Overview

MODUALATION SYSTEM DA CONVERTER WITH ANALOG FILTERl

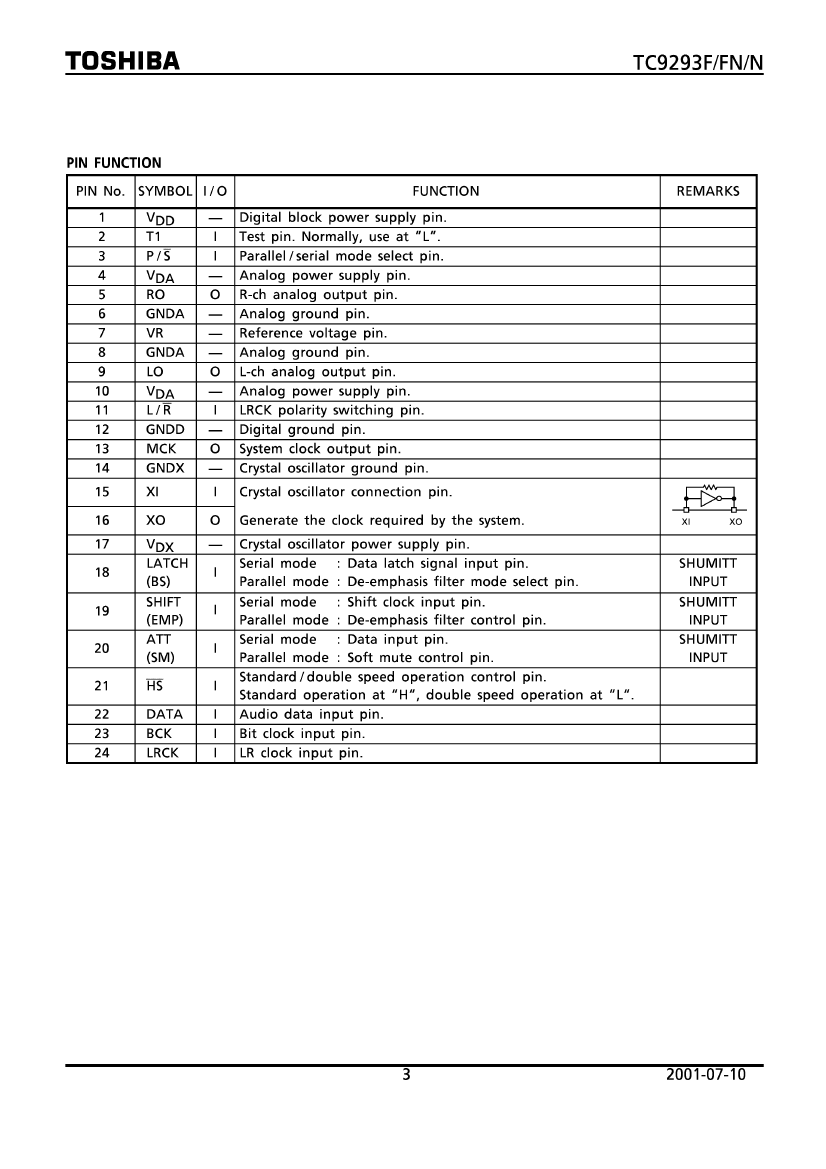

Parameter Name	Attribute value
Parts packaging code	SSOP
package instruction	LSSOP,
Contacts	24
Reach Compliance Code	unknow
Other features	CAN ALSO OPERATE WITH 4.5V TO 5.5V AT -35 TO 85 DEGREE CENTIGRADE
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	R-PDSO-G24
JESD-609 code	e0
length	7.8 mm
Number of functions	1
Number of terminals	24
Maximum operating temperature	55 °C
Minimum operating temperature	-15 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Certification status	Not Qualified
Maximum seat height	1.6 mm
Maximum slew rate	20 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	5.6 mm
Base Number Matches	1

	TC9293FN	TC9293	TC9293F	TC9293N
Description	MODUALATION SYSTEM DA CONVERTER WITH ANALOG FILTERl	MODUALATION SYSTEM DA CONVERTER WITH ANALOG FILTERl	MODUALATION SYSTEM DA CONVERTER WITH ANALOG FILTERl	MODUALATION SYSTEM DA CONVERTER WITH ANALOG FILTERl
