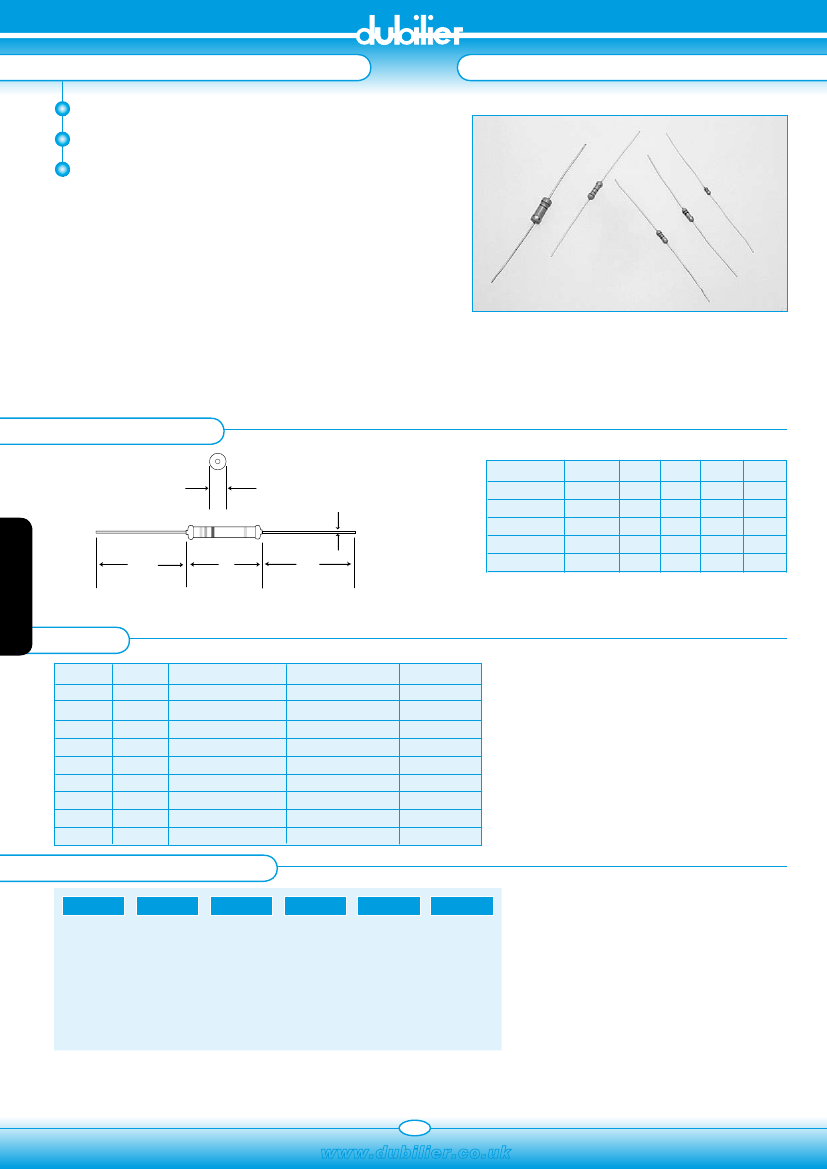

RESISTORS
Cost effective
CARBON FILM DCR
SECTION 1
High stock levels
Zero-ohm link available
The DCR range is available in power ratings from 1/6W to 2W. All
product is taped, with special taping forms available as an option. All
product is manufactured to specifications ELA RS196A, JLS-C-6402
and IEC-115.
Typical applications will range from consumer products to
computing and automotive uses.
All DCR’s are recognisable by their pale beige colour, and easily
readable EIA colour coding.
Operating Temperature
-55°C to 155°C
OUTLINE DRAWING
D
d
H
L
H
Normal
DCR12
DCR25
DCR50
DCR100
DCR200
Small size
DCR25SS
DCR50SS
DCR100SS
DCR200SS
L
3.3+0.4
6.3+0.5
9.0+0.5
11.5+1.0
15.5+1.0
øD
1.8+0.3
2.3+0.3
3.2+0.5
4.5+0.5
5.0+0.5
H
28+2.0
28+2.0
26+2.0
35+2.0
32+2.0
ød
0.5+0.05
0.6+0.05
0.6+0.05
0.8+0.05
0.8+0.05
SECTION 4
RANGE
Type
DCR12
DCR25
DCR25SS
DCR50
DCR50SS
DCR100
DCR100SS
DCR200
DCR200SS
Power/W
0.166
0.33
0.25
0.5
0.5
1
1
2
2
Max. Working Voltage/V
150
250
200
350
300
500
400
500
500
Max. Overload Voltage
300
500
400
700
600
1000
800
1000
1000
Range
1Ω-10MΩ E24
1Ω-10MΩ E24
1Ω-10MΩ E24
1Ω-10MΩ E24
1Ω-10MΩ E24
1Ω-10MΩ E24
1Ω-10MΩ E24
1Ω-10MΩ E24
1Ω-10MΩ E24
ORDERING INFORMATION
DCR
25
Type
12 = 0.166W
25 = 0.33W
25SS = 0.25W
50 = 0.50W
50SS = 0.50W
100 = 1W
100SS = 1W
200SS = 2W
200 = 2W
5
Tolerance
5%
T
Taping
T = Tape
& Ammo
BD = Tape/Reel
10K
Value
in ohms
*
*
Parts also available with 26mm width taping - add PT26 to end of part number Weldable type with copper lead wire
available to special order Taping specification available on page 134.
DCR 50 becoming obsolete - 50 SST.
126
www.dubilier.co.uk
CARBON FILM DCR

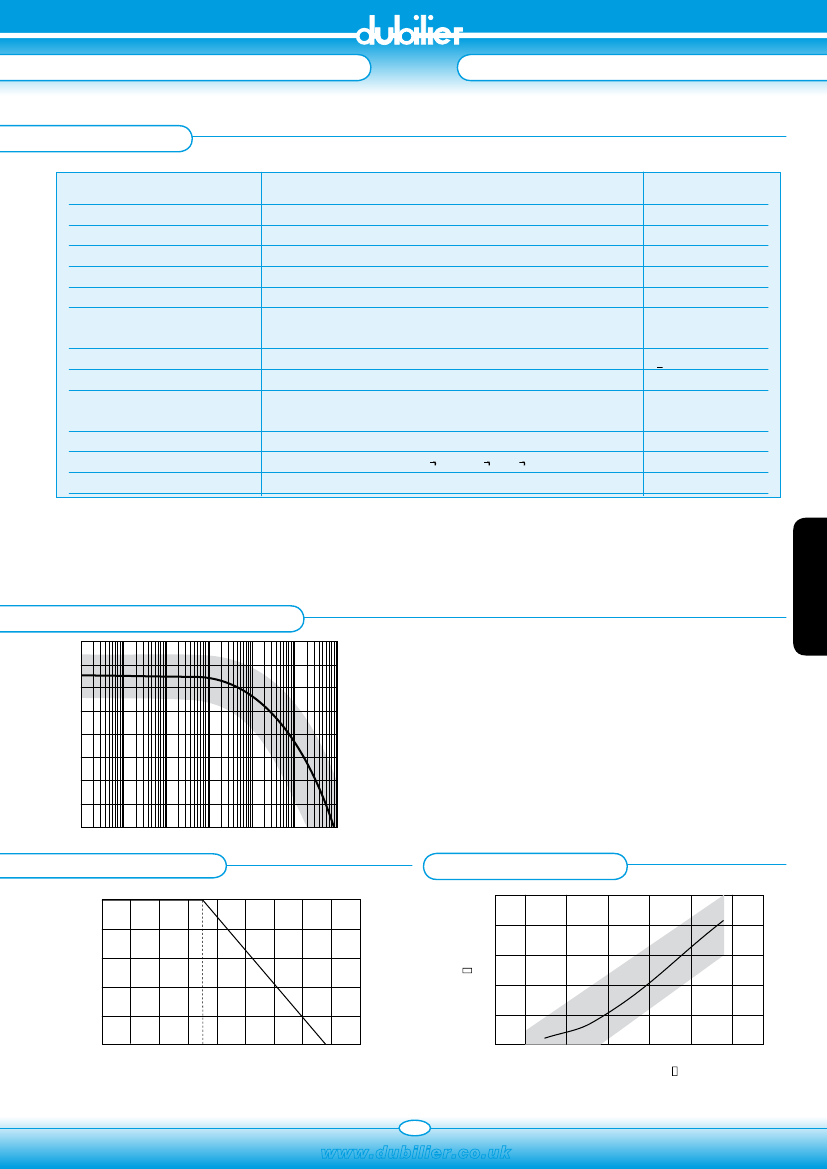

SPECIFICATION
PERFORMANCE TEST
Short Time Overload
Dielectric Withstanding Voltage
Temperature Coefficient of Resistance
Insulation Resistance
Solderability
Resistance to Solvent
Terminal Strength
Pulse Overload
Load Life in Humidity
Load Life
Temperature Cycling
Resistance to Soldering Heat
TEST METHOD
JIS-C-5202 5.5
JIS-C-5202 5.7
JIS-C-5202 5.2
JIS-C-5202 5.6
JIS-C-5202 6.5
JIS-C-5202 6.9
2.5 Times RCWV for 5 seconds
in V- Block for 60 seconds
-55˚C to 155˚C
in V-Block
260˚C for ±5 Seconds
Trichloroethane for 1 Min. with Ultrasonic
APPRAISE
± (0.75%+0.05Ω)
by Type
by Type
>1000MΩ
95% Min. Coverage
No Deterioration of
coatings & markings
>2.5kg (24.5N)
±(1%+0.05Ω)
±(3%+0.05Ω)
±(3%+0.05Ω)
±(1%+0.05Ω)
±(1%+0.05Ω)
Direct Load for 10 Sec. in The Direction of Terminal Leads
JIS-C-5202 5.8
4 Times RCWV 10000 Cycles (1 Sec. on, 25 Sec. off)
40±2˚C, 90~95% RH at RCWV for 1000 hrs.
JIS-C-5202 7.9
(1.5 Hrs. on, 0.5 Hrs. off)
JIS-C-5202 7.10
70˚C at RCWV for 1000 Hrs. (1.5 Hrs. on, 0.5 Hrs off)
JIS-C-5202 7.4
-55˚C Room Temp. 155˚C Room Temp. for 5 Cycles
JIS-C-5202 6.4
350˚C ± 10˚C for 3±0.5 seconds
*Rated Continuous Working Voltage (RCWV) = √ Power Rating x Resistance Value
TEMPERATURE COEFFICIENT
0
100
200
300
400
500
600
700
800
10
100
1k
10k
100k
1M
10M
POWER DE-RATING
100
Percent Rated Load
80
60
40
20
0
0
20
40
70
100 120 140 155
Ambient Temperature /ϒ
C
180
CURRENT NOISE
10
3.0
V/V
1.0
0.3
0.1
0.03
100
1k
10k
100k
Nominal Resistance /
1M
10M
127
www.dubilier.co.uk
SECTION 4
