Power Entry Modules with Line Filter
https://www.schurter.com /PG06
5150

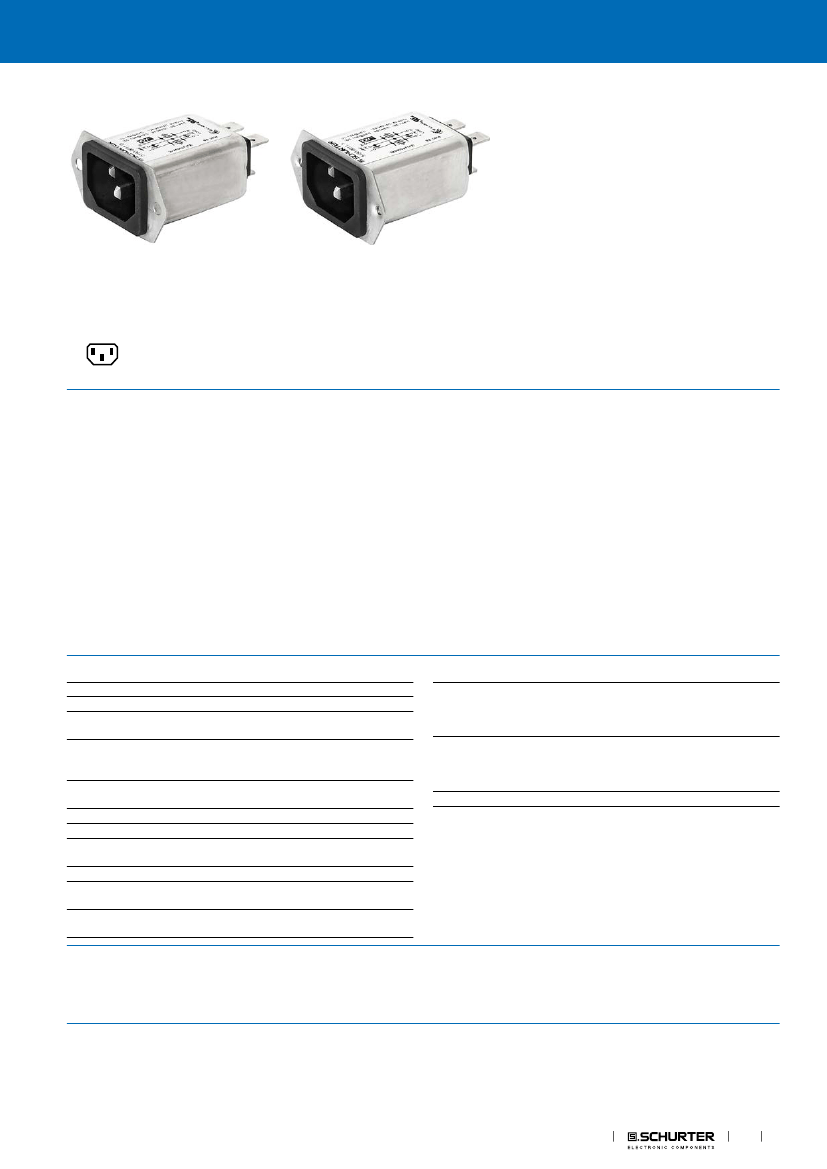

IEC Appliance Inlet C14 with High Frequency Filter, X2Y Technology, ECO design, Front- or Rear Side
Mounting
Screw or rivet fastening
from front or rear side
Screw-on mounting from rear side
(integrated thread)
C14
70° C
Approvals and Compliances
Description
- Panel Mount :
Screw-on version from front or rear side
- 2 Functions :
Appliance Inlet , High frequency line filter as standard, industrial and
medical version , Protection class I
- Quick connect terminals 6.3 x 0.8 mm
Characteristics
Unique Selling Proposition
-
-
-
-
Filter for highest frequencies
X2Y® Technology
Double shielding for best filter performance
Metal flange for optimal shielding
- Very compact filter for frequencies up to 1 GHz
Patented X2Y Technologie for broadband high frequency filtering
- Double shielding for best filter performance
One single filter design for the given current range
- Designed for standard, industrial and medical applications
Suitable for assembly in metal plated plastic housings
- Suitable for use in equipment according to IEC 60950/60601
Suitable for use in medical equipment according to IEC/UL 60601-1
Other versions on request
Weblinks
- Solder terminals
- Variant with notch for V-Lock mating Cordsets
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Accessories, Detailed request for product, Microsite
Newly available variants corresponding to V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset.
The cord latching system prevents against accidental removal of the cordset.
Technical Data
Ratings IEC
Ratings UL/CSA
Leakage Current
Dielectric Strength
10 A @ Ta 40 °C / 250 VAC; 50 Hz
15 A @ Ta 40 °C / 250 VAC; 60 Hz
standard < 0.5 mA (250 V / 60 Hz)
medical < 43/80 µA (250 V / 60 Hz)
> 1.7 kVDC between L-N
> 2.7 kVDC between L/N-PE
Test voltage (2 sec)
-25 °C to 85 °C
25/085/21 acc. to IEC 60068-1
from front side IP 40 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
Quick connect terminals 6.3 x 0.8 mm
Screw: max 8 mm
Mounting screw torque max 0.5 Nm
Themoplast / steel tin-plated, black /
metallic, UL 94V-0
appliance inlet/-outlet
C14 acc. to IEC 60320-1,
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 10 A,
Protection Class I
Standard, medical and industrial ver-
sion, IEC 60939, UL 1283, CSA C22.2
no. 8
Technical Details
> 3'300'000 h acc. to MIL-HB-217 F
Line Filter
Allowable Operation Tempe-
rature
Climatic Category
IP-Protection
Protection Class
Terminal
Panel Thickness S
Material: Housing
MTBF
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
EMC Products
1
5150
Approvals
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: 5150
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
Certificate Number: 40023426
UL File Number: E72928
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 60939
IEC 60127-6
IEC 61058-1
UL 498
UL 1283
CSA C22.2 no. 42
CSA C22.2 no. 8
Description
Appliance couplers for household and similar general purposes
Passive filters for suppressing electromagnetic interference
Miniature fuses. Part 6. Fuse-holders for miniature fuse-links
Switches for appliances. Part 1. General requirements
Standard for Attachment Plugs and Receptacles
Electromagnetic interference filters
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Electromagnetic interference (EMI) filters
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Designed for applications acc.
Standard
IEC/UL 60950
IEC 60601-1
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Medical electrical equipment - Part 1: General requirements for basic
safety and essential performance
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
V-Lock system are based on a matching plug-dose combination. The
connector is equipped with a notch intended for use with the latching
cordset. The cord latching system prevents against accidental removal of
the cordset.
Suitable for use in medical equipment according to IEC/UL 60601-1
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
MicrositeV-Lock
SCHURTER AG
Medical Equipment
SCHURTER AG
2
EMC Products
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
5150

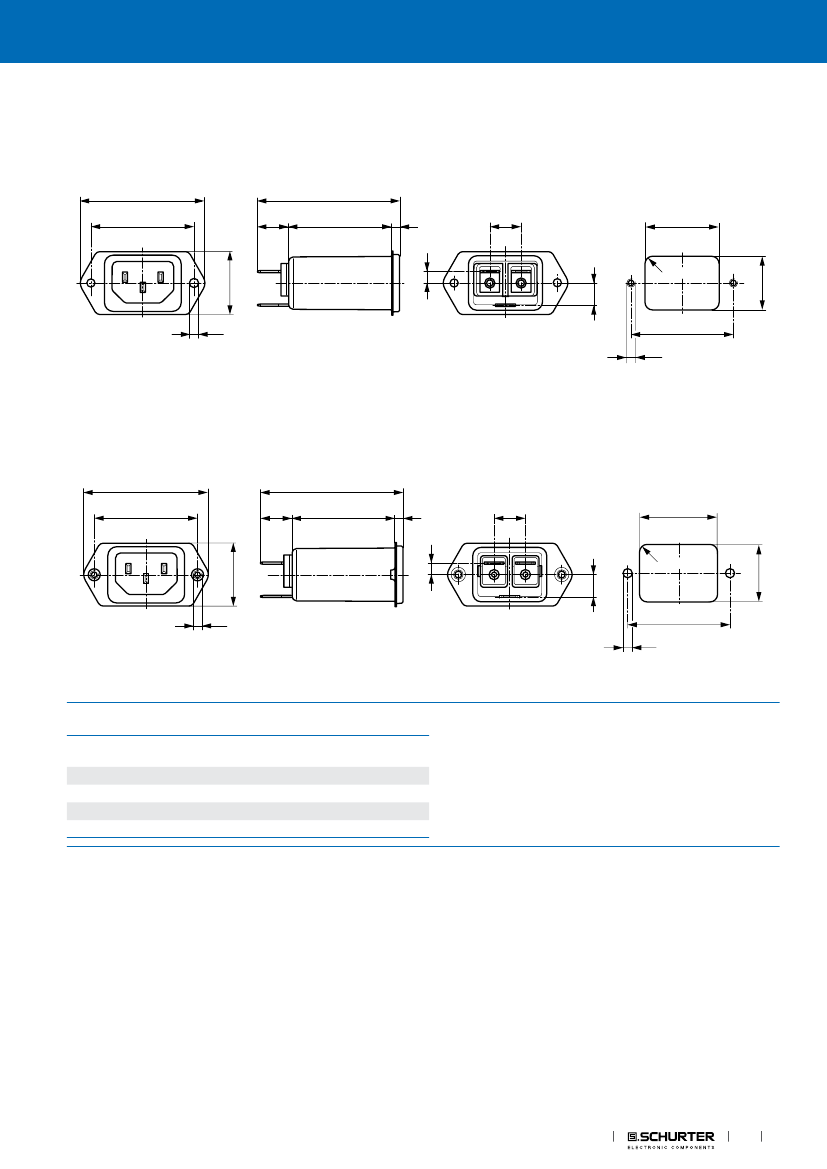

Dimension [mm]
Front or rear side mounting for screws with nuts or blind rivets (panel cutout for frontside mounting)
48.6
40
12
54.5
39.5
3
12
29
±0.1
24.6
4.4
max.R3
8.5
3.6
M3
40
±0.10
Rear side mounting with pre-formed, threaded holes for M3 screws (panel cutout for rear side mounting)
48.6
40
12
54.5
39.5
3
12
30.5
±0.1
24.6
4.4
max.R3
8.5
M3
3.6
40
±0.10
Technical Data of Filter-Components
Rated Current
[A]
10
10
10
10
Filter-Type
Standard Version
Standard Version with Bleed Resistor
Industrial Version
Medical Version (M80)
Capacitance
CY [nF]
2.5
2.5
4.7
0.45
R [MΩ]
-
1
-
1
EMC Products
3
22.5
±0.1
21.5
±0.1
5150

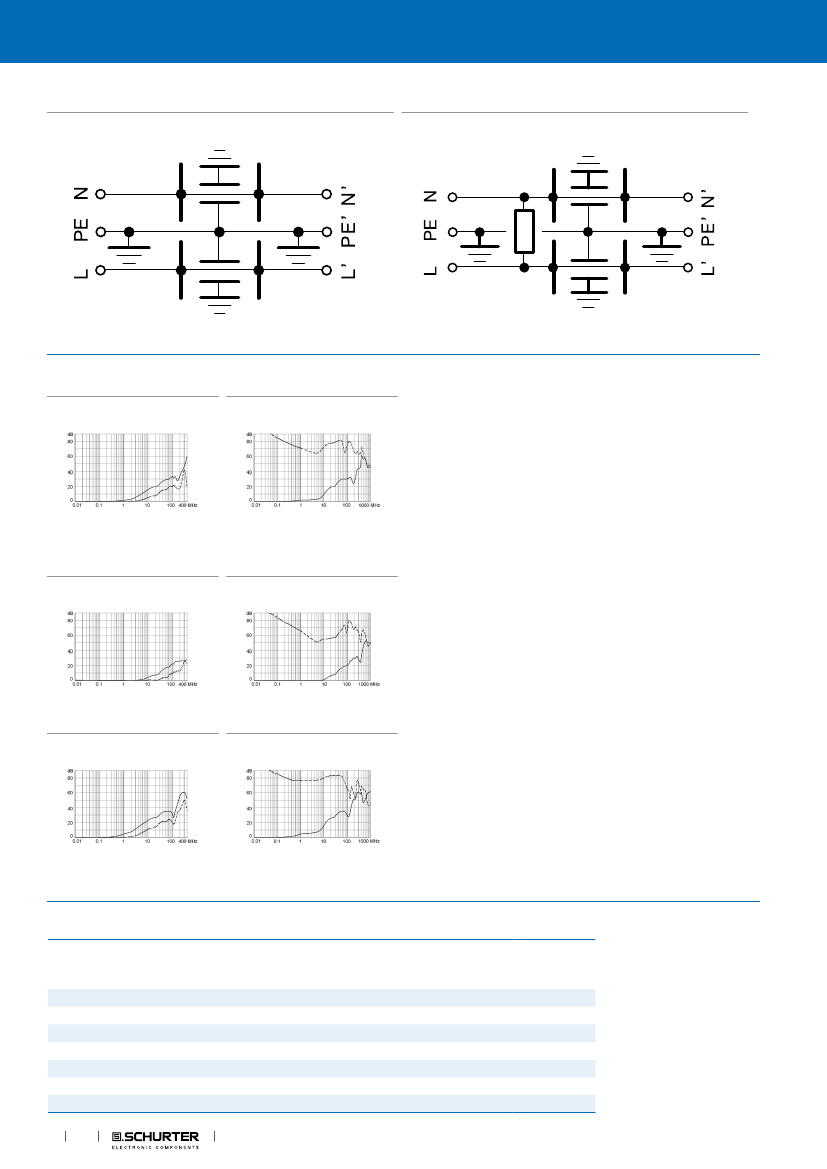

Diagrams
Standard and industrial version
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
Medical M80 and standard version with bleed resistor
1)
2)
1)
2)
1) Line
2) Load
1) Line
2) Load
- - - - 50Ω differential mode _____ 50Ω common mode
Attenuation Loss
Standard version
CISPR 17 Test Method
Alternate Test Method
same attenuation loss with bleed resistor
Medical version (M80)
CISPR 17 Test Method
Alternate Test Method
Industrial version
CISPR 17 Test Method
Alternate Test Method
Comment about alternate test method
see table of variants
All Variants
Rated Current
IEC [A]
10
10
10
10
10
10
10
10
Rated Current
UL [A]
15
15
15
15
15
15
15
15
Filter-Type
Standard Version
Standard Version
Standard Version with Bleed Resistor
Standard Version with Bleed Resistor
Industrial Version
Industrial Version
Medical Version (M80)
Medical Version (M80)
Panel mounting
Screw-on/Rivet
Screw
Screw-on/Rivet
Screw
Screw-on/Rivet
Screw
Screw-on/Rivet
Screw
Mounting side
Front-/Rear-Side
Rear Side
Front-/Rear-Side
Rear Side
Front-/Rear-Side
Rear Side
Front-/Rear-Side
Rear Side
Order Number
5150.0011.0
5150.0011.1
5150.0021.0
5150.0021.1
5150.0041.0
5150.0041.1
5150.0031.0
5150.0031.1
4
EMC Products
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
5150
Panel mounting
Mounting side
Order Number
Rated Current
IEC [A]
Rated Current
UL [A]
Filter-Type
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
The Alternate Test Method allows the measurement in the GHz frequency range whereas the CISPR 17 method does not cover
frequencies above 30MHz. The insertion loss is measured in a throughput method (common mode) and a cross coupled method
(differential mode). The differential mode measurement of the alternate test method is not directly comparable to the conventional
measurement acc. CISPR 17.
Further information on the X2Y filter technology and on the alternate insertion loss measurement method can be found under www.
schurter.com/info_emc

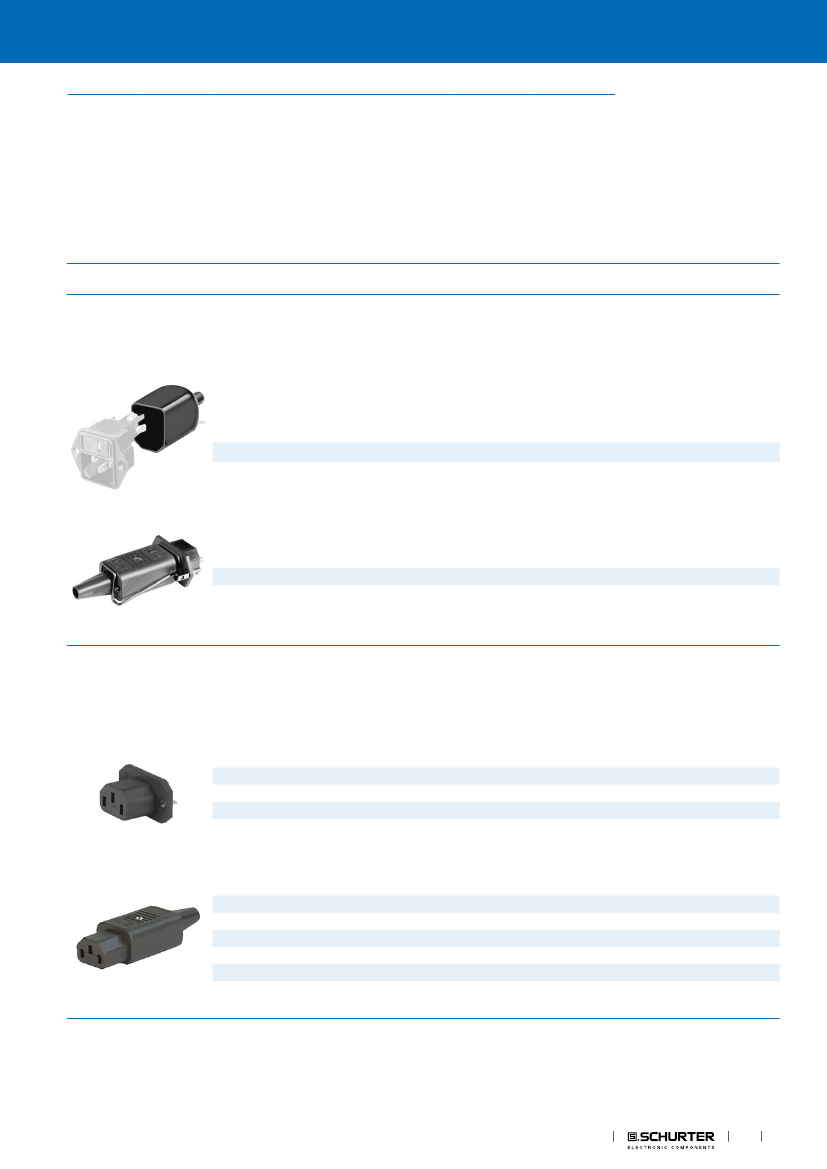

Packaging unit
Accessories
10 Pcs
Description
Assorted Covers
Rear Cover
0859.0048
Cord retaining kits
Cord retaining strain relief
Flat head, E
Flat head, G
4700.0005
4700.0007
Mating Outlets/Connectors
Category / Description
Appliance Outlet Overview complete
IEC Appliance Outlet F, Screw-on Mounting, Front Side, Solder Terminal
IEC Appliance Outlet F, Snap-in Mounting, Front Side, Solder or Quick-connect Terminal
IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder, PCB or Quick-connect Terminal
Appliance Outlet further types to 5150
4787
4788
5091
Connector Overview complete
4782 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13
4022 Mounting: Power Supply Cord, 3 x 1.5 mm², Screw clamps, Connector: IEC C13
4785 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13
4300-06 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13
4012 Mounting: Power Supply Cord, 3 x 1.5 mm², Screw clamps, Connector: IEC C13
Connector further types to 5150
4782
4022
4785
4300-06
4012
...
EMC Products
5
