REVISION AF
DO NOT
SCALE FROM
THIS PRINT
.078±.010
C
(No OF POSITIONS x .156) .010
C
FHP-XX-XX-XX-S-XX-XX
No OF POSITIONS
-02 THRU -24
(PER ROW)
[SEE POSITIONAL FILL VIEW]
LEAD STYLE
-01: THROUGH HOLE
(USE C-130-01-X)
-02: SURFACE MOUNT
(USE C-130-02-X)
OPTION
-TR: TAPE & REEL PACKAGING
(T&R AVAILABLE FOR 2 THRU 18 POS)
(SEE NOTES 6 & 10)
OPTION
-LC: LOCKING CLIP (USE LC-05-TM)
(-02 LEAD STYLE ONLY, SEE NOTE 11)
-A: ALIGNMENT PIN (USE FHP-XX-S-A)
(SEE FIG 2)(-02 LEAD STYLE ONLY)
-K: POLYIMIDE FILM PAD
(SEE FIG 3, SHT. 2)(USE K-DOT-.256-.375-.005)
(-02 LEAD STYLE ONLY)
( AVAILABLE ON POSITIONS 2-24,
2-4 POSITIONS MUST BE IN -TR)
ROW SPECIFICATION
-S: SINGLE (USE FHP-XX-S)
(No OF POSITIONS -1) X .156) .003
.200 (REF)
01
02
.045 REF
FHP-XX-S
.100 REF
"A"
90°
C-130-02-X
.350 REF
C
(SEE NOTE 9)
+.004
.368
- .002
C
SEE NOTE 2
PLATING SPECIFICATION
-T: MATTE TIN CONTACT AND TAIL (USE C-130-XX-T)
-TM: MATTE TIN CONTACT AND TAIL (USE C-130-XX-T)
-H: 30µ" GOLD IN CONTACT AREA,
3µ" GOLD ON TAIL (USE C-130-XX-H)
'B'
3 MAX SWAY
"A"
[FHP-10-02-X-S SHOWN]
FIG 1
.018 REF
.280 REF
'A'
SECTION "A"-"A"
STYLE -02
C
.102±.003
3 MAX SWAY
ALL LEADS TO BE IN THE
SAME DIRECTION
(EITHER DIRECTION)
C-130-01-X
.097 REF
2 MAX TOE
FHP-XX-S-A
.042
LC-05-TM
.056 REF
2 MAX
SWAY
NOTES:
STYLE -01
.010 REF
(No OF POSITIONS x .156) -.312
.0470
.0400
-LC OPTION
-A OPTION
[-LC & -A OPTIONS ONLY AVAILABLE ON -02 LEAD STYLE]
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
-LC & -A OPTIONS
FIG 2
1.
REPRESENTS A CRITICAL DIMENSION.
2. COPLANARITY TO BE WITHIN .006".
3. BURR ALLOWANCE: .0015 MAX.
4. MAXIMUM CUT FLASH: .020.
5. MINIMUM PUSHOUT FORCE: 1.0 LB.
6. LAYER PACKAGE STYLE -01 & -02, POSITIONS 02 - 04 WITH NO OPTIONS ONLY.
7. OPEN PART OF CONTACT FILLED TOWARDS #1 PIN INDICATOR
8. MINIMUM WALL THICKNESS TO BE .010".
9. MEASURED @ BEND.
10. TUBE PACKAGING AVAILABLE FOR 5 THRU 24 POSITIONS.
11. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE –LC OPTION
IS NOT COMPATIBLE WITH AUTO PLACEMENT. SAMTEC RECOMMENDSMANUAL
PLACEMENT FOR ALL ASSEMBLIES WITH THE –LC OPTION
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
POSITIONAL FILL VIEW
FINISHED PART
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
.XX: .01
.XXX: .005
.XXXX: .0020
ANGLES
2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
MATERIAL:
4 POSITION SHOWN
[PRIOR TO CUT-TO-POSITION OPERATION]
MATERIAL: VECTRA E130i
COLOR: BLACK
CONTACT: BeCu, 174HT
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1

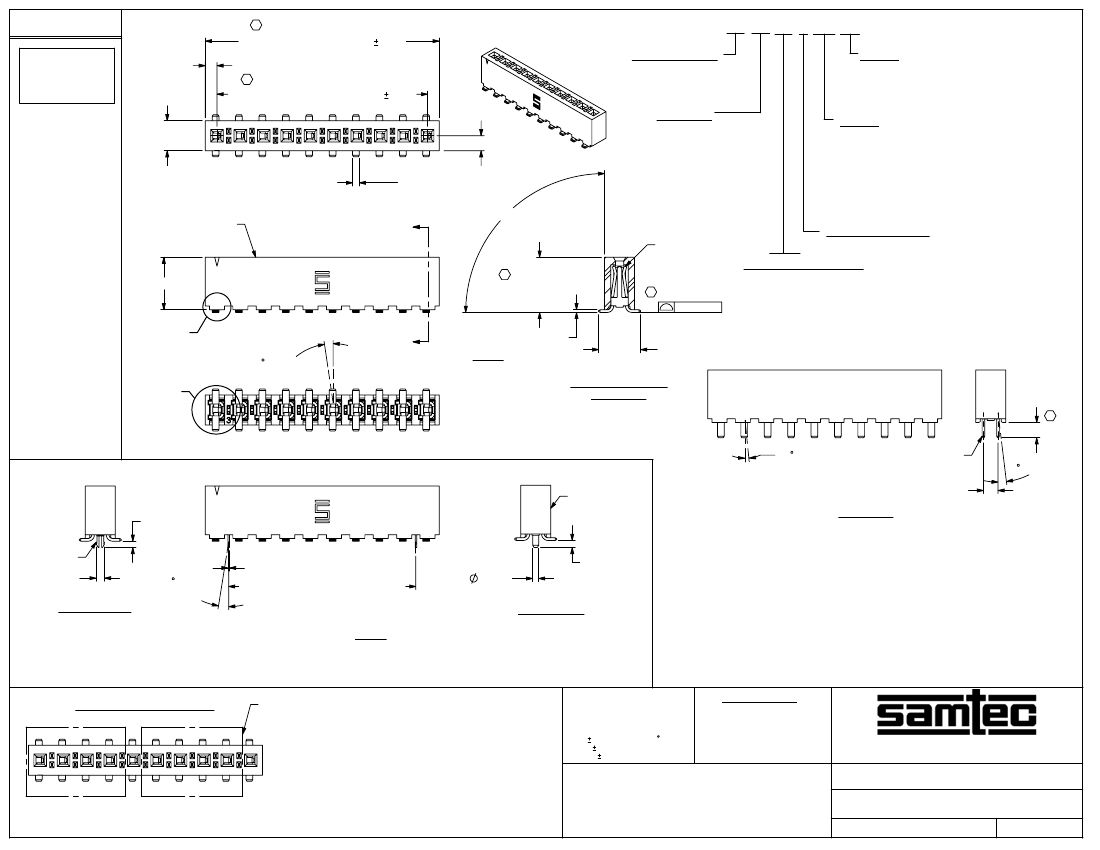

.156 HI POWER SOCKET ASSEMBLY
DWG. NO.
FHP-XX-XX-XX-S-XX-XX
SHEET
1
OF
2
F:\DWG\MISC\MKTG\FHP-XX-XX-XX-S-XX-XX-MKT.SLDDRW
BY:
BRATCHER 03/01/99
REVISION AF
"M"
"P"
.374 9.500
.256 .010 [6.500 .25]
NOTE: "M" = USED MEASURED DIMENSION (REF)
"P" = {("M" - .256 [6.50]) / 2} .020 [.51]

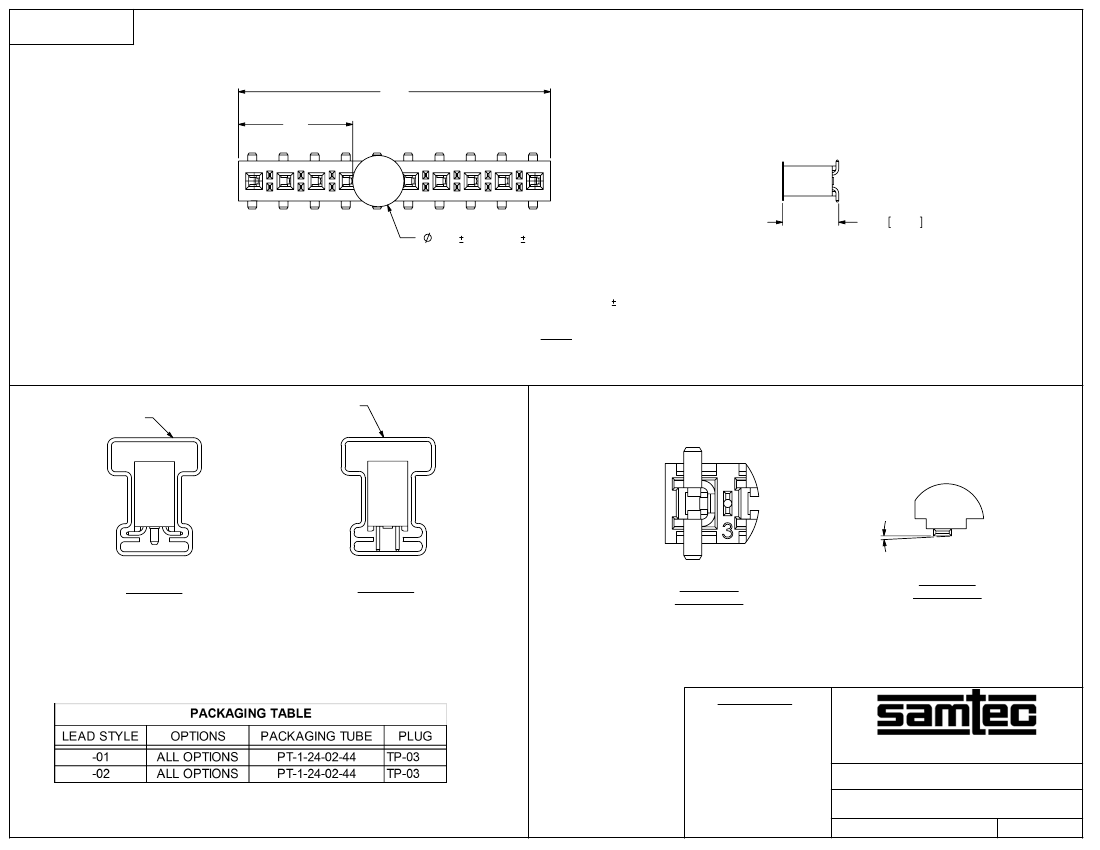

FIG 3
-K: POLYIMIDE FILM PAD OPTION
(SHOWN: FHP-10-02-X-S-K)
PT-1-24-02-44
PT-1-24-02-44
3° MAX TWIST
STYLE -02
(WITH ALIGNMENT PIN)
STYLE -01
DETAIL 'A'
SCALE 4 : 1
(SHOWN FOR
CONTACT ORIENTATION)
DETAIL 'B'
SCALE 4 : 1
(TUBE PACKAGING AVAILABLE FOR 5 THRU 24 POS)
(TUBE PACKAGE THE PARTS WITH #1 PIN TOWARDS ARROW)
F:\DWG\MISC\MKTG\FHP-XX-XX-XX-S-XX-XX-MKT.SLDDRW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.666667
.156 HI POWER SOCKET ASSEMBLY
FHP-XX-XX-XX-S-XX-XX
SHEET
2
OF
2
BY:
BRATCHER 03/01/99
