YH25-R-03 datasheet, PDF - EEWORLD Datasheet

YH25-R-03: DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size125KB，1 Pages; ManufacturerMorethanall Co., Ltd.; Websitehttp://www.morethanall.com

Download Datasheet Parametric View All

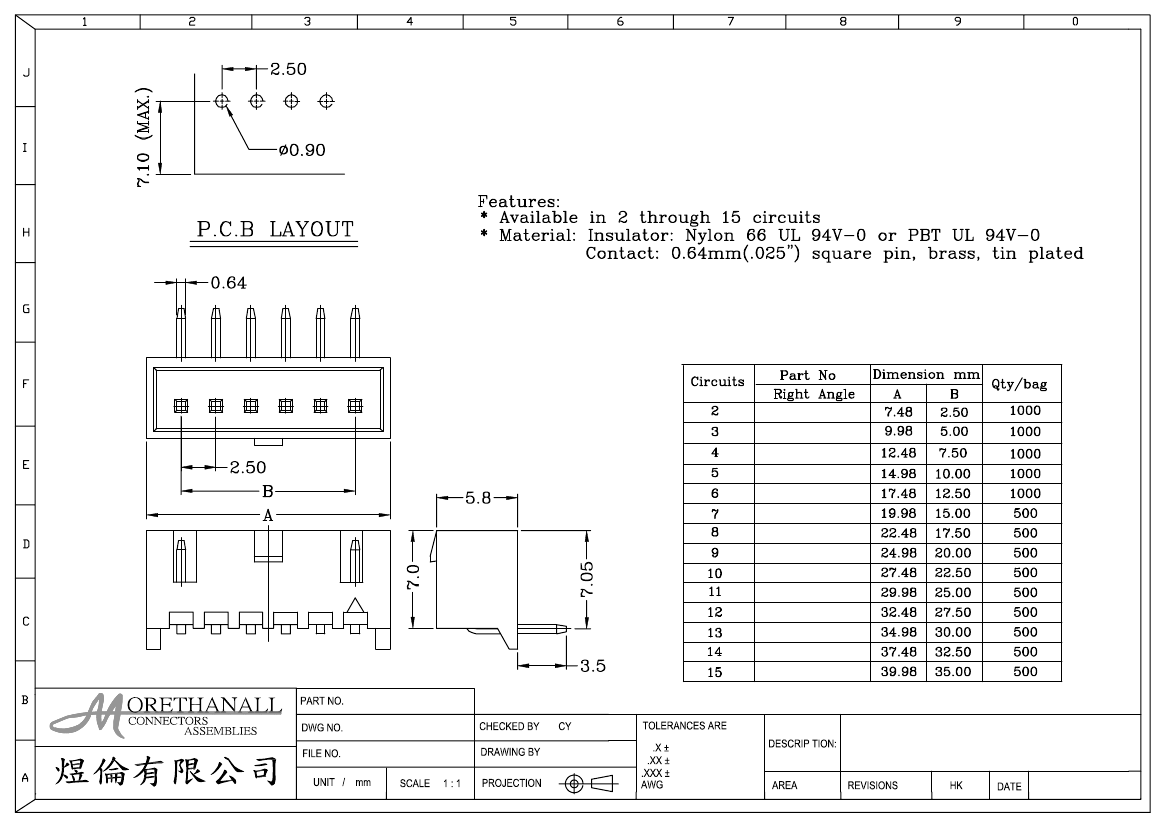

YH25-R-03 Overview

Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Receptacle

Parameter Name	Attribute value
Objectid	303897056
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	0.64MM SQ PIN
body width	0.228 inch
body length	0.393 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Filter function	NO
insulator material	POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.098 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Guideline	UL
Terminal length	0.138 inch
Terminal pitch	2.4892 mm
Termination type	SOLDER
Total number of contacts	3

YH-R-02

YH-R-03

YH-R-04

YH-R-05

YH-R-06

YH-R-07

YH-R-08

YH-R-09

YH-R-10

YH-R-11

YH-R-12

YH-R-13

YH-R-14

YH-R-15

YH25-R-xx
