EP15 Series Oscillator
Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 3.3Vdc J-Lead 9.8mm x 14.0mm Plastic Surface Mount (SMD)
2011/65 +
2015/863
168 SVHC
Revision F 03/25/2014
Electrical Specifications
Nominal Frequency
1.000MHz to 106.250MHz
Some frequencies within this range may not be available.
Frequency Tolerance/Stability
(Inclusive of all conditions: Calibration Tolerance at 25°C, Frequency
Stability over the Operating Temperature Range, Supply Voltage
Change, Output Load Change, First Year Aging at 25°C, Shock, and
Vibration)
±100ppm Maximum
±50ppm Maximum
-20°C to +70°C
-40°C to +85°C
3.3V
DC
±0.3V
DC
28mA Maximum (Unloaded)
V
DD
-0.4V
DC
Minimum, IOH = -8mA
0.4V
DC
Maximum, IOL = +8mA
Measured at 50% of waveform
50 ±10(%)
50 ±5(%) (Only available over Nominal Frequency of 1MHz to 50MHz)
Measured at 20% to 80% of waveform
4nSec Maximum
30pF Maximum over Nominal Frequency of 1MHz to 50MHz
15pF Maximum over Nominal Frequency of 50.000001MHz to
106.25MHz
CMOS
Power Down (Disable Output: Logic Low)
Tri-State (Disabled Output: High Impedance)
70% of V
DD
Minimum to enable output, 20% of V
DD
Maximum to
disable output, No Connect to enable output
20 A Maximum (Pin 1 = Ground)
16mA Maximum (Pin 1 = Ground)
±250pSec Maximum, ±100pSec Typical over Nominal Frequency of
1MHz to 33MHz
±125pSec Maximum, ±75pSec Typical over Nominal Frequency of
33.000001MHz to 106.25MHz
±50pSec Maximum over Nominal Frequency of 1MHz to 33MHz
±40pSec Maximum over Nominal Frequency of 33.000001MHz to
106.25MHz
Operating Temperature Range
Supply Voltage (V
DD
)
Input Current
Output Voltage Logic High (V
OH
)
Output Voltage Logic Low (V
OL
)
Duty Cycle
Rise Time/Fall Time
Load Drive Capability
Output Logic Type
Pin 1 Connection
Tri-State Input Voltage (Vih and Vil)
Standby Current
Disable Current
Absolute Clock Jitter
One Sigma Clock Period Jitter
1 of 9
28-Jan-2016 2:01 PM
Ecliptek | EP15 Series Oscillator
http://www.ecliptek.com/oscillators/EP15/

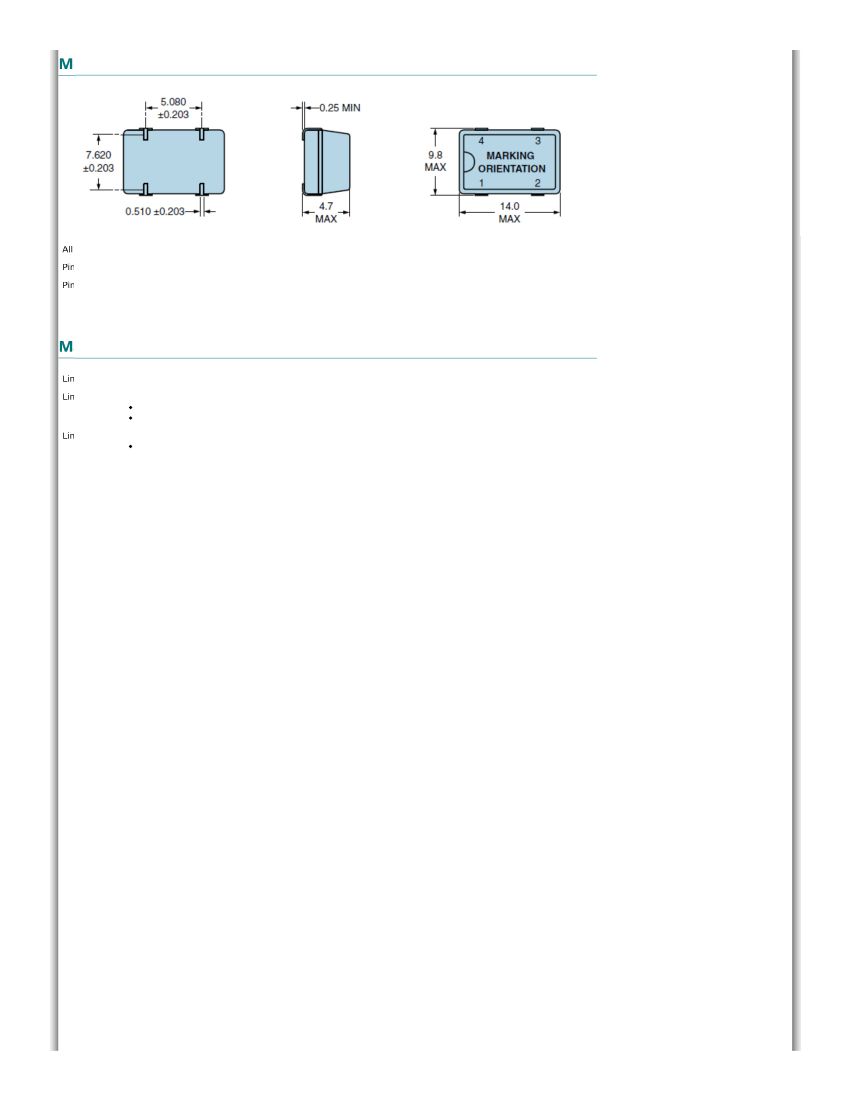

Mechanical Dimensions
All Dimensions in Millimeters
Pin 1: Power Down (Logic Low) or Tri-State (High Impedance)
Pin 2: Ground
Pin 3: Output
Pin 4: Supply Voltage
Marking Specifications
Line 1:
Line 2:
ECLIPTEK
XXXXXXM
XXXXXX = Nominal Frequency (5 Digits + Decimal)
M = Frequency unit of measure (MHz)
XXXXX
XXXXX = Ecliptek Manufacturing Identifier
Line 3:
3 of 9
28-Jan-2016 2:01 PM
Ecliptek | EP15 Series Oscillator
http://www.ecliptek.com/oscillators/EP15/
Environmental and Mechanical Specifications
Fine Leak Test
Gross Leak Test
Mechanical Shock
Resistance to Soldering Heat
Resistance to Solvents
Solderability
Temperature Cycling
Vibration
Thermal Resistance (θ
JA
)
Thermal Resistance (θ
JC
)
MIL-STD-883, Method 1014, Condition A
MIL-STD-883, Method 1014, Condition C
MIL-STD-202, Method 213, Condition C
MIL-STD-202, Method 210
MIL-STD-202, Method 215
MIL-STD-883, Method 2003
MIL-STD-883, Method 1010
MIL-STD-883, Method 2007, Condition A
81°C/W (degrees Celsius per Watt)
31°C/W (degrees Celsius per Watt)
4 of 9

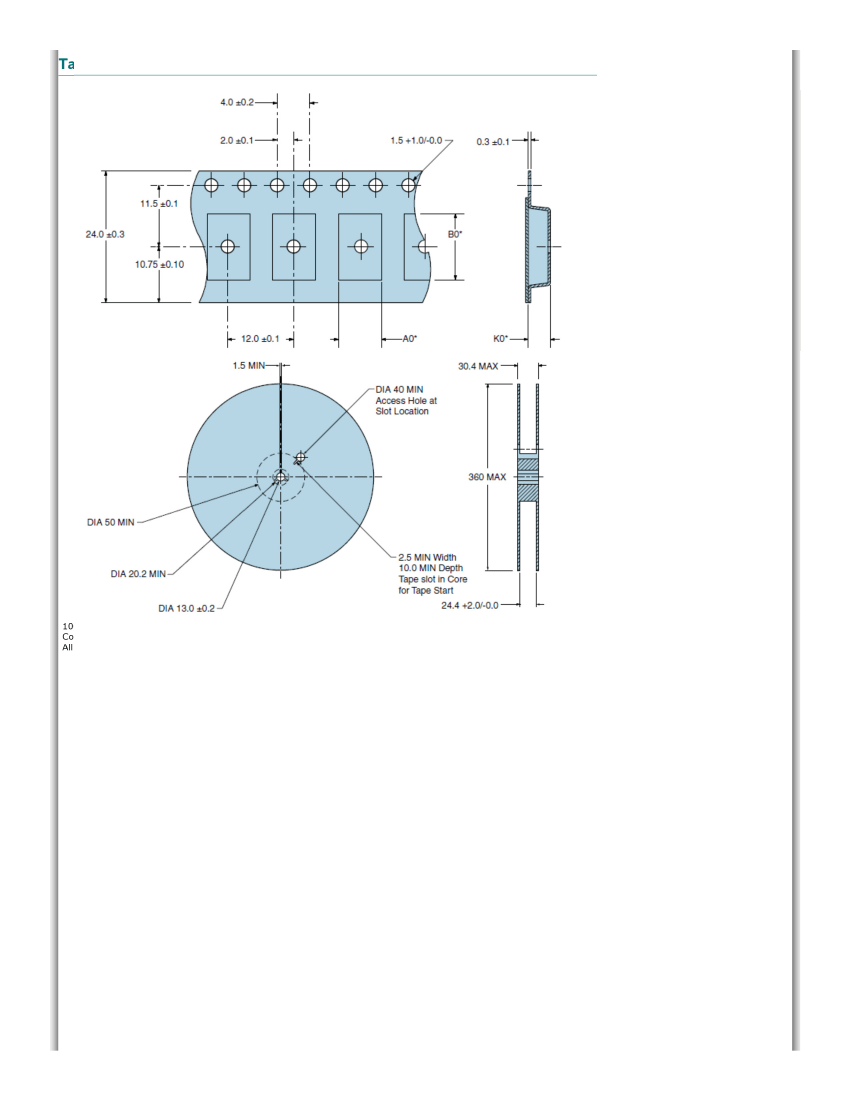

28-Jan-2016 2:01 PM
