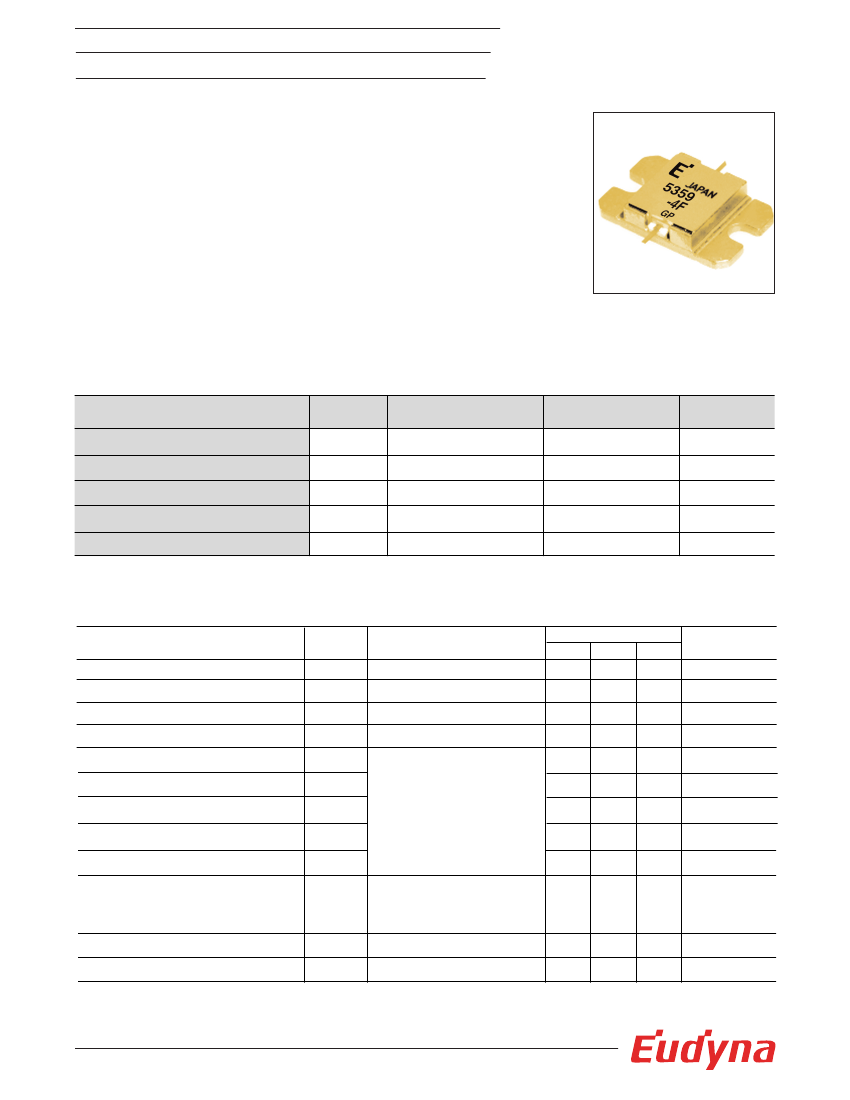

FLM5359-4F
C-Band Internally Matched FET
FEATURES
•
•
•
•
•
•
•
High Output Power: P1dB = 36.5dBm (Typ.)
High Gain: G1dB = 10.5dB (Typ.)
High PAE:
η
add = 37% (Typ.)
Low IM3 = -46dBc@Po = 25.5dBm
Broad Band: 5.3 ~ 5.9GHz
Impedance Matched Zin/Zout = 50Ω
Hermetically Sealed Package
DESCRIPTION
The FLM5359-4F is a power GaAs FET that is internally matched for
standard communication bands to provide optimum power and gain in a
50 ohm system.
Eudyna’s stringent Quality Assurance Program assures the highest
reliability and consistent performance.
ABSOLUTE MAXIMUM RATING (Ambient Temperature Ta=25°C)
Item
Drain-Source Voltage
Gate-Source Voltage
Total Power Dissipation
Storage Temperature
Channel Temperature
Symbol
VDS
VGS
PT
Tstg
Tch
Tc = 25°C
Condition
Rating
15
-5
25.0
-65 to +175
175
Unit
V
V
W
°C
°C
Eudyna recommends the following conditions for the reliable operation of GaAs FETs:
1. The drain-source operating voltage (VDS) should not exceed 10 volts.
2. The forward and reverse gate currents should not exceed 16.0 and -2.2 mA respectively with
gate resistance of 100Ω.
ELECTRICAL CHARACTERISTICS (Ambient Temperature Ta=25°C)
Item
Saturated Drain Current
Transconductance
Pinch-off Voltage
Gate Source Breakdown Voltage
Output Power at 1dB G.C.P.
Power Gain at 1dB G.C.P.
Drain Current
Power-added Efficiency
Gain Flatness
3rd Order Intermodulation
Distortion
Thermal Resistance
Channel Temperature Rise
CASE STYLE:
IB
Symbol
IDSS
gm
Vp
VGSO
P1dB
G1dB
Idsr
η
add
∆G
IM3
Rth
∆T
ch
Test Conditions
VDS = 5V, VGS = 0V
VDS = 5V, IDS = 1100mA
VDS = 5V, IDS = 90mA
IGS = -90µA
Min.
-
-
-1.0
-5.0
35.5
9.5
VDS =10V,
IDS
=
0.55 IDSS (Typ.),
f = 5.3 ~ 5.9 GHz,
ZS=ZL= 50 ohm
f = 5.9 GHz,
∆f
= 10 MHz
2-Tone Test
Pout = 25.5dBm S.C.L.
Channel to Case
10V x Idsr x Rth
-
-
-
-44
-
-
Limit
Typ. Max.
1950 2900
-
1000
-2.0
-
36.5
10.5
-3.5
-
-
-
Unit
mA
mS
V
V
dBm
dB
mA
%
dB
dBc
°C/W
°C
1100 1300
37
-
-46
5.0
-
-
±0.6
-
6.0
80
G.C.P.: Gain Compression Point, S.C.L.: Single Carrier Level
Edition 1.3
August 2004
1
FLM5359-4F
C-Band Internally Matched FET
POWER DERATING CURVE
30
OUTPUT POWER & IM3 vs. INPUT POWER
32
Total Power Dissipation (W)
24
Output Power (S.C.L.) (dBm)
30
28
26
24
22
20
VDS=10V
f1 = 5.9 GHz
f2 = 5.91GHz
2-tone test
Pout
18
-20
-30
IM3
6
-40
-50
0
50
100
150
200
8
10
12
14
16
18
20
22
Case Temperature (°C)
Input Power (S.C.L.) (dBm)
S.C.L.: Single Carrier Level
OUTPUT POWER vs. FREQUENCY
VDS=10V
38
P1dB
37
Pin=27dBm
OUTPUT POWER vs. INPUT POWER
VDS=10V
f = 5.6 GHz
38
36
34
32
30
28
Output Power (dBm)
36
35
24dBm
Output Power (dBm)
Pout
22dBm
34
33
20dBm
30
15
32
31
16
18
20
22
24
26
28
5.3 5.4 5.5
5.6 5.7
5.8 5.9
Frequency (GHz)
Input Power (dBm)
2
η
add (%)
η
add
45
IM3 (dBc)
12

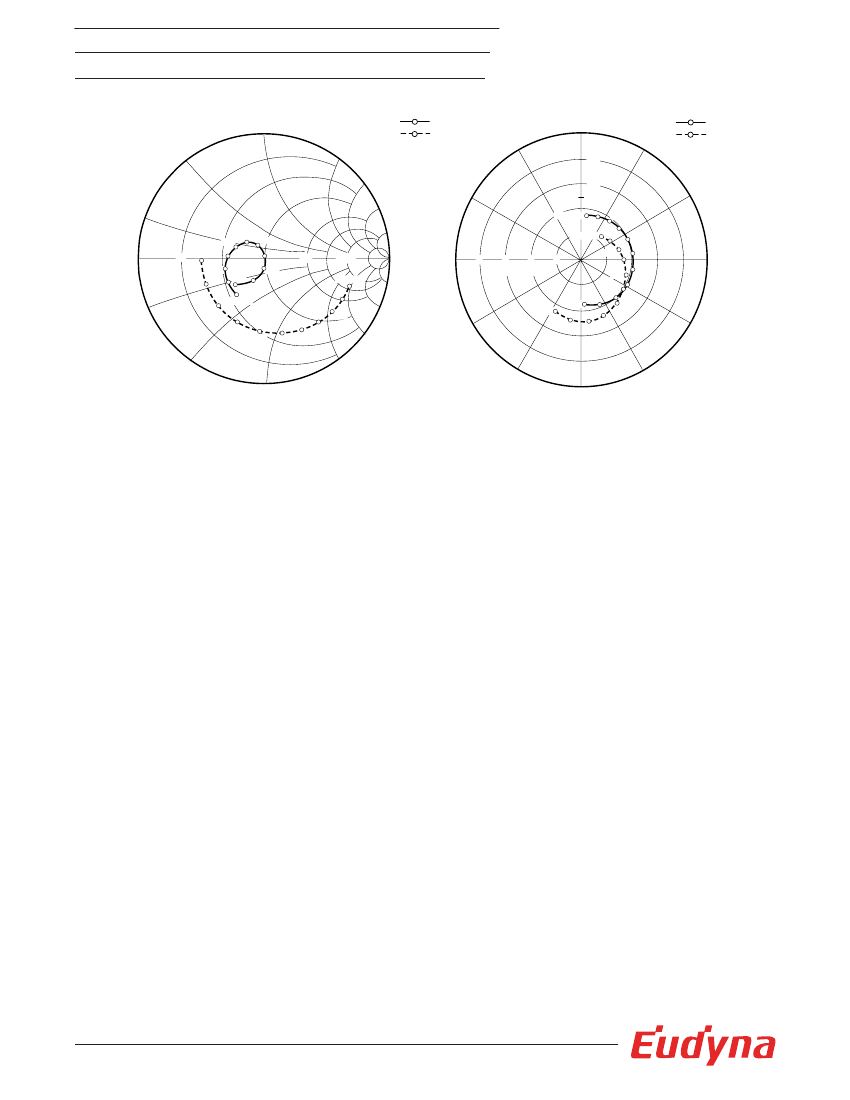

FLM5359-4F
C-Band Internally Matched FET
Case Style "IB"
Metal-Ceramic Hermetic Package
2.0 Min.
(0.079)
2-R 1.6±0.15
(0.063)
1
2
0.1
(0.004)
3
0.6
(0.024)
2.0 Min.
(0.079)
2.6±0.15
(0.102)
5.2 Max.
(0.205)
10.7
(0.421)
0.2 Max.
(0.008)
1.45
(0.059)
12.9±0.2
(0.508)
12.0
(0.422)
17.0±0.15
(0.669)
21.0±0.15
(0.827)
1. Gate
2. Source (Flange)
3. Drain
Unit: mm(inches)
